Taoglas

- Taoglas, the leading M2M antenna provider, delivers an extensive range of automotive, tracking, utility metering, and remote monitoring antenna solutions.

Additionaly Taoglas provides full wireless devices services, including antenna and device RF consultancy, custom antenna design, device noise debugging and testing services, and device certification and approval.

Founded in 2004, Taoglas has offices in Ireland, Taiwan, and the USA. Taoglas in Ireland, the USA, and Taiwan carry out Taoglas’ antenna design with production managed by Taoglas Taiwan.

Taoglas customers include top tier automotive, tracking, metering, and medical companies worldwide. For more information, visit www.taoglas.com.


Part Number

Manufacturer

Description

Unit Price

In Stock

DXP.01.A

Taoglas

Manufacturer : Taoglas Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Bands (Low / High) : 1.196GHz ~ 1.248GHz / 1.574GHz ~ 1.576GHz
Low Band Attenuation (min / max dB) : -
High Band Attenuation (min / max dB) : 25dB / 30dB
Return Loss (Low Band / High Band) : 12dB / 12dB
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead

980 в наличии

DXP.02.A

Taoglas

Manufacturer : Taoglas Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Bands (Low / High) : 1.196GHz ~ 1.248GHz / 1.574GHz ~ 1.576GHz
Low Band Attenuation (min / max dB) : 27dB / 33dB
High Band Attenuation (min / max dB) : 20dB / 28dB
Return Loss (Low Band / High Band) : 8dB / 13dB
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead

745 в наличии

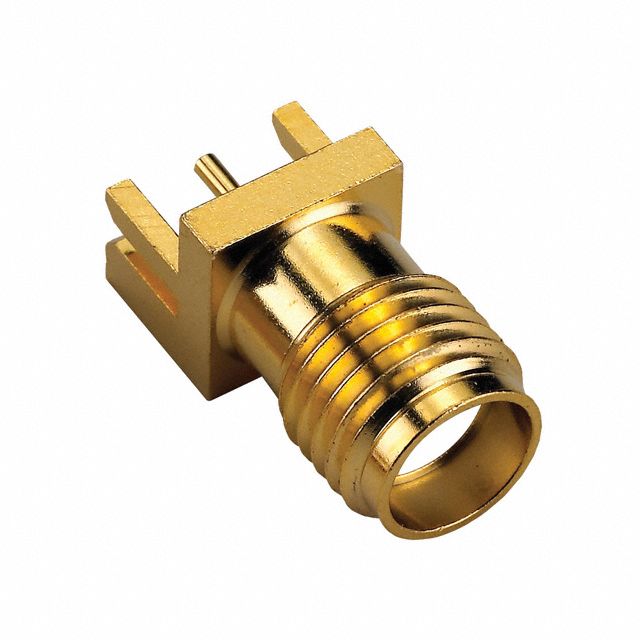

EMPCB.SMAFSTJ.B.HT

Taoglas

Manufacturer : Taoglas Limited
Packaging : Tray
Series : -
Part Status : Active
Connector Style : SMA
Connector Type : Jack, Female Socket
Contact Termination : Solder
Shield Termination : Solder
Impedance : 50 Ohm
Mounting Type : Board Edge, End Launch
Mounting Feature : -
Cable Group : -
Fastening Type : Threaded
Frequency - Max : 12.4GHz
Number of Ports : 1
Features : -
Housing Color : Gold
Ingress Protection : -

4770 в наличии

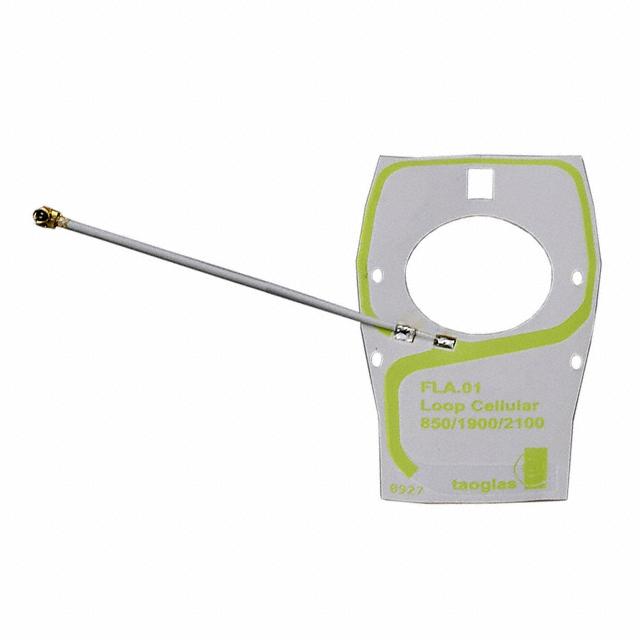

FLA.01.07.0045A

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Obsolete
Frequency Group : Wide Band
Frequency (Center/Band) : 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range : -
Antenna Type : Flat Patch
Number of Bands : 5
VSWR : 2.5
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : Connector, IPEX MHFII
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.031" (0.80mm)
Applications : GSM

100 в наличии

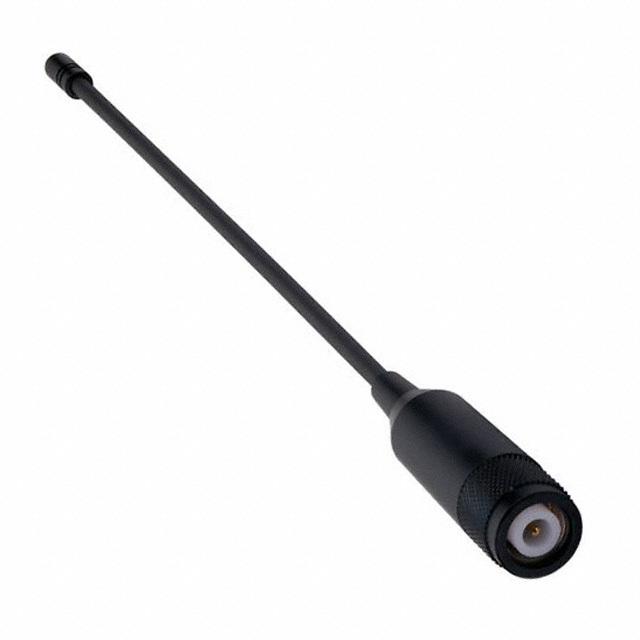

FW.24.NTY.M

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Whip, Straight
Number of Bands : 1
VSWR : 3
Return Loss : -
Gain : 4.5dBi
Power - Max : 2W
Features : -
Termination : Connector, N Male
Ingress Protection : IP67
Mounting Type : Connector Mount
Height (Max) : 12.440" (315.97mm)
Applications : Bluetooth, WLAN

107 в наличии

FW.24.SMA.M

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Meteor
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Whip, Straight
Number of Bands : 1
VSWR : 3
Return Loss : -10dB
Gain : 4.4dBi
Power - Max : 2W
Features : -
Termination : Connector, SMA Male
Ingress Protection : IP67
Mounting Type : Connector Mount
Height (Max) : 12.087" (307.00mm)
Applications : Bluetooth, Wi-Fi

11 в наличии

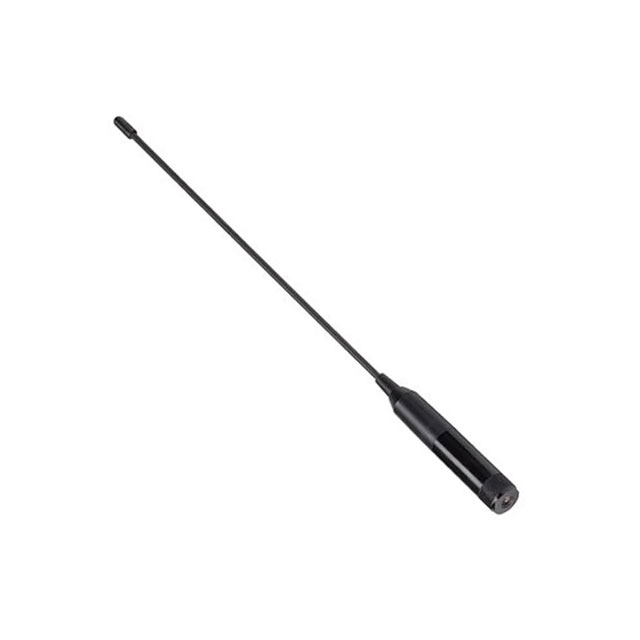

FW.43.B.SMA.M

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Meteor
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 433MHz
Frequency Range : -
Antenna Type : Whip, Straight
Number of Bands : 1
VSWR : 1.5
Return Loss : -15dB
Gain : 0.4dB
Power - Max : 2W
Features : -
Termination : Connector, SMA Male
Ingress Protection : IP65
Mounting Type : Connector Mount
Height (Max) : -
Applications : ISM

94 в наличии

FW.45.B.SMA.M

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Meteor
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 460MHz
Frequency Range : 450MHz ~ 470MHz
Antenna Type : Whip, Tilt
Number of Bands : 1
VSWR : 2
Return Loss : -10dB
Gain : 1.1dB
Power - Max : 2W
Features : -
Termination : Connector, SMA Male
Ingress Protection : IP67
Mounting Type : Connector Mount
Height (Max) : 11.417" (290.00mm)
Applications : -

242 в наличии

FW.80.SMA.M

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : VHF (f

169MHz

-

Whip, Straight

1

-

-

0dBi

-

-

Connector, SMA Male

IP67

Connector Mount

13.976" (355.00mm)

-
Frequency (Center/Band) : 169MHz
Frequency Range : -
Antenna Type : Whip, Straight
Number of Bands : 1
VSWR : -
Return Loss : -
Gain : 0dBi
Power - Max : -
Features : -
Termination : Connector, SMA Male
Ingress Protection : IP67
Mounting Type : Connector Mount
Height (Max) : 13.976" (355.00mm)
Applications : -

92 в наличии

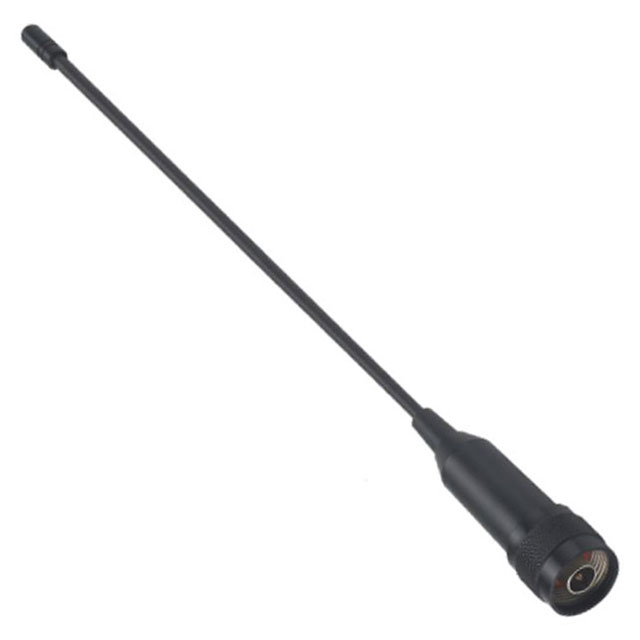

FW.86.B.NTY.M

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Meteor
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 868MHz
Frequency Range : -
Antenna Type : Whip, Straight
Number of Bands : 1
VSWR : -
Return Loss : -
Gain : 3.5dBi
Power - Max : 2W
Features : -
Termination : Connector, N Male
Ingress Protection : IP67
Mounting Type : Connector Mount
Height (Max) : 9.567" (243.00mm)
Applications : -

84 в наличии

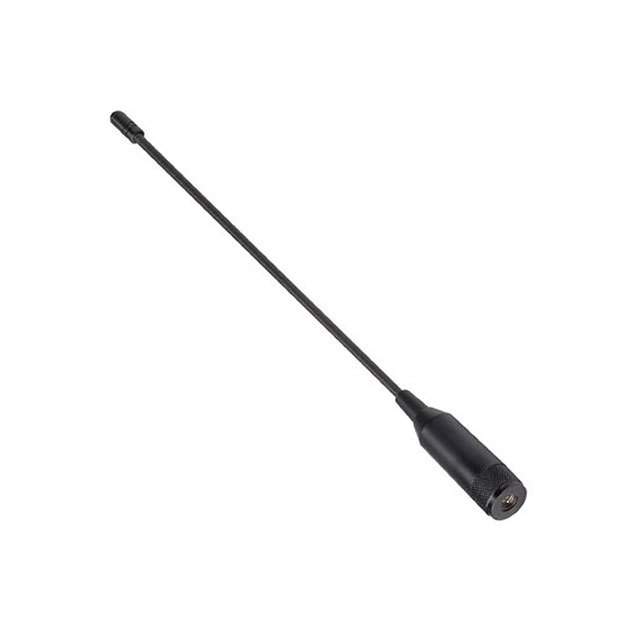

FW.86.B.SMA.M

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Meteor
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 868MHz
Frequency Range : -
Antenna Type : Whip, Straight
Number of Bands : 1
VSWR : 2
Return Loss : -10dB
Gain : 2.8dBi
Power - Max : 2W
Features : -
Termination : Connector, SMA Male
Ingress Protection : IP65
Mounting Type : Connector Mount
Height (Max) : 9.449" (240.00mm)
Applications : ISM

170 в наличии

FW.86.RNT.M

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Meteor
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 868MHz
Frequency Range : -
Antenna Type : Whip, Straight
Number of Bands : 1
VSWR : 2
Return Loss : -
Gain : 4.7dB
Power - Max : 2W
Features : -
Termination : Connector, RP-N Male
Ingress Protection : IP67
Mounting Type : Connector Mount
Height (Max) : 9.685" (246.00mm)
Applications : -

50 в наличии
