Taoglas

- Taoglas, the leading M2M antenna provider, delivers an extensive range of automotive, tracking, utility metering, and remote monitoring antenna solutions.

Additionaly Taoglas provides full wireless devices services, including antenna and device RF consultancy, custom antenna design, device noise debugging and testing services, and device certification and approval.

Founded in 2004, Taoglas has offices in Ireland, Taiwan, and the USA. Taoglas in Ireland, the USA, and Taiwan carry out Taoglas’ antenna design with production managed by Taoglas Taiwan.

Taoglas customers include top tier automotive, tracking, metering, and medical companies worldwide. For more information, visit www.taoglas.com.


Part Number

Manufacturer

Description

Unit Price

In Stock

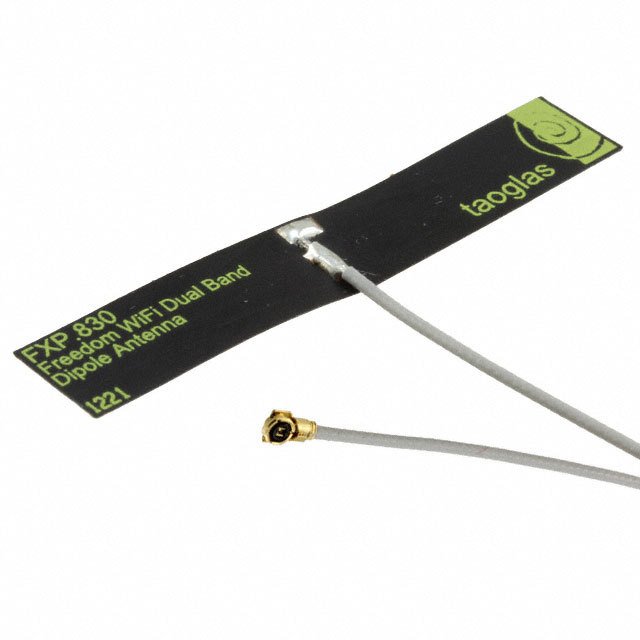

FXP830.24.0100B

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Freedom
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 5.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz
Antenna Type : Flat Patch
Number of Bands : 2
VSWR : -
Return Loss : -
Gain : 2.6dBi, 5dBi
Power - Max : 2W
Features : -
Termination : Cable (100mm) - MHF4
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.004" (0.10mm)
Applications : Bluetooth, Wi-Fi

5112 в наличии

FXP831.07.0100C

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Freedom
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 5.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz
Antenna Type : Flat Patch
Number of Bands : 2
VSWR : 2.5
Return Loss : -
Gain : 3dBi, 5.5dBi
Power - Max : 2W
Features : -
Termination : Cable (100mm) - MHF1
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.004" (0.10mm)
Applications : Bluetooth, DSRC, V2V, Wi-Fi, Zigbee™

16859 в наличии

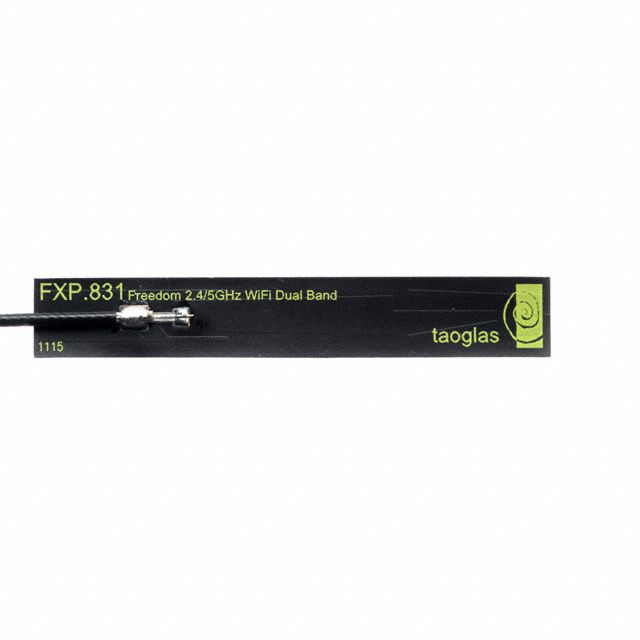

FXP831.09.0100C

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Freedom
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 5.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz
Antenna Type : Flat Patch
Number of Bands : 2
VSWR : 2.5
Return Loss : -
Gain : 3dBi, 5.5dBi
Power - Max : 2W
Features : -
Termination : Connector, MMCX Male
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.004" (0.10mm)
Applications : Bluetooth, WLAN

267 в наличии

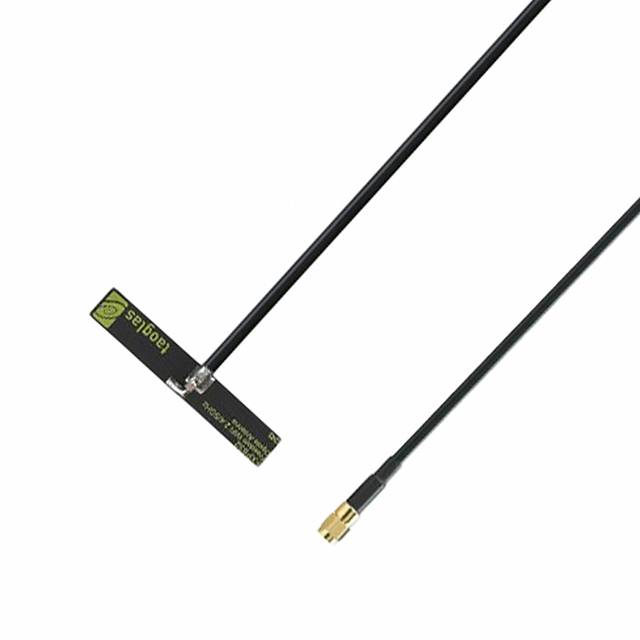

FXP832.03.0458D

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Freedom
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 5.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz
Antenna Type : Flat Patch
Number of Bands : 2
VSWR : -
Return Loss : -10dB
Gain : 3.66dBi, 5.33dBi
Power - Max : 2W
Features : -
Termination : Cable (458mm) - RP-SMA Male
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.009" (0.24mm)
Applications : Bluetooth, DSRC, V2V, Wi-Fi, Zigbee™

522 в наличии

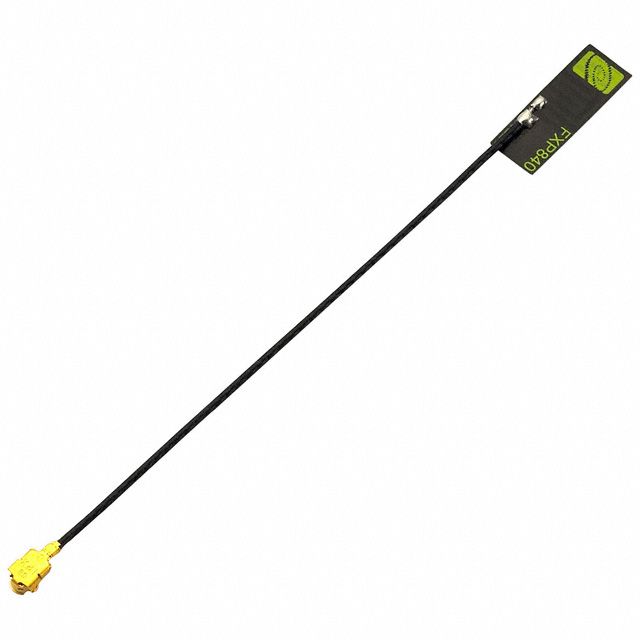

FXP840.07.0055B

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Freedom
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 5.4GHz
Frequency Range : 2.41GHz ~ 2.49GHz, 4.9GHz ~ 5.8GHz
Antenna Type : Flat Patch
Number of Bands : 2
VSWR : 2, 2.5
Return Loss : -10dB, -7dB
Gain : 2dBi, 2.5dBi
Power - Max : 2W
Features : -
Termination : Connector, IPEX MHFI (U.FL)
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.004" (0.10mm)
Applications : Bluetooth, WLAN

1583 в наличии

FXR.01.07.0100C.A

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency : 13.56MHz
Features : Near Field Communications (NFC)
Size / Dimension : -

414 в наличии

FXR.05.A

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : VHF (f

13.56MHz

-

Flat Patch

1

-

-

-

-

-

Solder

-

Adhesive

0.009" (0.24mm)

-
Frequency (Center/Band) : 13.56MHz
Frequency Range : -
Antenna Type : Flat Patch
Number of Bands : 1
VSWR : -
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.009" (0.24mm)
Applications : -

637 в наличии
