All Sensors Corporation

- All Sensors, Inc. pressure sensors are based on piezo-resistive semiconductor technology, broadly referred to as MEMS (micro electrical mechanical systems). Our products, both analog and digital, are based upon a proprietary technology to reduce errors.

Output changes due to temperature, warm-up stability, long-term stability, and position sensitivity are all significantly reduced when compared to conventional compensation methods. These sensors are intended for use with non-corrosive, non-ionic working fluids, such as air and dry gases. Packaging is designed to be mounted to a printed-circuit board. Our highly linear pressure sensors are typically used as components in high accuracy instrumentation for markets such as: medical, HVAC, mine safety, off-road vehicles, environmental, chemical analysis.


Part Number

Manufacturer

Description

Unit Price

In Stock

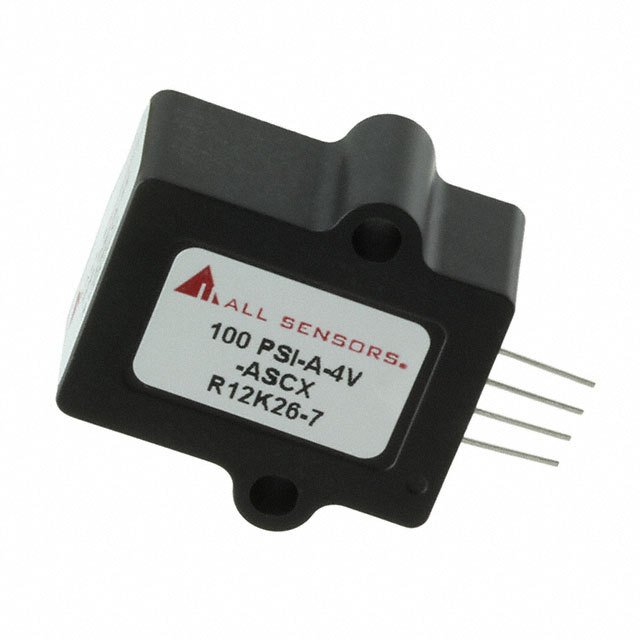

100 PSI-A-4V-ASCX

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ASCX
Part Status : Active
Pressure Type : Absolute
Operating Pressure : 100 PSI (689.48 kPa)
Output Type : Wheatstone Bridge
Output : 0.25 V ~ 4.75 V
Accuracy : ±0.5%
Voltage - Supply : 4.5 V ~ 5.5 V
Port Size : Male - 0.19" (4.8mm) Tube
Port Style : Barbless
Features : Amplified Output, Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : 150 PSI (1034.21 kPa)
Operating Temperature : -25°C ~ 105°C
Package / Case : 4-SIP
Supplier Device Package : 4-SIP

8 in stock

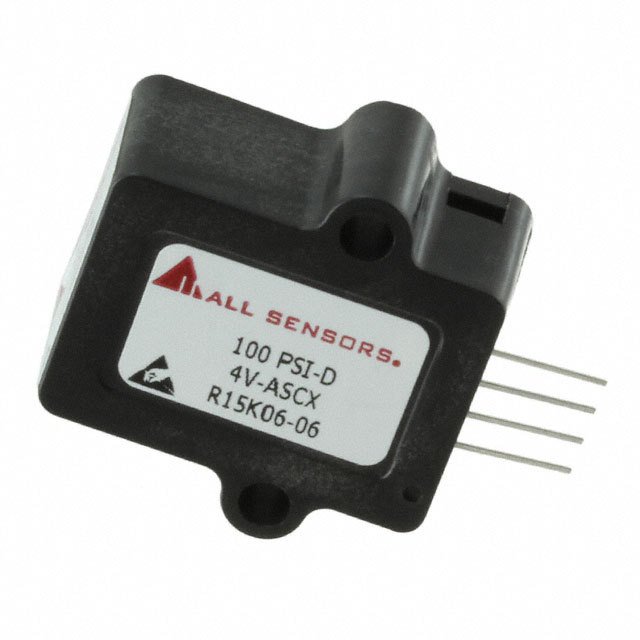

100 PSI-D-4V-ASCX

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ASCX
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±100 PSI (±689.48 kPa)
Output Type : Wheatstone Bridge
Output : 0.25 V ~ 4.75 V
Accuracy : ±0.5%
Voltage - Supply : 4.5 V ~ 5.5 V
Port Size : Male - 0.19" (4.8mm) Tube, Dual
Port Style : Barbless
Features : Amplified Output, Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : ±150 PSI (±1034.21 kPa)
Operating Temperature : -25°C ~ 105°C
Package / Case : 4-SIP
Supplier Device Package : 4-SIP

38 in stock

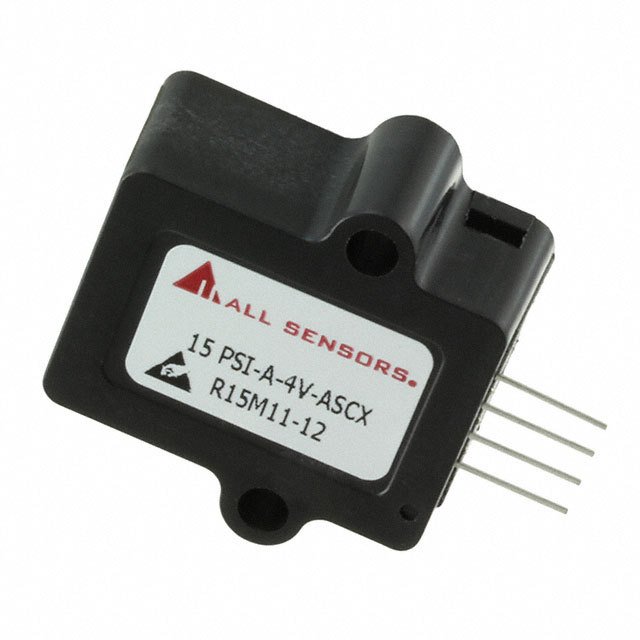

15 PSI-A-4V-ASCX

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ASCX
Part Status : Active
Pressure Type : Absolute
Operating Pressure : 15 PSI (103.42 kPa)
Output Type : Wheatstone Bridge
Output : 0.25 V ~ 4.75 V
Accuracy : ±0.5%
Voltage - Supply : 4.5 V ~ 5.5 V
Port Size : Male - 0.19" (4.8mm) Tube
Port Style : Barbless
Features : Amplified Output, Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : 45 PSI (310.26 kPa)
Operating Temperature : -25°C ~ 105°C
Package / Case : 4-SIP
Supplier Device Package : 4-SIP

13 in stock

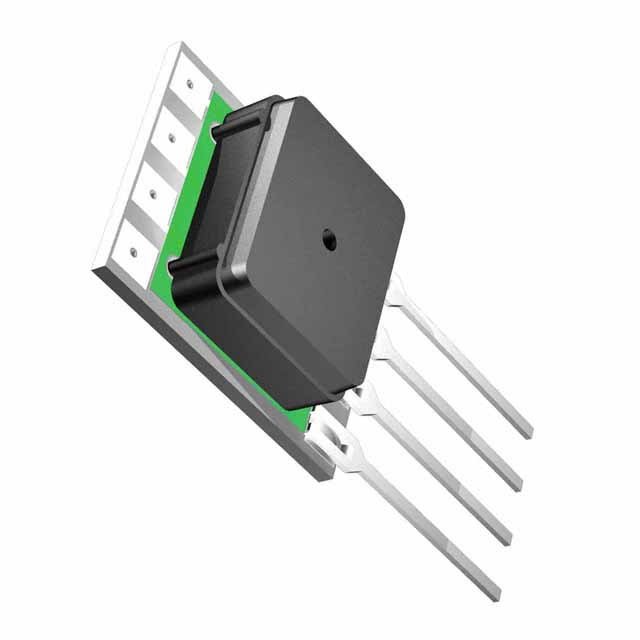

15 PSI-A-HGRADE-MINI

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ACPC
Part Status : Active
Pressure Type : Absolute
Operating Pressure : 15 PSI (103.42 kPa)
Output Type : Wheatstone Bridge
Output : 0 mV ~ 90 mV (12V)
Accuracy : ±0.5%
Voltage - Supply : 16V
Port Size : -
Port Style : No Port
Features : Temperature Compensated
Termination Style : PCB
Maximum Pressure : 60 PSI (413.69 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP Module
Supplier Device Package : -

466 in stock

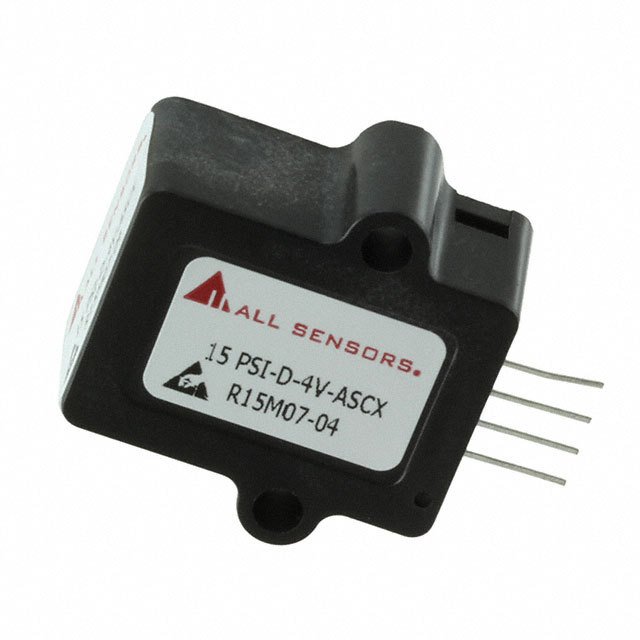

15 PSI-D-4V-ASCX

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ASCX
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±15 PSI (±103.42 kPa)
Output Type : Wheatstone Bridge
Output : 0.25 V ~ 4.75 V
Accuracy : ±0.5%
Voltage - Supply : 4.5 V ~ 5.5 V
Port Size : Male - 0.19" (4.8mm) Tube, Dual
Port Style : Barbless
Features : Amplified Output, Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : ±45 PSI (±310.26 kPa)
Operating Temperature : -25°C ~ 105°C
Package / Case : 4-SIP
Supplier Device Package : 4-SIP

9 in stock

15 PSI-D-HGRADE-MV

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : AXCX
Part Status : Active
Pressure Type : Differential
Operating Pressure : 15 PSI (103.42 kPa)
Output Type : Wheatstone Bridge
Output : 0 mV ~ 90 mV (12V)
Accuracy : ±0.5%
Voltage - Supply : 16V
Port Size : Male - 0.19" (4.83mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : PCB
Maximum Pressure : 60 PSI (413.69 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 6-SIP Module
Supplier Device Package : -

279 in stock

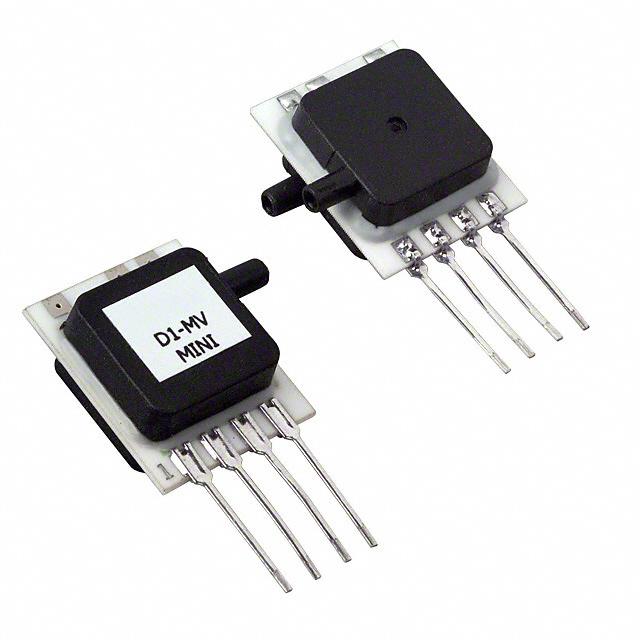

2 INCH-D1-MV-MINI

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : MDCX
Part Status : Active
Pressure Type : Differential
Operating Pressure : 0.07 PSI (0.5 kPa)
Output Type : Wheatstone Bridge
Output : 0 mV ~ 10 mV (12V)
Accuracy : ±0.25%
Voltage - Supply : 16V
Port Size : Male - 0.08" (2.03mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : PCB
Maximum Pressure : -
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP Module
Supplier Device Package : -

7 in stock

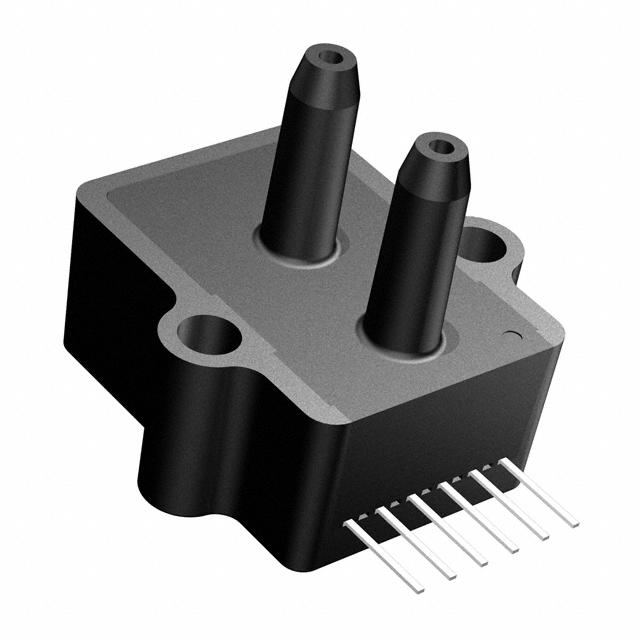

30 INCH-D-MV

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ADCX
Part Status : Active
Pressure Type : Differential
Operating Pressure : 1.08 PSI (7.48 kPa)
Output Type : Wheatstone Bridge
Output : 0 mV ~ 20 mV (12V)
Accuracy : ±0.25%
Voltage - Supply : 16V
Port Size : Male - 0.19" (4.83mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : PCB
Maximum Pressure : 7.23 PSI (49.83 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 6-SIP Module
Supplier Device Package : -

106 in stock

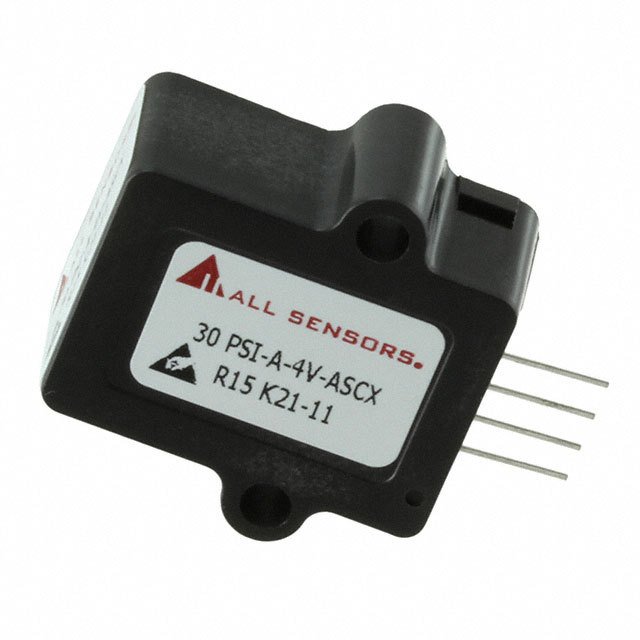

30 PSI-A-4V-ASCX

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ASCX
Part Status : Active
Pressure Type : Absolute
Operating Pressure : 30 PSI (206.84 kPa)
Output Type : Wheatstone Bridge
Output : 0.25 V ~ 4.75 V
Accuracy : ±0.5%
Voltage - Supply : 4.5 V ~ 5.5 V
Port Size : Male - 0.19" (4.8mm) Tube
Port Style : Barbless
Features : Amplified Output, Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : 100 PSI (689.48 kPa)
Operating Temperature : -25°C ~ 105°C
Package / Case : 4-SIP
Supplier Device Package : 4-SIP

4 in stock

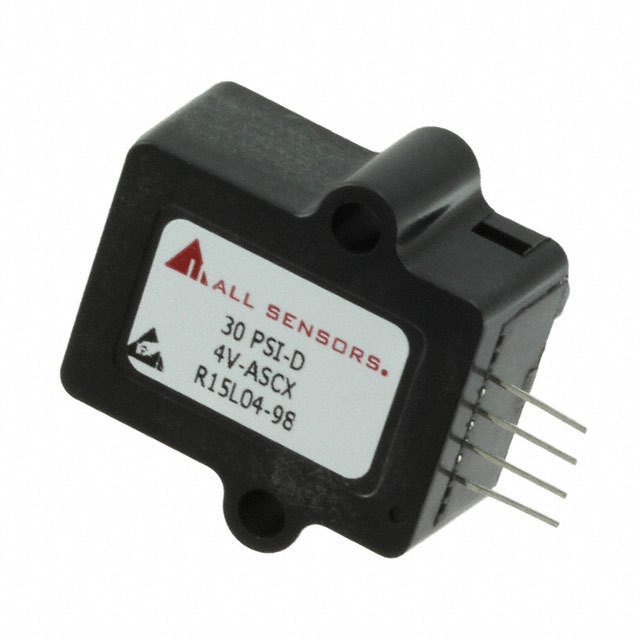

30 PSI-D-4V-ASCX

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ASCX
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±30 PSI (±206.84 kPa)
Output Type : Wheatstone Bridge
Output : 0.25 V ~ 4.75 V
Accuracy : ±0.5%
Voltage - Supply : 4.5 V ~ 5.5 V
Port Size : Male - 0.19" (4.8mm) Tube, Dual
Port Style : Barbless
Features : Amplified Output, Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : ±100 PSI (±689.48 kPa)
Operating Temperature : -25°C ~ 105°C
Package / Case : 4-SIP
Supplier Device Package : 4-SIP

31 in stock

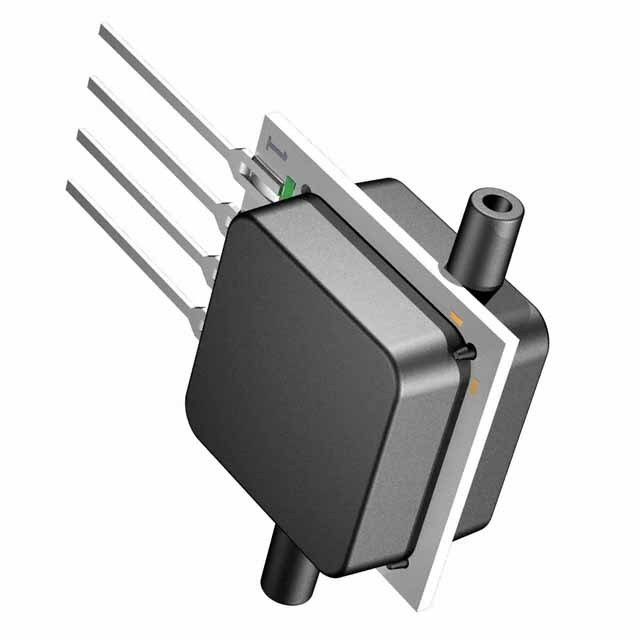

5 INCH-D2-BASIC

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ADUX
Part Status : Active
Pressure Type : Differential
Operating Pressure : 0.18 PSI (1.25 kPa)
Output Type : Wheatstone Bridge
Output : 0 mV ~ 22.5 mV (4.5V)
Accuracy : ±0.5%
Voltage - Supply : 6V
Port Size : Male - 0.08" (2.13mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : PCB
Maximum Pressure : -
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP Module
Supplier Device Package : -

85 in stock

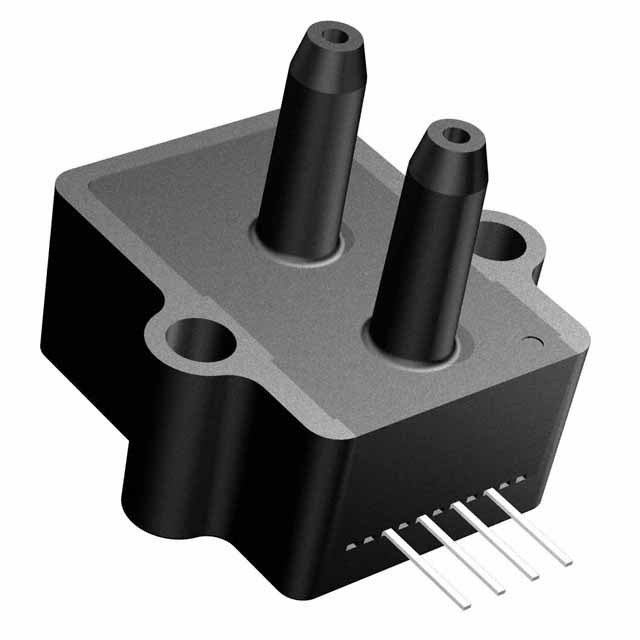

5 INCH-D-4V

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : ADCA
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±0.18 PSI (±1.25 kPa)
Output Type : Analog Voltage
Output : 0.25 V ~ 4.25 V
Accuracy : ±0.25%
Voltage - Supply : 4.5 V ~ 5.5 V
Port Size : Male - 0.19" (4.8mm) Tube, Dual
Port Style : Barbless
Features : Amplified Output, Temperature Compensated
Termination Style : PCB
Maximum Pressure : ±7.23 PSI (±49.83 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP Module
Supplier Device Package : -

87 in stock
