All Sensors Corporation

- All Sensors, Inc. pressure sensors are based on piezo-resistive semiconductor technology, broadly referred to as MEMS (micro electrical mechanical systems). Our products, both analog and digital, are based upon a proprietary technology to reduce errors.

Output changes due to temperature, warm-up stability, long-term stability, and position sensitivity are all significantly reduced when compared to conventional compensation methods. These sensors are intended for use with non-corrosive, non-ionic working fluids, such as air and dry gases. Packaging is designed to be mounted to a printed-circuit board. Our highly linear pressure sensors are typically used as components in high accuracy instrumentation for markets such as: medical, HVAC, mine safety, off-road vehicles, environmental, chemical analysis.


Part Number

Manufacturer

Description

Unit Price

In Stock

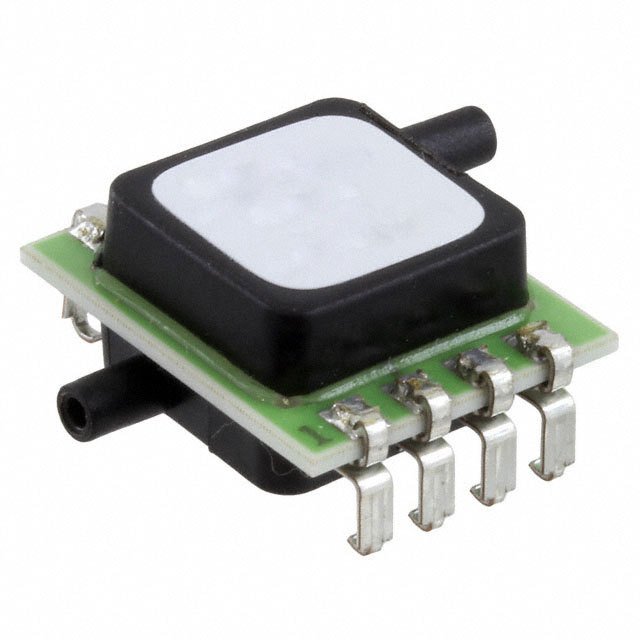

DLVR-L02D-E2NJ-C-NI5F

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : DLVR
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±0.07 PSI (±0.5 kPa)
Output Type : I²C
Output : 14 b
Accuracy : ±2%
Voltage - Supply : 5V
Port Size : Male - 0.08" (2.03mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : Surface Mount (SMD,SMT)
Maximum Pressure : ±3.61 PSI (±24.92 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 8-SMD Module
Supplier Device Package : 8-SMD

7 in stock

DLVR-L02D-E2NS-C-NI5F

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : DLVR
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±0.07 PSI (±0.5 kPa)
Output Type : I²C
Output : 14 b
Accuracy : ±2%
Voltage - Supply : 5V
Port Size : Male - 0.08" (2.03mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : Through Hole
Maximum Pressure : ±3.61 PSI (±24.92 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP Module
Supplier Device Package : 4-SIP

6 in stock

DLVR-L10D-E1NS-C-NI3F

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : DLVR
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±0.36 PSI (±2.49 kPa)
Output Type : I²C
Output : 14 b
Accuracy : ±1.5%
Voltage - Supply : 3.3V
Port Size : Male - 0.08" (2.03mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : Through Hole
Maximum Pressure : ±7.23 PSI (±49.83 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP Module
Supplier Device Package : 4-SIP

16 in stock

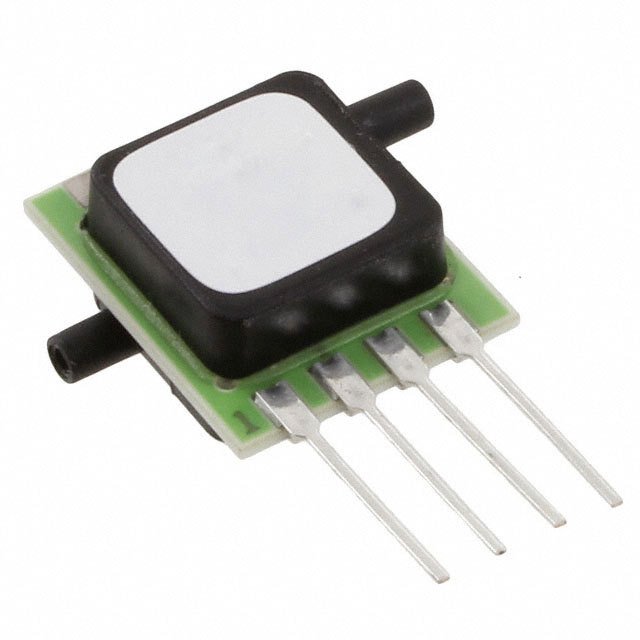

DLVR-L10D-E1NS-C-NI5F

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : DLVR
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±0.36 PSI (±2.49 kPa)
Output Type : I²C
Output : 14 b
Accuracy : ±1.5%
Voltage - Supply : 5V
Port Size : Male - 0.08" (2.03mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : Through Hole
Maximum Pressure : ±7.23 PSI (±49.83 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP Module
Supplier Device Package : 4-SIP

4 in stock

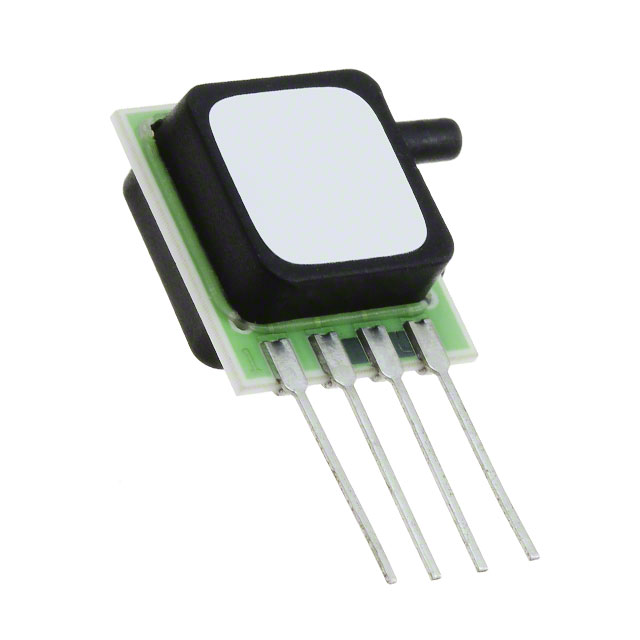

MLV-015A-E1BS-N

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : MLV
Part Status : Active
Pressure Type : Absolute
Operating Pressure : 15 PSI (103.42 kPa)
Output Type : Wheatstone Bridge
Output : 0 mV ~ 37.5 mV (5V)
Accuracy : ±0.5%
Voltage - Supply : 12V
Port Size : Male - 0.09" (2.24mm) Tube, Dual
Port Style : Barbed
Features : Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : 60 PSI (413.69 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP, Dual Ports, Same Side
Supplier Device Package : 4-SIP

10 in stock

MLV-L02D-E1NS-N

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : MLV
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±0.07 PSI (±0.5 kPa)
Output Type : Wheatstone Bridge
Output : 0 mV ~ 10 mV (5V)
Accuracy : ±0.3%
Voltage - Supply : 5V
Port Size : Male - 0.08" (2.04mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : ±3.61 PSI (±24.92 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP, Dual Ports, Same Side
Supplier Device Package : 4-SIP

2 in stock

MLV-L10D-E1NS-N

All Sensors Corporation

Manufacturer : All Sensors Corporation
Series : MLV
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±0.36 PSI (±2.49 kPa)
Output Type : Wheatstone Bridge
Output : 0 mV ~ 20 mV (5V)
Accuracy : ±0.3%
Voltage - Supply : 12V
Port Size : Male - 0.08" (2.04mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : ±7.23 PSI (±49.83 kPa)
Operating Temperature : -25°C ~ 85°C
Package / Case : 4-SIP, Dual Ports, Same Side
Supplier Device Package : 4-SIP

7 in stock
