Ametherm
- Ametherm is a leading manufacturer of Power Thermistors. Ametherm offers the highest rated steady state current rating as well as highest rated energy handling capability offered in the market. Their excellent long-term stability and rugged structure makes them ideally suited for limiting Inrush current in the motors (1/3 HP to 3.0 HP range), medical (Power supplies, MRI), Security systems (X-Ray machines), transformers (up to 8.0 KVA), telecom (Power supplies up to 4000 watt out put power) and motor drives, in the most cost effective method.
Part Number
Manufacturer
Description
Unit Price
In Stock
Ametherm
Manufacturer : Ametherm
Packaging : -
Series : PANR
Part Status : Active
Resistance in Ohms @ 25°C : 10k
Resistance Tolerance : ±1%
B Value Tolerance : ±1%
B0/50 : -
B25/50 : 3380K
B25/75 : -
B25/85 : -
B25/100 : -
Operating Temperature : -40°C ~ 125°C
Power - Max : -
Length - Lead Wire : 12.00" (304.80mm)
Mounting Type : Free Hanging
Package / Case : Ring Lug
0
177 in stock
Ametherm
Manufacturer : Ametherm
Packaging : -
Series : PANR
Part Status : Active
Resistance in Ohms @ 25°C : 10k
Resistance Tolerance : -
B Value Tolerance : -
B0/50 : -
B25/50 : 3500K
B25/75 : -
B25/85 : -
B25/100 : -
Operating Temperature : -
Power - Max : -
Length - Lead Wire : -
Mounting Type : Free Hanging
Package / Case : Ring Lug
0
200 in stock
Ametherm
Manufacturer : Ametherm
Packaging : -
Series : PANR
Part Status : Active
Resistance in Ohms @ 25°C : 10k
Resistance Tolerance : ±2%
B Value Tolerance : ±1%
B0/50 : -
B25/50 : 3950K
B25/75 : -
B25/85 : -
B25/100 : -
Operating Temperature : -50°C ~ 180°C
Power - Max : -
Length - Lead Wire : 10.04" (255.00mm)
Mounting Type : Free Hanging
Package / Case : Ring Lug
0
344 in stock
Ametherm
Manufacturer : Ametherm
Packaging : -
Series : PANR
Part Status : Active
Resistance in Ohms @ 25°C : 100
Resistance Tolerance : -
B Value Tolerance : -
B0/50 : 4500K
B25/50 : -
B25/75 : -
B25/85 : -
B25/100 : -
Operating Temperature : -
Power - Max : 125mW
Length - Lead Wire : -
Mounting Type : Free Hanging
Package / Case : Bead with Terminal
0
247 in stock
Ametherm
Manufacturer : Ametherm
Packaging : -
Series : PANR
Part Status : Active
Resistance in Ohms @ 25°C : 250
Resistance Tolerance : -
B Value Tolerance : -
B0/50 : 4500K
B25/50 : -
B25/75 : -
B25/85 : -
B25/100 : -
Operating Temperature : -
Power - Max : 125mW
Length - Lead Wire : -
Mounting Type : Free Hanging
Package / Case : Bead with Terminal
0
250 in stock
Ametherm
Manufacturer : Ametherm
Packaging : -
Series : PANR
Part Status : Active
Resistance in Ohms @ 25°C : 3
Resistance Tolerance : -
B Value Tolerance : -
B0/50 : 3950K
B25/50 : -
B25/75 : -
B25/85 : -
B25/100 : -
Operating Temperature : -
Power - Max : 125mW
Length - Lead Wire : -
Mounting Type : Free Hanging
Package / Case : Bead with Terminal
0
240 in stock
Ametherm
Manufacturer : Ametherm
Packaging : -
Series : PANT
Part Status : Active
Resistance in Ohms @ 25°C : 10k
Resistance Tolerance : ±2%
B Value Tolerance : -
B0/50 : -
B25/50 : -
B25/75 : -
B25/85 : -
B25/100 : -
Operating Temperature : -50°C ~ 150°C
Power - Max : -
Length - Lead Wire : 7.76" (197.00mm)
Mounting Type : Chassis Mount
Package / Case : Nonstandard, Threaded Stud
0
200 in stock

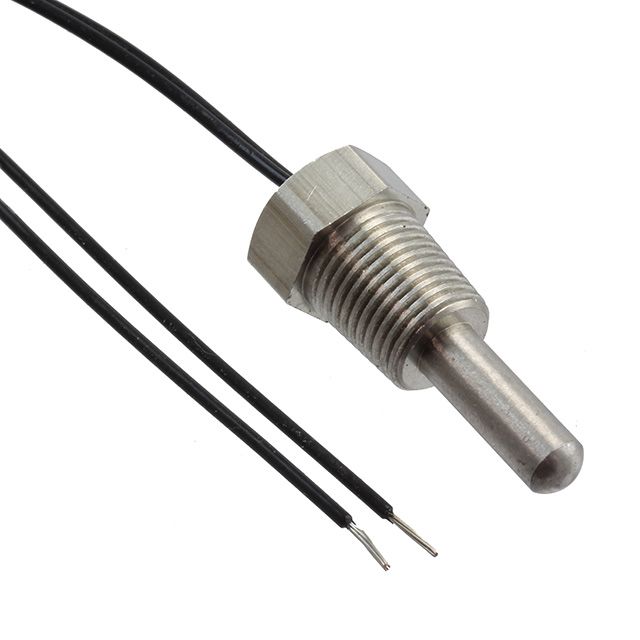

Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : PANW
Part Status : Active
Resistance in Ohms @ 25°C : 10k
Resistance Tolerance : ±10%
B Value Tolerance : ±2%
B0/50 : 3892K
B25/50 : 3934K
B25/75 : 3960K
B25/85 : 3988K
B25/100 : 3999K
Operating Temperature : -50°C ~ 150°C
Power - Max : 125mW
Length - Lead Wire : 5.91" (150.00mm)
Mounting Type : Chassis Mount
Package / Case : Cylindrical Probe, Stainless Steel
0
36 in stock

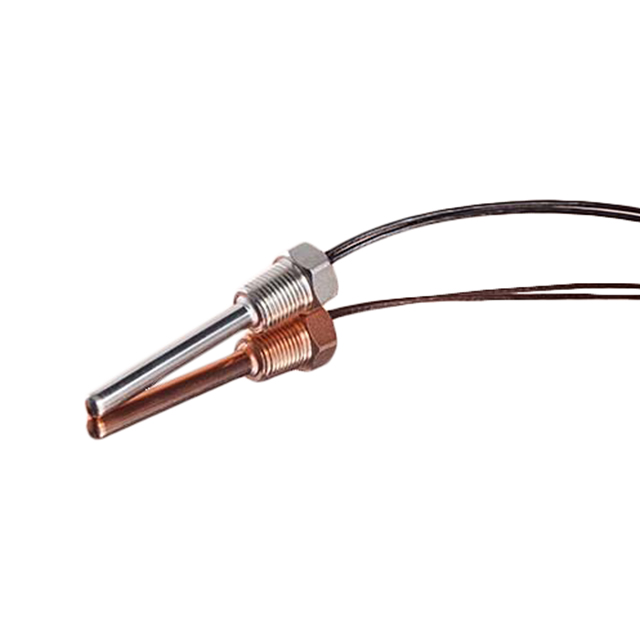

Ametherm
Manufacturer : Ametherm
Packaging : -
Series : PANW
Part Status : Active
Resistance in Ohms @ 25°C : 10k
Resistance Tolerance : ±3%
B Value Tolerance : ±2%
B0/50 : -
B25/50 : 3950K
B25/75 : -
B25/85 : -
B25/100 : -
Operating Temperature : -50°C ~ 150°C
Power - Max : -
Length - Lead Wire : 19.69" (500.00mm)
Mounting Type : Chassis Mount
Package / Case : Nonstandard, Threaded Stud
0
86 in stock

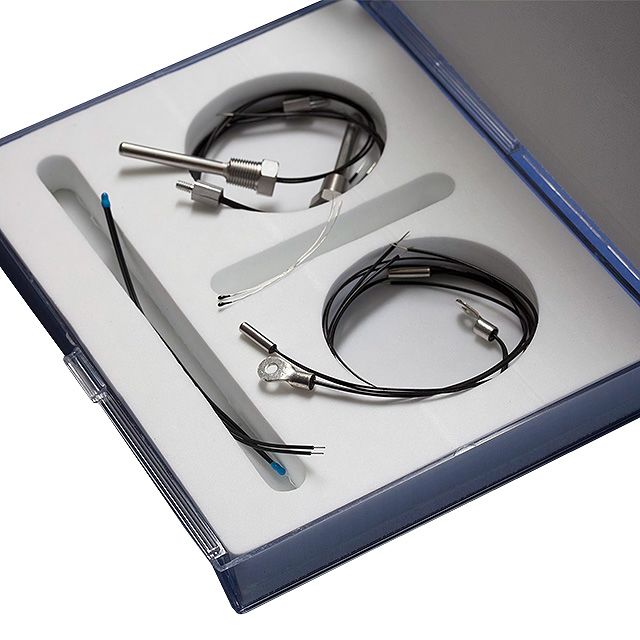

Ametherm
Manufacturer : Ametherm
Packaging : Plastic Box with Bin Guide
Series : -
Part Status : Active
Kit Type : NTC
Quantity : 6 Pieces (6 Values - 1 Each)
Temperature Range : -
0
16 in stock

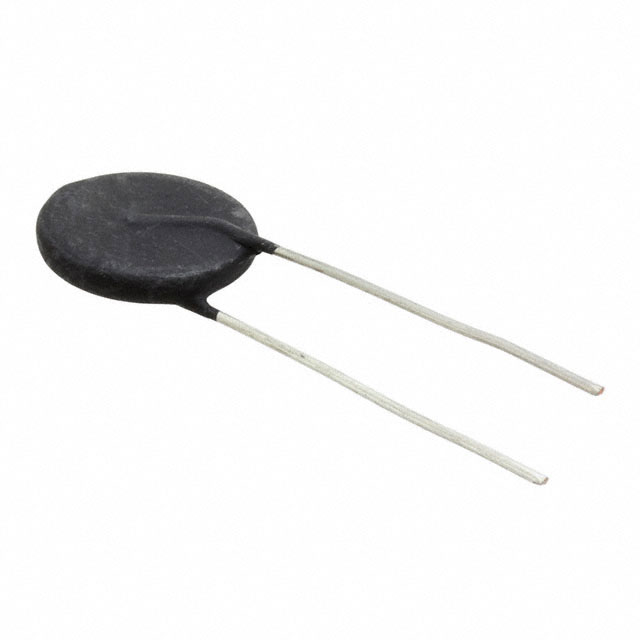

Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : SURGE-GARD™
Part Status : Active
R @ 25°C : 1 Ohms
Tolerance : ±15%
Current - Steady State Max : 20A
R @ Current : 15 mOhms
Diameter : -
Lead Spacing : -
Approvals : CSA, UR
0
2259 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : SURGE-GARD™
Part Status : Active
R @ 25°C : 2 Ohms
Tolerance : ±15%
Current - Steady State Max : 18A
R @ Current : 30 mOhms
Diameter : -
Lead Spacing : -
Approvals : CSA, UR
0
2427 in stock
