Ametherm
- Ametherm is a leading manufacturer of Power Thermistors. Ametherm offers the highest rated steady state current rating as well as highest rated energy handling capability offered in the market. Their excellent long-term stability and rugged structure makes them ideally suited for limiting Inrush current in the motors (1/3 HP to 3.0 HP range), medical (Power supplies, MRI), Security systems (X-Ray machines), transformers (up to 8.0 KVA), telecom (Power supplies up to 4000 watt out put power) and motor drives, in the most cost effective method.
Part Number
Manufacturer
Description
Unit Price
In Stock

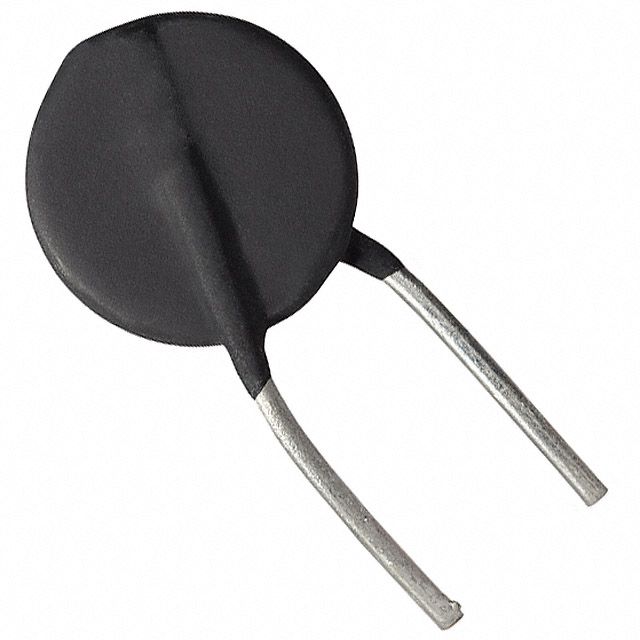

Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : MegaSurge™
Part Status : Active
R @ 25°C : 10 Ohms
Tolerance : -
Current - Steady State Max : 18A
R @ Current : 30 mOhms
Diameter : 1.38" (35mm)
Lead Spacing : 0.748" (19.00mm)
Approvals : -
0
908 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : MegaSurge™
Part Status : Active
R @ 25°C : 1 Ohms
Tolerance : -
Current - Steady State Max : 40A
R @ Current : 12 mOhms
Diameter : 1.38" (35mm)
Lead Spacing : 0.748" (19.00mm)
Approvals : -
0
499 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : MegaSurge™
Part Status : Active
R @ 25°C : 20 Ohms
Tolerance : -
Current - Steady State Max : 10A
R @ Current : 100 mOhms
Diameter : 1.38" (35mm)
Lead Spacing : 0.748" (19.00mm)
Approvals : -
0
8802 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : MegaSurge™
Part Status : Active
R @ 25°C : 2 Ohms
Tolerance : -
Current - Steady State Max : 35A
R @ Current : 20 mOhms
Diameter : 1.38" (35mm)
Lead Spacing : 0.748" (19.00mm)
Approvals : -
0
1376 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : MegaSurge™
Part Status : Active
R @ 25°C : 3 Ohms
Tolerance : -
Current - Steady State Max : 30A
R @ Current : 30 mOhms
Diameter : 1.38" (35mm)
Lead Spacing : 0.748" (19.00mm)
Approvals : -
0
2500 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : MegaSurge™
Part Status : Active
R @ 25°C : 5 Ohms
Tolerance : -
Current - Steady State Max : 25A
R @ Current : 30 mOhms
Diameter : 1.38" (35mm)
Lead Spacing : 0.748" (19.00mm)
Approvals : -
0
4633 in stock

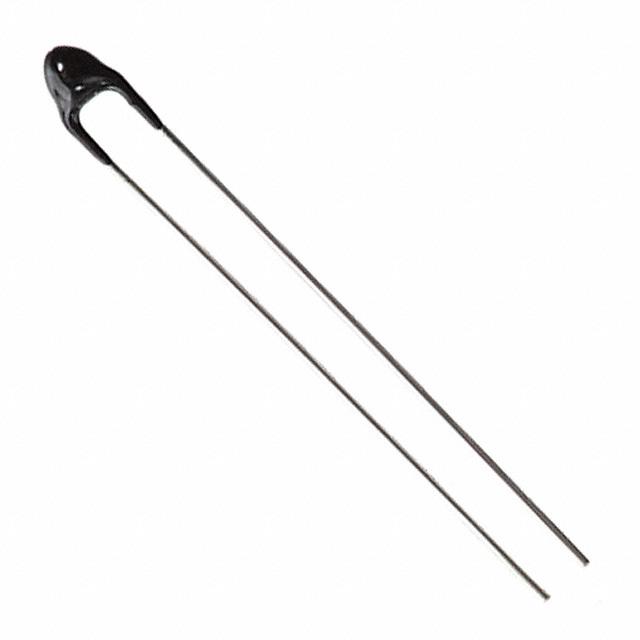

Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : NT03
Part Status : Active
Resistance in Ohms @ 25°C : 10
Resistance Tolerance : ±10%
B Value Tolerance : ±3%
B0/50 : 2680K
B25/50 : 2685K
B25/75 : 2689K
B25/85 : 2690K
B25/100 : 2692K
Operating Temperature : -50°C ~ 150°C
Power - Max : 450mW
Length - Lead Wire : 1.50" (38.00mm)
Mounting Type : Through Hole
Package / Case : Disc, 3.2mm Dia x 3.2mm W
0
1602 in stock

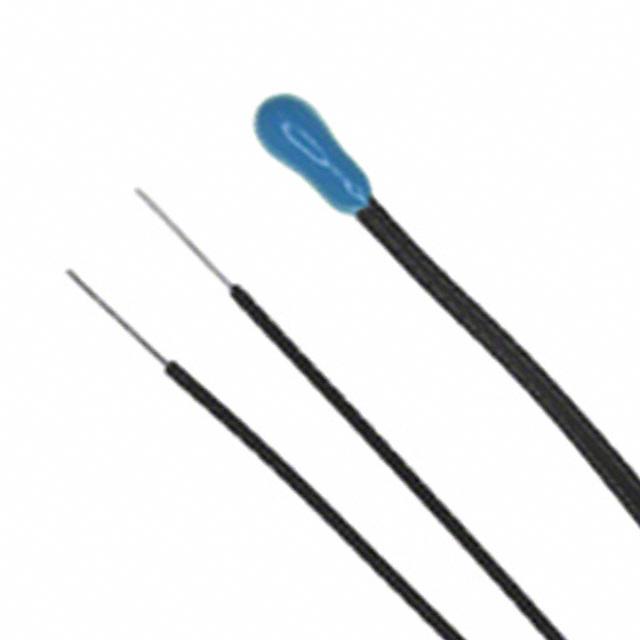

Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : PANE
Part Status : Active
Resistance in Ohms @ 25°C : 10k
Resistance Tolerance : ±10%
B Value Tolerance : ±2%
B0/50 : 3892K
B25/50 : 3934K
B25/75 : 3960K
B25/85 : 3988K
B25/100 : 3999K
Operating Temperature : -50°C ~ 150°C
Power - Max : 125mW
Length - Lead Wire : 6.00" (152.4mm)
Mounting Type : Through Hole
Package / Case : Bead
0
100 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : PANE
Part Status : Active
Resistance in Ohms @ 25°C : 10k
Resistance Tolerance : ±10%
B Value Tolerance : ±2%
B0/50 : 3892K
B25/50 : 3934K
B25/75 : 3960K
B25/85 : 3988K
B25/100 : 3999K
Operating Temperature : -50°C ~ 150°C
Power - Max : 125mW
Length - Lead Wire : 5.91" (150.00mm)
Mounting Type : Through Hole
Package / Case : Bead
0
1616 in stock

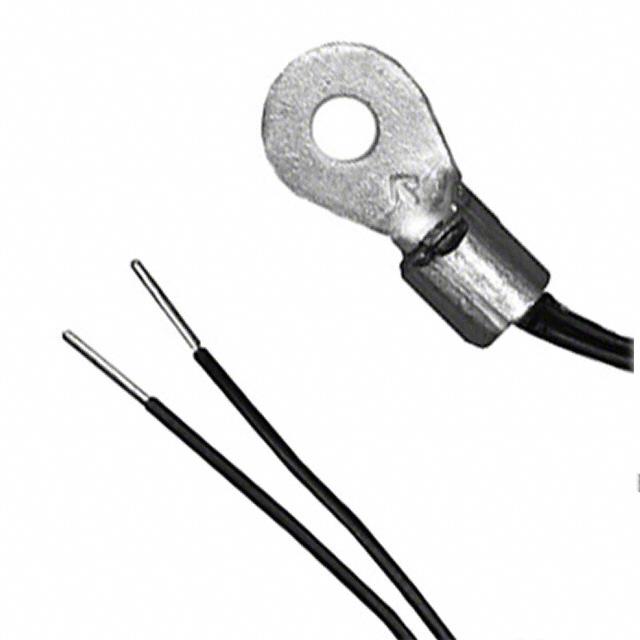

Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : PANR
Part Status : Active
Resistance in Ohms @ 25°C : 10k
Resistance Tolerance : ±10%
B Value Tolerance : ±2%
B0/50 : 3892K
B25/50 : 3934K
B25/75 : 3960K
B25/85 : 3988K
B25/100 : 3999K
Operating Temperature : -50°C ~ 150°C
Power - Max : 125mW
Length - Lead Wire : 5.91" (150.00mm)
Mounting Type : Free Hanging (In-Line)
Package / Case : Bead with Terminal
0
1101 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : PANR
Part Status : Active
Resistance in Ohms @ 25°C : 10k
Resistance Tolerance : ±10%
B Value Tolerance : ±2%
B0/50 : 3880K
B25/50 : 3950K
B25/75 : 3968K
B25/85 : 3974K
B25/100 : 3986K
Operating Temperature : -50°C ~ 150°C
Power - Max : 125mW
Length - Lead Wire : 6.00" (152.4mm)
Mounting Type : Free Hanging (In-Line), Solder Cup
Package / Case : Bead with Terminal
0
11010 in stock
Ametherm
Manufacturer : Ametherm
Packaging : -
Series : PANR
Part Status : Active
Resistance in Ohms @ 25°C : 1
Resistance Tolerance : -
B Value Tolerance : -
B0/50 : 3500K
B25/50 : -
B25/75 : -
B25/85 : -
B25/100 : -
Operating Temperature : -
Power - Max : 125mW
Length - Lead Wire : -
Mounting Type : Free Hanging
Package / Case : Bead with Terminal
0
498 in stock
