Bridgelux
- At Bridgelux, we help companies, industries and people experience the power and possibility of light. Since 2002, we’ve designed LED solutions that are high performing, energy efficient, cost effective and easy to integrate. Bridgelux focuses on light’s impact on human behavior, delivering products that create better environments, experiences and returns—both experiential and financial. From our successful Vero® Series to smart lighting, Bridgelux patented technology drives new platforms for commercial and industrial luminaires.
Part Number
Manufacturer
Description
Unit Price
In Stock

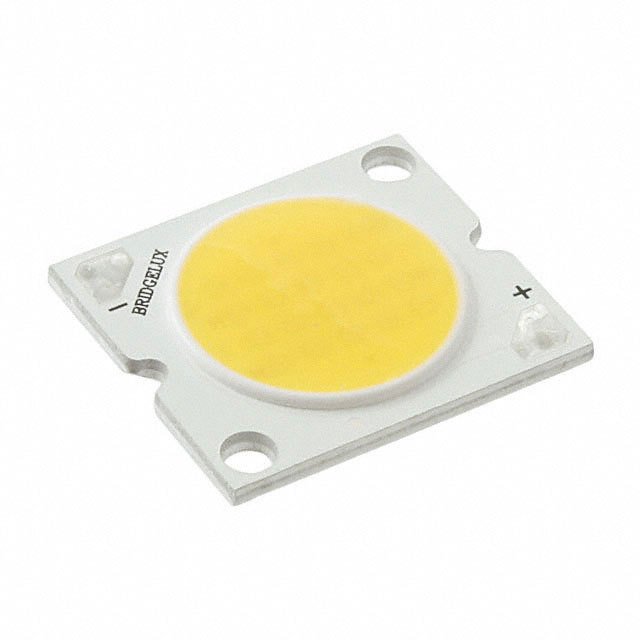

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K 7-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1340 lm (Typ)
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 20.5V
Lumens/Watt @ Current - Test : 131 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1340 lm (Typ)
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 20.5V
Lumens/Watt @ Current - Test : 131 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K 7-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1930 lm (Typ)
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 29.3V
Lumens/Watt @ Current - Test : 132 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1930 lm (Typ)
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 29.3V
Lumens/Watt @ Current - Test : 132 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K 7-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3150 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 36.2V
Lumens/Watt @ Current - Test : 124 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3150 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 36.2V
Lumens/Watt @ Current - Test : 124 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

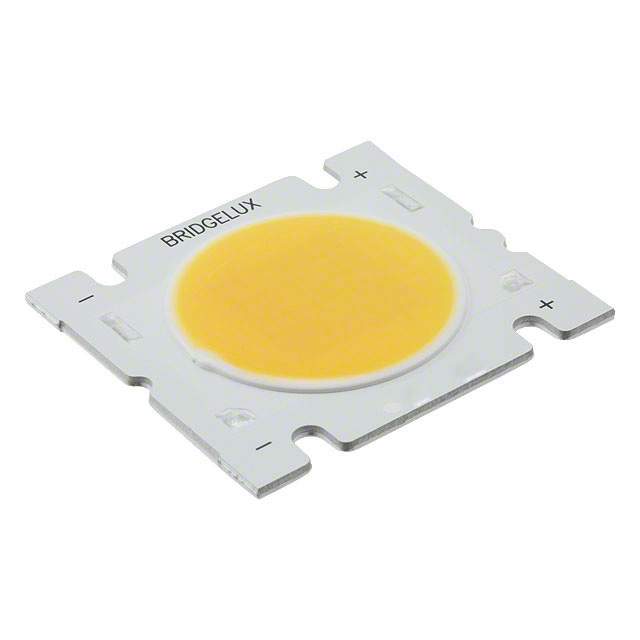

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K 7-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3840 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 17.9V
Lumens/Watt @ Current - Test : 123 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3840 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 17.9V
Lumens/Watt @ Current - Test : 123 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K 7-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6300 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 23.5V
Lumens/Watt @ Current - Test : 128 lm/W
Current - Max : 2.8A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6300 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 23.5V
Lumens/Watt @ Current - Test : 128 lm/W
Current - Max : 2.8A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K 7-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 10060 lm (Typ)
Current - Test : 2.8A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 29.4V
Lumens/Watt @ Current - Test : 122 lm/W
Current - Max : 3.5A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 10060 lm (Typ)
Current - Test : 2.8A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 29.4V
Lumens/Watt @ Current - Test : 122 lm/W
Current - Max : 3.5A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
