Bridgelux

- At Bridgelux, we help companies, industries and people experience the power and possibility of light. Since 2002, we’ve designed LED solutions that are high performing, energy efficient, cost effective and easy to integrate. Bridgelux focuses on light’s impact on human behavior, delivering products that create better environments, experiences and returns—both experiential and financial. From our successful Vero® Series to smart lighting, Bridgelux patented technology drives new platforms for commercial and industrial luminaires.

Part Number
Manufacturer
Description
Unit Price
In Stock

BXRA-C4500-00E00 BXRA-C4500-00E00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5000 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 25.6V
Lumens/Watt @ Current - Test : 93 lm/W
Current - Max : 3A
CRI (Color Rendering Index) : 65 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-C5000-00E0C BXRA-C5000-00E0C

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5600 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 24.6V
Lumens/Watt @ Current - Test : 108 lm/W
Current - Max : 3A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-C8000-00E0C BXRA-C8000-00E0C

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8800 lm (Typ)
Current - Test : 2.8A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 30.9V
Lumens/Watt @ Current - Test : 102 lm/W
Current - Max : 3.75A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-N0400-00000 BXRA-N0400-00000

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : LED
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4100K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 440 lm (Typ)
Current - Test : 800mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 9.7V
Lumens/Watt @ Current - Test : 57 lm/W
Current - Max : 1.5A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 20.04mm L x 20.04 mm W
Height : 3.50mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

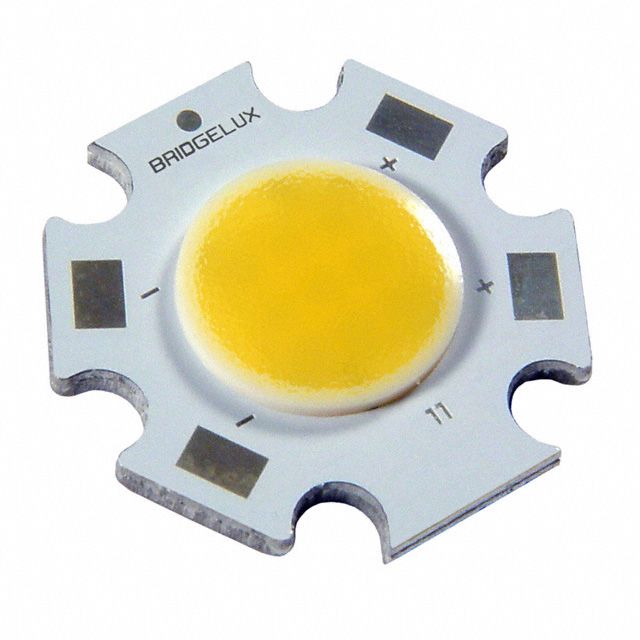

BXRA-N0402-00L00 BXRA-N0402-00L00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : ES STAR
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4100K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 440 lm (Typ)
Current - Test : 600mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 8.9V
Lumens/Watt @ Current - Test : 82 lm/W
Current - Max : 1.5A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 20.04mm L x 20.04 mm W
Height : 3.50mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

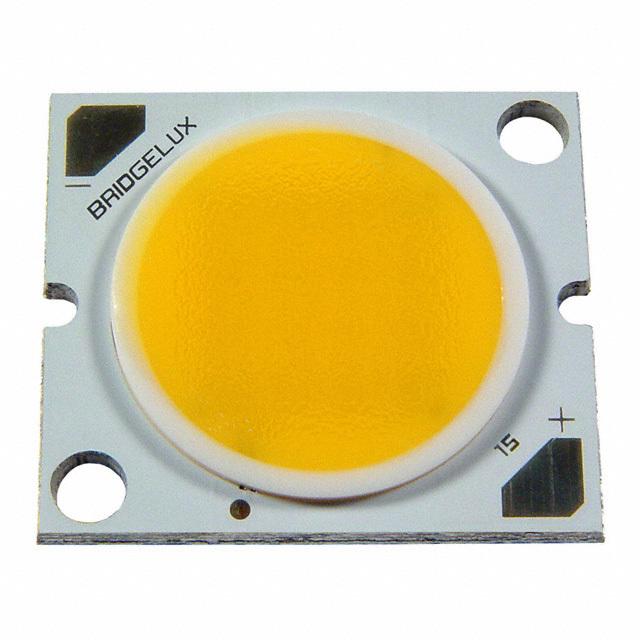

BXRA-N0800-00000 BXRA-N0800-00000

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : LED
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4100K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 880 lm (Typ)
Current - Test : 1.2A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 13V
Lumens/Watt @ Current - Test : 56 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.50mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-N0802-00L00 BXRA-N0802-00L00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4100K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1020 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.2V
Lumens/Watt @ Current - Test : 80 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.50mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-N1200-00000 BXRA-N1200-00000

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : LED
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4100K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1320 lm (Typ)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 16.2V
Lumens/Watt @ Current - Test : 58 lm/W
Current - Max : 2.5A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.50mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

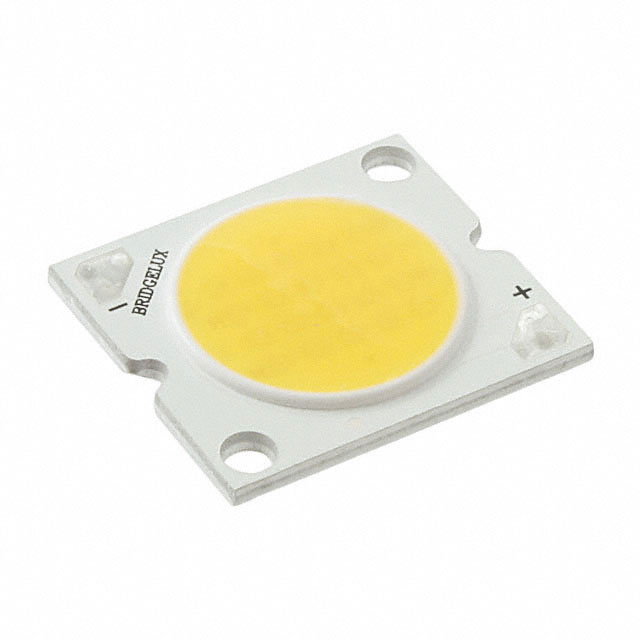

BXRA-N1203-00L00 BXRA-N1203-00L00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4100K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1530 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18.3V
Lumens/Watt @ Current - Test : 80 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.50mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

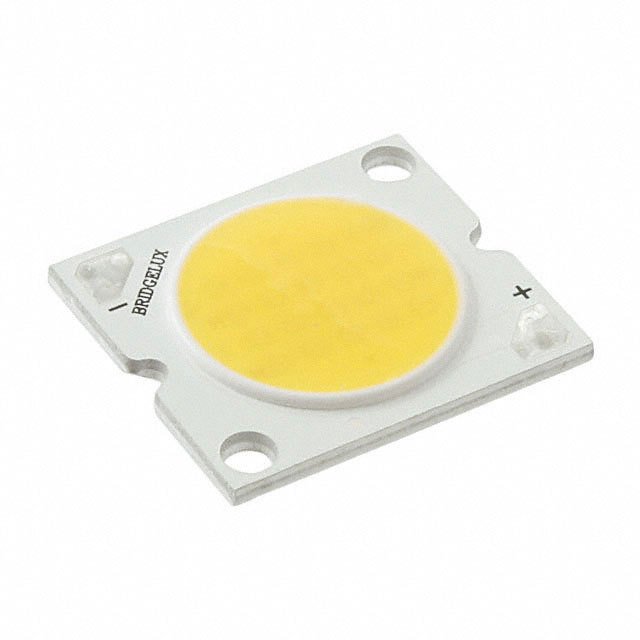

BXRA-N2000-00L0E BXRA-N2000-00L0E

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2200 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 38.1V
Lumens/Watt @ Current - Test : 82 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.50mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-N3500-00L00 BXRA-N3500-00L00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4100K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3800 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 25.6V
Lumens/Watt @ Current - Test : 71 lm/W
Current - Max : 3A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

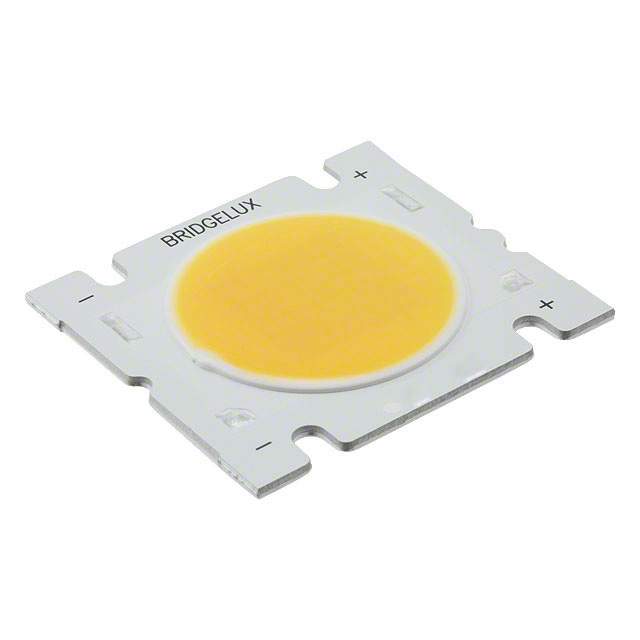

BXRA-N4000-00L0E BXRA-N4000-00L0E

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4400 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 24.6V
Lumens/Watt @ Current - Test : 85 lm/W
Current - Max : 3A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
