Welcome to Weijie Semiconductor

Bridgelux

- At Bridgelux, we help companies, industries and people experience the power and possibility of light. Since 2002, we’ve designed LED solutions that are high performing, energy efficient, cost effective and easy to integrate. Bridgelux focuses on light’s impact on human behavior, delivering products that create better environments, experiences and returns—both experiential and financial. From our successful Vero® Series to smart lighting, Bridgelux patented technology drives new platforms for commercial and industrial luminaires.

Part Number
Manufacturer
Description
Unit Price
In Stock

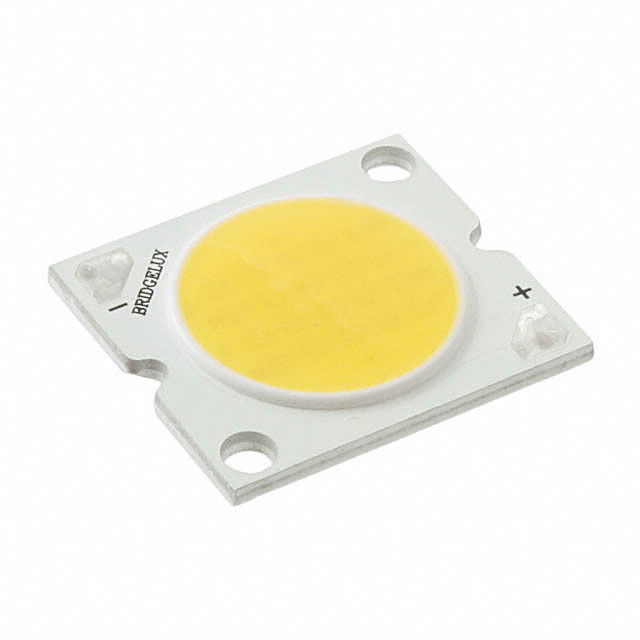

BXRA-W1202-00Q00 BXRA-W1202-00Q00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1320 lm (Typ)
Current - Test : 1.2A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 15.1V
Lumens/Watt @ Current - Test : 73 lm/W
Current - Max : 2.5A
CRI (Color Rendering Index) : 82 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.50mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-W1203-00Q00 BXRA-W1203-00Q00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1370 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18.3V
Lumens/Watt @ Current - Test : 71 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 82 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.50mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-W1800-00Q0E BXRA-W1800-00Q0E

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2000 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 38.1V
Lumens/Watt @ Current - Test : 75 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.50mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-W1800-00Q0G BXRA-W1800-00Q0G

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1800 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 38.1V
Lumens/Watt @ Current - Test : 67 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.50mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-W1800-00S0E BXRA-W1800-00S0E

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1840 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 38.1V
Lumens/Watt @ Current - Test : 69 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.50mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

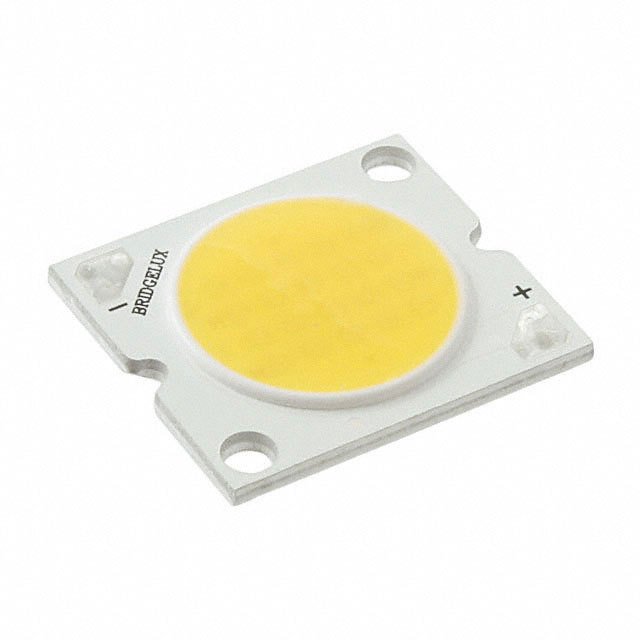

BXRA-W1800-00S0G BXRA-W1800-00S0G

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1665 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 38.1V
Lumens/Watt @ Current - Test : 62 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.50mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-W3000-00Q00 BXRA-W3000-00Q00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3400 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 25.6V
Lumens/Watt @ Current - Test : 54 lm/W
Current - Max : 3A
CRI (Color Rendering Index) : 82 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-W3500-00Q0E BXRA-W3500-00Q0E

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4000 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 24.6V
Lumens/Watt @ Current - Test : 77 lm/W
Current - Max : 3A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-W3500-00S0E BXRA-W3500-00S0E

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3700 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 24.6V
Lumens/Watt @ Current - Test : 72 lm/W
Current - Max : 3A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-W5700-00Q0E BXRA-W5700-00Q0E

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6300 lm (Typ)
Current - Test : 2.8A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 30.9V
Lumens/Watt @ Current - Test : 73 lm/W
Current - Max : 3.75A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

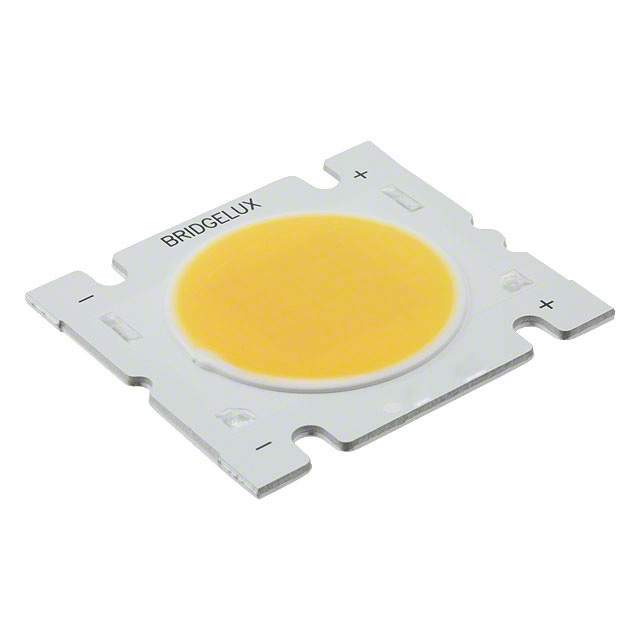

BXRA-W5700-00S0E BXRA-W5700-00S0E

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5800 lm (Typ)
Current - Test : 2.8A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 30.9V
Lumens/Watt @ Current - Test : 67 lm/W
Current - Max : 3.75A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

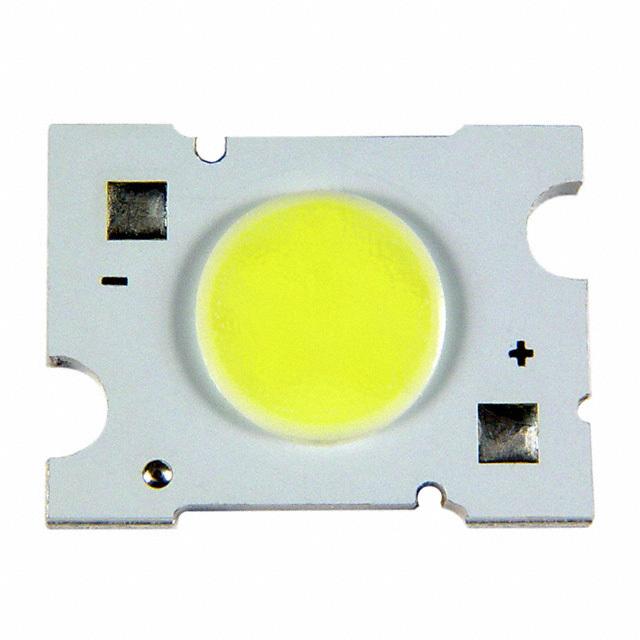

BXRB-27E0360-A-00 BXRB-27E0360-A-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : LS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 370 lm (Typ)
Current - Test : 365mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.4V
Lumens/Watt @ Current - Test : 82 lm/W
Current - Max : 500mA
CRI (Color Rendering Index) : 80
Viewing Angle : 140°
Features : -
Size / Dimension : 13.60mm L x 17.80mm W
Height : 4.60mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock
