Bridgelux

- At Bridgelux, we help companies, industries and people experience the power and possibility of light. Since 2002, we’ve designed LED solutions that are high performing, energy efficient, cost effective and easy to integrate. Bridgelux focuses on light’s impact on human behavior, delivering products that create better environments, experiences and returns—both experiential and financial. From our successful Vero® Series to smart lighting, Bridgelux patented technology drives new platforms for commercial and industrial luminaires.

Part Number
Manufacturer
Description
Unit Price
In Stock

BXRB-30G0360-B-00 BXRB-30G0360-B-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : LS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 360 lm (Typ)
Current - Test : 730mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 6.2V
Lumens/Watt @ Current - Test : 80 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 90
Viewing Angle : 140°
Features : -
Size / Dimension : 13.60mm L x 17.80mm W
Height : 4.60mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock

BXRB-30G0540-A-00 BXRB-30G0540-A-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES STAR
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 540 lm (Typ)
Current - Test : 365mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 17.2V
Lumens/Watt @ Current - Test : 77 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 3.20mm
Light Emitting Surface (LES) : 10.50mm Diameter
Lens Type : Domed
0
100 in stock

BXRB-30G0740-A-00 BXRB-30G0740-A-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES STAR
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 740 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 25.7V
Lumens/Watt @ Current - Test : 74 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 3.20mm
Light Emitting Surface (LES) : 10.50mm Diameter
Lens Type : Domed
0
100 in stock

BXRB-40E0810-A-00 BXRB-40E0810-A-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES STAR
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 900 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 25.7V
Lumens/Watt @ Current - Test : 90 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 3.20mm
Light Emitting Surface (LES) : 10.50mm Diameter
Lens Type : Domed
0
100 in stock

BXRB-56C0470-A-00 BXRB-56C0470-A-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : LS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 520 lm (Typ)
Current - Test : 365mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.4V
Lumens/Watt @ Current - Test : 115 lm/W
Current - Max : 500mA
CRI (Color Rendering Index) : 70
Viewing Angle : 140°
Features : -
Size / Dimension : 13.60mm L x 17.80mm W
Height : 4.60mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock

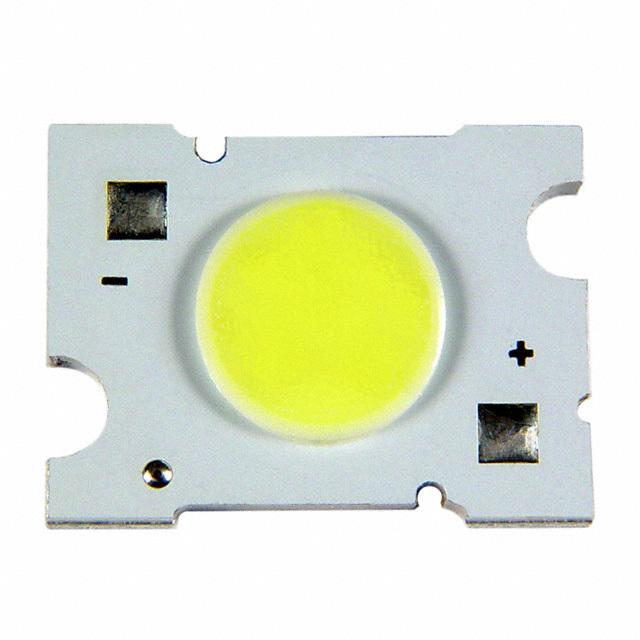

BXRB-56C0470-B-00 BXRB-56C0470-B-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : LS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 520 lm (Typ)
Current - Test : 730mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 6.2V
Lumens/Watt @ Current - Test : 115 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 70
Viewing Angle : 140°
Features : -
Size / Dimension : 13.60mm L x 17.80mm W
Height : 4.60mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock

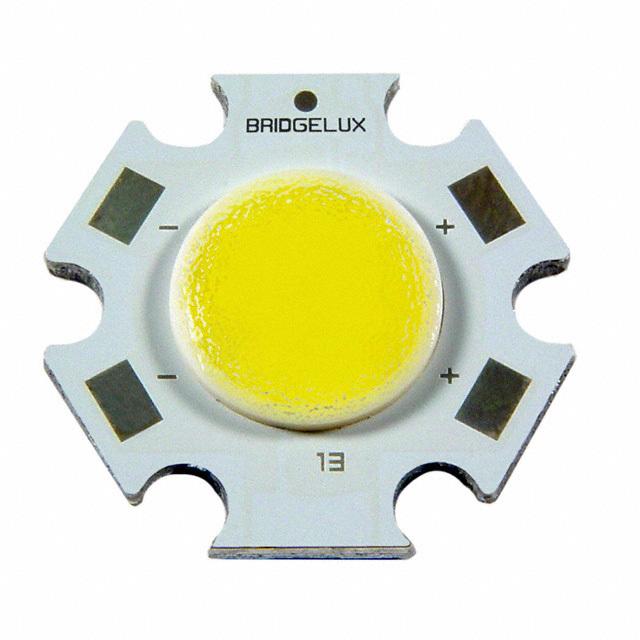

BXRB-56C0700-A-00 BXRB-56C0700-A-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES STAR
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 780 lm (Typ)
Current - Test : 365mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 17.2V
Lumens/Watt @ Current - Test : 112 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 3.20mm
Light Emitting Surface (LES) : 10.50mm Diameter
Lens Type : Domed
0
100 in stock

BXRB-56C1000-A-00 BXRB-56C1000-A-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES STAR
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5600K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1070 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 25.7V
Lumens/Watt @ Current - Test : 107 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 3.20mm
Light Emitting Surface (LES) : 10.50mm Diameter
Lens Type : Domed
0
100 in stock

BXRC-17E10K0-B-74-SE BXRC-17E10K0-B-74-SE

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Vero® SE 29 Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 1750K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 7230 lm (Typ)
Current - Test : 1.8A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 50.7V
Lumens/Watt @ Current - Test : 79 lm/W
Current - Max : 3.6A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 49.20mm Diameter
Height : 3.60mm
Light Emitting Surface (LES) : 29.20mm Diameter
Lens Type : Flat
0
73 in stock

BXRC-17E10K0-C-74-SE BXRC-17E10K0-C-74-SE

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Vero® SE 29 Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 1750K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 9157 lm (Typ)
Current - Test : 1.71A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 68.4V
Lumens/Watt @ Current - Test : 79 lm/W
Current - Max : 3.42A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 49.20mm Diameter
Height : 3.60mm
Light Emitting Surface (LES) : 29.20mm Diameter
Lens Type : Flat
0
96 in stock

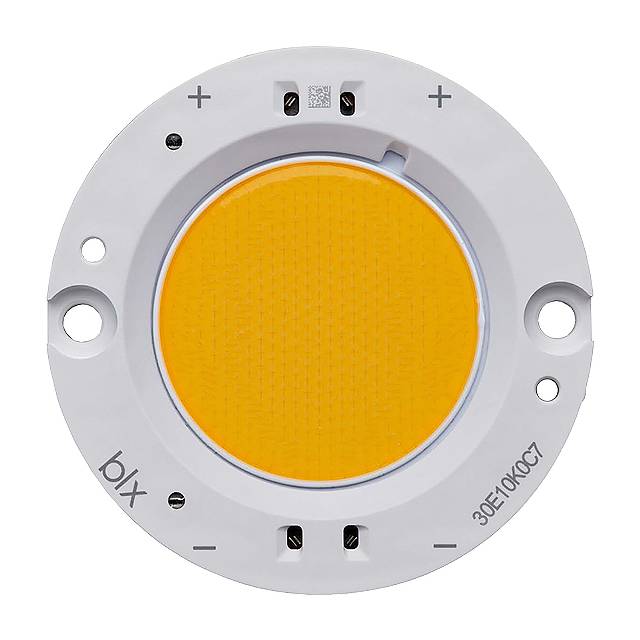

BXRC-17E10K0-D-74-SE BXRC-17E10K0-D-74-SE

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Vero® SE 29 Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 1750K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 6091 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36.3V
Lumens/Watt @ Current - Test : 79 lm/W
Current - Max : 4.2A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 49.20mm Diameter
Height : 3.60mm
Light Emitting Surface (LES) : 29.20mm Diameter
Lens Type : Flat
0
425 in stock

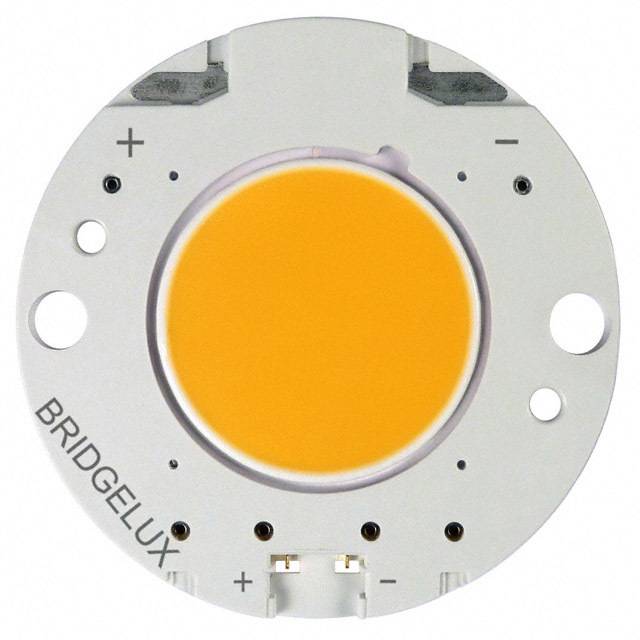

BXRC-17E4000-F-04 BXRC-17E4000-F-04

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : D茅cor Food Meat & Deli Vero 18
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 1750K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 1892 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 28.8V
Lumens/Watt @ Current - Test : 63 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : With Connector
Size / Dimension : 36.20mm Diameter
Height : 1.90mm
Light Emitting Surface (LES) : 18.40mm Diameter
Lens Type : Flat
0
100 in stock
