Cornell Dubilier
- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.
Part Number
Manufacturer
Description
Unit Price
In Stock

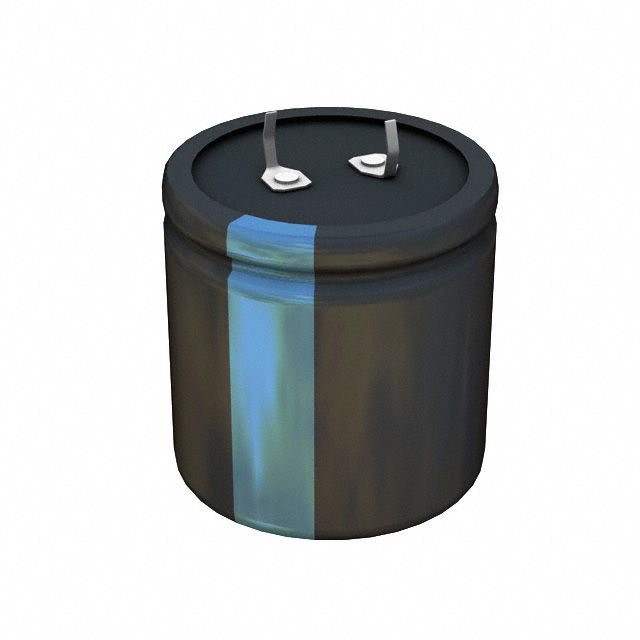

Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 380LQ
Part Status : Active
Capacitance : 390µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : 510 mOhm @ 120Hz
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -25°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.24A @ 120Hz
Ripple Current @ High Frequency : 3.14A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.457" (37.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
938 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tray
Series : 380LX
Part Status : Active
Capacitance : 10000µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 50 mOhm @ 120Hz
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 4.4A @ 120Hz
Ripple Current @ High Frequency : 5.1A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.063" (27.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
5252 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 380LX
Part Status : Active
Capacitance : 10000µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 50 mOhm @ 120Hz
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 4.4A @ 120Hz
Ripple Current @ High Frequency : 5.1A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.866" Dia (22.00mm)
Height - Seated (Max) : 1.850" (47.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
4370 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 380LX
Part Status : Active
Capacitance : 10000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 40 mOhm @ 120Hz
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 5A @ 120Hz
Ripple Current @ High Frequency : 5.7A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
4090 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 380LX
Part Status : Active
Capacitance : 1500µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : 144 mOhm @ 120Hz
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 3.9A @ 120Hz
Ripple Current @ High Frequency : 5.4A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
232 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 380LX
Part Status : Active
Capacitance : 15000µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 36 mOhm @ 120Hz
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 5.6A @ 120Hz
Ripple Current @ High Frequency : 6.4A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
5635 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 380LX
Part Status : Active
Capacitance : 22000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 20 mOhm @ 120Hz
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 7.6A @ 120Hz
Ripple Current @ High Frequency : 8.71A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1483 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 380LX
Part Status : Active
Capacitance : 33000µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 25 mOhm @ 120Hz
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 6.8A @ 120Hz
Ripple Current @ High Frequency : 7.9A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.260" (32.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
221 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 380LX
Part Status : Active
Capacitance : 33000µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 18 mOhm @ 120Hz
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 7.15A @ 120Hz
Ripple Current @ High Frequency : 8.22A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
12288 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 380LX
Part Status : Active
Capacitance : 4700µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 110 mOhm @ 120Hz
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 3A @ 120Hz
Ripple Current @ High Frequency : 3.5A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.866" Dia (22.00mm)
Height - Seated (Max) : 1.457" (37.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
10610 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 380LX
Part Status : Active
Capacitance : 4700µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : 70 mOhm @ 120Hz
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 5.13A @ 120Hz
Ripple Current @ High Frequency : 5.9A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
3430 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 380LX
Part Status : Active
Capacitance : 47000µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 17 mOhm @ 120Hz
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 8A @ 120Hz
Ripple Current @ High Frequency : 9.2A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
2649 in stock
