Cornell Dubilier
- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.
Part Number
Manufacturer
Description
Unit Price
In Stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 381LR
Part Status : Active
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : 402 mOhm @ 120Hz
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.85A @ 120Hz
Ripple Current @ High Frequency : 2.64A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
922 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 381LR
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : 282 mOhm @ 120Hz
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.01A @ 120Hz
Ripple Current @ High Frequency : 2.87A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
921 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 381LR
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : 282 mOhm @ 120Hz
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.47A @ 120Hz
Ripple Current @ High Frequency : 3.53A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
6312 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 381LR
Part Status : Active
Capacitance : 820µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : 243 mOhm @ 120Hz
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.63A @ 120Hz
Ripple Current @ High Frequency : 3.76A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
4369 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 381LX
Part Status : Active
Capacitance : 10000µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 3.2A @ 120Hz
Ripple Current @ High Frequency : 3.7A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 1.850" (47.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
7230 in stock

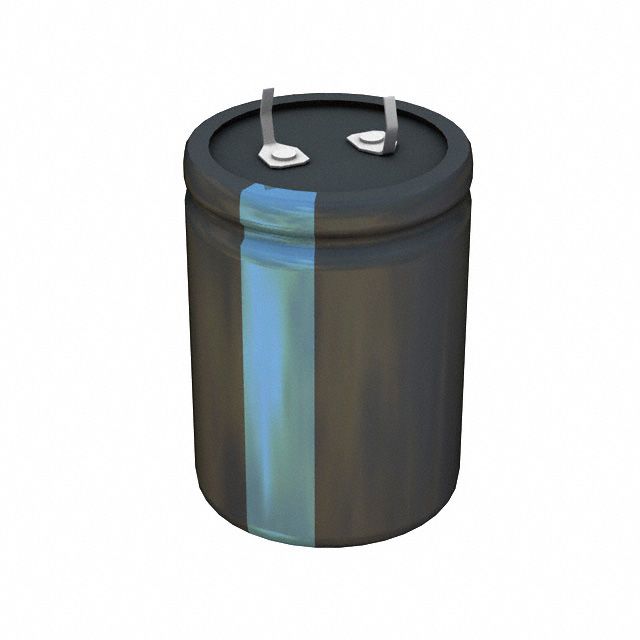

Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tray
Series : 381LX
Part Status : Active
Capacitance : 10000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 4A @ 120Hz
Ripple Current @ High Frequency : 4.6A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
3751 in stock

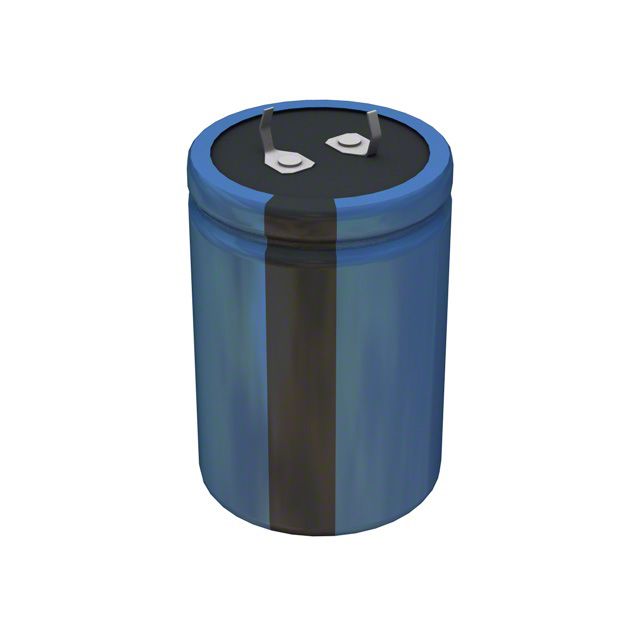

Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 381LX
Part Status : Active
Capacitance : 1500µF
Tolerance : ±20%
Voltage - Rated : 250V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.5A @ 120Hz
Ripple Current @ High Frequency : 3.5A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
488 in stock

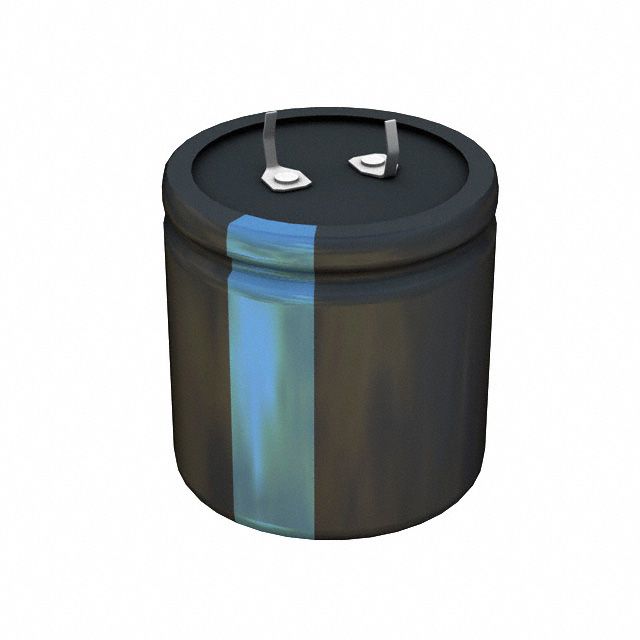

Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 381LX
Part Status : Active
Capacitance : 15000µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 3.9A @ 120Hz
Ripple Current @ High Frequency : 4.5A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.457" (37.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1010 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 381LX
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1A @ 120Hz
Ripple Current @ High Frequency : 1.4A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.866" Dia (22.00mm)
Height - Seated (Max) : 1.063" (27.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
6190 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 381LX
Part Status : Active
Capacitance : 22000µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 5A @ 120Hz
Ripple Current @ High Frequency : 5.8A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1580 in stock

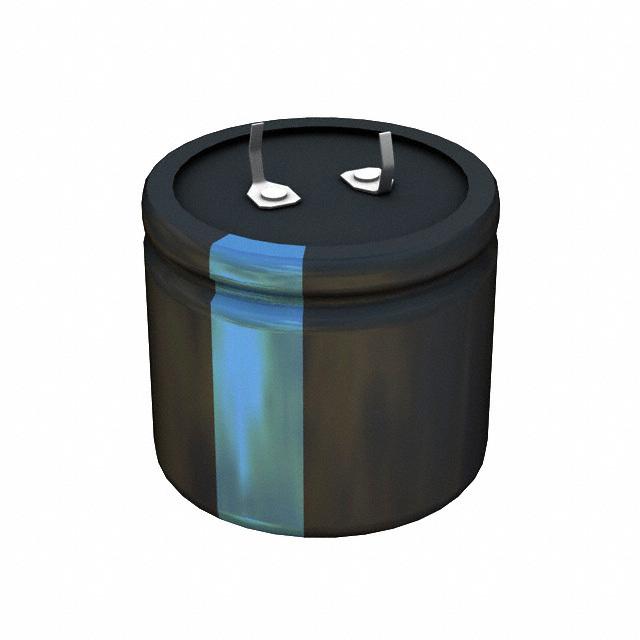

Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 381LX
Part Status : Active
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.2A @ 120Hz
Ripple Current @ High Frequency : 1.7A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.260" (32.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1810 in stock

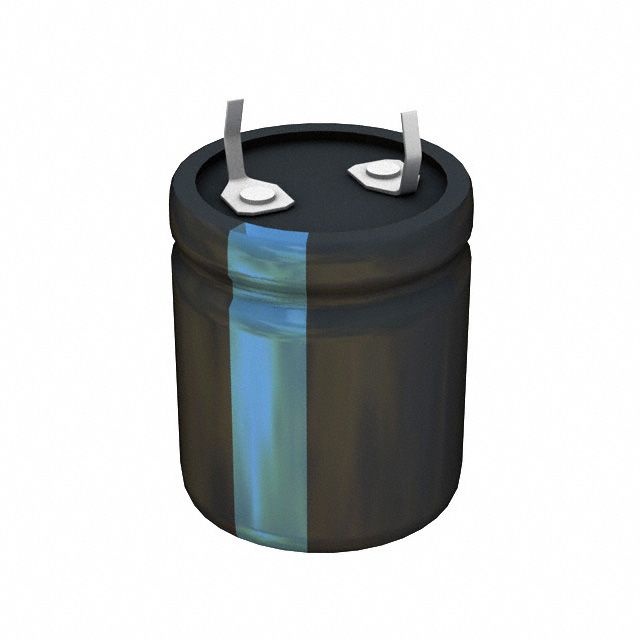

Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 381LX
Part Status : Active
Capacitance : 3300µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.9A @ 120Hz
Ripple Current @ High Frequency : 2.2A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.866" Dia (22.00mm)
Height - Seated (Max) : 1.063" (27.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
5391 in stock
