Cornell Dubilier

- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.


Part Number

Manufacturer

Description

Unit Price

In Stock

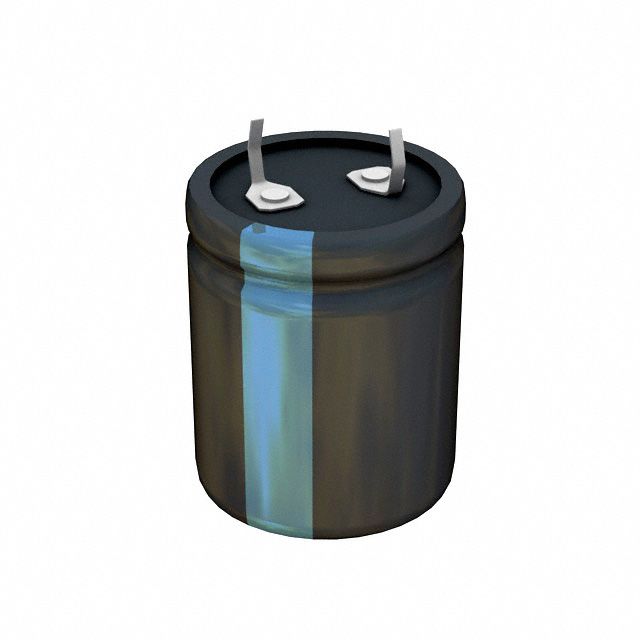

381LX332M050J022

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 381LX
Part Status : Active
Capacitance : 3300µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2A @ 120Hz
Ripple Current @ High Frequency : 2.3A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 1.260" (32.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In

4077 in stock

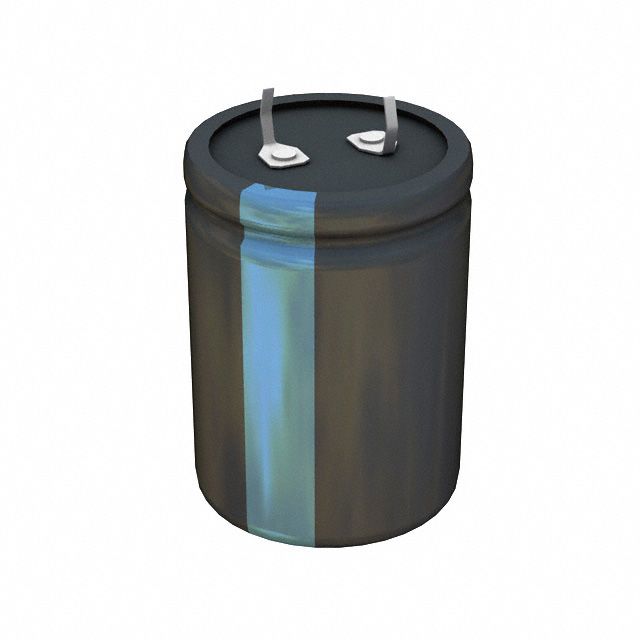

381LX332M100A042

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 381LX
Part Status : Active
Capacitance : 3300µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 3.2A @ 120Hz
Ripple Current @ High Frequency : 4.8A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In

5145 in stock

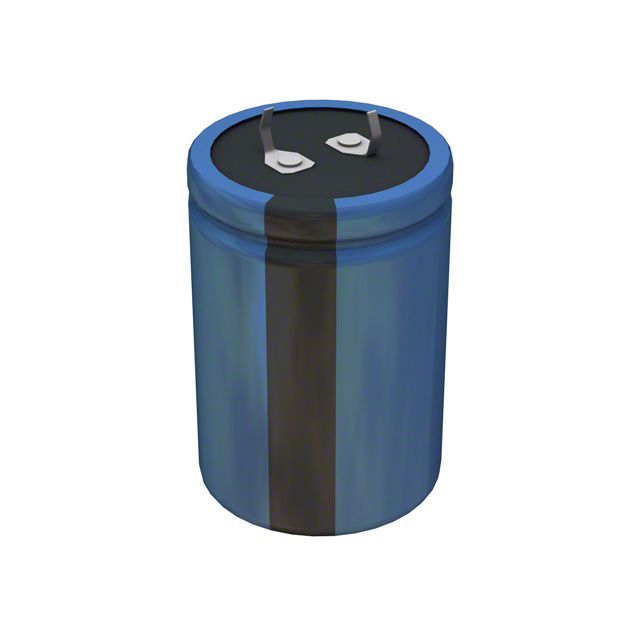

381LX471M450A052

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tray
Series : 381LX
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.7A @ 120Hz
Ripple Current @ High Frequency : 2.4A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In

4499 in stock

381LX472M100A052

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 381LX
Part Status : Active
Capacitance : 4700µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 3.8A @ 120Hz
Ripple Current @ High Frequency : 5.7A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In

3376 in stock

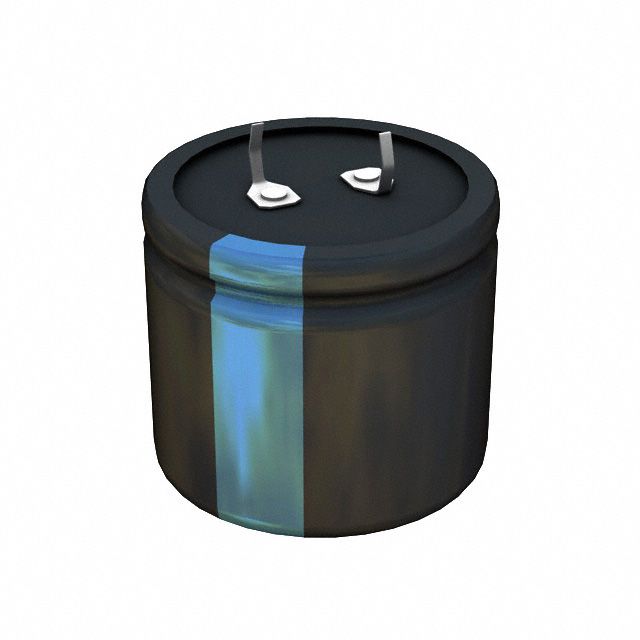

381LX682M050A022

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 381LX
Part Status : Active
Capacitance : 6800µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 3.3A @ 120Hz
Ripple Current @ High Frequency : 3.8A @ 20kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.260" (32.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In

2693 in stock

382LX103M100A082

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 382LX
Part Status : Active
Capacitance : 10000µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 3.228" (82.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In - 4 Lead

272 in stock

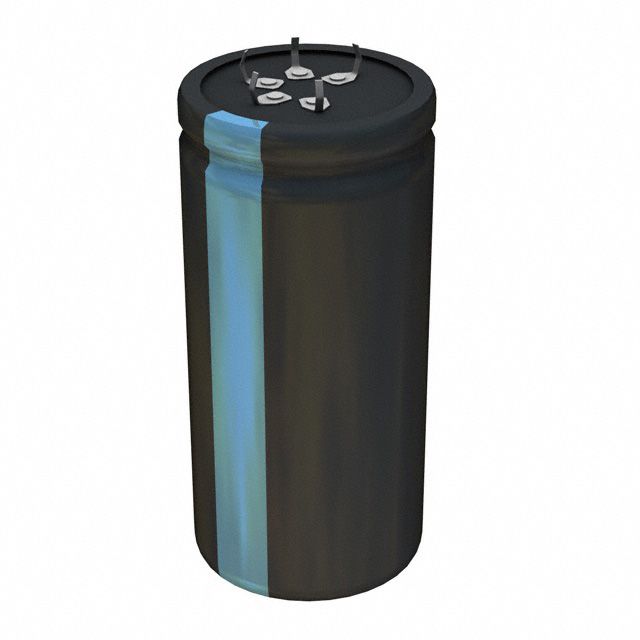

382LX103M200B102VS

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 382LX
Part Status : Active
Capacitance : 10000µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 1.969" Dia (50.00mm)
Height - Seated (Max) : 4.213" (107.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In - 5 Lead

1153 in stock

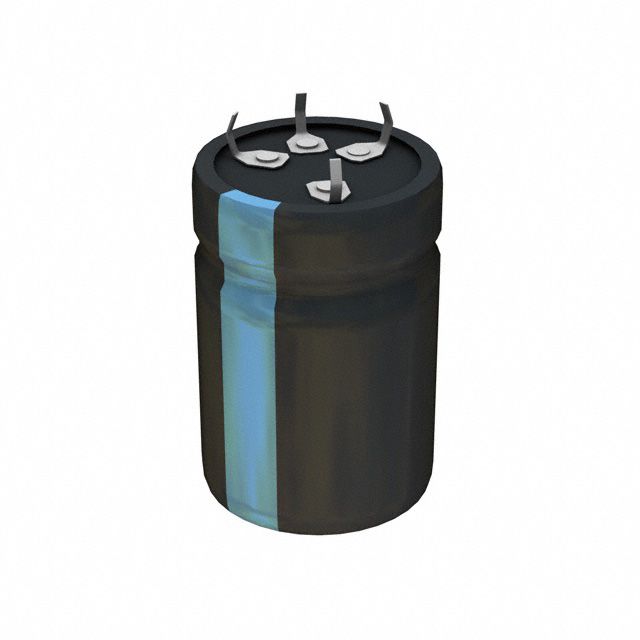

382LX223M050A052

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 382LX
Part Status : Active
Capacitance : 22000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In - 4 Lead

578 in stock

382LX273M100B102VS

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 382LX
Part Status : Active
Capacitance : 27000µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 12.53A @ 120Hz
Ripple Current @ High Frequency : 14.41A @ 20kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 1.969" Dia (50.00mm)
Height - Seated (Max) : 4.213" (107.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In - 5 Lead

602 in stock

383LX153M063A062

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 383LX
Part Status : Active
Capacitance : 15000µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.559" (65.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In - 4 Lead

847 in stock

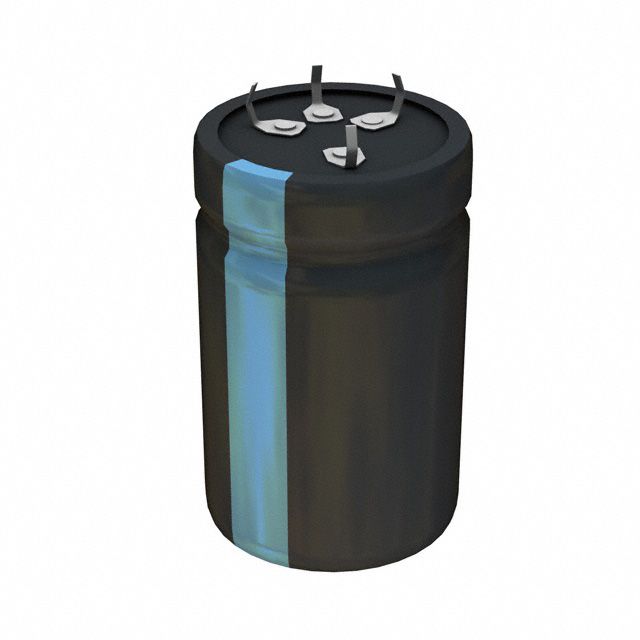

383LX222M250N062

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 383LX
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 250V
ESR (Equivalent Series Resistance) : 98 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 3.7A @ 120Hz
Ripple Current @ High Frequency : 5.15A @ 20kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 1.575" Dia (40.00mm)
Height - Seated (Max) : 2.559" (65.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In - 4 Lead

1475 in stock

383LX471M450A052

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 383LX
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In - 4 Lead

2920 in stock
