Cornell Dubilier

- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.


Part Number

Manufacturer

Description

Unit Price

In Stock

383LX561M450N052

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 383LX
Part Status : Active
Capacitance : 560µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : 296 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.2A @ 120Hz
Ripple Current @ High Frequency : 3A @ 20kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 1.575" Dia (40.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In - 4 Lead

3117 in stock

418P10496LB3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 418P
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage Rating - AC : -
Voltage Rating - DC : 600V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.650" Dia x 1.201" L (16.50mm x 30.50mm)
Height - Seated (Max) : 0.886" (22.50mm)
Termination : PC Pins
Lead Spacing : 0.969" (24.60mm)
Applications : General Purpose
Ratings : -
Features : -

703 in stock

44603

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Series : -
Part Status : Active
Accessory Type : Insulating Terminal Boot
For Use With/Related Products : Oval Can Types
Device Size : -
Specifications : -

1390 in stock

475K100CS4-FA

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tube
Series : Capstick® CS
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±10%
Voltage - Rated : 100V
Dielectric Material : Polymer, Metallized
Number of Capacitors : -
Circuit Type : Bussed
Temperature Coefficient : -
Ratings : -
Mounting Type : Through Hole
Package / Case : 6-DIP
Size / Dimension : 0.524" L x 0.500" W (13.30mm x 12.70mm)
Height - Seated (Max) : 0.250" (6.35mm)

399 in stock

475K100CS4G

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tube
Series : Capstick® CS
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±10%
Voltage - Rated : 100V
Dielectric Material : Polymer, Metallized
Number of Capacitors : -
Circuit Type : Bussed
Temperature Coefficient : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, Gull Wing
Size / Dimension : 0.524" L x 0.500" W (13.30mm x 12.70mm)
Height - Seated (Max) : 0.252" (6.40mm)

124 in stock

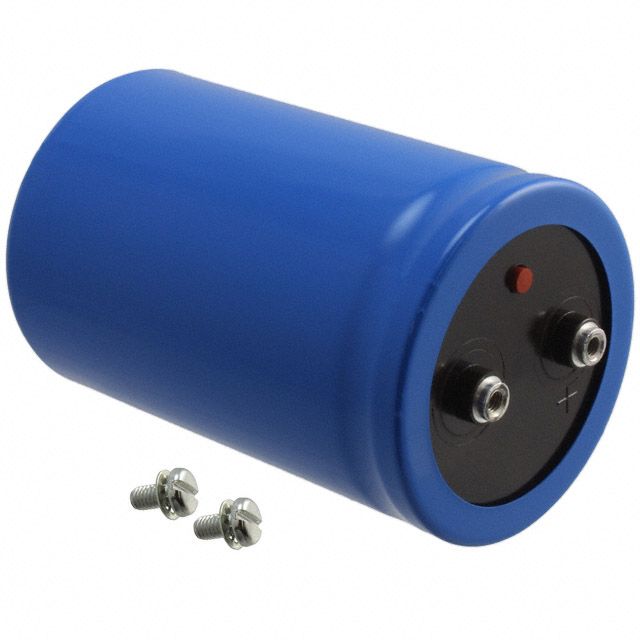

500C103T250DD2B

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 500C
Part Status : Active
Capacitance : 10000µF
Tolerance : -10%, +50%
Voltage - Rated : 250V
ESR (Equivalent Series Resistance) : 16.3 mOhm @ 120Hz
Lifetime @ Temp. : 5000 Hrs @ 95°C
Operating Temperature : -40°C ~ 95°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 18.6A @ 120Hz
Ripple Current @ High Frequency : 22.32A @ 10kHz
Impedance : -
Lead Spacing : 1.250" (31.75mm)
Size / Dimension : 3.000" Dia (76.20mm)
Height - Seated (Max) : 4.625" (117.48mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals

76 in stock

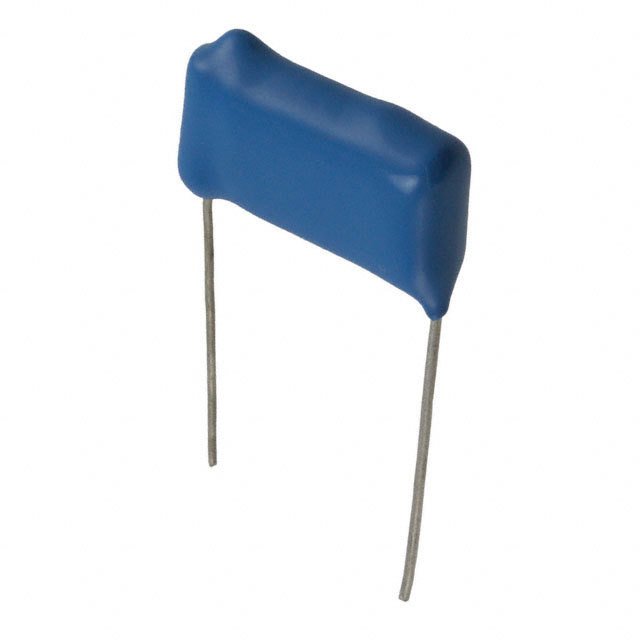

504M02QA100

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Quencharc®
Part Status : Active
Type : Low Pass
Filter Order : 1st
Technology : RC
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 0.50µF
ESD Protection : No
Operating Temperature : -55°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 200V
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.079" L x 0.370" W (27.40mm x 9.40mm)
Height : 0.892" (22.65mm)

356 in stock

504M02QA220

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Quencharc®
Part Status : Active
Type : Low Pass
Filter Order : 1st
Technology : RC
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 220
Current : -
Values : R = 220 Ohms, C = 0.50µF
ESD Protection : No
Operating Temperature : -55°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 200V
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.079" L x 0.370" W (27.40mm x 9.40mm)
Height : 0.892" (22.65mm)

1581 in stock

504M06QE100

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Quencharc®
Part Status : Active
Type : Low Pass
Filter Order : 1st
Technology : RC
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 0.5µF
ESD Protection : No
Operating Temperature : -55°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 600V
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.449" L x 0.591" W (36.80mm x 15.00mm)
Height : 0.921" (23.40mm)

353 in stock

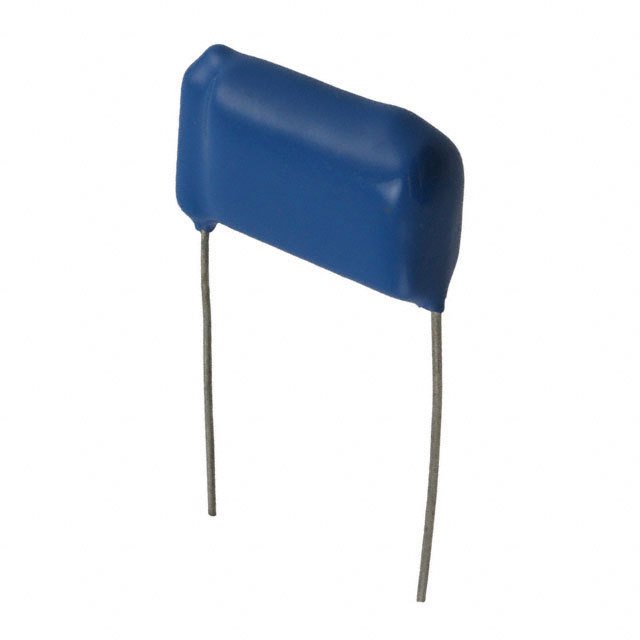

504M06QE150

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Quencharc®
Part Status : Active
Type : Low Pass
Filter Order : 1st
Technology : RC
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 150
Current : -
Values : R = 150 Ohms, C = 0.5µF
ESD Protection : No
Operating Temperature : -55°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 600V
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.449" L x 0.591" W (36.80mm x 15.00mm)
Height : 0.921" (23.40mm)

36 in stock

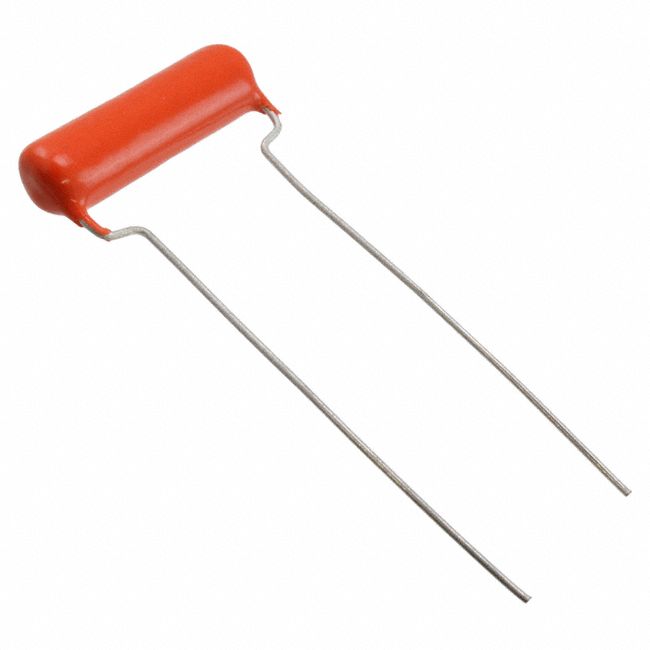

715P102516LD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 1000pF
Tolerance : ±5%
Voltage Rating - AC : 500V
Voltage Rating - DC : 1600V (1.6kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.291" Dia x 1.252" L (7.40mm x 31.80mm)
Height - Seated (Max) : 0.583" (14.80mm)
Termination : PC Pins
Lead Spacing : 0.720" (18.30mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

1435 in stock

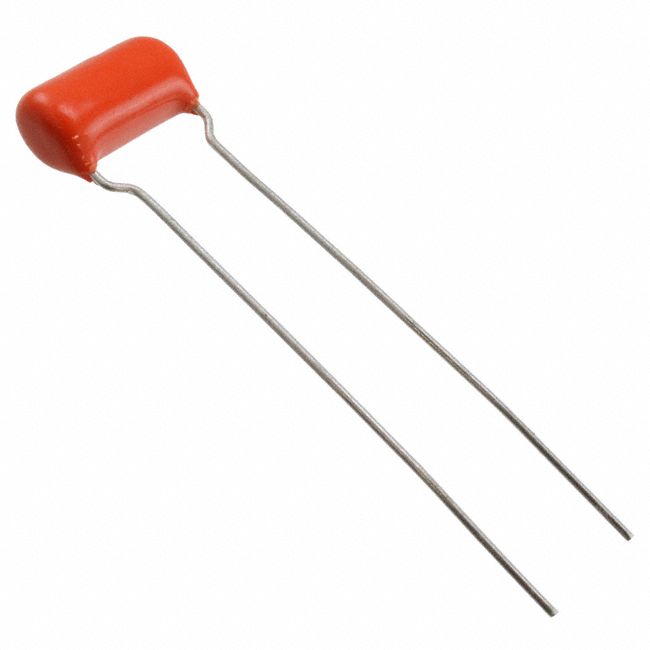

715P10256JD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 1000pF
Tolerance : ±5%
Voltage Rating - AC : 200V
Voltage Rating - DC : 600V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.350" Dia x 0.701" L (8.90mm x 17.80mm)
Height - Seated (Max) : 0.642" (16.30mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

4135 in stock
