Delta Electronics

- Delta Group is the world's largest provider of switching power supplies and brushless fans, as well as a major source for power management solutions, components, visual displays, industrial automation, networking products, and renewable energy solutions. Established in 1971, Delta Group has sales offices worldwide and manufacturing plants in Taiwan, Thailand, China, Mexico and Europe. As a global leader in power electronics, Delta's mission is "To provide innovative, clean and efficient energy solutions for a better tomorrow." Delta is committed to environmental protection and has implemented green, lead-free production and recycling and waste management programs for many years.

Part Number
Manufacturer
Description
Unit Price
In Stock

SC02D2415A SC02D2415A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SC02S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 21.6V
Voltage - Input (Max) : 26.4V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 83mA, 83mA
Power (Watts) : 2W
Voltage - Isolation : 1kV
Applications : Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 82%
Mounting Type : Surface Mount
Package / Case : 8-SMD Module, 5 Leads
Size / Dimension : 0.50" L x 0.37" W x 0.35" H (12.75mm x 9.3mm x 9mm)
Supplier Device Package : -
Control Features : -
0
4 in stock

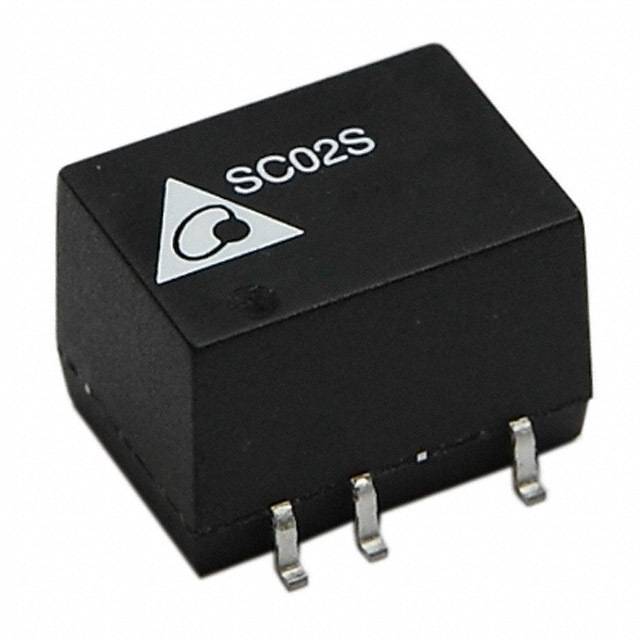

SC02S0505A SC02S0505A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SC02S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 400mA
Power (Watts) : 2W
Voltage - Isolation : 1kV
Applications : Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 77%
Mounting Type : Surface Mount
Package / Case : 8-SMD Module, 5 Leads
Size / Dimension : 0.50" L x 0.37" W x 0.35" H (12.75mm x 9.3mm x 9mm)
Supplier Device Package : -
Control Features : -
0
9 in stock

SC02S1212A SC02S1212A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SC02S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 10.8V
Voltage - Input (Max) : 13.2V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 165mA
Power (Watts) : 2W
Voltage - Isolation : 1kV
Applications : Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 82%
Mounting Type : Surface Mount
Package / Case : 8-SMD Module, 5 Leads
Size / Dimension : 0.50" L x 0.37" W x 0.35" H (12.75mm x 9.3mm x 9mm)
Supplier Device Package : -
Control Features : -
0
31 in stock

SC02S2405A SC02S2405A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SC02S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 21.6V
Voltage - Input (Max) : 26.4V
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 400mA
Power (Watts) : 2W
Voltage - Isolation : 1kV
Applications : Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 78%
Mounting Type : Surface Mount
Package / Case : 8-SMD Module, 5 Leads
Size / Dimension : 0.50" L x 0.37" W x 0.35" H (12.75mm x 9.3mm x 9mm)
Supplier Device Package : -
Control Features : -
0
34 in stock

SD02D0515A SD02D0515A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SD02S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 9V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 67mA, 67mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 71%
Mounting Type : Surface Mount
Package / Case : 16-SMD Module
Size / Dimension : 0.94" L x 0.71" W x 0.31" H (23.9mm x 18.1mm x 8.0mm)
Supplier Device Package : -
Control Features : -
0
26 in stock

SD02D1212A SD02D1212A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SD02S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 83mA, 83mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 78%
Mounting Type : Surface Mount
Package / Case : 16-SMD Module
Size / Dimension : 0.94" L x 0.71" W x 0.31" H (23.9mm x 18.1mm x 8.0mm)
Supplier Device Package : -
Control Features : -
0
1 in stock

SD02D1215A SD02D1215A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SD02S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 67mA, 67mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 78%
Mounting Type : Surface Mount
Package / Case : 16-SMD Module
Size / Dimension : 0.94" L x 0.71" W x 0.31" H (23.9mm x 18.1mm x 8.0mm)
Supplier Device Package : -
Control Features : -
0
1000 in stock

SD02D2405A SD02D2405A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SD02S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 5V
Voltage - Output 2 : -5V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 200mA, 200mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 74%
Mounting Type : Surface Mount
Package / Case : 16-SMD Module
Size / Dimension : 0.94" L x 0.71" W x 0.31" H (23.9mm x 18.1mm x 8.0mm)
Supplier Device Package : -
Control Features : -
0
101 in stock

SD02D2412A SD02D2412A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SD02S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 83mA, 83mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 78%
Mounting Type : Surface Mount
Package / Case : 16-SMD Module
Size / Dimension : 0.94" L x 0.71" W x 0.31" H (23.9mm x 18.1mm x 8.0mm)
Supplier Device Package : -
Control Features : -
0
497 in stock

SD02D2415A SD02D2415A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SD02S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 67mA, 67mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 80%
Mounting Type : Surface Mount
Package / Case : 16-SMD Module
Size / Dimension : 0.94" L x 0.71" W x 0.31" H (23.9mm x 18.1mm x 8.0mm)
Supplier Device Package : -
Control Features : -
0
6 in stock

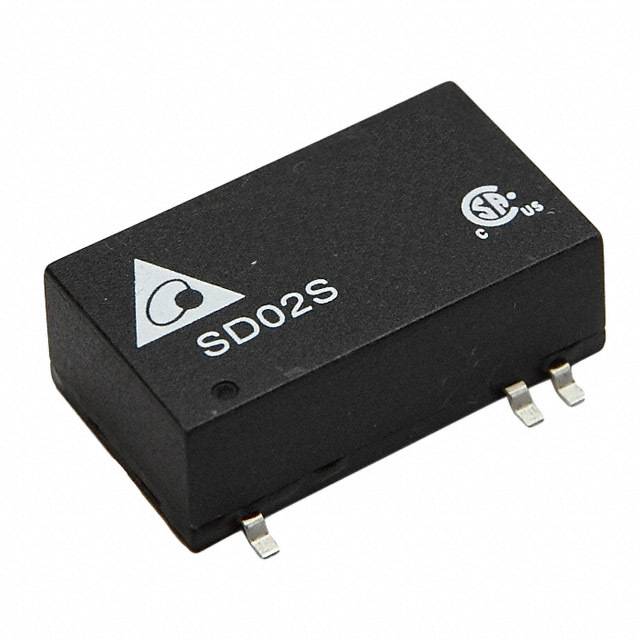

SD02S0503A SD02S0503A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SD02S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 9V
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 70%
Mounting Type : Surface Mount
Package / Case : 16-SMD Module
Size / Dimension : 0.94" L x 0.71" W x 0.31" H (23.9mm x 18.1mm x 8.0mm)
Supplier Device Package : -
Control Features : -
0
2 in stock

SD02S1203A SD02S1203A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SD02S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 73%
Mounting Type : Surface Mount
Package / Case : 16-SMD Module
Size / Dimension : 0.94" L x 0.71" W x 0.31" H (23.9mm x 18.1mm x 8.0mm)
Supplier Device Package : -
Control Features : -
0
130 in stock
