Delta Electronics
- Delta Group is the world's largest provider of switching power supplies and brushless fans, as well as a major source for power management solutions, components, visual displays, industrial automation, networking products, and renewable energy solutions. Established in 1971, Delta Group has sales offices worldwide and manufacturing plants in Taiwan, Thailand, China, Mexico and Europe. As a global leader in power electronics, Delta's mission is "To provide innovative, clean and efficient energy solutions for a better tomorrow." Delta is committed to environmental protection and has implemented green, lead-free production and recycling and waste management programs for many years.
Part Number
Manufacturer
Description
Unit Price
In Stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube

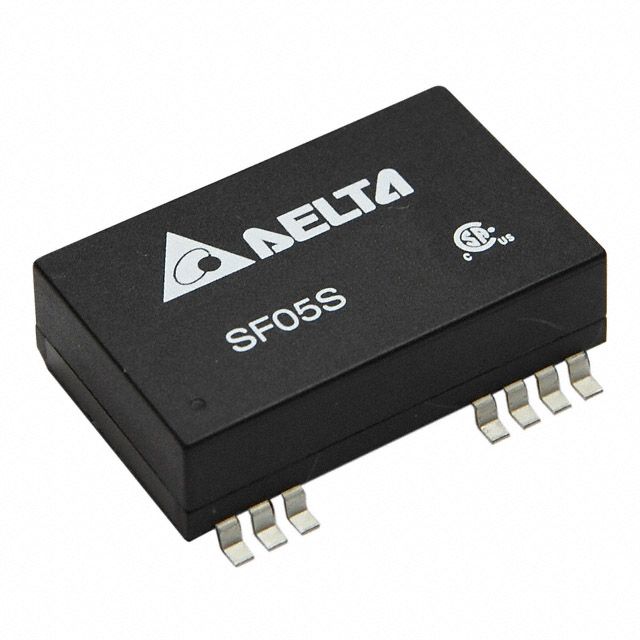

Series : SF05S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1A
Power (Watts) : 5W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : Remote On/Off, OCP, SCP, UVLO
Operating Temperature : -40°C ~ 71°C
Efficiency : 82%
Mounting Type : Surface Mount
Package / Case : 24-SMD Module, 12 Leads
Size / Dimension : 1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
Supplier Device Package : -
Control Features : Enable, Active High
0
133 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SF05S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 417mA
Power (Watts) : 5W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : Remote On/Off, OCP, SCP, UVLO
Operating Temperature : -40°C ~ 71°C
Efficiency : 85%
Mounting Type : Surface Mount
Package / Case : 24-SMD Module, 12 Leads
Size / Dimension : 1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
Supplier Device Package : -
Control Features : Enable, Active High
0
374 in stock
Delta Electronics
Manufacturer : Delta Electronics

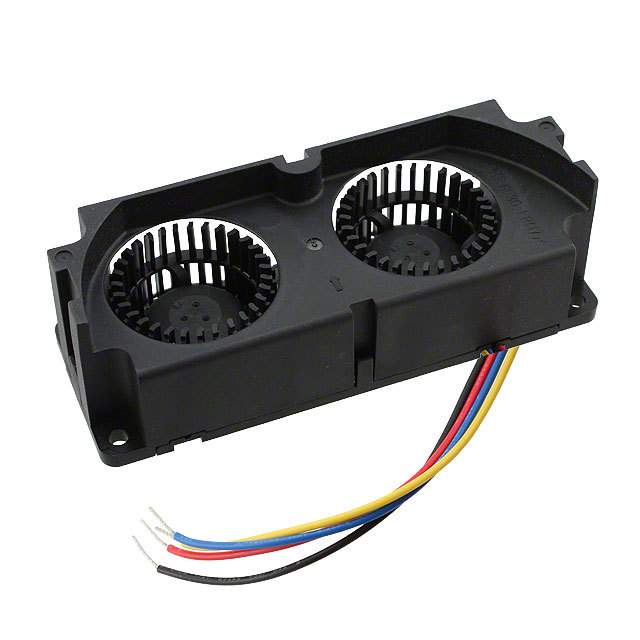

Series : SFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular - 125mm L x 38mm H
Width : 45.00mm
Air Flow : 23.1 CFM (0.647m鲁/min)
Static Pressure : 0.643 in H2O (160.2 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : Speed Sensor (Tach)
Noise : 52.0 dB(A)
Power (Watts) : 7.44W
RPM : 7000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.265 lb (120.2g)
0
19 in stock
Delta Electronics
Manufacturer : Delta Electronics

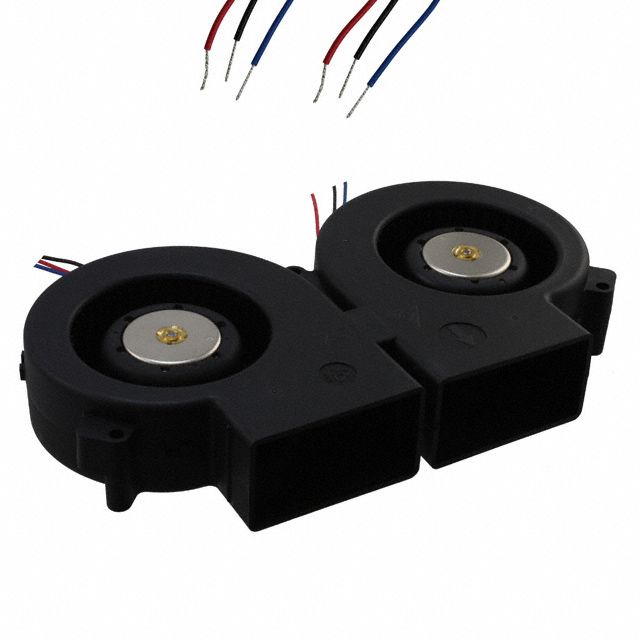

Series : SFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 195.2mm L x 108.6mm H
Width : 33.00mm
Air Flow : 91.0 CFM (2.55m鲁/min)
Static Pressure : 2.694 in H2O (671.1 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : Speed Sensor (Tach)
Noise : 67.0 dB(A)
Power (Watts) : 55.2W
RPM : 5300 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.849 lb (385.1g)
0
92 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube

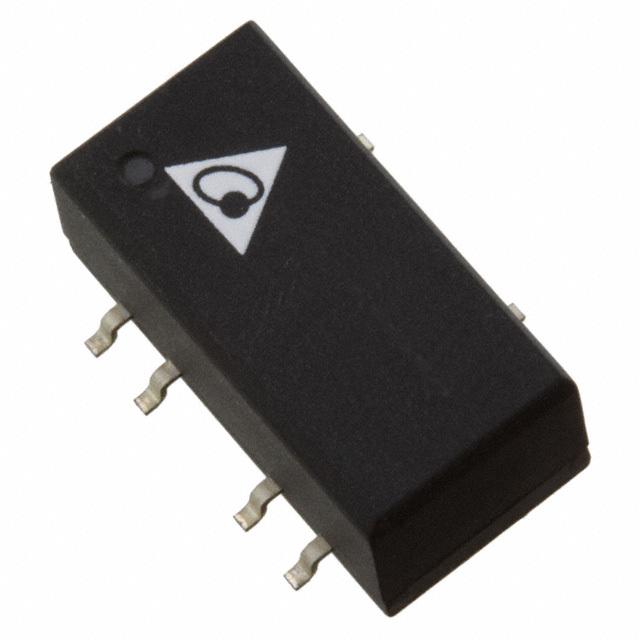

Series : SH01S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 42mA, 42mA
Power (Watts) : 1W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 78%
Mounting Type : Surface Mount
Package / Case : 8-SMD Module, 5 Leads
Size / Dimension : 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
4 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SH01S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 21.6V
Voltage - Input (Max) : 26.4V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 33mA, 33mA
Power (Watts) : 1W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 78%
Mounting Type : Surface Mount
Package / Case : 8-SMD Module, 5 Leads
Size / Dimension : 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
76 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SH01S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 13.5V
Voltage - Input (Max) : 16.5V
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 67mA
Power (Watts) : 1W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 78%
Mounting Type : Surface Mount
Package / Case : 8-SMD Module, 5 Leads
Size / Dimension : 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
26 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SH01S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 21.6V
Voltage - Input (Max) : 26.4V
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 300mA
Power (Watts) : 1W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 72%
Mounting Type : Surface Mount
Package / Case : 8-SMD Module, 5 Leads
Size / Dimension : 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
23 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SH01S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 21.6V
Voltage - Input (Max) : 26.4V
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 200mA
Power (Watts) : 1W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 78%
Mounting Type : Surface Mount
Package / Case : 8-SMD Module, 5 Leads
Size / Dimension : 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
38 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : SH01S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 21.6V
Voltage - Input (Max) : 26.4V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 84mA
Power (Watts) : 1W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 77%
Mounting Type : Surface Mount
Package / Case : 8-SMD Module, 5 Leads
Size / Dimension : 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
2374 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Bulk
Series : SK
Part Status : Active
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades
Current - IEC : 10A
Voltage - IEC : 250VAC
Current - UL : 15A
Voltage - UL : 250VAC
Filter Type : Unfiltered - Commercial
Fuse : No
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Solder Eyelet
Switch Features : -
Features : -
Fuse Holder, Drawer : -
Panel Cutout Dimensions : Rectangular - 27.50mm x 20.00mm
Panel Thickness : -
Material Flammability Rating : UL94 V-0
Ingress Protection : -
Approvals : CCC, CSA, SEMKO, UL, VDE
0
100 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Bulk

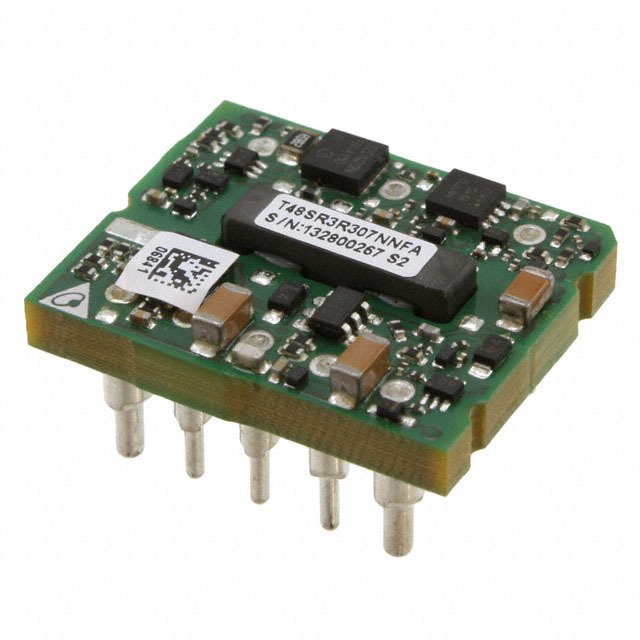

Series : Delphi T48SR
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 36V
Voltage - Input (Max) : 75V
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 7.5A
Power (Watts) : 25W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, OVP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 86%
Mounting Type : Through Hole
Package / Case : 8-DIP Module, 1/32 Brick
Size / Dimension : 0.92" L x 0.75" W x 0.35" H (23.4mm x 19.1mm x 8.9mm)
Supplier Device Package : -
Control Features : Enable, Active Low
0
19 in stock
