Delta Electronics

- Delta Group is the world's largest provider of switching power supplies and brushless fans, as well as a major source for power management solutions, components, visual displays, industrial automation, networking products, and renewable energy solutions. Established in 1971, Delta Group has sales offices worldwide and manufacturing plants in Taiwan, Thailand, China, Mexico and Europe. As a global leader in power electronics, Delta's mission is "To provide innovative, clean and efficient energy solutions for a better tomorrow." Delta is committed to environmental protection and has implemented green, lead-free production and recycling and waste management programs for many years.

Part Number
Manufacturer
Description
Unit Price
In Stock

TCA1048AB0C TCA1048AB0C

Delta Electronics
Manufacturer : Delta Electronics
Series : TCA
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 100mm Dia
Width : 24.80mm
Air Flow : 68.8 CFM (1.93m鲁/min)
Static Pressure : 1.895 in H2O (472.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise : 65.0 dB(A)
Power (Watts) : 18.72W
RPM : 6700 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.302 lb (136.98g)
0
114 in stock

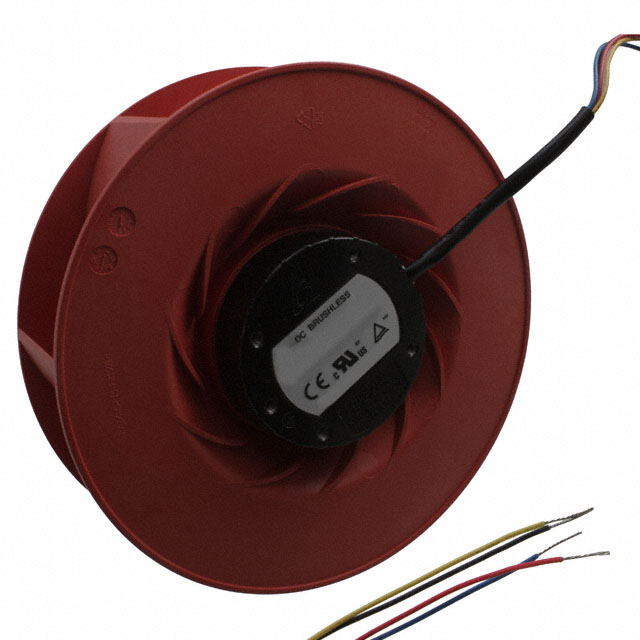

TCA1748ATXHD TCA1748ATXHD

Delta Electronics
Manufacturer : Delta Electronics
Series : -
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 175mm Dia
Width : 69.00mm
Air Flow : 428.0 CFM (11.98m鲁/min)
Static Pressure : 1.957 in H2O (487.5 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : GR-487, PWM Control, Speed Sensor (Tach)
Noise : 70.8 dB(A)
Power (Watts) : 76.8W
RPM : 4000 RPM
Termination : 4 Wire Leads
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : CE, TUV, UL
Weight : 1.5 lbs (680.4g)
0
25 in stock

TFA0412BN-CN TFA0412BN-CN

Delta Electronics
Manufacturer : Delta Electronics
Series : TFA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 22.2 CFM (0.622m鲁/min)
Static Pressure : 1.617 in H2O (402.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise : 50.8 dB(A)
Power (Watts) : 5.04W
RPM : 15600 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.104 lb (47.17g)
0
100 in stock

TFA0412CN-CN TFA0412CN-CN

Delta Electronics
Manufacturer : Delta Electronics
Series : TFA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 25.3 CFM (0.708m鲁/min)
Static Pressure : 1.868 in H2O (465.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise : 55.0 dB(A)
Power (Watts) : 7.20W
RPM : 17600 RPM
Termination : 4 Wire Leads
Ingress Protection : IP51 - Dust Protected
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.098 lb (44.45g)
0
356 in stock

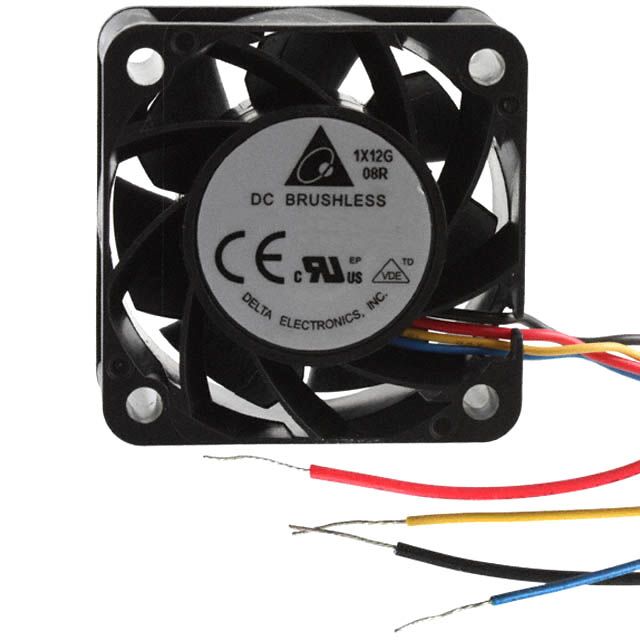

THA0412AD THA0412AD

Delta Electronics
Manufacturer : Delta Electronics
Series : THA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 20.6 CFM (0.577m鲁/min)
Static Pressure : 1.385 in H2O (345.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 52.0 dB(A)
Power (Watts) : 5.16W
RPM : 15600 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.055 lb (24.95g)
0
56 in stock

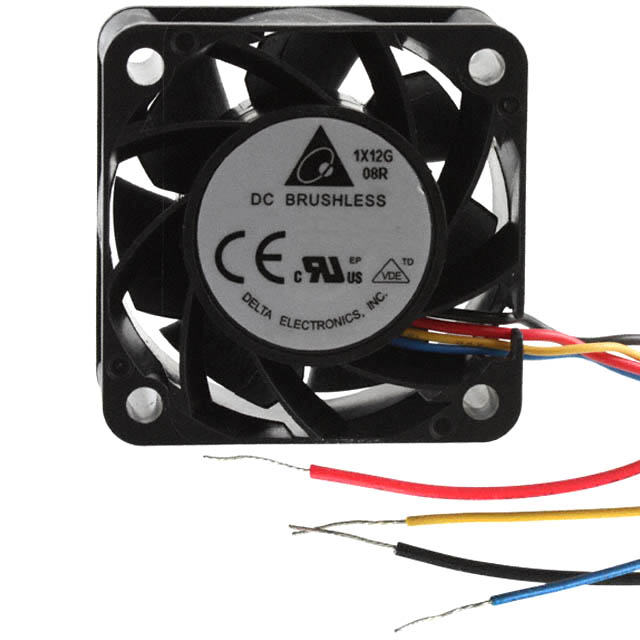

THA0412AD-TZW3 THA0412AD-TZW3

Delta Electronics
Manufacturer : Delta Electronics
Series : THA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 20.6 CFM (0.577m鲁/min)
Static Pressure : 1.385 in H2O (345.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 52.0 dB(A)
Power (Watts) : 5.16W
RPM : 15600 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.055 lb (24.95g)
0
100 in stock

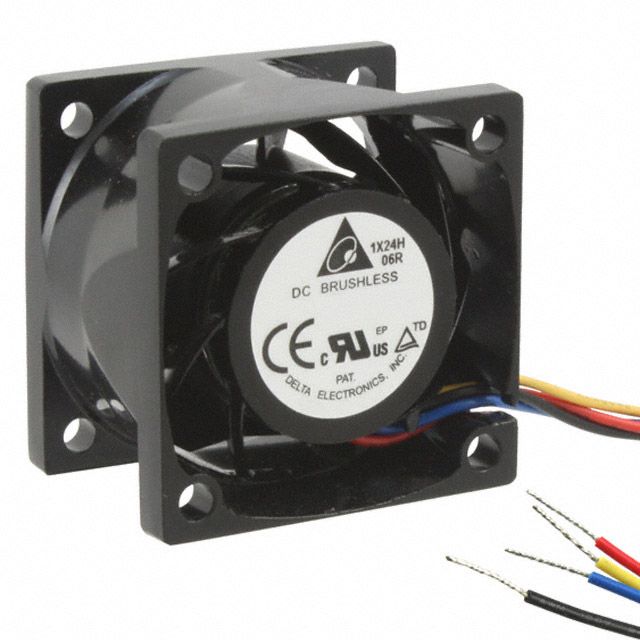

THA0412BN THA0412BN

Delta Electronics
Manufacturer : Delta Electronics
Series : THA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 29.5 CFM (0.826m鲁/min)
Static Pressure : 2.400 in H2O (597.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 59.0 dB(A)
Power (Watts) : 10.70W
RPM : 19000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.101 lb (45.81g)
0
100 in stock

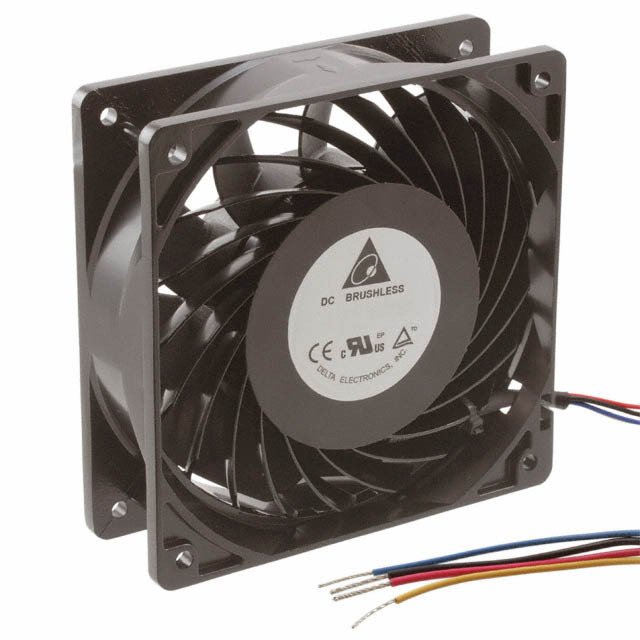

THA1248BE THA1248BE

Delta Electronics
Manufacturer : Delta Electronics
Series : THA
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 318.2 CFM (8.91m鲁/min)
Static Pressure : 3.091 in H2O (770.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 72.0 dB(A)
Power (Watts) : 99.4W
RPM : 7600 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.102 lb (500.0g)
0
100 in stock

THA1248BE-AXHE THA1248BE-AXHE

Delta Electronics
Manufacturer : Delta Electronics
Series : THA
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 302.8 CFM (8.48m鲁/min)
Static Pressure : 3.394 in H2O (845.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise : 73.5 dB(A)
Power (Watts) : 80.6W
RPM : 9000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.102 lb (500.0g)
0
139 in stock

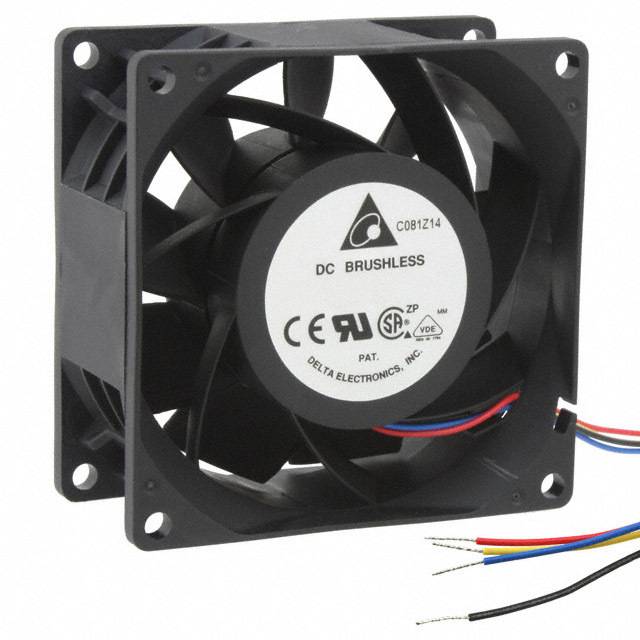

THB0848BEB51 THB0848BEB51

Delta Electronics
Manufacturer : Delta Electronics
Series : THB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 127.5 CFM (3.57m鲁/min)
Static Pressure : 4.543 in H2O (1132.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise : 70.0 dB(A)
Power (Watts) : 33.60W
RPM : 15000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : -
0
336 in stock

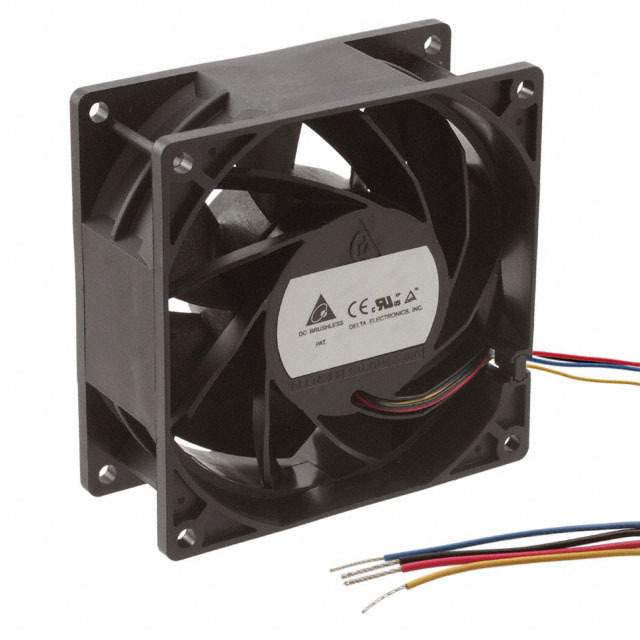

THB0948AE THB0948AE

Delta Electronics
Manufacturer : Delta Electronics
Series : THB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 162.5 CFM (4.55m鲁/min)
Static Pressure : 3.089 in H2O (769.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 72.5 dB(A)
Power (Watts) : 36.50W
RPM : 13000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, TUV, UL
Weight : 0.496 lb (224.98g)
0
153 in stock

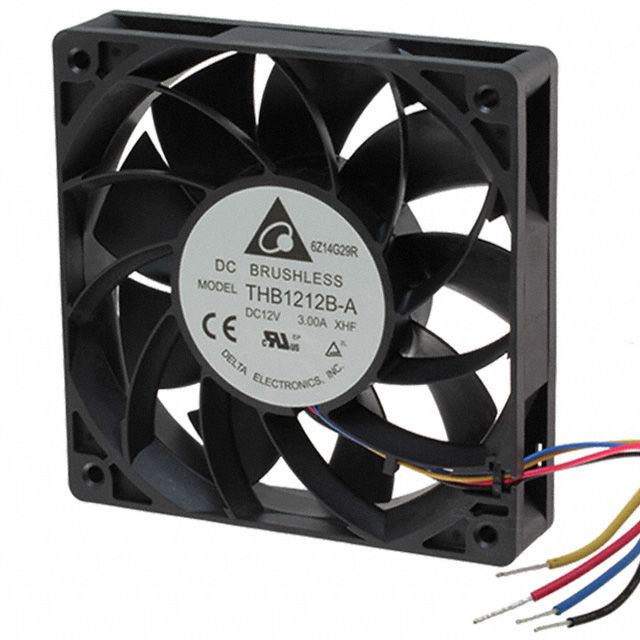

THB1212B-AXHF THB1212B-AXHF

Delta Electronics
Manufacturer : Delta Electronics
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -
0
100 in stock
