Delta Electronics

- Delta Group is the world's largest provider of switching power supplies and brushless fans, as well as a major source for power management solutions, components, visual displays, industrial automation, networking products, and renewable energy solutions. Established in 1971, Delta Group has sales offices worldwide and manufacturing plants in Taiwan, Thailand, China, Mexico and Europe. As a global leader in power electronics, Delta's mission is "To provide innovative, clean and efficient energy solutions for a better tomorrow." Delta is committed to environmental protection and has implemented green, lead-free production and recycling and waste management programs for many years.

Part Number
Manufacturer
Description
Unit Price
In Stock

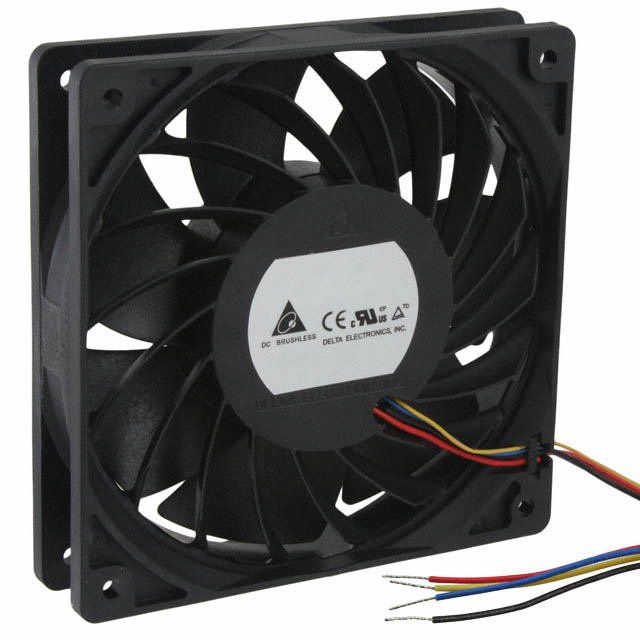

THB1224B THB1224B

Delta Electronics
Manufacturer : Delta Electronics
Series : THB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.40mm
Air Flow : 174.7 CFM (4.89m鲁/min)
Static Pressure : 2.139 in H2O (532.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 65.0 dB(A)
Power (Watts) : 22.80W
RPM : 8300 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, TUV, UL
Weight : 0.436 lb (197.77g)
0
100 in stock

THB1224B-PM00 THB1224B-PM00

Delta Electronics
Manufacturer : Delta Electronics
Series : THB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.40mm
Air Flow : 174.7 CFM (4.89m鲁/min)
Static Pressure : 2.139 in H2O (532.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 65.0 dB(A)
Power (Watts) : 22.80W
RPM : 8300 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, TUV, UL
Weight : 0.437 lb (198.00g)
0
100 in stock

THB1248B-A THB1248B-A

Delta Electronics
Manufacturer : Delta Electronics
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -
0
108 in stock

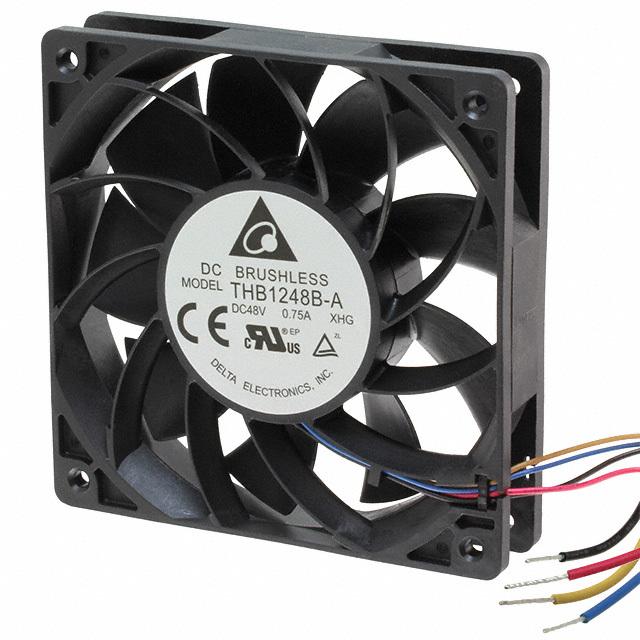

THB1248B-AXHG THB1248B-AXHG

Delta Electronics
Manufacturer : Delta Electronics
Series : THB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.40mm
Air Flow : 186.6 CFM (5.22m鲁/min)
Static Pressure : 0.962 in H2O (239.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise : 59.0 dB(A)
Power (Watts) : 19.20W
RPM : 5300 RPM
Termination : 4 Wire Leads
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : -
0
78 in stock

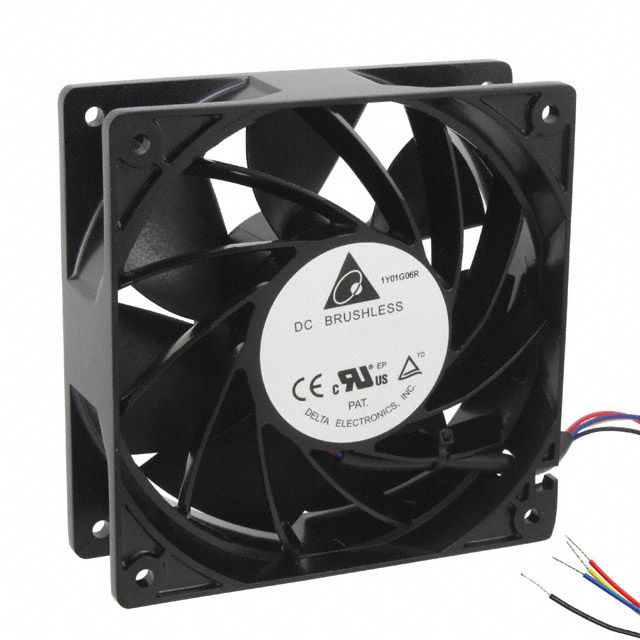

THB1248CE THB1248CE

Delta Electronics
Manufacturer : Delta Electronics
Series : THB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 262.0 CFM (7.34m鲁/min)
Static Pressure : 2.065 in H2O (514.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 70.0 dB(A)
Power (Watts) : 45.60W
RPM : 7800 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, TUV, UL
Weight : 0.772 lb (350.17g)
0
26 in stock

THB1548AG THB1548AG

Delta Electronics
Manufacturer : Delta Electronics
Series : THB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 527.5 CFM (14.77m鲁/min)
Static Pressure : 3.780 in H2O (941.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 77.0 dB(A)
Power (Watts) : 144.0W
RPM : 7500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, TUV, UL
Weight : 2 lbs (907.2g)
0
154 in stock

THB1548DG-CXKQ THB1548DG-CXKQ

Delta Electronics
Manufacturer : Delta Electronics
Series : THB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 410.5 CFM (11.49m鲁/min)
Static Pressure : 2.085 in H2O (519.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise : 70.0 dB(A)
Power (Watts) : 75.4W
RPM : 5800 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, cURus, TUV
Weight : 1.7 lbs (771.1g)
0
26 in stock

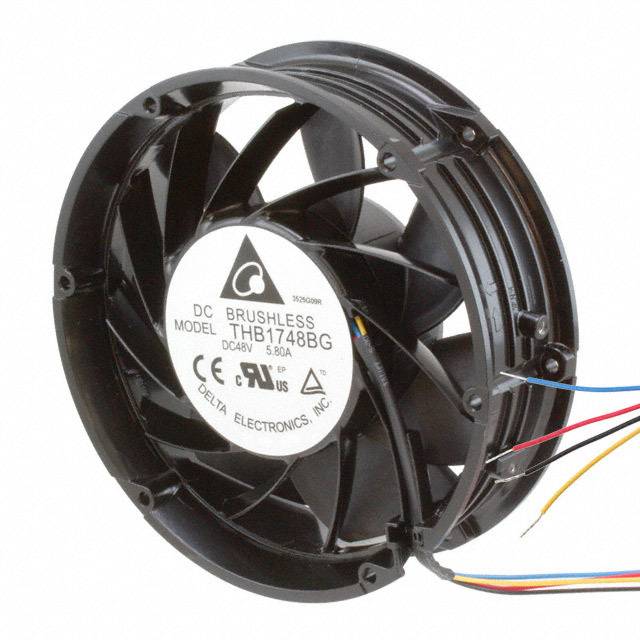

THB1748BG THB1748BG

Delta Electronics
Manufacturer : Delta Electronics
Series : THB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 172mm Dia
Width : 50.80mm
Air Flow : 607.0 CFM (17.00m鲁/min)
Static Pressure : 4.136 in H2O (1030.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 75.0 dB(A)
Power (Watts) : 168.0W
RPM : 8000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, TUV, UL
Weight : 2 lbs (907.2g)
0
48 in stock

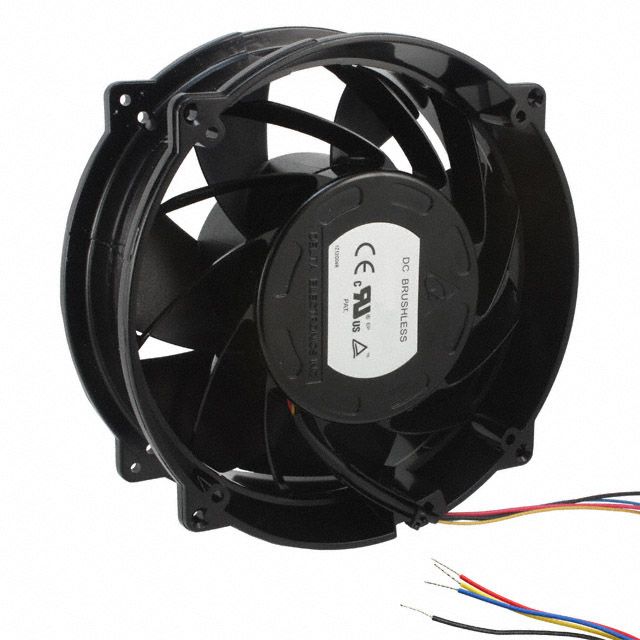

THB2048CT THB2048CT

Delta Electronics
Manufacturer : Delta Electronics
Series : THB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 208mm Dia
Width : 70.00mm
Air Flow : 827.4 CFM (23.17m鲁/min)
Static Pressure : 2.690 in H2O (670.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 73.6 dB(A)
Power (Watts) : 230.0W
RPM : 5800 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, TUV, UL
Weight : 3.5 lbs (1.6kg)
0
32 in stock

THB2048HG-A THB2048HG-A

Delta Electronics
Manufacturer : Delta Electronics
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -
0
28 in stock

THC1248ME THC1248ME

Delta Electronics
Manufacturer : Delta Electronics
Series : THC
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 193.0 CFM (5.40m鲁/min)
Static Pressure : 2.111 in H2O (525.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise : 68.0 dB(A)
Power (Watts) : 38.40W
RPM : 7750 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -10°C ~ 70°C
Approvals : CE, cURus, TUV
Weight : 0.849 lb (385.1g)
0
100 in stock

THC1548MGDJJ THC1548MGDJJ

Delta Electronics
Manufacturer : Delta Electronics
Series : THC
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 172mm Dia
Width : 50.80mm
Air Flow : 294.0 CFM (8.23m鲁/min)
Static Pressure : 1.063 in H2O (264.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise : 64.5 dB(A)
Power (Watts) : 28.80W
RPM : 4100 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -10°C ~ 70°C
Approvals : CE, cURus, TUV
Weight : 1.3 lbs (589.7g)
0
64 in stock
