Delta Electronics

- Delta Group is the world's largest provider of switching power supplies and brushless fans, as well as a major source for power management solutions, components, visual displays, industrial automation, networking products, and renewable energy solutions. Established in 1971, Delta Group has sales offices worldwide and manufacturing plants in Taiwan, Thailand, China, Mexico and Europe. As a global leader in power electronics, Delta's mission is "To provide innovative, clean and efficient energy solutions for a better tomorrow." Delta is committed to environmental protection and has implemented green, lead-free production and recycling and waste management programs for many years.

Part Number
Manufacturer
Description
Unit Price
In Stock

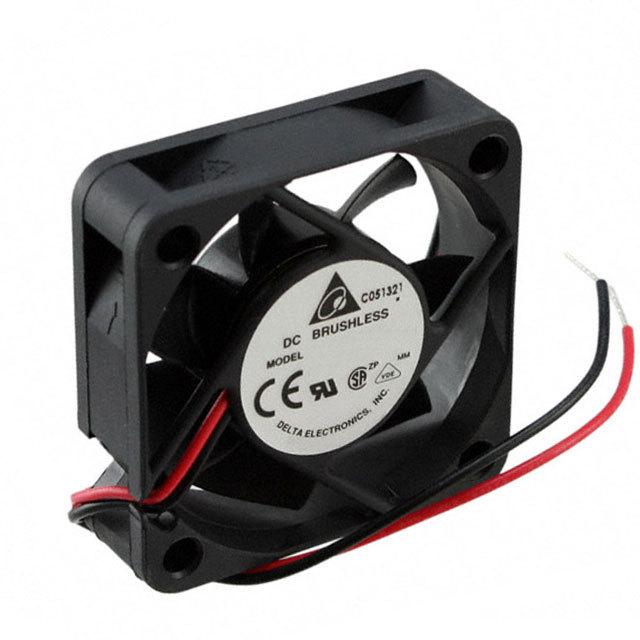

AFB0512HHB AFB0512HHB

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 16.2 CFM (0.454m鲁/min)
Static Pressure : 0.315 in H2O (78.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB(A)
Power (Watts) : 1.56W
RPM : 6400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.071 lb (32.21g)
0
100 in stock

AFB0512HHB-F00 AFB0512HHB-F00

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 16.2 CFM (0.454m鲁/min)
Static Pressure : 0.315 in H2O (78.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 36.0 dB(A)
Power (Watts) : 1.56W
RPM : 6400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.071 lb (32.21g)
0
1804 in stock

AFB0512HHD AFB0512HHD

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 20.00mm
Air Flow : 18.3 CFM (0.512m鲁/min)
Static Pressure : 0.254 in H2O (63.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB(A)
Power (Watts) : 1.68W
RPM : 6400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.084 lb (38.1g)
0
2427 in stock

AFB0512HHD-R00 AFB0512HHD-R00

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 20.00mm
Air Flow : 18.3 CFM (0.512m鲁/min)
Static Pressure : 0.254 in H2O (63.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 37.0 dB(A)
Power (Watts) : 1.68W
RPM : 6400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.084 lb (38.1g)
0
152 in stock

AFB0512LB AFB0512LB

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 9.9 CFM (0.277m鲁/min)
Static Pressure : 0.126 in H2O (31.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 24.0 dB(A)
Power (Watts) : 720mW
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UR, VDE
Weight : 0.071 lb (32.21g)
0
100 in stock

AFB0512LB-A AFB0512LB-A

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 11.7 CFM (0.328m鲁/min)
Static Pressure : 0.119 in H2O (29.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 24.0 dB(A)
Power (Watts) : 1.08W
RPM : 4300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UR, VDE
Weight : 0.045 lb (20.41g)
0
100 in stock

AFB0512LB-F00 AFB0512LB-F00

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 9.9 CFM (0.277m鲁/min)
Static Pressure : 0.126 in H2O (31.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection, Speed Sensor (Tach)
Noise : 24.0 dB(A)
Power (Watts) : 720mW
RPM : 4000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UR, VDE
Weight : 0.071 lb (32.21g)
0
100 in stock

AFB0512LD AFB0512LD

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 20.00mm
Air Flow : 11.0 CFM (0.308m鲁/min)
Static Pressure : 0.095 in H2O (23.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB(A)
Power (Watts) : 720mW
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.084 lb (38.1g)
0
754 in stock

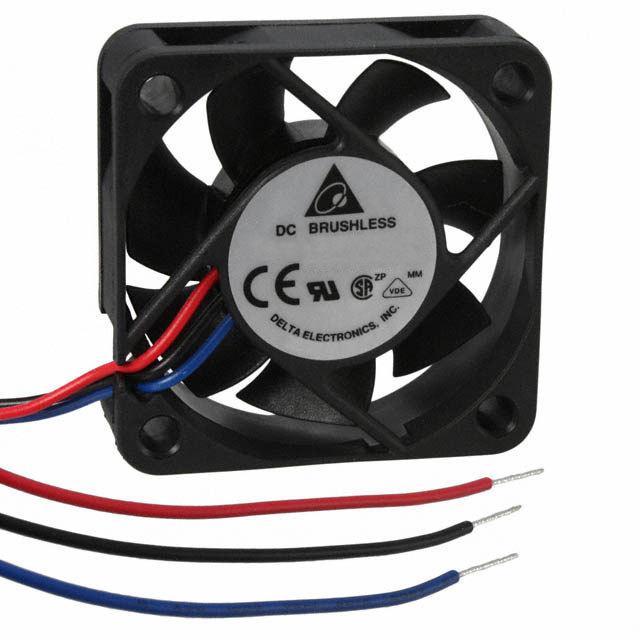

AFB0512LD-R00 AFB0512LD-R00

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 20.00mm
Air Flow : 11.0 CFM (0.308m鲁/min)
Static Pressure : 0.095 in H2O (23.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 25.0 dB(A)
Power (Watts) : 720mW
RPM : 4000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.084 lb (38.1g)
0
449 in stock

AFB0512MB AFB0512MB

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 12.4 CFM (0.347m鲁/min)
Static Pressure : 0.181 in H2O (45.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : 960mW
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.071 lb (32.21g)
0
755 in stock

AFB0512MD AFB0512MD

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 20.00mm
Air Flow : 13.4 CFM (0.375m鲁/min)
Static Pressure : 0.138 in H2O (34.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : 840mW
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.084 lb (38.1g)
0
72 in stock

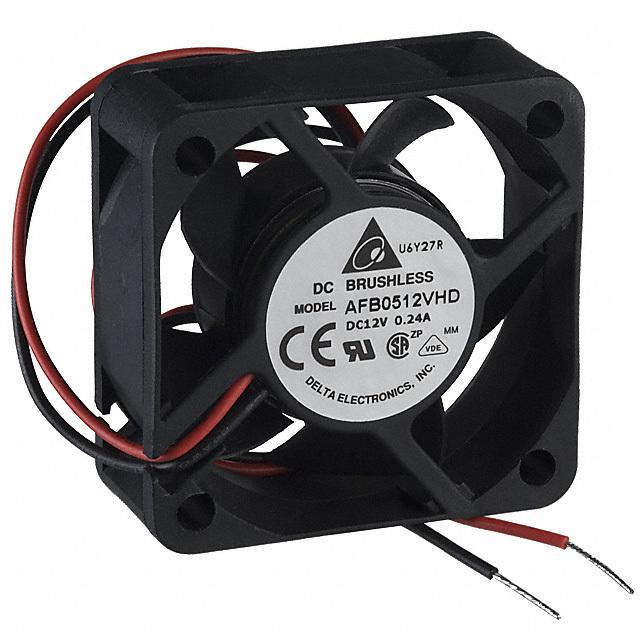

AFB0512VHD AFB0512VHD

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 20.00mm
Air Flow : 20.3 CFM (0.568m鲁/min)
Static Pressure : 0.303 in H2O (75.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 40.5 dB(A)
Power (Watts) : 1.92W
RPM : 7000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UL, VDE
Weight : 0.084 lb (38.1g)
0
2573 in stock
