Ethertronics
- Ethertronics is a leading provider of embedded antenna solutions for wideband and multi-band wireless devices. Ethertronics’ leading-edge product lines, including Prestta™ stamped metal, Savvi™ ceramic, and Tavvel™ active antennas support a wide range of wireless applications including cellular, M2M, LTE, UMTS, WiFi, WiMAX, Bluetooth, GPS, FM, MediaFLO, Analog Mobile TV, CMMB, ISDB-T, and DVB-H/T among others.
Ethertronics’ embedded antenna solutions are designed using the company’s patented Isolated Magnetic Dipole (IMDTM) technology, enabling Ethertronics to confine the electromagnetic currents on the antenna element to deliver higher isolation. With higher isolation, Ethertronics’ technology delivers a powerful combination of maximizing network coverage, shrinking antenna size and lowering emissions. These benefits significantly reduce time-to-market and design risks for Ethertronics’ customers, while improving connectivity, battery life and data rates for end-users. Ethertronics’ antennas have been selected by major customers worldwide garnering an installed base of over 250 million units.
Headquartered in San Diego, Ethertronics’ global footprint of design centers and high-volume, ISO-certified manufacturing facilities span from the United States to China, Korea, Europe and Taiwan. The company’s award-winning technology has secured more than 50 patents.
Part Number
Manufacturer
Description
Unit Price
In Stock
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Prestta™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz
Frequency Range : 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz
Antenna Type : Stamped Metal
Number of Bands : 4
VSWR : 1.6, 1.8, 1.5, 1.3
Return Loss : -
Gain : 2.5dBi, 3.5dBi, 3.5dBi, 3.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.169" (4.30mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
0
76514 in stock
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Tray
Series : Prestta™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz
Frequency Range : 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz
Antenna Type : Stamped Metal
Number of Bands : 4
VSWR : 2, 1.5, 2, 2
Return Loss : -
Gain : 2.5dBi, 3.5dBi, 3.5dBi, 3.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.169" (4.30mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
0
9983 in stock
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Bulk
Series : Prestta™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz
Frequency Range : 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz
Antenna Type : Stamped Metal
Number of Bands : 4
VSWR : 3, 2.5, 2.5, 3
Return Loss : -
Gain : -0.6dBi, 2.5dBi, 4.5dBi, 3.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.280" (7.10mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
0
17256 in stock
Ethertronics
Manufacturer : Ethertronics/AVX
Series : -
Part Status : Active
Gender : -
Style : -
1st Connector : -
2nd Connector : -
Length : -
Cable Type : -
Impedance : -
Frequency - Max : -
Color : -
Features : -
Operating Temperature : -
0
31 in stock
Ethertronics
Manufacturer : Ethertronics/AVX
Series : -
Part Status : Active
Gender : -
Style : -
1st Connector : -
2nd Connector : -
Length : -
Cable Type : -
Impedance : -
Frequency - Max : -
Color : -
Features : -
Operating Temperature : -
0
2203 in stock
Ethertronics
Manufacturer : Ethertronics/AVX
Series : *
Part Status : Discontinued at
Gender : -
Style : -
1st Connector : -
2nd Connector : -
Length : -
Cable Type : -
Impedance : -
Frequency - Max : -
Color : -
Features : -
Operating Temperature : -
0
6500 in stock

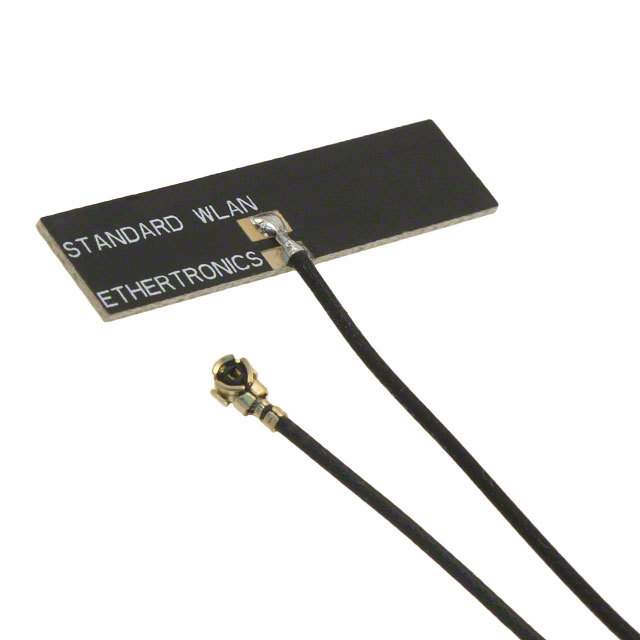

Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Bulk
Series : Prestta™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz
Frequency Range : 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz
Antenna Type : PCB Trace
Number of Bands : 4
VSWR : 2, 2.5, 2, 2.5
Return Loss : -
Gain : 2.5dBi, 5dBi, 5dBi, 5dBi
Power - Max : -
Features : -
Termination : Cable (100mm)
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.033" (0.85mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
0
1434 in stock
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Bulk
Series : Prestta™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : PCB Trace
Number of Bands : 1
VSWR : 2.1
Return Loss : -
Gain : 3.5dBi
Power - Max : -
Features : -
Termination : Cable (100mm) - U.FL
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.087" (2.20mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
0
3821 in stock
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Prestta™
Part Status : Discontinued at
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.561GHz, 1.575GHz
Frequency Range : 1.57GHz ~ 1.58GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : 2
Return Loss : -
Gain : -1.8dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.130" (3.30mm)
Applications : GPS
0
310 in stock
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Prestta™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 1.09
Return Loss : -
Gain : 1.2dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.130" (3.30mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
0
72645 in stock
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Tray
Series : -
Part Status : Obsolete
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Whip, Tilt
Number of Bands : 1
VSWR : 2
Return Loss : -
Gain : 2dBi
Power - Max : -
Features : -
Termination : Connector, SMA Male
Ingress Protection : -
Mounting Type : Connector Mount
Height (Max) : 4.409" (112.00mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
0
100 in stock
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Savvi™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 1.8
Return Loss : -
Gain : 1.72dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.022" (0.55mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
0
48472 in stock
