Inventus Power

- Inventus Power, formerly ICCNexergy + Palladium Energy, is the world’s ONLY power systems manufacturer that integrates and delivers battery packs, chargers & docking stations and power supplies across the consumer, commercial, medical and military & government markets and is located in 8 countries across 4 continents.

Inventus Power has almost 60 years of experience designing high quality medical power supplies and commercial AC/DC power supplies. Our standard Elpac offering of desktop and open frame power supplies ranges from 5W to 350W and we have custom developed power supplies up to 2000 watts. We demonstrate MTBF on all power systems by conducting extensive in-house life testing (High Temp, High Stress, 100% Burn-In, etc.). Our proven design guidelines allow us to offer an industry-best five year warranty on all of our standard Elpac power solutions.


Part Number

Manufacturer

Description

Unit Price

In Stock

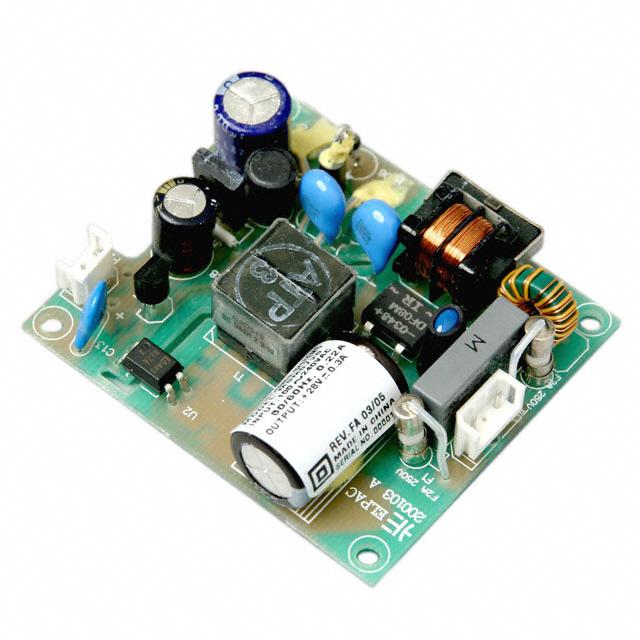

MSM0705

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MSM07 (7W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 5.1V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.4A
Power (Watts) : 7W
Applications : Medical
Voltage - Isolation : -
Efficiency : 77%
Operating Temperature : 0°C ~ 50°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 2.28" L x 2.00" W x 0.71" H (57.9mm x 50.8mm x 18.1mm)

100 in stock

MSM0712

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MSM07 (7W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 600mA
Power (Watts) : 7W
Applications : Medical
Voltage - Isolation : -
Efficiency : 77%
Operating Temperature : 0°C ~ 50°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 2.28" L x 2.00" W x 0.71" H (57.9mm x 50.8mm x 18.1mm)

100 in stock

MSM0715

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MSM07 (7W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA
Power (Watts) : 7W
Applications : Medical
Voltage - Isolation : -
Efficiency : 77%
Operating Temperature : 0°C ~ 50°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 2.28" L x 2.00" W x 0.71" H (57.9mm x 50.8mm x 18.1mm)

100 in stock

MSM0724

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MSM07 (7W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 300mA
Power (Watts) : 7W
Applications : Medical
Voltage - Isolation : -
Efficiency : 77%
Operating Temperature : 0°C ~ 50°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 2.28" L x 2.00" W x 0.71" H (57.9mm x 50.8mm x 18.1mm)

100 in stock

MSM0728

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MSM07 (7W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 28V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 300mA
Power (Watts) : 7W
Applications : Medical
Voltage - Isolation : -
Efficiency : 77%
Operating Temperature : 0°C ~ 50°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 2.28" L x 2.00" W x 0.71" H (57.9mm x 50.8mm x 18.1mm)

100 in stock

MSM2012

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MSM20 (20W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 100 ~ 240 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.67A
Power (Watts) : 20W
Applications : Medical
Voltage - Isolation : -
Efficiency : 80%
Operating Temperature : 0°C ~ 50°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.54" L x 2.17" W x 0.71" H (90.0mm x 55.0mm x 18.0mm)

100 in stock

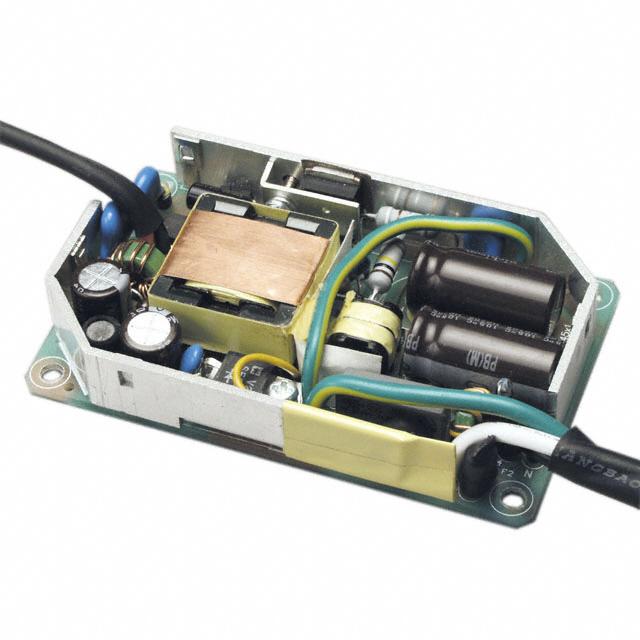

MSM2015

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MSM20 (20W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 100 ~ 240 VAC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.34A
Power (Watts) : 20W
Applications : Medical
Voltage - Isolation : -
Efficiency : 80%
Operating Temperature : 0°C ~ 50°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.54" L x 2.17" W x 0.71" H (90.0mm x 55.0mm x 18.0mm)

100 in stock

MSM2024

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MSM20 (20W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 100 ~ 240 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 840mA
Power (Watts) : 20W
Applications : Medical
Voltage - Isolation : -
Efficiency : 80%
Operating Temperature : 0°C ~ 50°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.54" L x 2.17" W x 0.71" H (90.0mm x 55.0mm x 18.0mm)

100 in stock

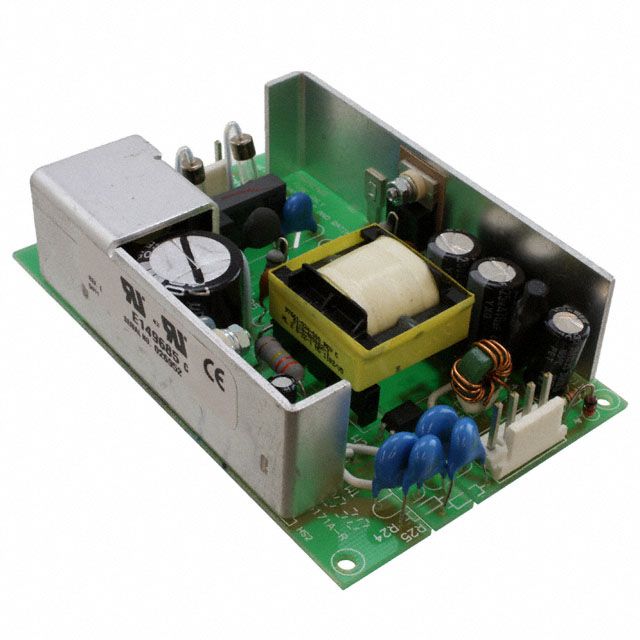

MSM2812

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MSM28 (28W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 100 ~ 240 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.3A
Power (Watts) : 28W
Applications : Medical
Voltage - Isolation : -
Efficiency : 80%
Operating Temperature : 0°C ~ 50°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 4.00" L x 2.60" W x 1.30" H (101.6mm x 66.2mm x 33.0mm)

100 in stock

MSM2815

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MSM28 (28W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 100 ~ 240 VAC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.9A
Power (Watts) : 28W
Applications : Medical
Voltage - Isolation : -
Efficiency : 80%
Operating Temperature : 0°C ~ 50°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 4.00" L x 2.60" W x 1.30" H (101.6mm x 66.2mm x 33.0mm)

100 in stock

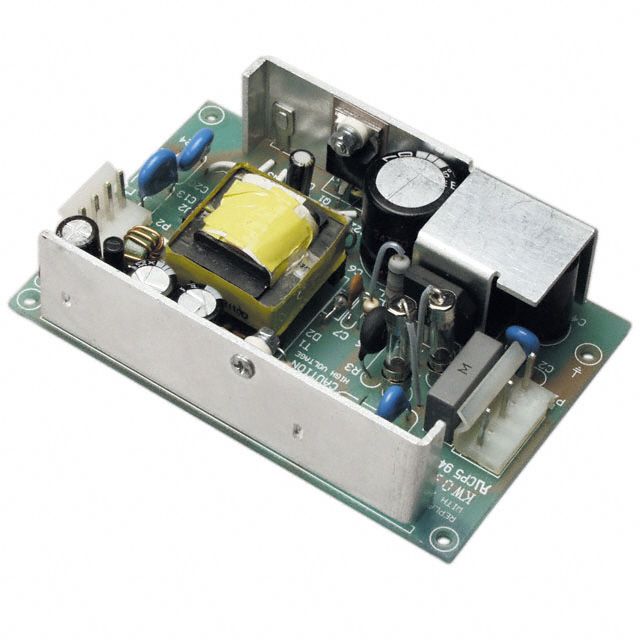

MSM2824

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MSM28 (28W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 100 ~ 240 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.2A
Power (Watts) : 28W
Applications : Medical
Voltage - Isolation : -
Efficiency : 80%
Operating Temperature : 0°C ~ 50°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 4.00" L x 2.60" W x 1.30" H (101.6mm x 66.2mm x 33.0mm)

8 in stock

MSM4012

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MSM40 (40W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3.3A
Power (Watts) : 40W
Applications : Medical
Voltage - Isolation : -
Efficiency : 80%
Operating Temperature : 0°C ~ 50°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm)

100 in stock
