Inventus Power
- Inventus Power, formerly ICCNexergy + Palladium Energy, is the world’s ONLY power systems manufacturer that integrates and delivers battery packs, chargers & docking stations and power supplies across the consumer, commercial, medical and military & government markets and is located in 8 countries across 4 continents.
Inventus Power has almost 60 years of experience designing high quality medical power supplies and commercial AC/DC power supplies. Our standard Elpac offering of desktop and open frame power supplies ranges from 5W to 350W and we have custom developed power supplies up to 2000 watts. We demonstrate MTBF on all power systems by conducting extensive in-house life testing (High Temp, High Stress, 100% Burn-In, etc.). Our proven design guidelines allow us to offer an industry-best five year warranty on all of our standard Elpac power solutions.
Part Number
Manufacturer
Description
Unit Price
In Stock

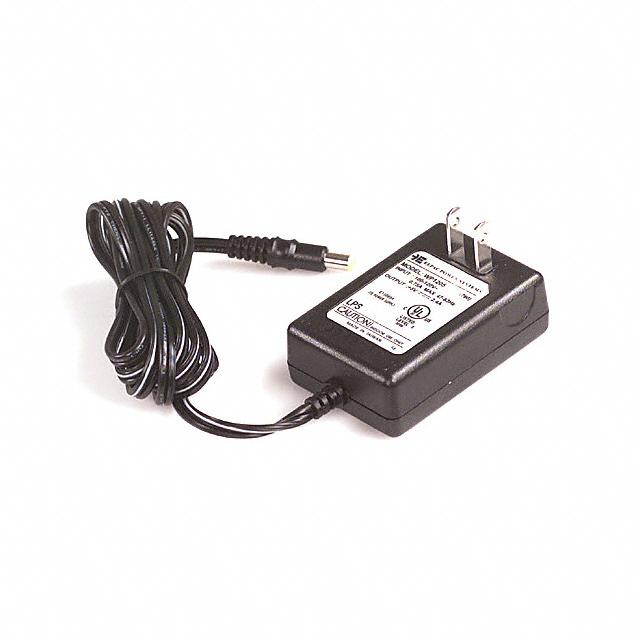

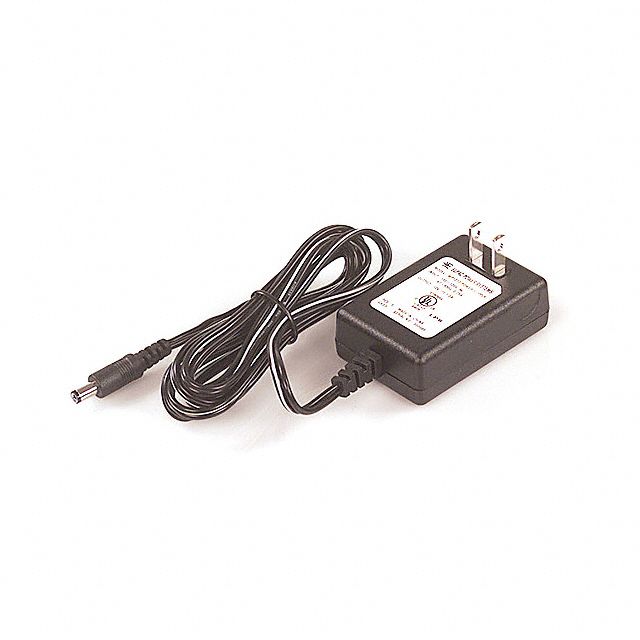

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : WP12
Part Status : Obsolete
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 132 VAC
Voltage - Output : 5V
Current - Output (Max) : 2.4A
Power (Watts) : 12W
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 2.95" L x 1.95" W x 0.98" H (75.0mm x 49.5mm x 25.0mm)
Approvals : -
0
100 in stock
ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : WP12
Part Status : Obsolete
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 132 VAC
Voltage - Output : 12V
Current - Output (Max) : 1A
Power (Watts) : 12W
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 2.95" L x 1.95" W x 0.98" H (75.0mm x 49.5mm x 25.0mm)
Approvals : -
0
100 in stock

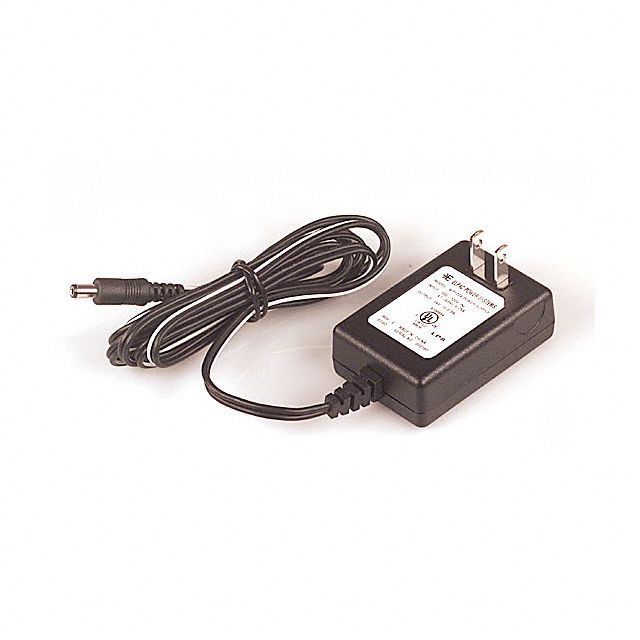

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : WP12
Part Status : Obsolete
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 132 VAC
Voltage - Output : 24V
Current - Output (Max) : 500mA
Power (Watts) : 12W
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 2.95" L x 1.95" W x 0.98" H (75.0mm x 49.5mm x 25.0mm)
Approvals : -
0
100 in stock

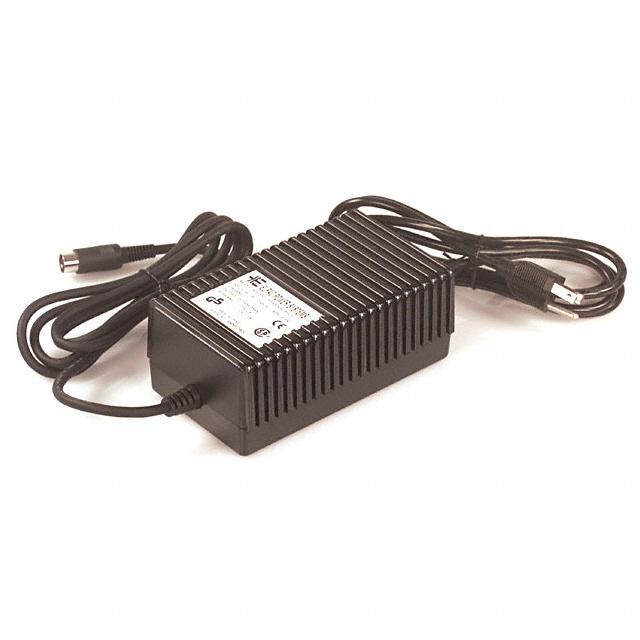

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : WRI
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5V, 12V, -12V
Current - Output (Max) : 3A, 500mA, 500mA
Power (Watts) : 27W
No Load Power Consumption : -
Polarization : -
Applications : ITE (Commercial)
Efficiency : 75%
Operating Temperature : 0°C ~ 40°C
Output Connector : DIN, 5 Pin
Size / Dimension : 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm)
Approvals : -
0
100 in stock

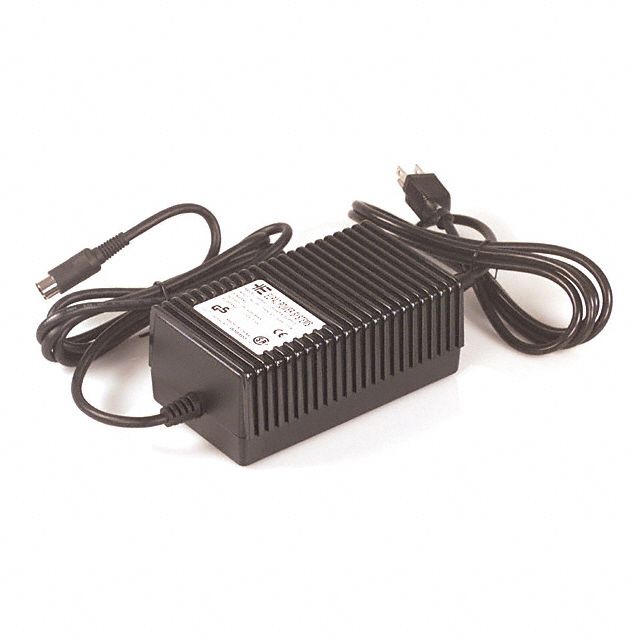

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : WRI
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 2.5A
Power (Watts) : 30W
No Load Power Consumption : -
Polarization : -
Applications : ITE (Commercial)
Efficiency : 75%
Operating Temperature : 0°C ~ 40°C
Output Connector : DIN, 5 Pin
Size / Dimension : 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm)
Approvals : -
0
100 in stock

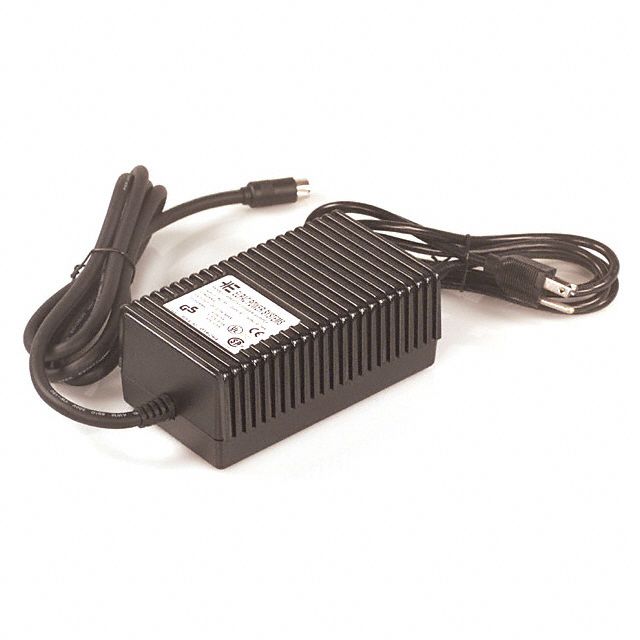

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : WRI
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5V, 12V
Current - Output (Max) : 2A, 1.5A
Power (Watts) : 28W
No Load Power Consumption : -
Polarization : -
Applications : ITE (Commercial)
Efficiency : 75%
Operating Temperature : 0°C ~ 40°C
Output Connector : DIN, 5 Pin
Size / Dimension : 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm)
Approvals : -
0
100 in stock
ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : WRI
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5V, 12V, -12V
Current - Output (Max) : 2A, 1.5A, 500mA
Power (Watts) : 30W
No Load Power Consumption : -
Polarization : -
Applications : ITE (Commercial)
Efficiency : 75%
Operating Temperature : 0°C ~ 40°C
Output Connector : DIN, 5 Pin
Size / Dimension : 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm)
Approvals : -
0
100 in stock

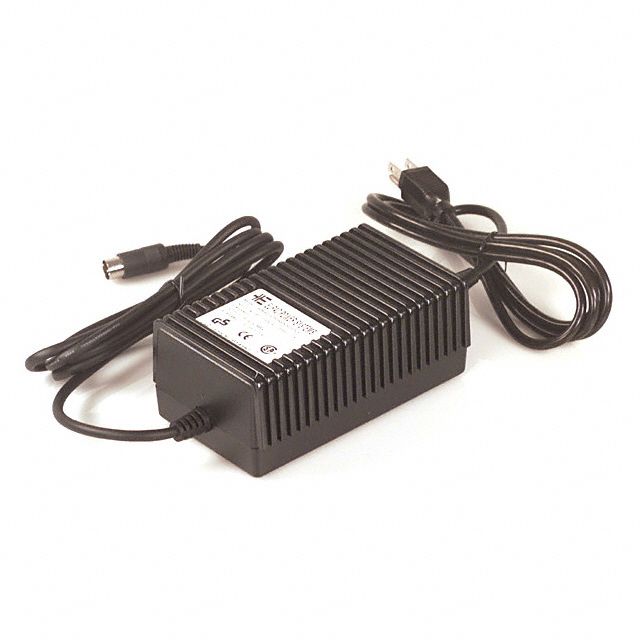

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : WRI
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 3.5A
Power (Watts) : 42W
No Load Power Consumption : -
Polarization : -
Applications : ITE (Commercial)
Efficiency : 75%
Operating Temperature : 0°C ~ 40°C
Output Connector : DIN, 5 Pin
Size / Dimension : 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm)
Approvals : -
0
100 in stock

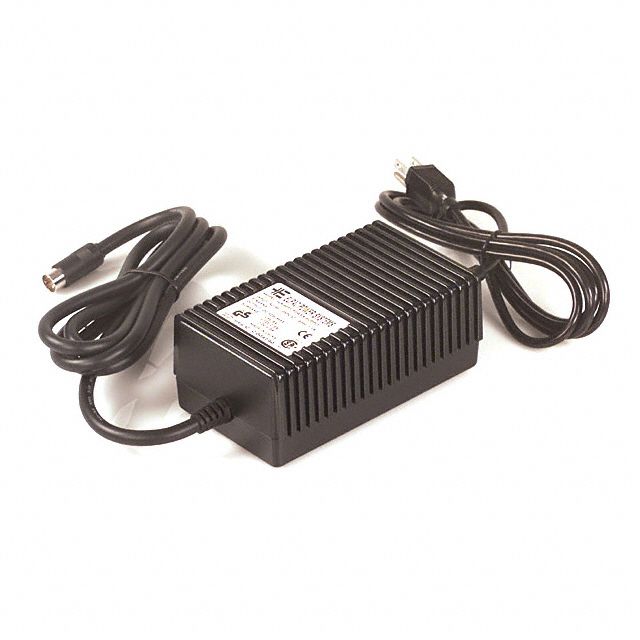

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : WRI
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 1.75A
Power (Watts) : 42W
No Load Power Consumption : -
Polarization : -
Applications : ITE (Commercial)
Efficiency : 75%
Operating Temperature : 0°C ~ 40°C
Output Connector : DIN, 5 Pin
Size / Dimension : 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm)
Approvals : -
0
100 in stock

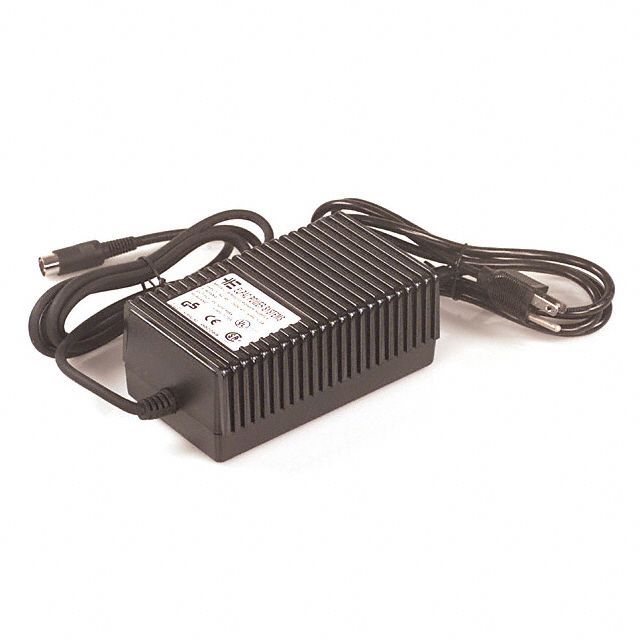

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : WRI
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5V, 12V, -12V
Current - Output (Max) : 3A, 2.5A, 500mA
Power (Watts) : 42W
No Load Power Consumption : -
Polarization : -
Applications : ITE (Commercial)
Efficiency : 75%
Operating Temperature : 0°C ~ 40°C
Output Connector : DIN, 5 Pin
Size / Dimension : 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm)
Approvals : -
0
100 in stock

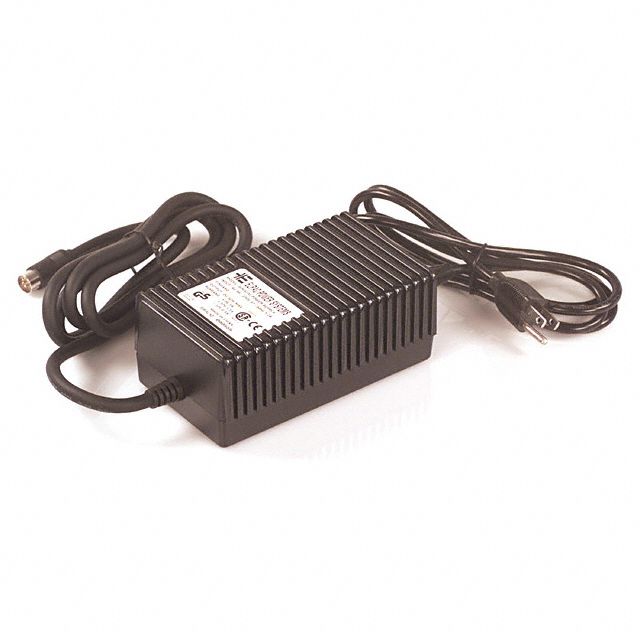

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : WRI
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5V, 12V, -12V
Current - Output (Max) : 4.8A, 1.5A, 500mA
Power (Watts) : 42W
No Load Power Consumption : -
Polarization : -
Applications : ITE (Commercial)
Efficiency : 75%
Operating Temperature : 0°C ~ 40°C
Output Connector : DIN, 5 Pin
Size / Dimension : 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm)
Approvals : -
0
100 in stock
ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : WRI
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 30V
Current - Output (Max) : 1.75A
Power (Watts) : 53W
No Load Power Consumption : -
Polarization : -
Applications : ITE (Commercial)
Efficiency : 75%
Operating Temperature : 0°C ~ 40°C
Output Connector : DIN, 5 Pin
Size / Dimension : 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm)
Approvals : -
0
100 in stock
