Inventus Power

- Inventus Power, formerly ICCNexergy + Palladium Energy, is the world’s ONLY power systems manufacturer that integrates and delivers battery packs, chargers & docking stations and power supplies across the consumer, commercial, medical and military & government markets and is located in 8 countries across 4 continents.

Inventus Power has almost 60 years of experience designing high quality medical power supplies and commercial AC/DC power supplies. Our standard Elpac offering of desktop and open frame power supplies ranges from 5W to 350W and we have custom developed power supplies up to 2000 watts. We demonstrate MTBF on all power systems by conducting extensive in-house life testing (High Temp, High Stress, 100% Burn-In, etc.). Our proven design guidelines allow us to offer an industry-best five year warranty on all of our standard Elpac power solutions.


Part Number

Manufacturer

Description

Unit Price

In Stock

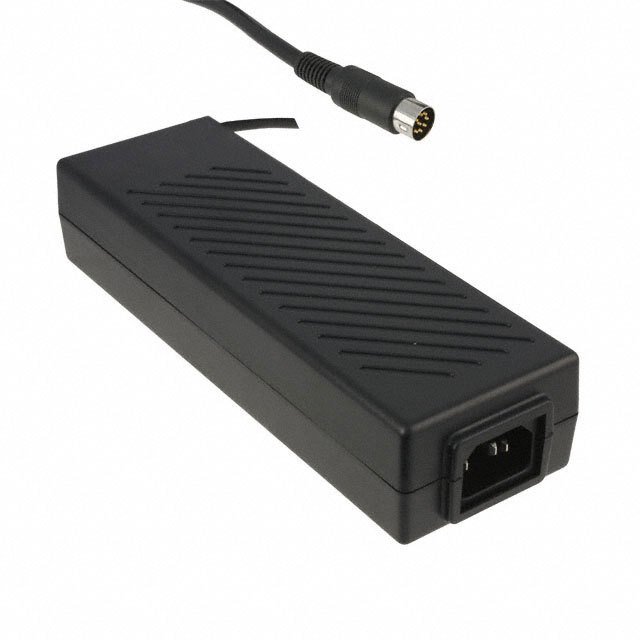

MWA150018A-12A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : ELPAC MWA150 (150W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 18V
Current - Output (Max) : 8.3A
Power (Watts) : 149W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm)
Approvals : CB, CE, cTUVus

408 in stock

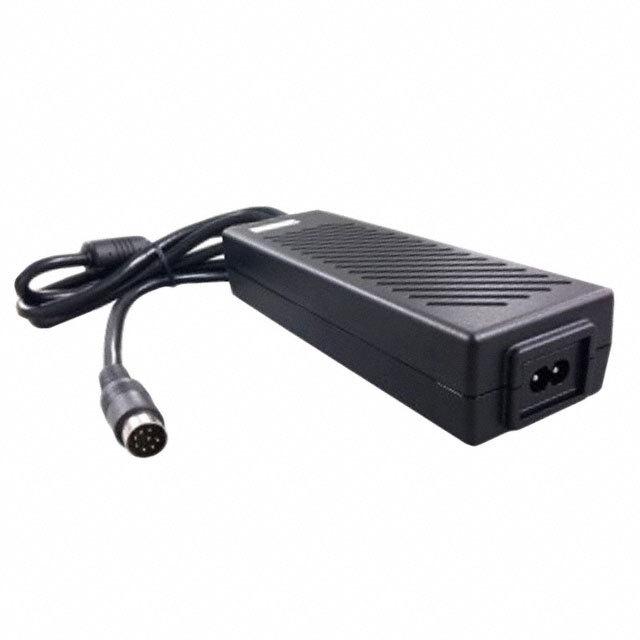

MWA150024B-12A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : ELPAC MWA150 (150W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class II)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 6.3A
Power (Watts) : 151W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm)
Approvals : CB, CE, cTUVus

38 in stock

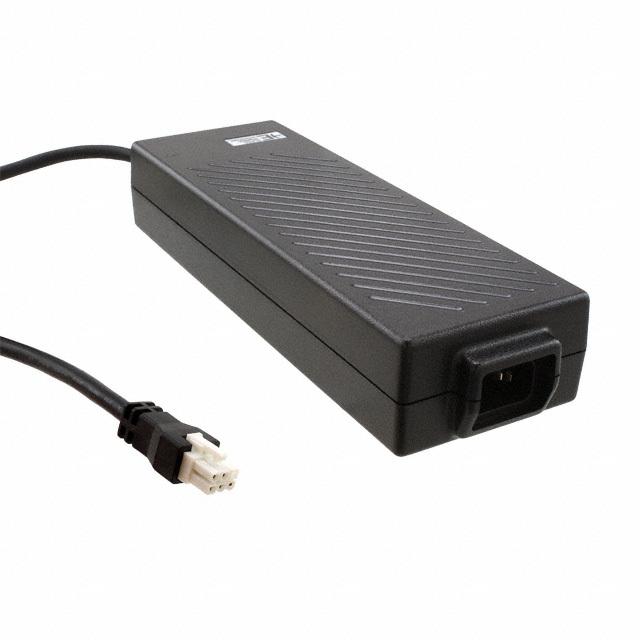

MWA180012A-13A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MWA180 (180W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 15A
Power (Watts) : 180W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Rectangular, 6 Position
Size / Dimension : 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm)
Approvals : CB, CE, cTUVus

100 in stock

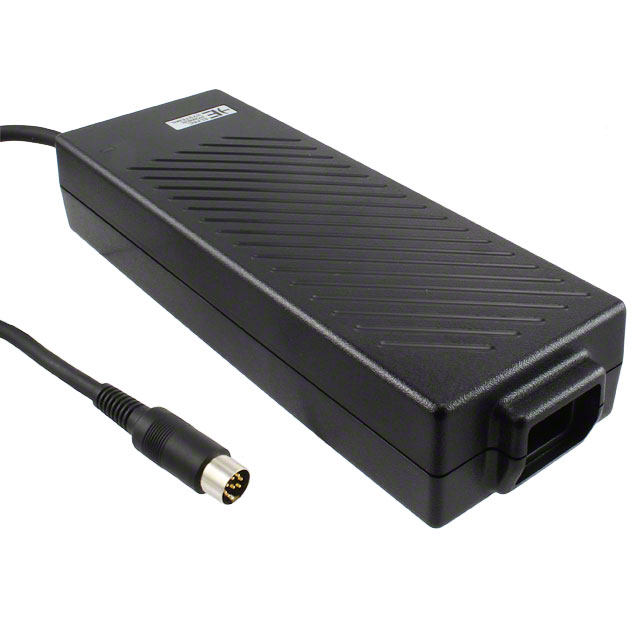

MWA180024A-12A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MWA180 (180W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 7.5A
Power (Watts) : 180W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm)
Approvals : CB, CE, cTUVus

107 in stock

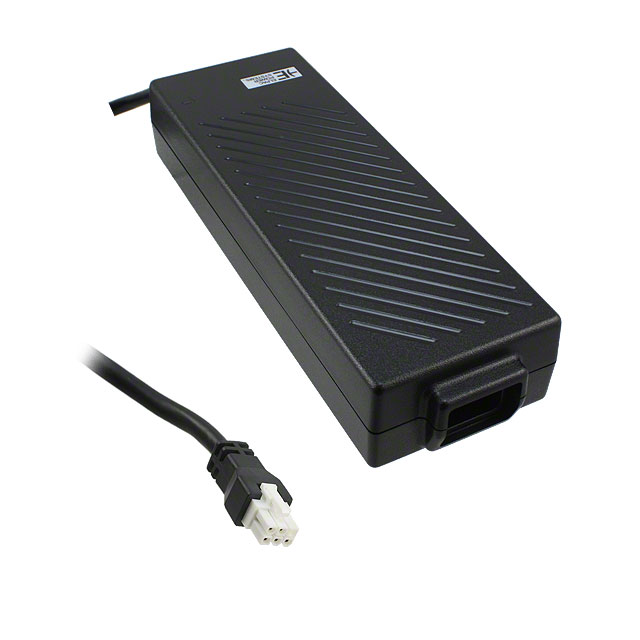

MWA220012A-13A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MWA220 (220W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 18.3A
Power (Watts) : 220W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Rectangular, 6 Position
Size / Dimension : 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm)
Approvals : CB, CE, cTUVus

100 in stock

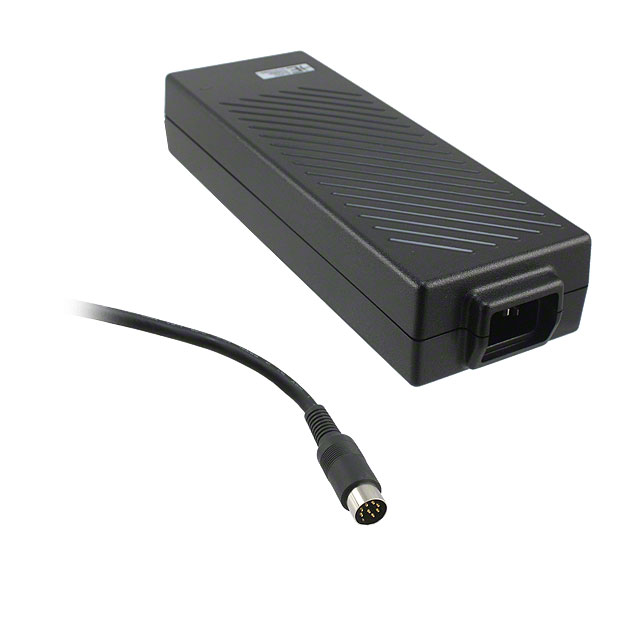

MWA220024A-12A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MWA220 (220W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 9.2A
Power (Watts) : 221W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm)
Approvals : CB, CE, cTUVus

441 in stock

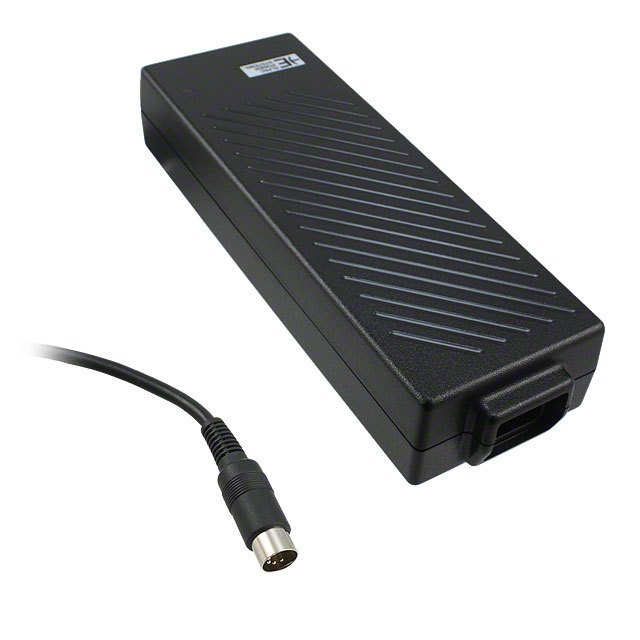

MWA220048A-11A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MWA220 (220W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 48V
Current - Output (Max) : 4.6A
Power (Watts) : 221W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 5 Pin
Size / Dimension : 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm)
Approvals : CB, CE, cTUVus

465 in stock

MWB100012A-12A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MWB100 (100W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 8.3A
Power (Watts) : 100W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : 88%
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 5.19" L x 3.07" W x 1.34" H (132.0mm x 78.0mm x 34.0mm)
Approvals : CB, CE, cTUVus

100 in stock

MWB100015A-12A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MWB100 (100W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 15V
Current - Output (Max) : 6.7A
Power (Watts) : 101W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : 89%
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 5.19" L x 3.07" W x 1.34" H (132.0mm x 78.0mm x 34.0mm)
Approvals : CB, CE, cTUVus

100 in stock

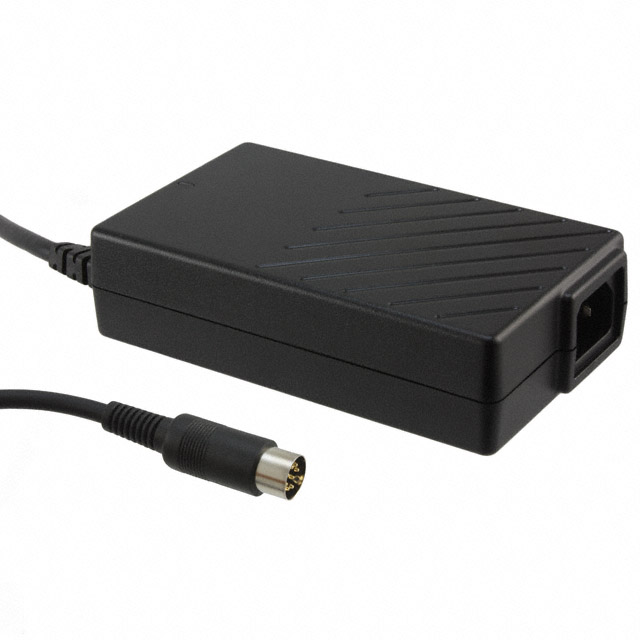

MWB100018A-12A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MWB100 (100W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 18V
Current - Output (Max) : 5.6A
Power (Watts) : 101W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : 89%
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 5.19" L x 3.07" W x 1.34" H (132.0mm x 78.0mm x 34.0mm)
Approvals : CB, CE, cTUVus

32 in stock

MWB100024A-12A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MWB100 (100W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 4.2A
Power (Watts) : 101W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : 89%
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 5.19" L x 3.07" W x 1.34" H (132.0mm x 78.0mm x 34.0mm)
Approvals : CB, CE, cTUVus

100 in stock

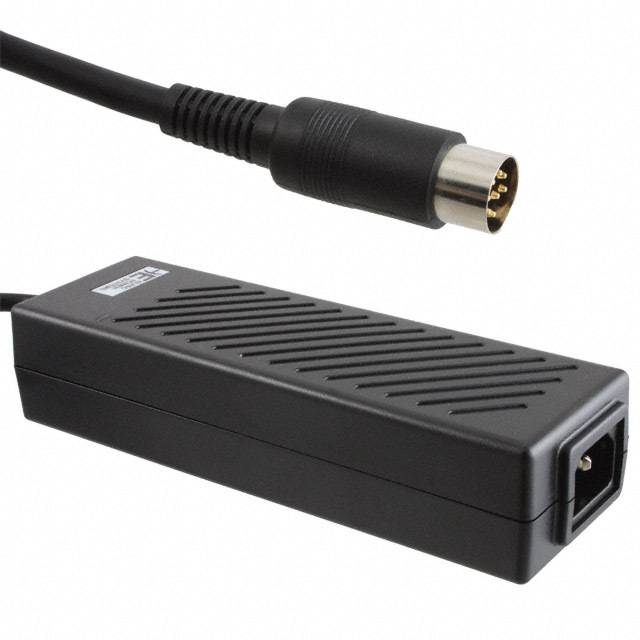

MWC100012A-12A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MWC100 (100W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 8.3A
Power (Watts) : 100W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm)
Approvals : CB, CE, cTUVus

100 in stock
