Inventus Power
- Inventus Power, formerly ICCNexergy + Palladium Energy, is the world’s ONLY power systems manufacturer that integrates and delivers battery packs, chargers & docking stations and power supplies across the consumer, commercial, medical and military & government markets and is located in 8 countries across 4 continents.
Inventus Power has almost 60 years of experience designing high quality medical power supplies and commercial AC/DC power supplies. Our standard Elpac offering of desktop and open frame power supplies ranges from 5W to 350W and we have custom developed power supplies up to 2000 watts. We demonstrate MTBF on all power systems by conducting extensive in-house life testing (High Temp, High Stress, 100% Burn-In, etc.). Our proven design guidelines allow us to offer an industry-best five year warranty on all of our standard Elpac power solutions.
Part Number
Manufacturer
Description
Unit Price
In Stock

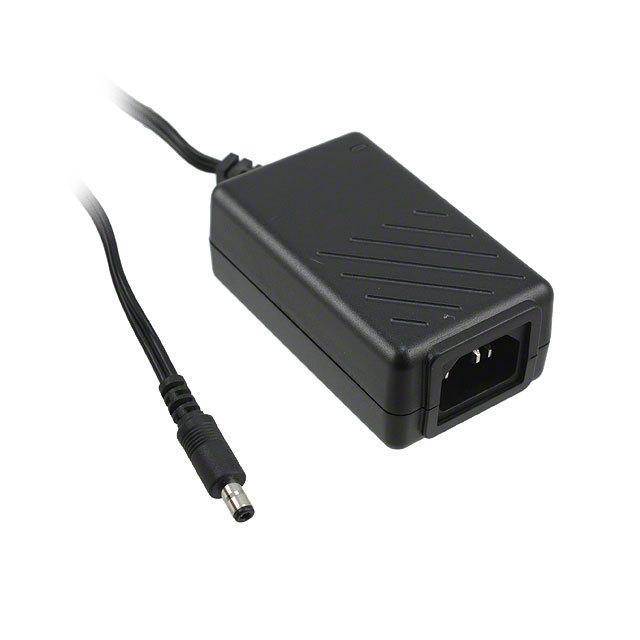

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : MWA020 (20W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 840mA
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus
0
287 in stock

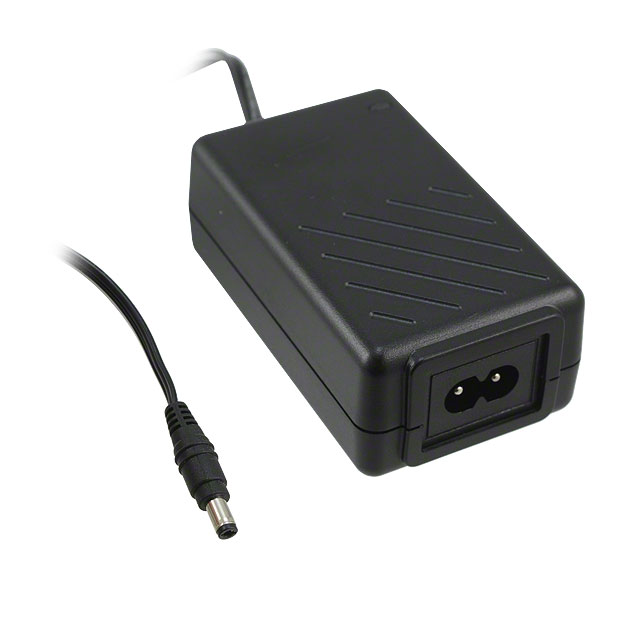

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : MWA020 (20W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class II)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 840mA
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus
0
60 in stock
ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : MWA030 (30W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 6A
Power (Watts) : 30W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : -
Size / Dimension : 3.53" L x 1.92" W x 0.99" H (89.7mm x 48.8mm x 25.1mm)
Approvals : CE, cTUVus
0
100 in stock
ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : MWA050 (50W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 4.25A
Power (Watts) : 51W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm)
Approvals : CB, CE, cTUVus
0
100 in stock

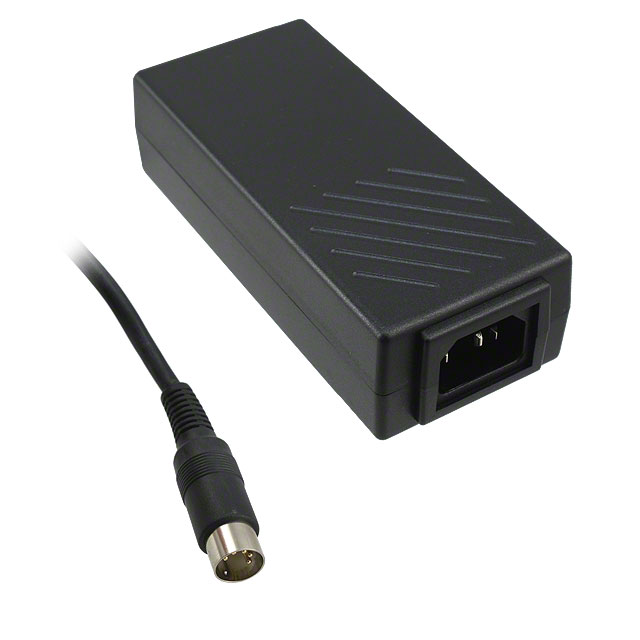

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : MWA065 (65W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 9V
Current - Output (Max) : 8A
Power (Watts) : 72W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 5 Pin
Size / Dimension : 5.02" L x 2.20" W x 1.37" H (127.6mm x 55.9mm x 34.8mm)
Approvals : CB, CE, cTUVus
0
100 in stock
ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : MWA065 (65W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 6A
Power (Watts) : 72W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 5 Pin
Size / Dimension : 5.02" L x 2.20" W x 1.37" H (127.6mm x 55.9mm x 34.8mm)
Approvals : CB, CE, cTUVus
0
1335 in stock

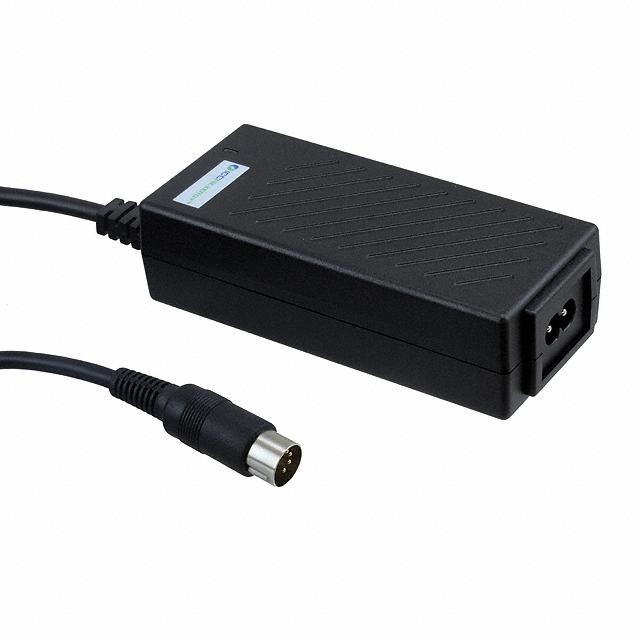

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : MWA065 (65W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class II)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 6A
Power (Watts) : 72W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 5 Pin
Size / Dimension : 5.02" L x 2.20" W x 1.37" H (127.6mm x 55.9mm x 34.8mm)
Approvals : CB, CE, cTUVus
0
100 in stock
ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : MWA065 (65W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 3A
Power (Watts) : 72W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 5 Pin
Size / Dimension : 5.02" L x 2.20" W x 1.37" H (127.6mm x 55.9mm x 34.8mm)
Approvals : CB, CE, cTUVus
0
71 in stock

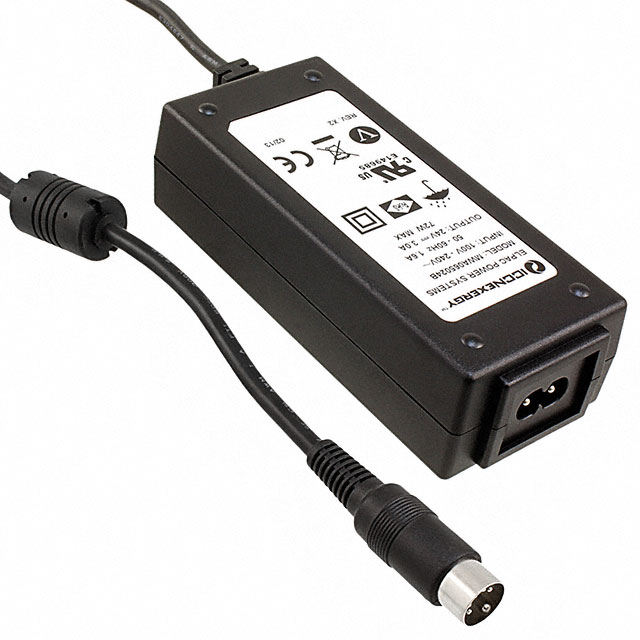

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : MWA065 (65W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class II)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 3A
Power (Watts) : 72W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 5 Pin
Size / Dimension : 5.02" L x 2.20" W x 1.37" H (127.6mm x 55.9mm x 34.8mm)
Approvals : CB, CE, cTUVus
0
30 in stock
ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : MWA080 (80W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 6.7A
Power (Watts) : 80W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 5.19" L x 3.07" W x 1.34" H (132.0mm x 78.0mm x 34.0mm)
Approvals : CB, CE, cTUVus
0
12 in stock
ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : MWA080 (80W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 15V
Current - Output (Max) : 5.3A
Power (Watts) : 80W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 5.19" L x 3.07" W x 1.34" H (132.0mm x 78.0mm x 34.0mm)
Approvals : CB, CE, cTUVus
0
100 in stock

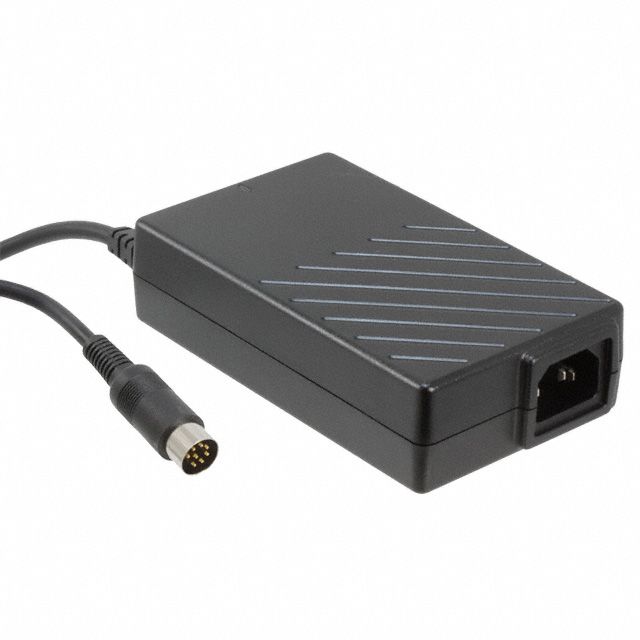

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : MWA080 (80W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 18V
Current - Output (Max) : 4.4A
Power (Watts) : 79W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 5.19" L x 3.07" W x 1.34" H (132.0mm x 78.0mm x 34.0mm)
Approvals : CB, CE, cTUVus
0
100 in stock
