Inventus Power

- Inventus Power, formerly ICCNexergy + Palladium Energy, is the world’s ONLY power systems manufacturer that integrates and delivers battery packs, chargers & docking stations and power supplies across the consumer, commercial, medical and military & government markets and is located in 8 countries across 4 continents.

Inventus Power has almost 60 years of experience designing high quality medical power supplies and commercial AC/DC power supplies. Our standard Elpac offering of desktop and open frame power supplies ranges from 5W to 350W and we have custom developed power supplies up to 2000 watts. We demonstrate MTBF on all power systems by conducting extensive in-house life testing (High Temp, High Stress, 100% Burn-In, etc.). Our proven design guidelines allow us to offer an industry-best five year warranty on all of our standard Elpac power solutions.


Part Number

Manufacturer

Description

Unit Price

In Stock

MW1212-760-NC-WH

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW12 (12W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1A
Power (Watts) : 12W
No Load Power Consumption : -
Polarization : Positive Center
Applications : Medical
Efficiency : 78%
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm)
Approvals : CE

100 in stock

MW1224-760-NC-BK

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW12 (12W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 500mA
Power (Watts) : 12W
No Load Power Consumption : 970mW (Max)
Polarization : Positive Center
Applications : Medical
Efficiency : 78%
Operating Temperature : 0°C ~ 60°C
Output Connector : -
Size / Dimension : 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm)
Approvals : cTUVus, UL

100 in stock

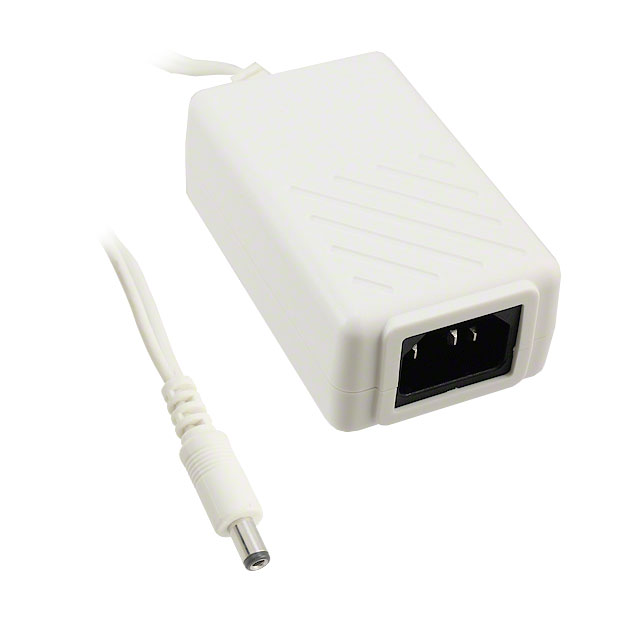

MW1224-760-NC-WH

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW12 (12W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 500mA
Power (Watts) : 12W
No Load Power Consumption : -
Polarization : Positive Center
Applications : Medical
Efficiency : 78%
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm)
Approvals : CE

168 in stock

MW2412-760-NC-BK

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW24 (24W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 2A
Power (Watts) : 24W
No Load Power Consumption : 850mW (Max)
Polarization : Positive Center
Applications : Medical
Efficiency : 80%
Operating Temperature : 0°C ~ 60°C
Output Connector : -
Size / Dimension : 4.25" L x 2.54" W x 1.30" H (108.0mm x 64.5mm x 33.0mm)
Approvals : cTUVus, UL

100 in stock

MW2412-760-NC-WH

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW24 (24W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 100 ~ 240 VAC
Voltage - Output : 12V
Current - Output (Max) : 2A
Power (Watts) : 24W
No Load Power Consumption : -
Polarization : Positive Center
Applications : Medical
Efficiency : 80%
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm)
Approvals : CB, CE

100 in stock

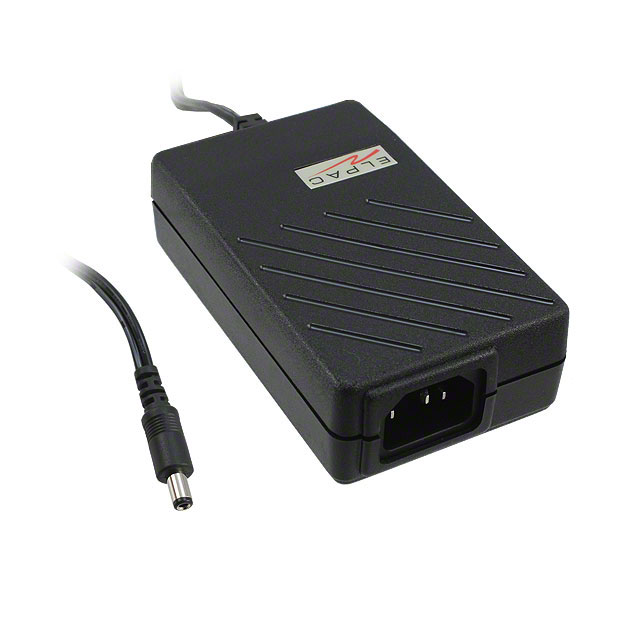

MW2415-760-NC-BK

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW24 (24W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 100 ~ 240 VAC
Voltage - Output : 15V
Current - Output (Max) : 1.6A
Power (Watts) : 24W
No Load Power Consumption : -
Polarization : Positive Center
Applications : Medical
Efficiency : 80%
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm)
Approvals : CB, CE

100 in stock

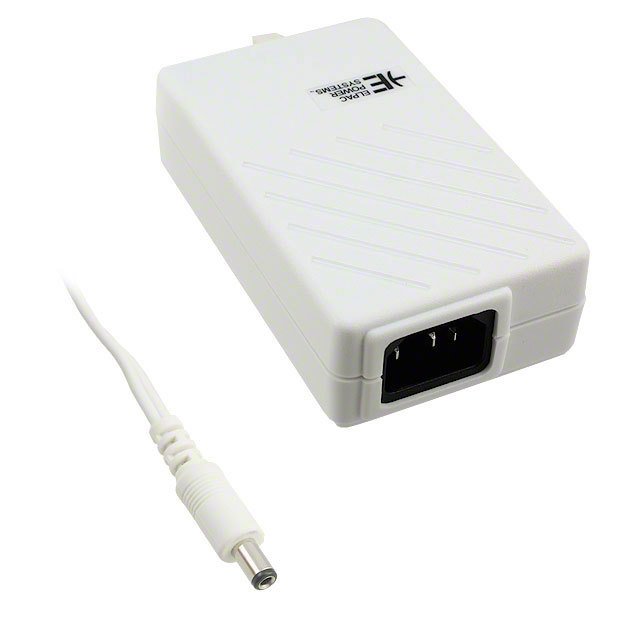

MW2415-760-NC-WH

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW24 (24W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 100 ~ 240 VAC
Voltage - Output : 15V
Current - Output (Max) : 1.6A
Power (Watts) : 24W
No Load Power Consumption : -
Polarization : Positive Center
Applications : Medical
Efficiency : 80%
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm)
Approvals : CB, CE

20 in stock

MW2418-760-NC-BK

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW24 (24W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 18V
Current - Output (Max) : 1.3A
Power (Watts) : 23W
No Load Power Consumption : 850mW (Max)
Polarization : Positive Center
Applications : Medical
Efficiency : 81%
Operating Temperature : 0°C ~ 60°C
Output Connector : -
Size / Dimension : 4.25" L x 2.54" W x 1.30" H (108.0mm x 64.5mm x 33.0mm)
Approvals : cTUVus, UL

100 in stock

MW2418-760-NC-WH

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW24 (24W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 100 ~ 240 VAC
Voltage - Output : 18V
Current - Output (Max) : 1.33A
Power (Watts) : 24W
No Load Power Consumption : -
Polarization : Positive Center
Applications : Medical
Efficiency : 80%
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm)
Approvals : CB, CE

100 in stock

MW2424-760-NC-BK

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW24 (24W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 1A
Power (Watts) : 24W
No Load Power Consumption : 850mW (Max)
Polarization : Positive Center
Applications : Medical
Efficiency : 82%
Operating Temperature : 0°C ~ 60°C
Output Connector : -
Size / Dimension : 4.25" L x 2.54" W x 1.30" H (108.0mm x 64.5mm x 33.0mm)
Approvals : cTUVus, UL

100 in stock

MW2424-760-NC-WH

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW24 (24W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 100 ~ 240 VAC
Voltage - Output : 24V
Current - Output (Max) : 1A
Power (Watts) : 24W
No Load Power Consumption : -
Polarization : Positive Center
Applications : Medical
Efficiency : 80%
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm)
Approvals : CB, CE

234 in stock

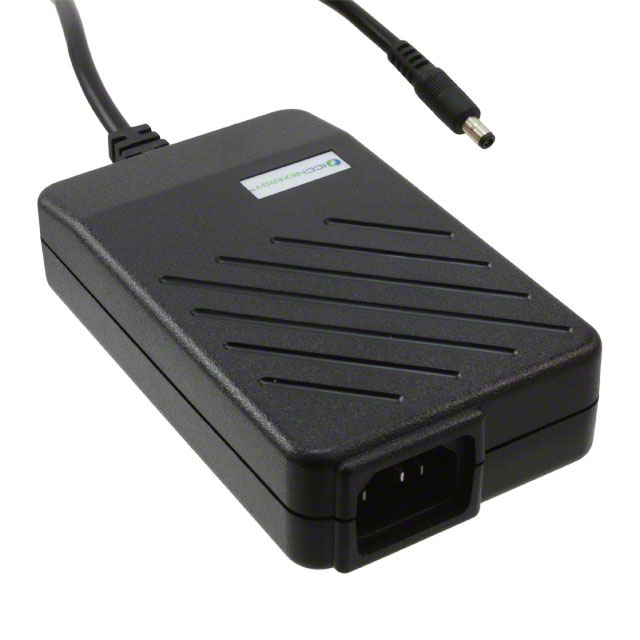

MW4009-760F-NC-BK

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW40 (40W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 9V
Current - Output (Max) : 4.4A
Power (Watts) : 40W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm)
Approvals : -

100 in stock
