LED Engin
- LED Engin, an OSRAM business based in California’s Silicon Valley, develops, manufactures, and sells advanced LED emitters, optics and light engines to create uncompromised lighting experiences for a wide range of entertainment, architectural, general lighting and specialty applications. LuxiGenTM multi-die emitter and secondary lens combinations reliably deliver industry-leading flux density, upwards of 5000 quality lumens to a target, in a wide spectrum of colors including whites, tunable whites, multi-color and UV LEDs in a unique patented compact ceramic package. The small size, yet remarkably powerful beam output and superior in-source color mixing, allows for a previously unobtainable freedom of design wherever high-flux density, directional light is required.
Part Number
Manufacturer
Description
Unit Price
In Stock

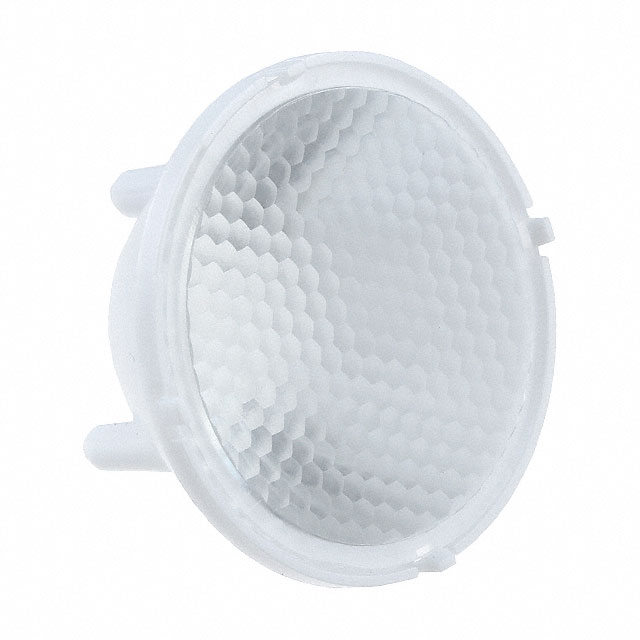

LED Engin
Manufacturer : LED Engin Inc.
Series : -
Part Status : Active
Type : Lens with Holder
Color : Clear
Number of LEDs : 1
Lens Style : Round with Flat Top
Lens Size : 45mm Dia
Lens Transparency : Diffused
Optical Pattern : Wide
Viewing Angle : 45°
For Use With/Related Manufacturer : -
Material : -
Mounting Type : Adhesive
0
100 in stock

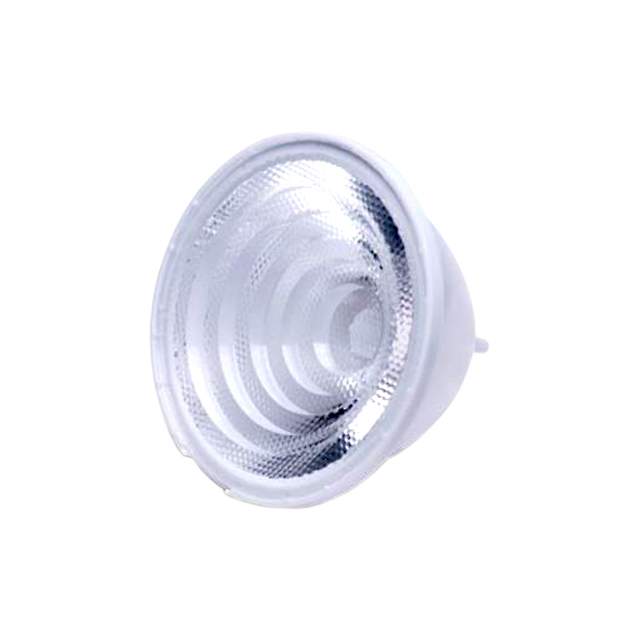

LED Engin
Manufacturer : LED Engin Inc.
Series : LZP
Part Status : Active
Type : Lens with Holder
Color : Clear
Number of LEDs : 1
Lens Style : Round with Concave Top
Lens Size : 80mm Dia
Lens Transparency : Diffused
Optical Pattern : Fresnel Ring
Viewing Angle : 47°
For Use With/Related Manufacturer : Led Engin
Material : Acrylic
Mounting Type : Adhesive
0
100 in stock

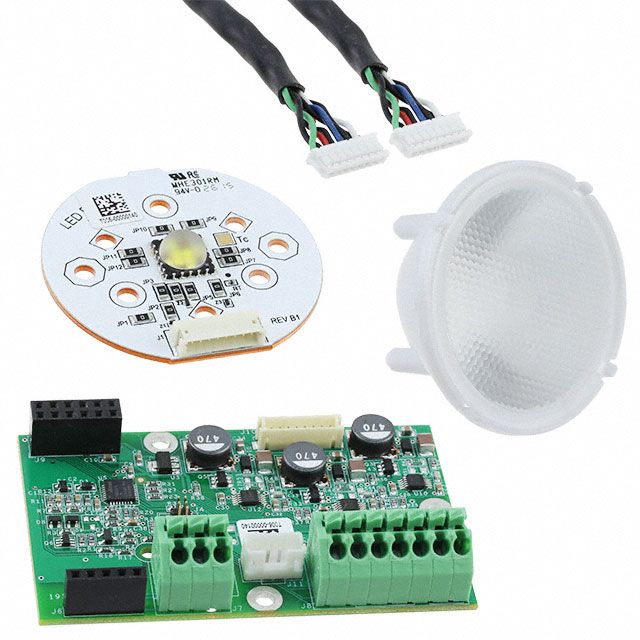

LED Engin
Manufacturer : LED Engin Inc.
Series : Gen 3 LuxiTune™
Type : General Purpose Lighting Kit
Color : White, Warm / White, Cool
CCT (K) : 2100K ~ 4300K
Voltage - Supply : 24V
Current - Supply : 1.15A
Contents : Cable(s), Driver Board, Holder, LED Module, Lens
Features : Dimmable
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Amber
Wavelength : 593nm (588nm ~ 598nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 2.6V
Lumens/Watt @ Current - Test : 43 lm/W
Current - Max : 1.2A
Flux @ Current/Temperature - Test : 111 lm (75 lm ~ 146 lm)
Temperature - Test : 25°C
Viewing Angle : 76°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.114" (2.90mm)
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Amber
Wavelength : 593nm (588nm ~ 598nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 2.6V
Lumens/Watt @ Current - Test : 43 lm/W
Current - Max : 1.2A
Flux @ Current/Temperature - Test : 111 lm (75 lm ~ 146 lm)
Temperature - Test : 25°C
Viewing Angle : 76°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.114" (2.90mm)
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Color : Amber
Wavelength : 593nm (588nm ~ 598nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 2.6V
Lumens/Watt @ Current - Test : 43 lm/W
Current - Max : 1.2A
Flux @ Current/Temperature - Test : 111 lm (75 lm ~ 146 lm)
Temperature - Test : 25°C
Viewing Angle : 100°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.102" (2.60mm)
0
100 in stock

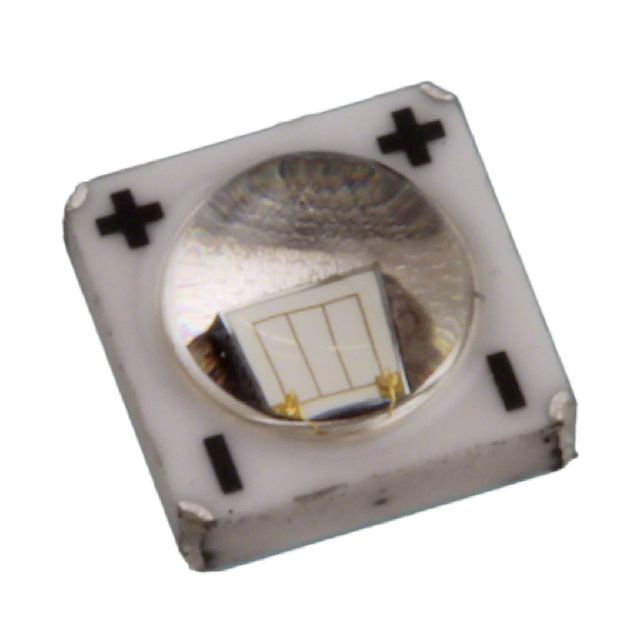

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Blue
Wavelength : 455nm (450nm ~ 460nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 3.3V
Lumens/Watt @ Current - Test : 13 lm/W
Current - Max : 1.2A
Flux @ Current/Temperature - Test : 42 lm (24 lm ~ 60 lm)
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Blue
Wavelength : 455nm (450nm ~ 460nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 3.3V
Lumens/Watt @ Current - Test : 13 lm/W
Current - Max : 1.2A
Flux @ Current/Temperature - Test : 42 lm (24 lm ~ 60 lm)
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
100 in stock

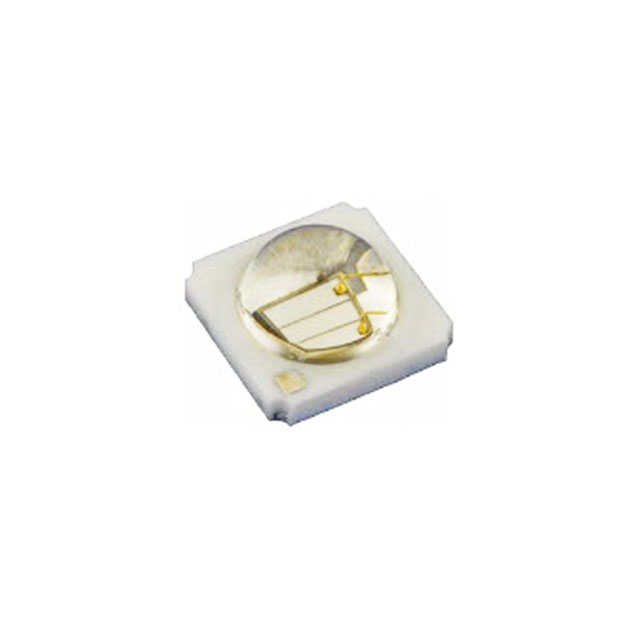

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Blue
Wavelength : 457nm (453nm ~ 460nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 3.3V
Lumens/Watt @ Current - Test : 15 lm/W
Current - Max : 1.2A
Flux @ Current/Temperature - Test : 49 lm (38 lm ~ 60 lm)
Temperature - Test : 25°C
Viewing Angle : 100°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.102" (2.60mm)
0
3005 in stock

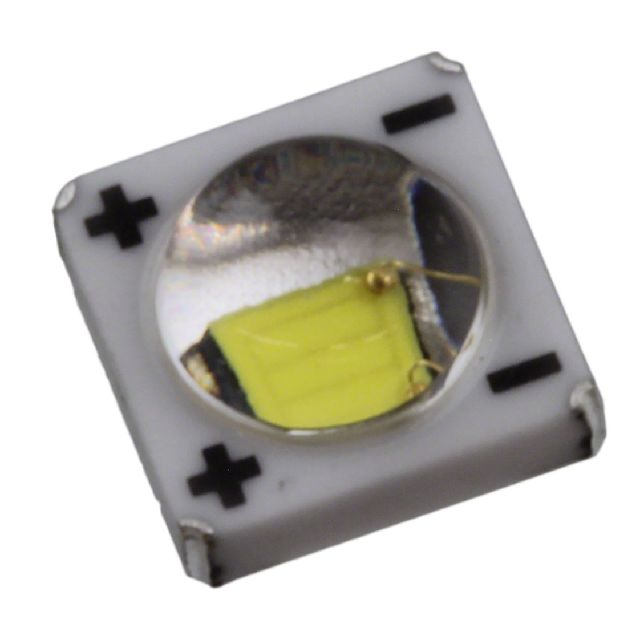

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : LZ1
Part Status : Obsolete
Color : White, Cool
CCT (K) : 4750K ~ 7040K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 234 lm (182 lm ~ 285 lm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 65 lm/W
CRI (Color Rendering Index) : 75 (Typ)
Current - Max : 1.2A
Viewing Angle : 85°
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead Exposed Pad
Supplier Device Package : 4040
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : LZ1
Part Status : Obsolete
Color : White, Cool
CCT (K) : 5000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 227 lm (Typ)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 63 lm/W
CRI (Color Rendering Index) : 75 (Typ)
Current - Max : 1.2A
Viewing Angle : 85°
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead Exposed Pad
Supplier Device Package : 4040
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : LZ1
Part Status : Obsolete
Color : White, Cool
CCT (K) : 5500K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 205 lm (182 lm ~ 228 lm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 57 lm/W
CRI (Color Rendering Index) : 75 (Typ)
Current - Max : 1.2A
Viewing Angle : 85°
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead Exposed Pad
Supplier Device Package : 4040
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
100 in stock
