LED Engin
- LED Engin, an OSRAM business based in California’s Silicon Valley, develops, manufactures, and sells advanced LED emitters, optics and light engines to create uncompromised lighting experiences for a wide range of entertainment, architectural, general lighting and specialty applications. LuxiGenTM multi-die emitter and secondary lens combinations reliably deliver industry-leading flux density, upwards of 5000 quality lumens to a target, in a wide spectrum of colors including whites, tunable whites, multi-color and UV LEDs in a unique patented compact ceramic package. The small size, yet remarkably powerful beam output and superior in-source color mixing, allows for a previously unobtainable freedom of design wherever high-flux density, directional light is required.
Part Number
Manufacturer
Description
Unit Price
In Stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : LZP
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 3600 lm (2900 lm ~ 3800 lm)
Current - Test : 4 x 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18.9V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 110°
Features : -
Size / Dimension : 28.00mm Diameter
Height : 8.10mm
Light Emitting Surface (LES) : 10.50mm
Lens Type : Domed
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : LZP
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 3600 lm (2900 lm ~ 3800 lm)
Current - Test : 4 x 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18.9V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 110°
Features : -
Size / Dimension : 28.00mm Diameter
Height : 8.10mm
Light Emitting Surface (LES) : 10.50mm
Lens Type : Domed
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : LZP
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 3600 lm (2900 lm ~ 3800 lm)
Current - Test : 4 x 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18.9V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 110°
Features : -
Size / Dimension : 28.00mm Diameter
Height : 8.10mm
Light Emitting Surface (LES) : 10.50mm
Lens Type : Domed
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : LZP
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 3600 lm (2900 lm ~ 3800 lm)
Current - Test : 4 x 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18.9V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 110°
Features : -
Size / Dimension : 28.00mm Diameter
Height : 8.10mm
Light Emitting Surface (LES) : 10.50mm
Lens Type : Domed
0
100 in stock

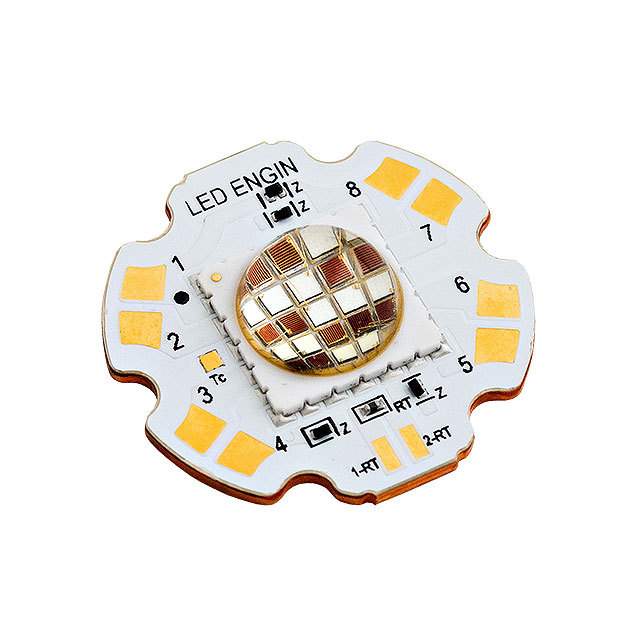

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tray
Series : LuxiGen™
Part Status : Active
Type : LED Module
Color : Red, Green, Blue (RGB)
CCT (K) : -
Wavelength : 660nm Red, 740nm Red, 520nm Green, 450nm Blue
Configuration : Starboard
Flux @ Current/Temperature - Test : -
Current - Test : 700mA Red, 700mA Green, 700mA Blue
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18.8V Red, 8.2V Red, 14.4V Green, 25.6V Blue
Lumens/Watt @ Current - Test : -
Current - Max : 700mA Red, 700mA Green, 700mA Blue
CRI (Color Rendering Index) : -
Viewing Angle : 125°
Features : -
Size / Dimension : 27.60mm Diameter
Height : 7.60mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
45 in stock

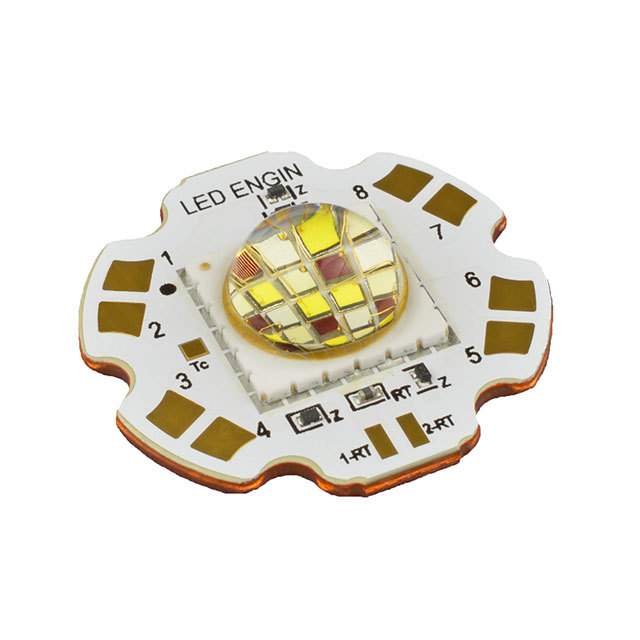

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : LuxiGen™
Part Status : Active
Type : LED Module
Color : Red, Green, Blue, White - Cool
CCT (K) : 6335K
Wavelength : 624nm Red, 525nm Green, 457nm Blue
Configuration : Starboard
Flux @ Current/Temperature - Test : 770 lm Red, 925 lm Green, 221 lm Blue, 1605 lm White
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA White
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 15V Red, 21.6V Green, 19.2V Blue, 22.4V White
Lumens/Watt @ Current - Test : 73 lm/W Red, 61 lm/W Green, 16 lm/W Blue, 102 lm/W White
Current - Max : 1A Red, 1A Green, 1A Blue, 1A White
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : 125°
Features : -
Size / Dimension : 27.60mm Diameter
Height : 7.60mm
Light Emitting Surface (LES) : 10.50mm Diameter
Lens Type : Domed
0
165 in stock

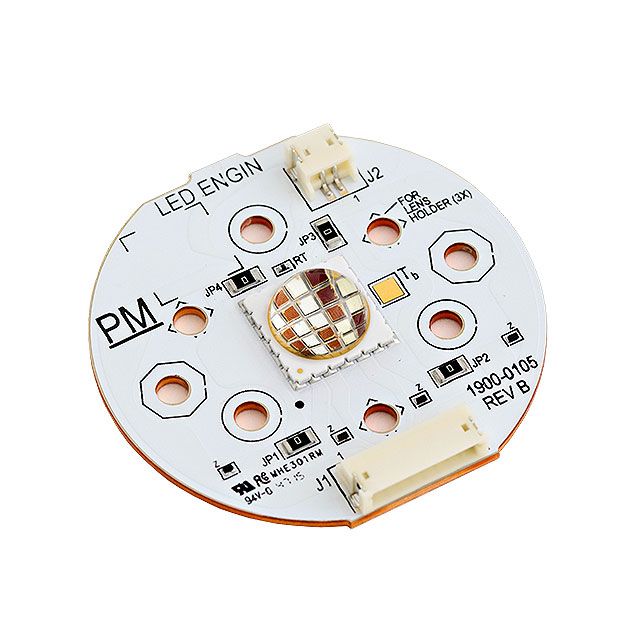

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tray
Series : LuxiGen™
Part Status : Active
Type : LED Module
Color : Red, Green, Blue (RGB)
CCT (K) : -
Wavelength : 660nm Red, 740nm Red, 520nm Green, 450nm Blue
Configuration : Round
Flux @ Current/Temperature - Test : -
Current - Test : 700mA Red, 700mA Green, 700mA Blue
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18.8V Red, 8.2V Red, 14.4V Green, 25.6V Blue
Lumens/Watt @ Current - Test : -
Current - Max : 700mA Red, 700mA Green, 700mA Blue
CRI (Color Rendering Index) : -
Viewing Angle : 125°
Features : -
Size / Dimension : 49.00mm Diameter
Height : 7.62mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
99 in stock

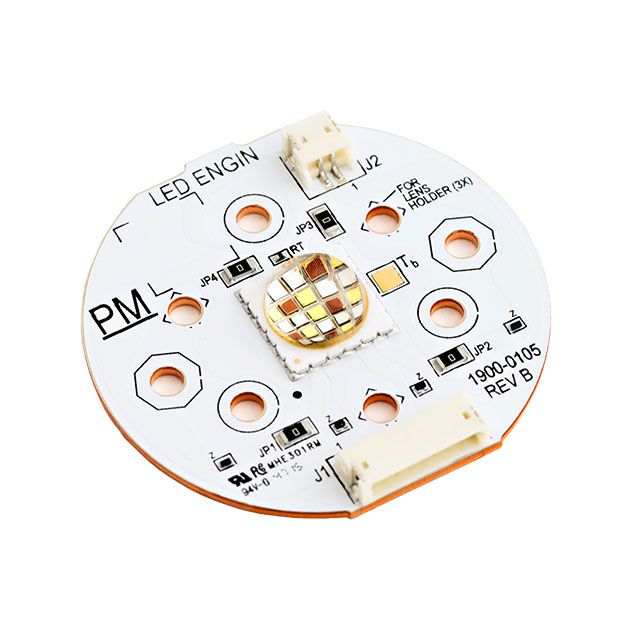

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tray
Series : LuxiGen™
Part Status : Active
Type : LED Module
Color : Red, Green, Blue, White - Cool (RGBW)
CCT (K) : 6500K
Wavelength : 624nm Red, 525nm Green, 457nm Blue
Configuration : Round
Flux @ Current/Temperature - Test : 770 lm Red, 925 lm Green, 221 lm Blue, 1605 lm White
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 15V Red, 21.6V Green, 19.2V Blue, 22.4V White
Lumens/Watt @ Current - Test : 73 lm/W Red, 61 lm/W Green, 16 lm/W Blue, 102 lm/W White
Current - Max : 1A
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : 125°
Features : -
Size / Dimension : 49.00mm Diameter
Height : 7.62mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
72 in stock
