Lumex, Inc.
- Lumex, Inc. for 30 years, Lumex has been a global leader in the optoelectronics industry, with the broadest range of high efficiency, high performance LEDs and LCDs in the industry. With thousands of standard products and a focus on semi-custom and custom designs, Lumex is a valuable resource for quality and innovation. Lumex's optical range encompasses a wide spectrum including UV, visible and infrared wavelengths. Lumex's team of Technical Design Specialists are experts in collaboratively developing effective, smart solutions from the most complex design dilemmas.
Lumex has a global footprint with the worldwide headquarters outside Chicago and the Asian headquarters in Taiwan. With manufacturing capabilities in the United States, China, Taiwan and Thailand, Lumex is able to support over 23 end markets with more than 80,000 customers both directly and through our distribution channel partners. Over the last 30 years, the name Lumex has become synonymous with quality and performance around the world.
Part Number
Manufacturer
Description
Unit Price
In Stock

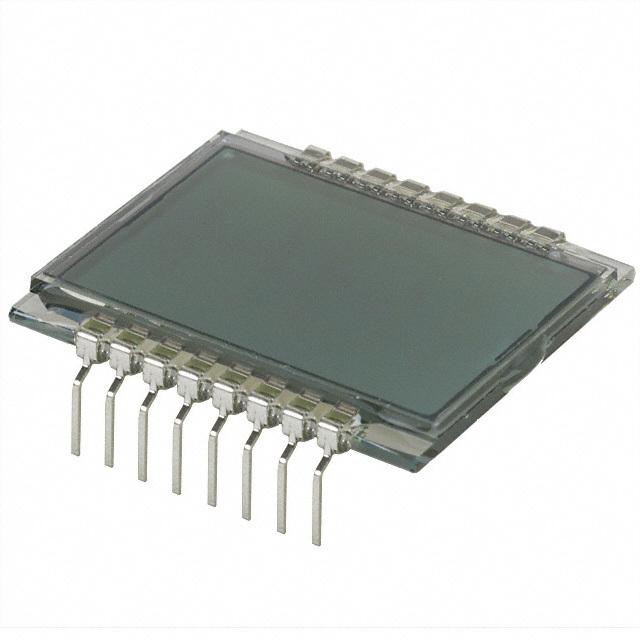

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 2.5
Display Format : 2.5 x 1
Character Format : 7-Segment
Display Type : TN - Twisted Nematic
Display Mode : Transflective
Character Size : 12.17mm H x 7.00mm W
Outline L x W x H : 30.00mm x 26.17mm x 2.80mm
Viewing Area : 26.00mm L x 17.17mm W
Backlight : Without Backlight
Voltage - Supply : 5V
Dot Size : -
Interface : -
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Gray
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 2.5
Display Format : 2.5 x 1
Character Format : 7-Segment
Display Type : TN - Twisted Nematic
Display Mode : Reflective
Character Size : 12.17mm H x 7.00mm W
Outline L x W x H : 30.00mm x 26.17mm x 2.80mm
Viewing Area : 26.00mm L x 17.17mm W
Backlight : Without Backlight
Voltage - Supply : 5V
Dot Size : -
Interface : -
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Gray
0
4050 in stock

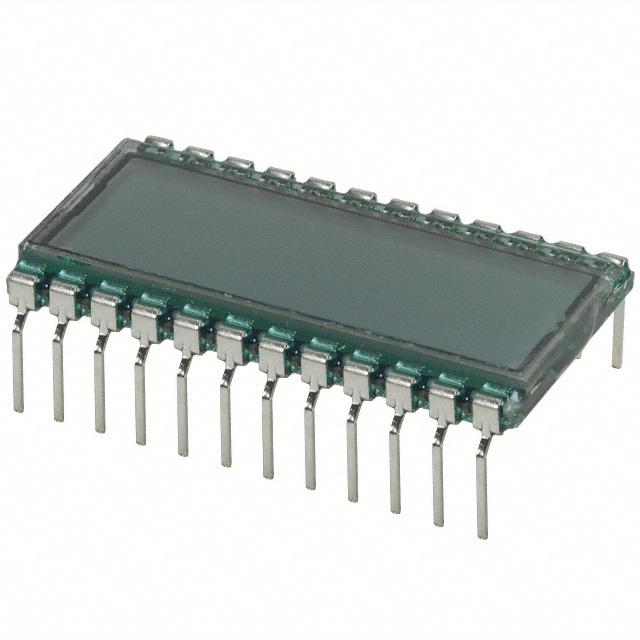

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 3
Display Format : 3 x 1
Character Format : 7-Segment
Display Type : TN - Twisted Nematic
Display Mode : Transflective
Character Size : 7.87mm H x 5.08mm W
Outline L x W x H : 30.70mm x 16.20mm x 2.80mm
Viewing Area : 27.90mm L x 10.00mm W
Backlight : Without Backlight
Voltage - Supply : 5V
Dot Size : -
Interface : -
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Gray
0
1863 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 3
Display Format : 3 x 1
Character Format : 7-Segment
Display Type : TN - Twisted Nematic
Display Mode : Reflective
Character Size : 7.87mm H x 5.08mm W
Outline L x W x H : 30.70mm x 16.20mm x 2.80mm
Viewing Area : 27.90mm L x 10.00mm W
Backlight : Without Backlight
Voltage - Supply : 5V
Dot Size : -
Interface : -
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Gray
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 3
Display Format : 3 x 1
Character Format : 7-Segment
Display Type : TN - Twisted Nematic
Display Mode : Reflective
Character Size : -
Outline L x W x H : 30.70mm x 16.20mm x 2.80mm
Viewing Area : 27.90mm L x 10.00mm W
Backlight : Without Backlight
Voltage - Supply : 3V
Dot Size : -
Interface : -
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Gray
0
100 in stock

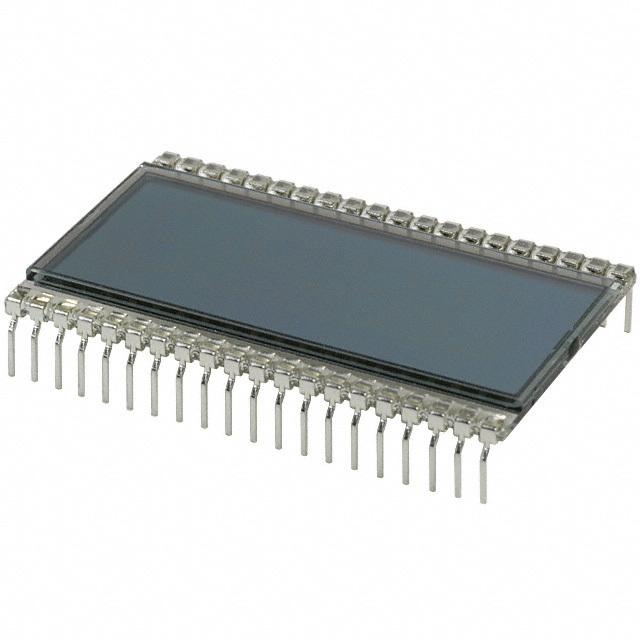

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 4
Display Format : 4 x 1
Character Format : 7-Segment
Display Type : TN - Twisted Nematic
Display Mode : Reflective
Character Size : 9.92mm H x 6.35mm W
Outline L x W x H : 50.80mm x 22.73mm x 2.20mm
Viewing Area : 43.18mm L x 12.70mm W
Backlight : Without Backlight
Voltage - Supply : 5V
Dot Size : -
Interface : -
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Gray
0
6086 in stock

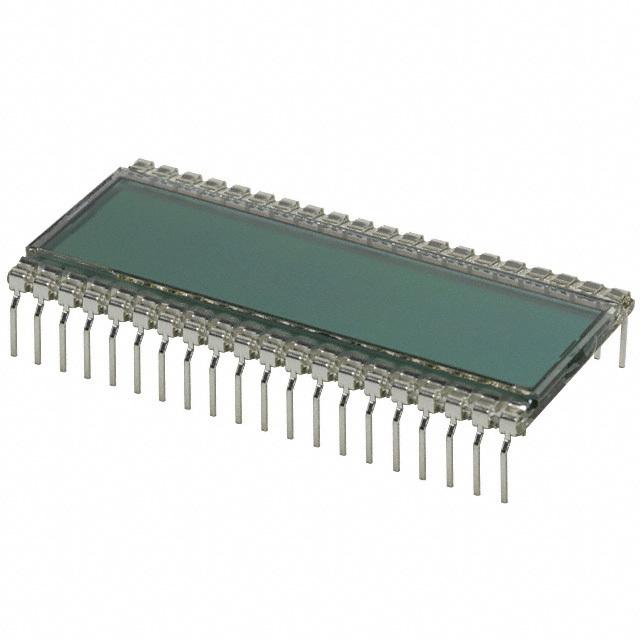

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 4
Display Format : 4 x 1
Character Format : 7-Segment
Display Type : TN - Twisted Nematic
Display Mode : Reflective
Character Size : 13.20mm H x 7.62mm W
Outline L x W x H : 50.80mm x 30.48mm x 2.80mm
Viewing Area : 45.72mm L x 17.78mm W
Backlight : Without Backlight
Voltage - Supply : 3 V ~ 5 V
Dot Size : -
Interface : -
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Gray
0
6000 in stock

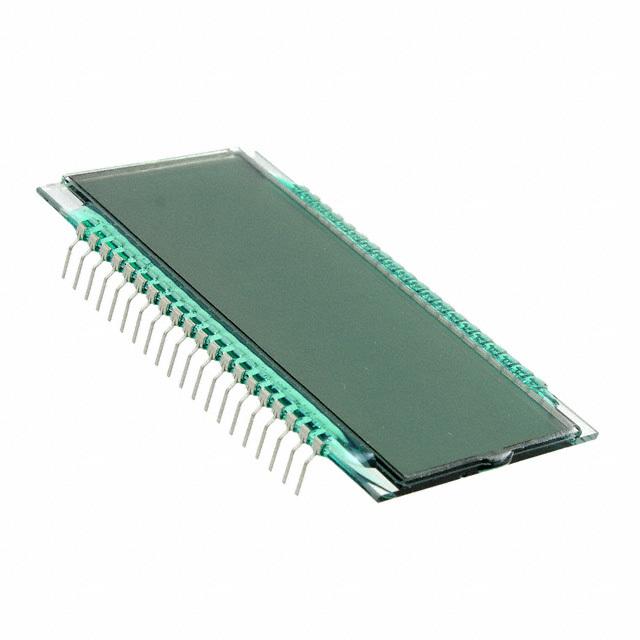

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 4
Display Format : 4 x 1
Character Format : 7-Segment
Display Type : TN - Twisted Nematic
Display Mode : Transflective
Character Size : 18.00mm H x 9.00mm W
Outline L x W x H : 69.85mm x 38.10mm x 2.80mm
Viewing Area : 62.23mm L x 22.86mm W
Backlight : Without Backlight
Voltage - Supply : 5V
Dot Size : -
Interface : -
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Gray
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 4
Display Format : 4 x 1
Character Format : 7-Segment
Display Type : TN - Twisted Nematic
Display Mode : Reflective
Character Size : 18.00mm H x 9.00mm W
Outline L x W x H : 69.85mm x 38.10mm x 2.80mm
Viewing Area : 62.23mm L x 22.86mm W
Backlight : Without Backlight
Voltage - Supply : 5V
Dot Size : -
Interface : -
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Gray
0
552 in stock

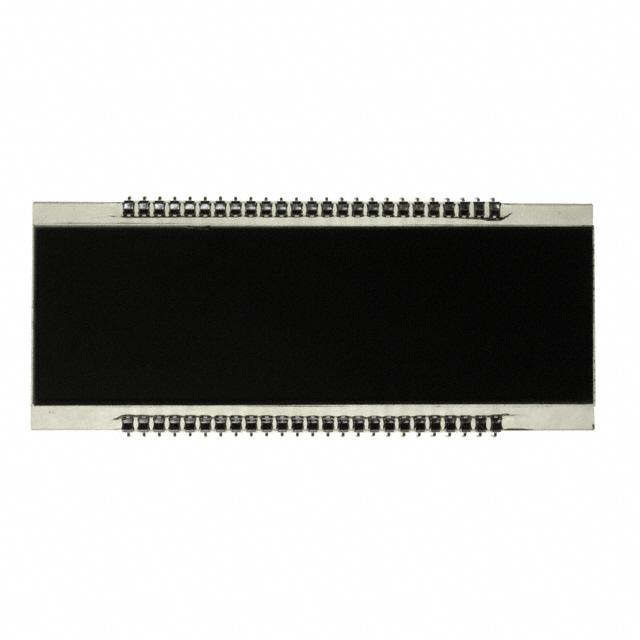

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 6
Display Format : 6 x 1
Character Format : 7-Segment
Display Type : TN - Twisted Nematic
Display Mode : Reflective
Character Size : 17.99mm H x 10.16mm W
Outline L x W x H : 93.85mm x 38.10mm x 2.80mm
Viewing Area : 86.36mm L x 24.13mm W
Backlight : Without Backlight
Voltage - Supply : 3 V ~ 5 V
Dot Size : -
Interface : -
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Gray
0
1571 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 8
Display Format : 8 x 1
Character Format : 7-Segment
Display Type : TN - Twisted Nematic
Display Mode : Reflective
Character Size : 10.70mm H x 5.40mm W
Outline L x W x H : 63.50mm x 20.32mm x 2.80mm
Viewing Area : 61.70mm L x 13.46mm W
Backlight : Without Backlight
Voltage - Supply : 3 V ~ 5 V
Dot Size : -
Interface : -
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Gray
0
100 in stock

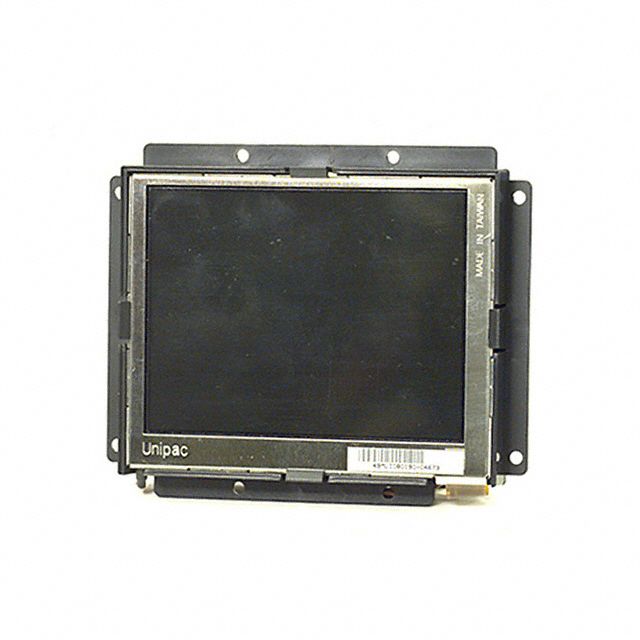

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Obsolete
Display Type : TFT - Color
Display Mode : Transmissive
Touchscreen : -
Diagonal Screen Size : 4" (101.60mm)
Viewing Area : 82.11mm W x 61.77mm H
Backlight : CCFL
Dot Pixels : 480 x 234
Interface : Composite
Graphics Color : Red, Green, Blue (RGB)
Background Color : -
0
100 in stock
