- Lumex, Inc. for 30 years, Lumex has been a global leader in the optoelectronics industry, with the broadest range of high efficiency, high performance LEDs and LCDs in the industry. With thousands of standard products and a focus on semi-custom and custom designs, Lumex is a valuable resource for quality and innovation. Lumex's optical range encompasses a wide spectrum including UV, visible and infrared wavelengths. Lumex's team of Technical Design Specialists are experts in collaboratively developing effective, smart solutions from the most complex design dilemmas.

Lumex has a global footprint with the worldwide headquarters outside Chicago and the Asian headquarters in Taiwan. With manufacturing capabilities in the United States, China, Taiwan and Thailand, Lumex is able to support over 23 end markets with more than 80,000 customers both directly and through our distribution channel partners. Over the last 30 years, the name Lumex has become synonymous with quality and performance around the world.


Part Number

Manufacturer

Description

Unit Price

In Stock

LCM-S00802DSR

Lumex, Inc.

Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 16
Display Format : 8 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Reflective
Character Size : 5.56mm H x 3.55mm W
Outline L x W x H : 58.00mm x 32.00mm x 8.60mm
Viewing Area : 38.00mm L x 16.00mm W
Backlight : Without Backlight
Voltage - Supply : 5V
Dot Size : 0.56mm W x 0.66mm H
Interface : -
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : -

100 in stock

LCM-S00802DTF

Lumex, Inc.

Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 16
Display Format : 8 x 2
Character Format : 5 x 8 Dots
Display Type : TN - Twisted Nematic
Display Mode : Transflective
Character Size : 5.56mm H x 3.55mm W
Outline L x W x H : 58.00mm x 32.00mm x 8.60mm
Viewing Area : 38.00mm L x 16.00mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 5V
Dot Size : 0.56mm W x 0.66mm H
Interface : -
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : -

100 in stock

LCM-S00802DTR

Lumex, Inc.

Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 16
Display Format : 8 x 2
Character Format : 5 x 8 Dots
Display Type : TN - Twisted Nematic
Display Mode : Reflective
Character Size : 5.56mm H x 3.55mm W
Outline L x W x H : 58.00mm x 32.00mm x 8.60mm
Viewing Area : 38.00mm L x 16.00mm W
Backlight : Without Backlight
Voltage - Supply : 5V
Dot Size : 0.56mm W x 0.66mm H
Interface : -
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : -

100 in stock

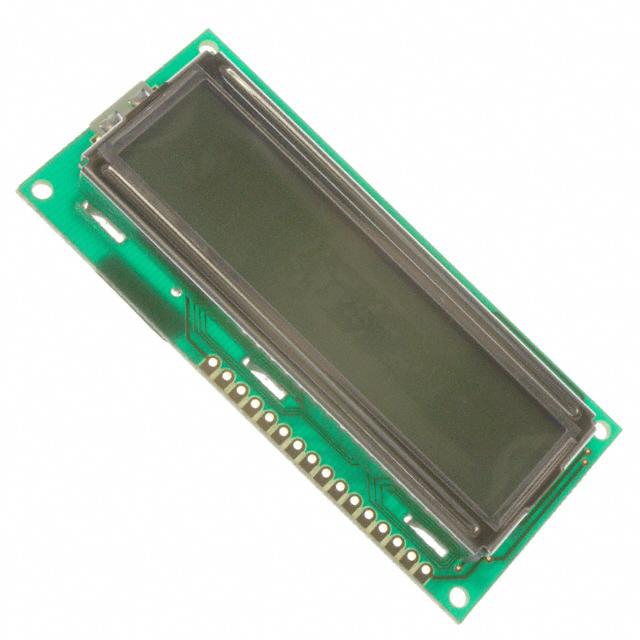

LCM-S01601DSF

Lumex, Inc.

Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 16
Display Format : 16 x 1
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 6.56mm H x 3.07mm W
Outline L x W x H : 80.00mm x 36.00mm x 12.70mm
Viewing Area : 66.00mm L x 16.00mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 5V
Dot Size : 0.55mm W x 0.75mm H
Interface : Parallel
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Green

484 in stock

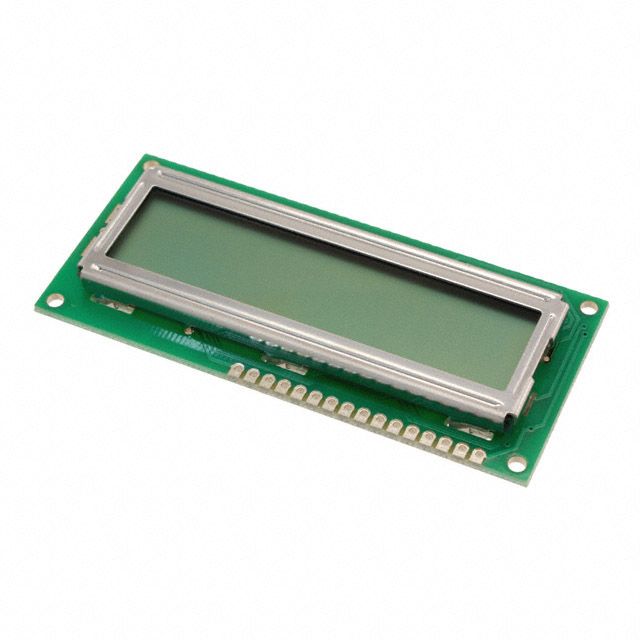

LCM-S01601DSR

Lumex, Inc.

Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 16
Display Format : 16 x 1
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Reflective
Character Size : 6.56mm H x 3.07mm W
Outline L x W x H : 80.00mm x 36.00mm x 8.80mm
Viewing Area : 66.00mm L x 16.00mm W
Backlight : Without Backlight
Voltage - Supply : 5V
Dot Size : 0.55mm W x 0.75mm H
Interface : Parallel
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Green

1548 in stock

LCM-S01601DTF

Lumex, Inc.

Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 16
Display Format : 16 x 1
Character Format : 5 x 8 Dots
Display Type : TN - Twisted Nematic
Display Mode : Transflective
Character Size : 6.56mm H x 3.07mm W
Outline L x W x H : 80.00mm x 36.00mm x 12.70mm
Viewing Area : 66.00mm L x 16.00mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 5V
Dot Size : 0.55mm W x 0.75mm H
Interface : -
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : -

100 in stock

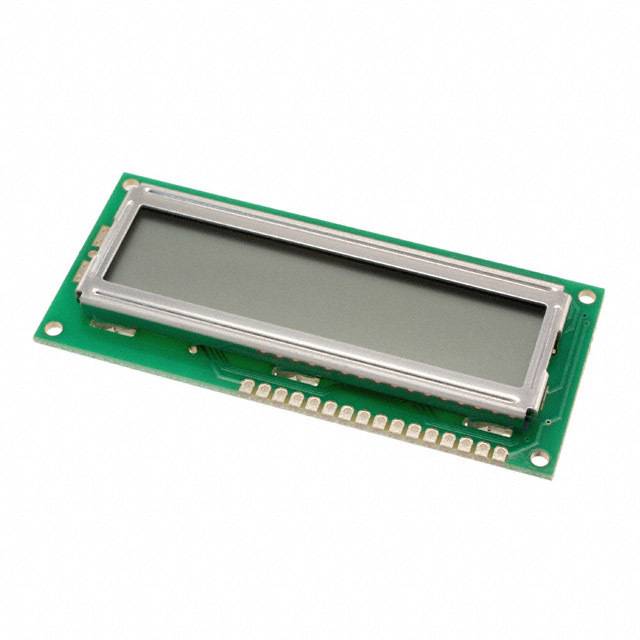

LCM-S01601DTR

Lumex, Inc.

Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 16
Display Format : 16 x 1
Character Format : 5 x 8 Dots
Display Type : TN - Twisted Nematic
Display Mode : Reflective
Character Size : 6.56mm H x 3.07mm W
Outline L x W x H : 80.00mm x 36.00mm x 8.80mm
Viewing Area : 66.00mm L x 16.00mm W
Backlight : Without Backlight
Voltage - Supply : 5V
Dot Size : 0.55mm W x 0.75mm H
Interface : Parallel
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Green

621 in stock

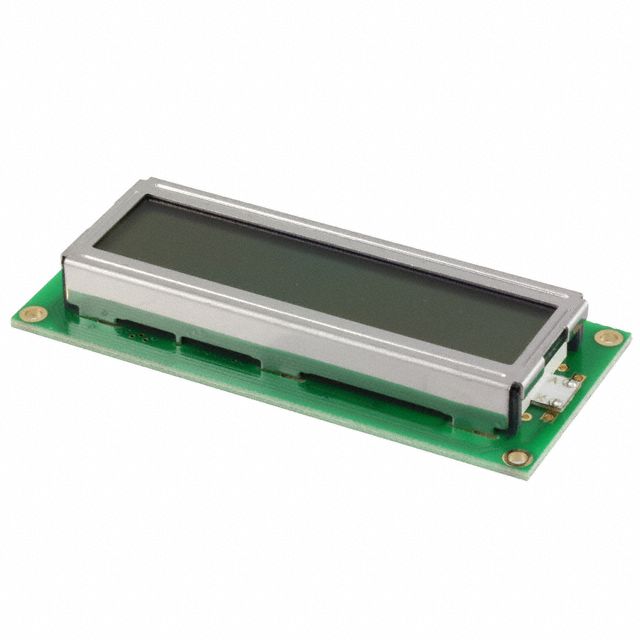

LCM-S01602DSF/A

Lumex, Inc.

Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.56mm H x 2.96mm W
Outline L x W x H : 80.00mm x 36.00mm x 12.70mm
Viewing Area : 66.00mm L x 16.00mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 5V
Dot Size : 0.56mm W x 0.66mm H
Interface : Parallel
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Green

100 in stock

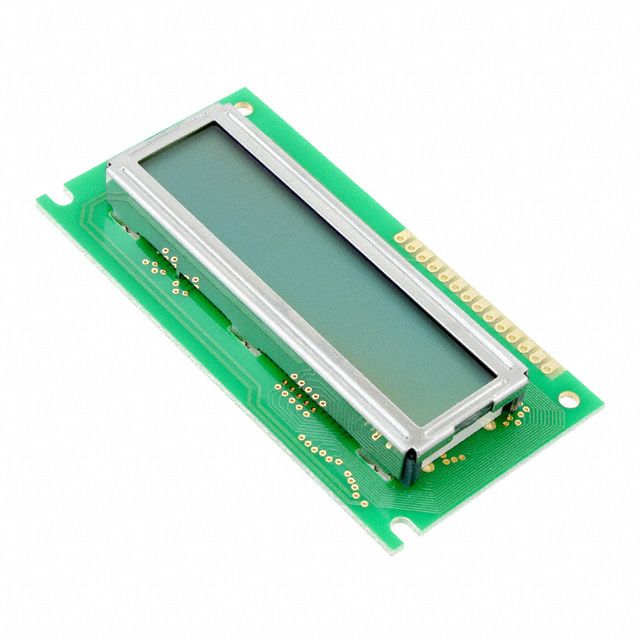

LCM-S01602DSF/B

Lumex, Inc.

Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.56mm H x 2.96mm W
Outline L x W x H : 84.00mm x 44.00mm x 12.70mm
Viewing Area : 66.00mm L x 16.00mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 5V
Dot Size : 0.56mm W x 0.66mm H
Interface : Parallel
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Green

589 in stock

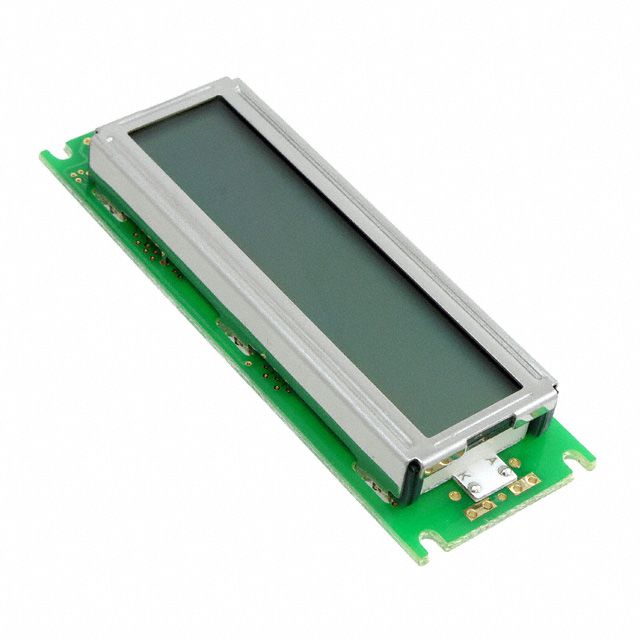

LCM-S01602DSF/C

Lumex, Inc.

Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.56mm H x 2.96mm W
Outline L x W x H : 85.00mm x 30.00mm x 12.70mm
Viewing Area : 66.00mm L x 16.00mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 5V
Dot Size : 0.56mm W x 0.66mm H
Interface : Parallel
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : Green

804 in stock

LCM-S01602DSF/D

Lumex, Inc.

Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 9.63mm H x 4.84mm W
Outline L x W x H : 122.00mm x 44.00mm x 13.00mm
Viewing Area : 99.00mm L x 24.00mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 5V
Dot Size : 1.16mm W x 1.16mm H
Interface : Parallel
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : -

100 in stock

LCM-S01602DSF/E

Lumex, Inc.

Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.56mm H x 2.96mm W
Outline L x W x H : 84.00mm x 44.00mm x 12.70mm
Viewing Area : 65.00mm L x 16.00mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 5V
Dot Size : 0.56mm W x 0.66mm H
Interface : Parallel
Operating Temperature : 0°C ~ 50°C
Text Color : -
Background Color : -

100 in stock
