Mallory Sonalert Products
- Headquartered in a new 22,000 square foot facility in Indianapolis, Indiana, Mallory Sonalert Products, Inc. is a leader in the manufacture and development of Sonalert® electronic audible signal products. The company has made its trademarked Sonalert line for over thirty years. In addition to sonalert products, Mallory also distributes a full range of audible signal devices including transducers, indicators, sirens, buzzers and related hardware to a broad range of customers in industrial, military and consumer electronic markets.
Part Number
Manufacturer
Description
Unit Price
In Stock

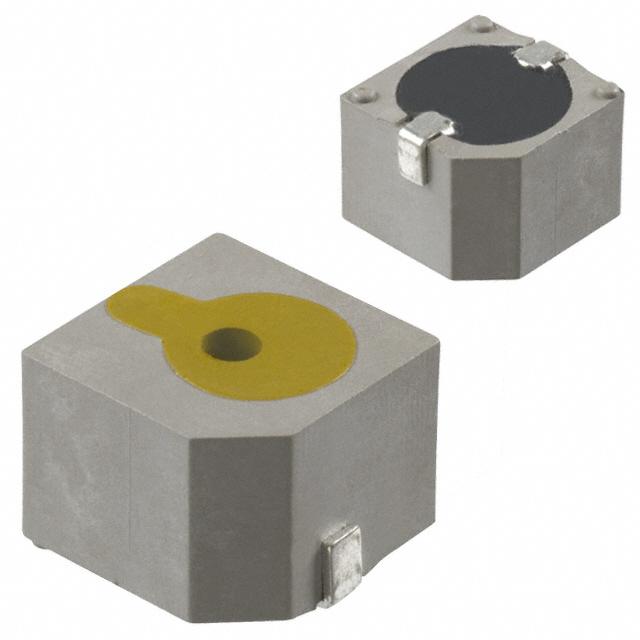

Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ASI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 15V
Frequency : 3.5kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 83dB @ 12V, 10cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -20°C ~ 100°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.551" L x 0.551" W (14.00mm x 14.00mm)
Height - Seated (Max) : 0.295" (7.50mm)
0
2989 in stock

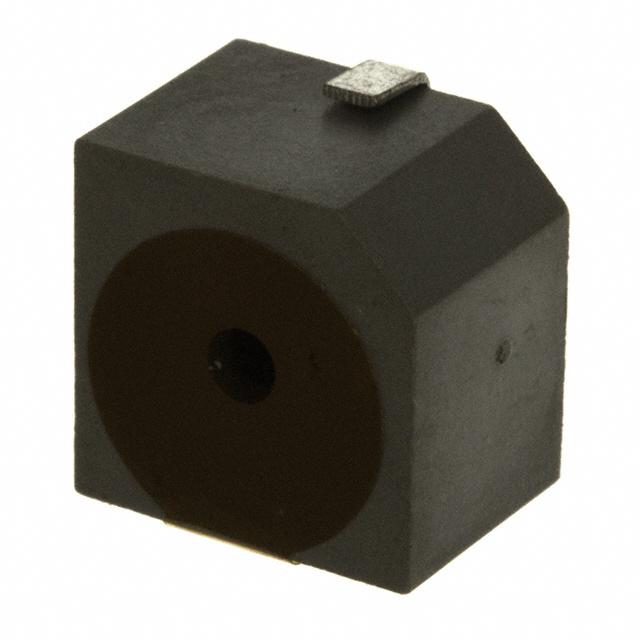

Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Tube
Series : ASI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 5V
Voltage Range : 4 ~ 7V
Frequency : 2.4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 90dB @ 5V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.496" L x 0.496" W (12.60mm x 12.60mm)
Height - Seated (Max) : 0.402" (10.20mm)
0
9364 in stock
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ASI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 5V
Voltage Range : 4 ~ 7V
Frequency : 2.4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 90dB @ 5V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.496" L x 0.496" W (12.60mm x 12.60mm)
Height - Seated (Max) : 0.402" (10.20mm)
0
334 in stock
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Tube
Series : ASI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 9 ~ 15V
Frequency : 2.4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 90dB @ 12V, 10cm
Current - Supply : 50mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.496" L x 0.496" W (12.60mm x 12.60mm)
Height - Seated (Max) : 0.402" (10.20mm)
0
4555 in stock

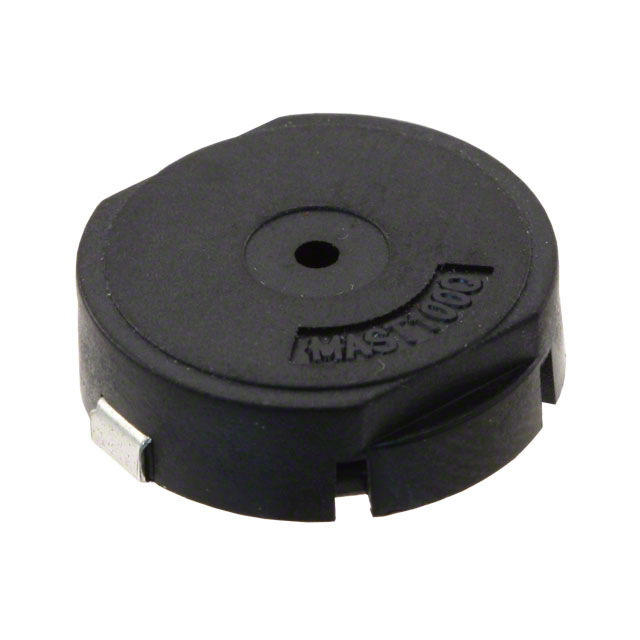

Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Tube
Series : AST
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 1 ~ 15V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 80dB @ 5V, 10cm
Current - Supply : 1.5mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.669" Dia (17.00mm)
Height - Seated (Max) : 0.205" (5.20mm)
0
772 in stock

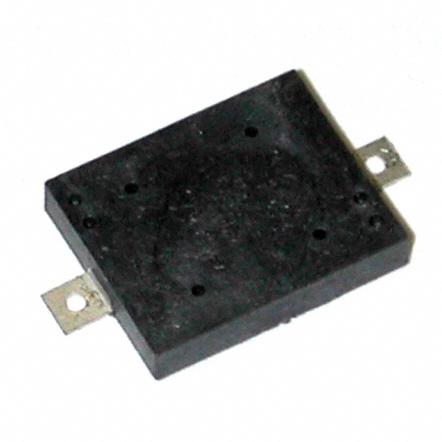

Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Strip
Series : AST
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 1 ~ 20V
Frequency : 4.1kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 73dB @ 5V, 10cm
Current - Supply : 1mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.433" L x 0.354" W (11.00mm x 9.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
100 in stock
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AST
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 1 ~ 20V
Frequency : 4.1kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 73dB @ 5V, 10cm
Current - Supply : 1mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.433" L x 0.354" W (11.00mm x 9.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
19201 in stock

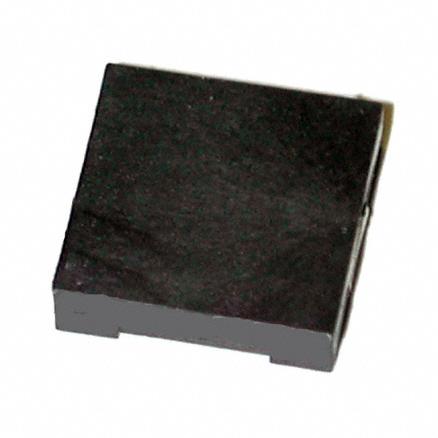

Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Strip
Series : AST
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 3 ~ 25V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 3V, 10cm
Current - Supply : 5mA
Port Location : Side
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.130" (3.30mm)
0
100 in stock
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AST
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 3 ~ 25V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 3V, 10cm
Current - Supply : 5mA
Port Location : Side
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.130" (3.30mm)
0
6446 in stock

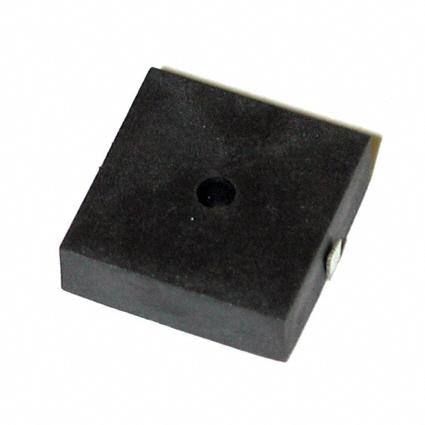

Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Strip
Series : AST
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 1 ~ 20V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 5V, 10cm
Current - Supply : 2mA
Port Location : Top
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.555" L x 0.555" W (14.10mm x 14.10mm)
Height - Seated (Max) : 0.209" (5.30mm)
0
100 in stock
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AST
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 1 ~ 20V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 5V, 10cm
Current - Supply : 2mA
Port Location : Top
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.555" L x 0.555" W (14.10mm x 14.10mm)
Height - Seated (Max) : 0.209" (5.30mm)
0
5767 in stock

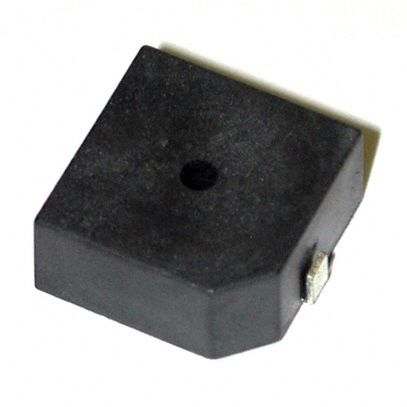

Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Strip
Series : AST
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 7V
Voltage Range : 1 ~ 30V
Frequency : 3.65kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 7V, 10cm
Current - Supply : 5mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.583" L x 0.583" W (14.80mm x 14.80mm)
Height - Seated (Max) : 0.303" (7.70mm)
0
100 in stock
