Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock

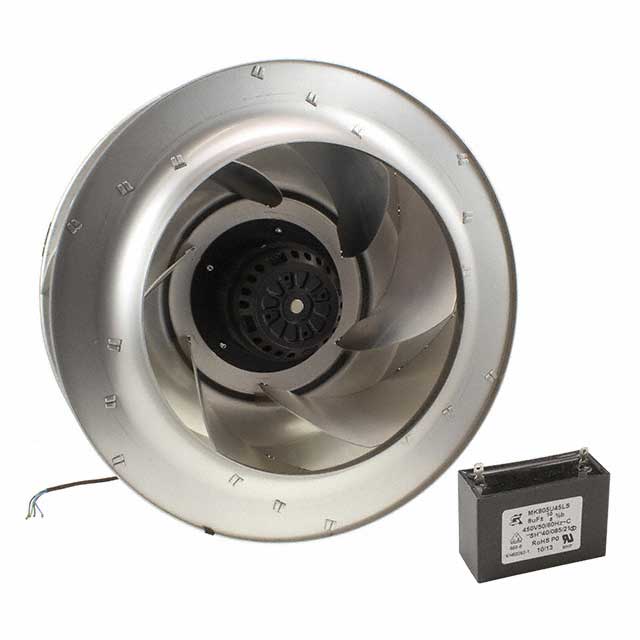

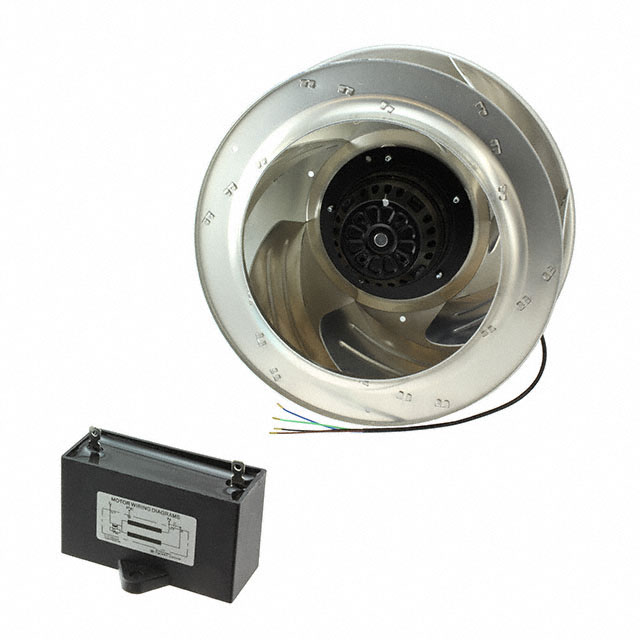

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF318AAA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 318mm Dia
Width : 154.0mm
Air Flow : 1165.0 CFM (32.62m鲁/min)
Static Pressure : 1.600 in H2O (398.6 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 66.0 dB(A)
Power (Watts) : 160W
RPM : 1580 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 8.3 lbs (3.8kg)
0
3 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF318AAA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 318mm Dia
Width : 154.4mm
Air Flow : 1015.0 CFM (28.42m鲁/min)
Static Pressure : 1.600 in H2O (398.6 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Conformal Coating, Permanent Split Capacitor Motor
Noise : 66.0 dB(A)
Power (Watts) : 160W
RPM : 1580 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 8.3 lbs (3.8kg)
0
2 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF318AAA
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 318mm Dia
Width : 154.0mm
Air Flow : 1165.0 CFM (32.62m鲁/min)
Static Pressure : 1.600 in H2O (398.6 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 66.0 dB(A)
Power (Watts) : 160W
RPM : 1580 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 8.3 lbs (3.8kg)
0
2 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF318AAA
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 318mm Dia
Width : 154.4mm
Air Flow : 1015.0 CFM (28.42m鲁/min)
Static Pressure : 1.600 in H2O (398.6 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 66.0 dB(A)
Power (Watts) : 160W
RPM : 1580 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 8.3 lbs (3.8kg)
0
2 in stock

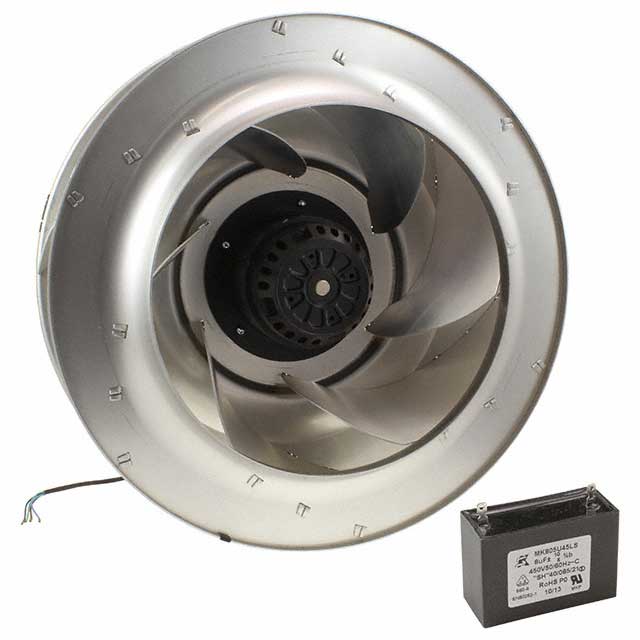

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF360A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 360mm Dia
Width : 167.3mm
Air Flow : 1645.0 CFM (46.06m鲁/min)
Static Pressure : 2.200 in H2O (548.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 70.0 dB(A)
Power (Watts) : 270W
RPM : 1600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 11 lbs (5kg)
0
4 in stock

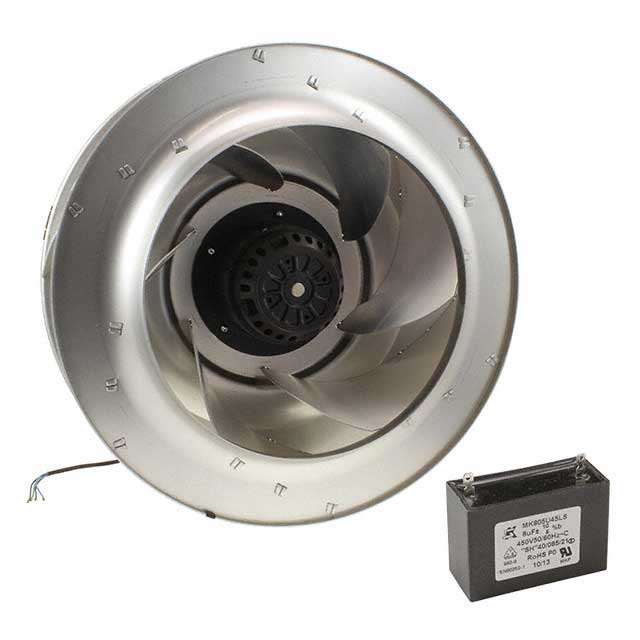

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF360A
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 360mm Dia
Width : 167.3mm
Air Flow : 1645.0 CFM (46.06m鲁/min)
Static Pressure : 2.200 in H2O (548.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 70.0 dB(A)
Power (Watts) : 265W
RPM : 1600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 11 lbs (5kg)
0
2 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : -
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, TUV
Weight : -
0
2 in stock

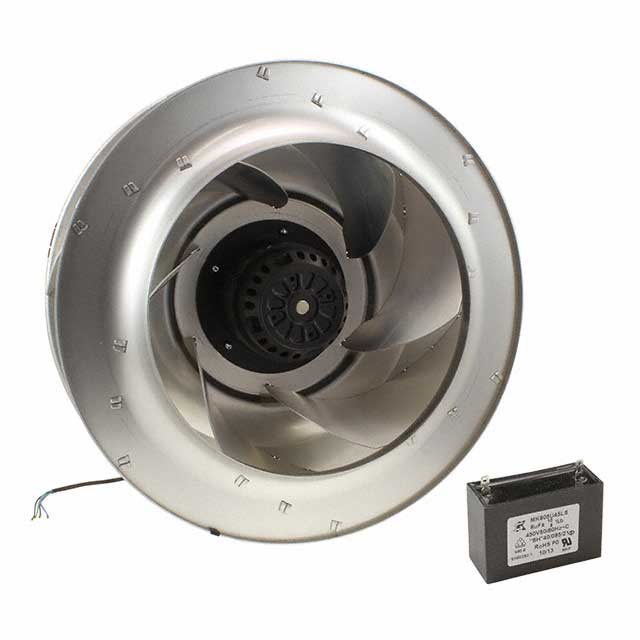

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF400A
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 400mm Dia
Width : 162.4mm
Air Flow : 1900.0 CFM (53.20m鲁/min)
Static Pressure : 5.380 in H2O (1340.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 73.0 dB(A)
Power (Watts) : 287W
RPM : 1250 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 122°F (-20 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 12 lbs (5.4kg)
0
2 in stock

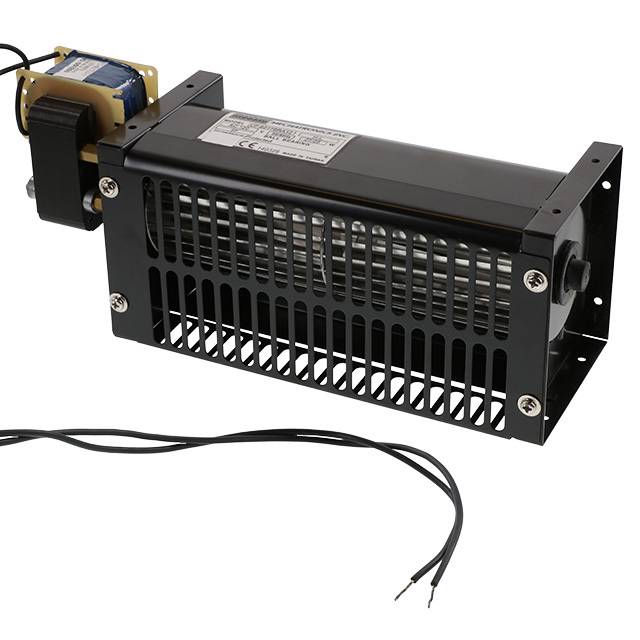

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF6017S
Part Status : Active
Voltage - Rated : 120VAC
Size / Dimension : Rectangular - 266mm L x 90mm H
Width : 98.00mm
Air Flow : 89.0 CFM (2.49m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Ball
Fan Type : Blower, Cross Flow
Features : -
Noise : 42.0 dB(A)
Power (Watts) : 25.00W
RPM : 2000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, TUV
Weight : 2.8 lbs (1.3kg)
0
7 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF6017S
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular - 266mm L x 90mm H
Width : 98.00mm
Air Flow : 89.0 CFM (2.49m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Ball
Fan Type : Blower, Cross Flow
Features : -
Noise : 42.0 dB(A)
Power (Watts) : 25.00W
RPM : 2000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, TUV
Weight : 2.8 lbs (1.3kg)
0
9 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF6030C
Part Status : Active
Voltage - Rated : 120VAC
Size / Dimension : Rectangular - 402mm L x 90mm H
Width : 98.00mm
Air Flow : 195.0 CFM (5.46m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Ball
Fan Type : Blower, Cross Flow
Features : -
Noise : 53.0 dB(A)
Power (Watts) : 37.00W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, TUV
Weight : 4.3 lbs (2kg)
0
4 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF6030C
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular - 402mm L x 90mm H
Width : 98.00mm
Air Flow : 195.0 CFM (5.46m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Ball
Fan Type : Blower, Cross Flow
Features : -
Noise : 53.0 dB(A)
Power (Watts) : 37.00W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, TUV
Weight : 4.3 lbs (2kg)
0
9 in stock
