Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25G
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 680.0 CFM (19.04m鲁/min)
Static Pressure : 0.370 in H2O (92.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 62.0 dB(A)
Power (Watts) : 75.0W
RPM : 2600 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.1 lbs (1.9kg)
0
100 in stock

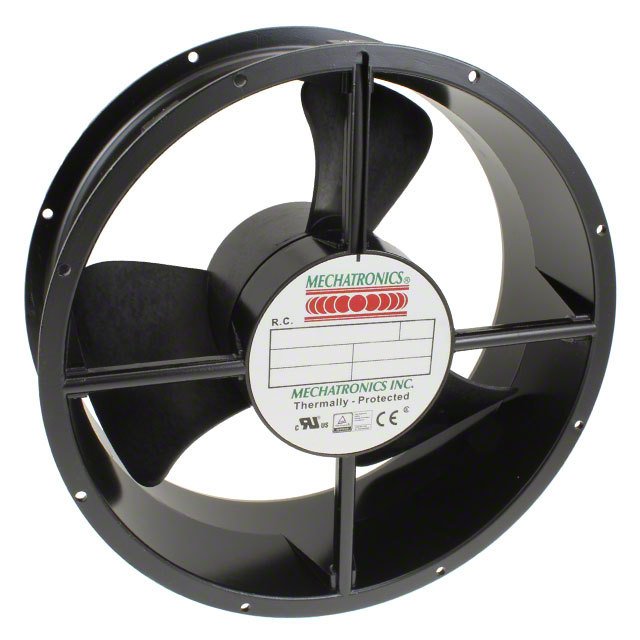

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25GC
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : 0.370 in H2O (92.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 62.0 dB(A)
Power (Watts) : 75.0W
RPM : 2600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.1 lbs (1.9kg)
0
2 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25G
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 812.0 CFM (22.74m鲁/min)
Static Pressure : 0.820 in H2O (204.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 65.0 dB(A)
Power (Watts) : 96.0W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cETL, TUV, ETL
Weight : 4.1 lbs (1.9kg)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25G
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 812.0 CFM (22.74m鲁/min)
Static Pressure : 0.820 in H2O (204.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 65.0 dB(A)
Power (Watts) : 98.0W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cETL, TUV, ETL
Weight : 4.1 lbs (1.9kg)
0
100 in stock

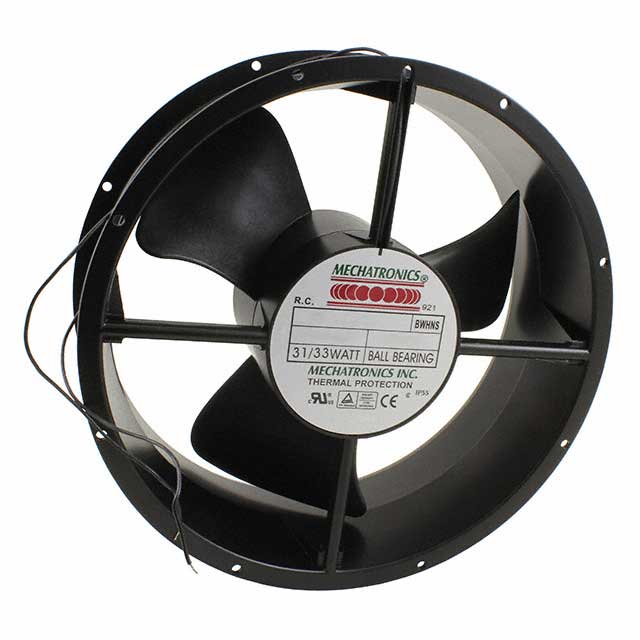

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25H
Part Status : Active
Voltage - Rated : 115/230VAC
Size / Dimension : Round - 254mm Dia
Width : 107.0mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Dual Voltage, Permanent Split Capacitor Motor
Noise : -
Power (Watts) : -
RPM : -
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 5.5 lbs (2.5kg)
0
100 in stock

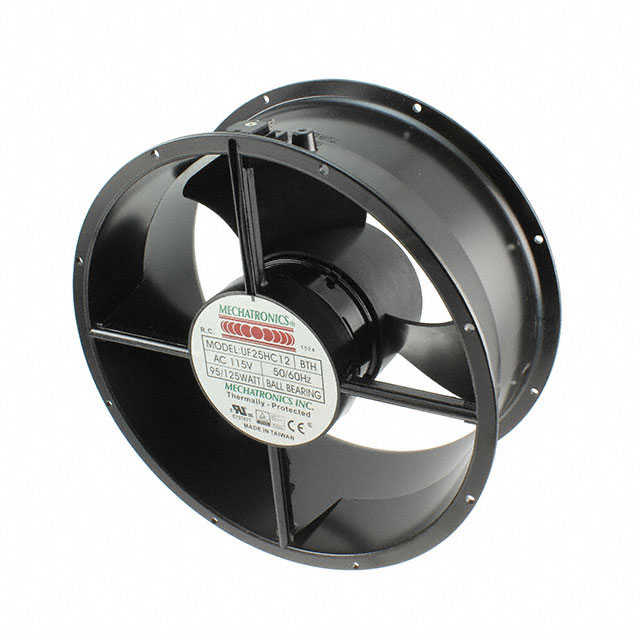

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25H
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 107.0mm
Air Flow : 850.0 CFM (23.80m鲁/min)
Static Pressure : 0.680 in H2O (169.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 65.0 dB(A)
Power (Watts) : 125W
RPM : 2750 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 5.5 lbs (2.5kg)
0
185 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25H
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 107.0mm
Air Flow : 850.0 CFM (23.80m鲁/min)
Static Pressure : 0.680 in H2O (169.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Conformal Coating, Permanent Split Capacitor Motor
Noise : 65.0 dB(A)
Power (Watts) : 125W
RPM : 2750 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 5.5 lbs (2.5kg)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25H
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 107.0mm
Air Flow : 850.0 CFM (23.80m鲁/min)
Static Pressure : 0.680 in H2O (169.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 65.0 dB(A)
Power (Watts) : 125W
RPM : 2750 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 5.5 lbs (2.5kg)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25H
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 254mm Dia
Width : 107.0mm
Air Flow : 850.0 CFM (23.80m鲁/min)
Static Pressure : 0.680 in H2O (169.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 65.0 dB(A)
Power (Watts) : 125W
RPM : 2750 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 5.5 lbs (2.5kg)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25H
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 254mm Dia
Width : 107.0mm
Air Flow : 850.0 CFM (23.80m鲁/min)
Static Pressure : 0.680 in H2O (169.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 65.0 dB(A)
Power (Watts) : 125W
RPM : 2750 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 5.5 lbs (2.5kg)
0
100 in stock

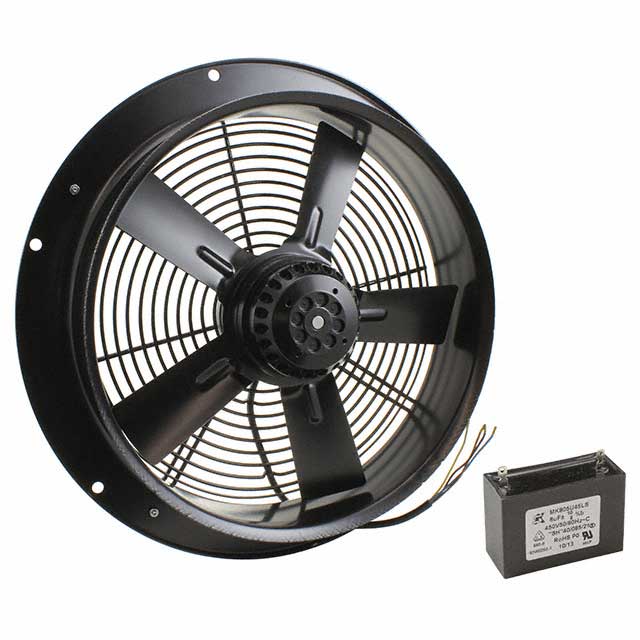

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF300BNA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 398mm Dia
Width : 98.30mm
Air Flow : 1615.0 CFM (45.22m鲁/min)
Static Pressure : 1.100 in H2O (274.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 78.0 dB(A)
Power (Watts) : 200W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 9.9 lbs (4.5kg)
0
63 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF300BNA
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 398mm Dia
Width : 98.30mm
Air Flow : 1435.0 CFM (40.18m鲁/min)
Static Pressure : 1.100 in H2O (274.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 78.0 dB(A)
Power (Watts) : 200W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 10 lbs (4.5kg)
0
4 in stock
