Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF250B
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 280mm L x 280mm H
Width : 80.00mm
Air Flow : 1130.0 CFM (31.64m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 70.0 dB(A)
Power (Watts) : 148W
RPM : 2700 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 6.1 lbs (2.8kg)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF250B
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 280mm L x 280mm H
Width : 80.00mm
Air Flow : 1130.0 CFM (31.64m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor, Speed Sensor (Tach)
Noise : 70.0 dB(A)
Power (Watts) : 148W
RPM : 2700 RPM
Termination : 5 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 6.1 lbs (2.8kg)
0
4 in stock

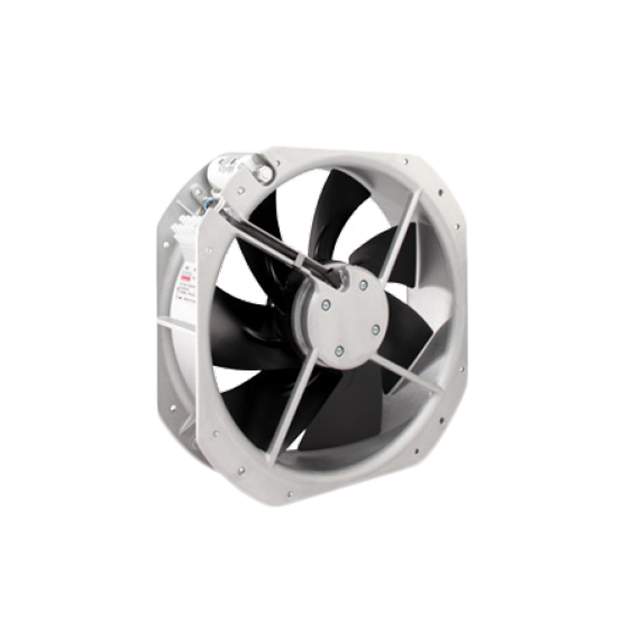

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF250BMB-H1
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 280mm L x 280mm H
Width : 80.00mm
Air Flow : 1130.0 CFM (31.64m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 70.0 dB(A)
Power (Watts) : 148W
RPM : 2700 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 6.2 lbs (2.8kg)
0
5 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF250BMB-H1
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 280mm L x 280mm H
Width : 80.00mm
Air Flow : 1130.0 CFM (31.64m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 70.0 dB(A)
Power (Watts) : 148W
RPM : 2700 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 6.2 lbs (2.8kg)
0
2 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF250B
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 280mm L x 280mm H
Width : 80.00mm
Air Flow : 1130.0 CFM (31.64m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 70.0 dB(A)
Power (Watts) : 158W
RPM : 2700 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 6.1 lbs (2.8kg)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF250B
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 280mm L x 280mm H
Width : 80.00mm
Air Flow : 1130.0 CFM (31.64m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor, Speed Sensor (Tach)
Noise : 70.0 dB(A)
Power (Watts) : 158W
RPM : 2700 RPM
Termination : 5 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 6.1 lbs (2.8kg)
0
12 in stock

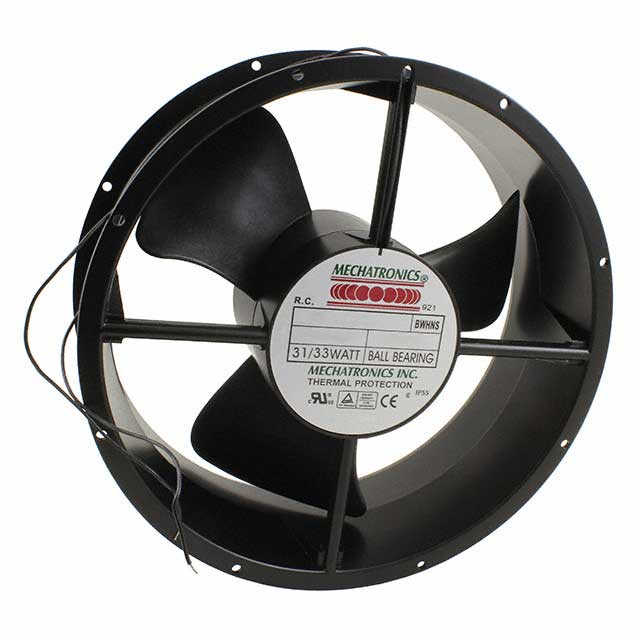

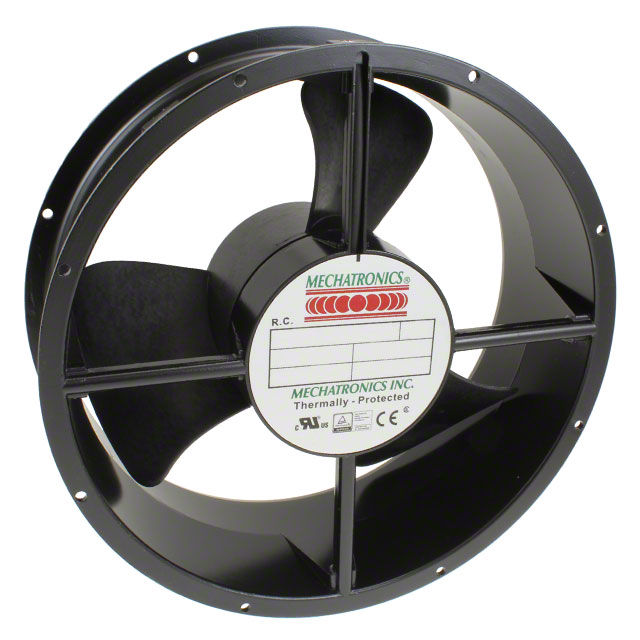

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25G
Part Status : Active
Voltage - Rated : 115/230VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Dual Voltage, Permanent Split Capacitor Motor
Noise : -
Power (Watts) : -
RPM : -
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.1 lbs (1.9kg)
0
47 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25G
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : 0.400 in H2O (99.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 55.0 dB(A)
Power (Watts) : 33.00W
RPM : 1650 RPM
Termination : 4 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.1 lbs (1.9kg)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25G
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : 0.400 in H2O (99.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor, Salt Fog Rated
Noise : 55.0 dB(A)
Power (Watts) : 33.00W
RPM : 1650 RPM
Termination : 4 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.1 lbs (1.9kg)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25G
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : 0.400 in H2O (99.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 55.0 dB(A)
Power (Watts) : 33.00W
RPM : 1650 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.1 lbs (1.9kg)
0
150 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25G
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : 0.400 in H2O (99.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor, Speed Sensor (Tach)
Noise : 55.0 dB(A)
Power (Watts) : 33.00W
RPM : 1650 RPM
Termination : 5 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.1 lbs (1.9kg)
0
3 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF25G
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : 0.400 in H2O (99.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 55.0 dB(A)
Power (Watts) : 33.00W
RPM : 1650 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.1 lbs (1.9kg)
0
100 in stock
