Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF20JC
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 205mm L x 205mm H
Width : 90.00mm
Air Flow : 680.0 CFM (19.04m鲁/min)
Static Pressure : 0.770 in H2O (191.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 71.0 dB(A)
Power (Watts) : 98.0W
RPM : 3200 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cETL, TUV, ETL
Weight : 5.2 lbs (2.4kg)
0
24 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF20J
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 205mm L x 205mm H
Width : 90.00mm
Air Flow : 680.0 CFM (19.04m鲁/min)
Static Pressure : 0.770 in H2O (191.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 71.0 dB(A)
Power (Watts) : 98.0W
RPM : 3200 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cETL, TUV, ETL
Weight : 5.2 lbs (2.4kg)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF20JC
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 205mm L x 205mm H
Width : 90.00mm
Air Flow : 680.0 CFM (19.04m鲁/min)
Static Pressure : 0.770 in H2O (191.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 71.0 dB(A)
Power (Watts) : 98.0W
RPM : 3200 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cETL, TUV, ETL
Weight : 5.2 lbs (2.4kg)
0
2 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF20J
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 205mm L x 205mm H
Width : 90.00mm
Air Flow : 680.0 CFM (19.04m鲁/min)
Static Pressure : 0.770 in H2O (191.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 71.0 dB(A)
Power (Watts) : 98.0W
RPM : 3200 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cETL, TUV, ETL
Weight : 5.2 lbs (2.4kg)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF220APA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 223mm Dia
Width : 71.00mm
Air Flow : 530.0 CFM (14.84m鲁/min)
Static Pressure : 1.700 in H2O (423.5 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 70.0 dB(A)
Power (Watts) : 117W
RPM : 2650 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 3.2 lbs (1.5kg)
0
7 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF220APA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 223mm Dia
Width : 71.00mm
Air Flow : 530.0 CFM (14.84m鲁/min)
Static Pressure : 1.700 in H2O (423.5 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor, Speed Sensor (Tach)
Noise : 70.0 dB(A)
Power (Watts) : 117W
RPM : 2650 RPM
Termination : 5 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 3.2 lbs (1.5kg)
0
4 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF220APA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 259mm Dia
Width : 97.80mm
Air Flow : 434.0 CFM (12.15m鲁/min)
Static Pressure : 1.700 in H2O (423.5 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 65.0 dB(A)
Power (Watts) : 117W
RPM : 2650 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.1 lbs (1.9kg)
0
8 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF220APA
Part Status : Obsolete
Voltage - Rated : 230VAC
Size / Dimension : Round - 223mm Dia
Width : 71.00mm
Air Flow : 500.0 CFM (14.00m鲁/min)
Static Pressure : 1.700 in H2O (423.5 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 70.0 dB(A)
Power (Watts) : 117W
RPM : 2650 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 3.2 lbs (1.5kg)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF220APA
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 223mm Dia
Width : 71.00mm
Air Flow : 530.0 CFM (14.84m鲁/min)
Static Pressure : 1.700 in H2O (423.5 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 70.0 dB(A)
Power (Watts) : 117W
RPM : 2650 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 3.2 lbs (1.5kg)
0
3 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF220APA
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 259mm Dia
Width : 97.80mm
Air Flow : 434.0 CFM (12.15m鲁/min)
Static Pressure : 1.700 in H2O (423.5 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 65.0 dB(A)
Power (Watts) : 117W
RPM : 2650 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.1 lbs (1.9kg)
0
19 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 225mm Dia
Width : 69.00mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : 2.305 in H2O (574.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 72.0 dB(A)
Power (Watts) : 125W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5 lbs (2.3kg)
0
13 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 225mm Dia
Width : 69.00mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : 2.305 in H2O (574.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 72.0 dB(A)
Power (Watts) : 125W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5 lbs (2.3kg)
0
100 in stock
APA12H1C2A.jpg "Show details for UF225(69)APA12-H1C2A")

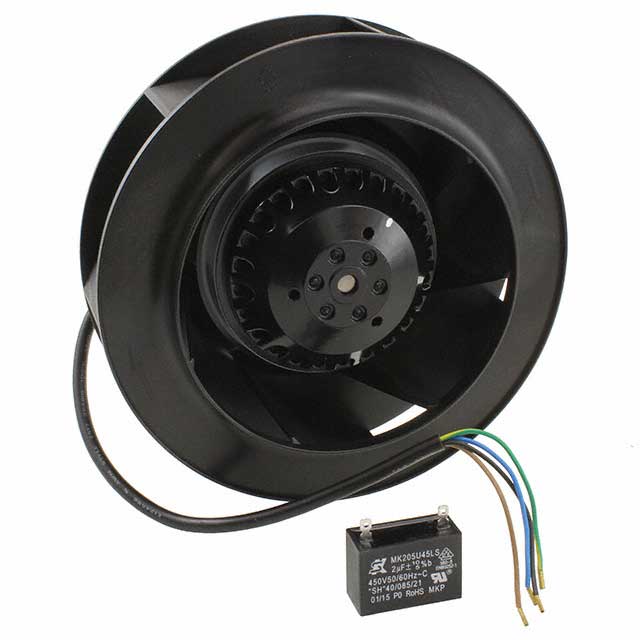

APA23H1C2A.jpg "Show details for UF225(69)APA23-H1C2A")
