Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF17P
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 226.0 CFM (6.33m鲁/min)
Static Pressure : 0.790 in H2O (196.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 55.0 dB(A)
Power (Watts) : 29.00W
RPM : 3400 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.8 lbs (816.5g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF17P
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 37.0 dB(A)
Power (Watts) : 29.00W
RPM : 1700 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.8 lbs (816.5g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF17P
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 226.0 CFM (6.33m鲁/min)
Static Pressure : 0.790 in H2O (196.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 55.0 dB(A)
Power (Watts) : 29.00W
RPM : 3400 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.8 lbs (816.5g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF180(55)APA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 182mm Dia
Width : 55.00mm
Air Flow : 290.0 CFM (8.12m鲁/min)
Static Pressure : 1.400 in H2O (348.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 67.0 dB(A)
Power (Watts) : 78.0W
RPM : 2800 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cETL, TUV, ETL
Weight : 2.7 lbs (1.2kg)
0
5 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF180(55)APA
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 182mm Dia
Width : 55.00mm
Air Flow : 264.6 CFM (7.41m鲁/min)
Static Pressure : 1.400 in H2O (348.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 67.0 dB(A)
Power (Watts) : 78.0W
RPM : 2800 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cETL, TUV, ETL
Weight : 2.6 lbs (1.2kg)
0
2 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF180(55)APA
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 182mm Dia
Width : 55.00mm
Air Flow : 290.0 CFM (8.12m鲁/min)
Static Pressure : 1.400 in H2O (348.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 67.0 dB(A)
Power (Watts) : 78.0W
RPM : 2800 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cETL, TUV, ETL
Weight : 2.7 lbs (1.2kg)
0
6 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF18JC-4
Part Status : Active
Voltage - Rated : 115/230VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 90.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Dual Voltage, Permanent Split Capacitor Motor
Noise : -
Power (Watts) : -
RPM : -
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.8 lbs (2.2kg)
0
27 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF18JC-4
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 90.00mm
Air Flow : 460.0 CFM (12.88m鲁/min)
Static Pressure : 1.060 in H2O (264.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 59.0 dB(A)
Power (Watts) : 72.0W
RPM : 3400 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.8 lbs (2.2kg)
0
6 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF18JC-4
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 90.00mm
Air Flow : 460.0 CFM (12.88m鲁/min)
Static Pressure : 1.060 in H2O (264.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 59.0 dB(A)
Power (Watts) : 72.0W
RPM : 3400 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.8 lbs (2.2kg)
0
108 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF18JC-4
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 90.00mm
Air Flow : 460.0 CFM (12.88m鲁/min)
Static Pressure : 1.060 in H2O (264.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 59.0 dB(A)
Power (Watts) : 72.0W
RPM : 3400 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.8 lbs (2.2kg)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF18JC-4
Part Status : Active
Voltage - Rated : -
Size / Dimension : Square - 180mm L x 180mm H
Width : 90.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : -
Power (Watts) : -
RPM : -
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.8 lbs (2.2kg)
0
2 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF18JC-4
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 90.00mm
Air Flow : 460.0 CFM (12.88m鲁/min)
Static Pressure : 1.060 in H2O (264.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 59.0 dB(A)
Power (Watts) : 72.0W
RPM : 3400 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.8 lbs (2.2kg)
0
100 in stock

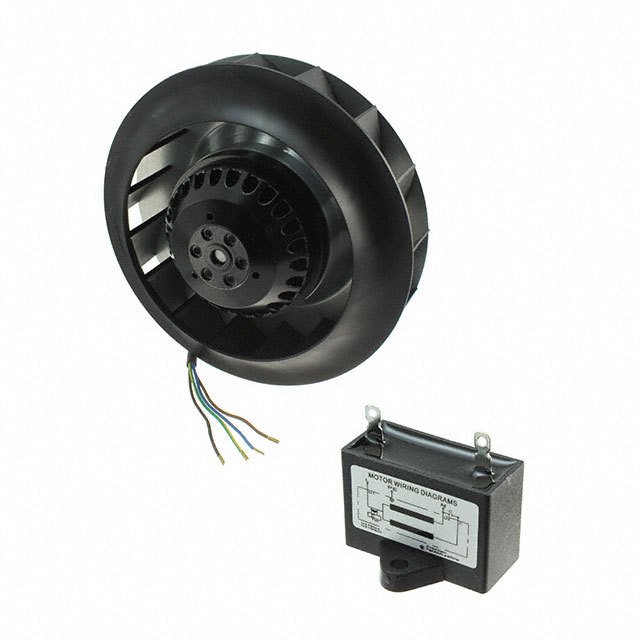

APA12H2C2A.jpg "Show details for UF180(55)APA12-H2C2A")

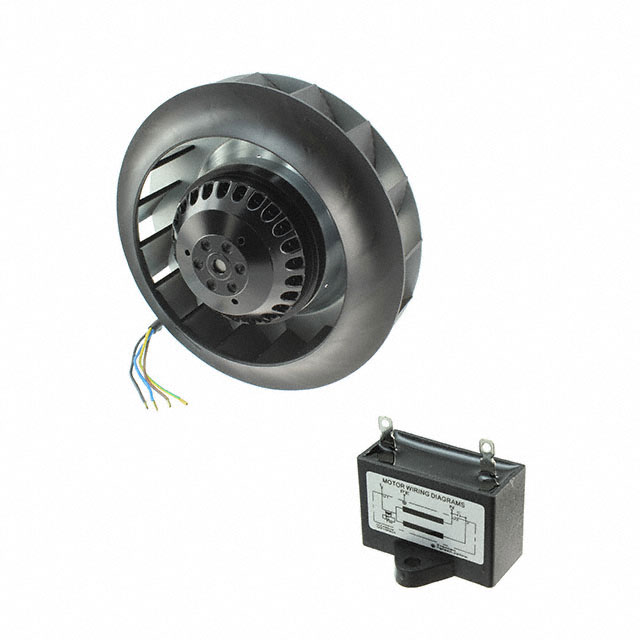

APA23H2C2A.jpg "Show details for UF180(55)APA23-H2C2A")
