Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock

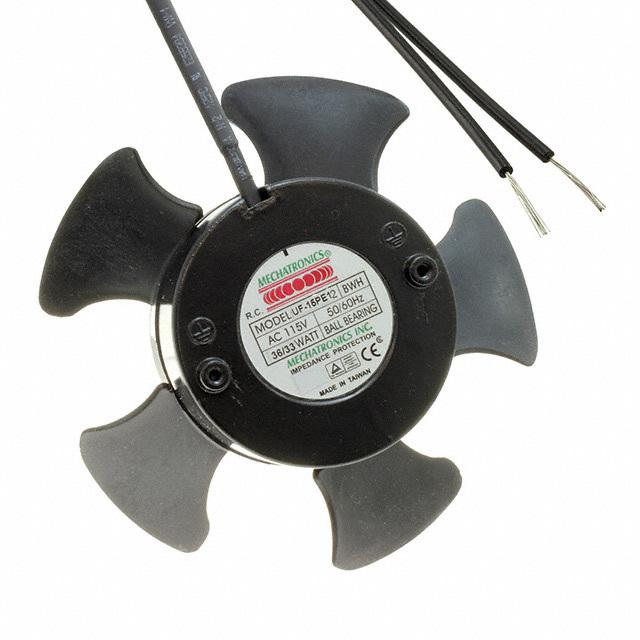

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF15PE
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 226.0 CFM (6.33m鲁/min)
Static Pressure : 0.790 in H2O (196.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, TUV
Weight : 1.8 lbs (816.5g)
0
3 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF15PE
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 226.0 CFM (6.33m鲁/min)
Static Pressure : 0.790 in H2O (196.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, TUV
Weight : 1.8 lbs (816.5g)
0
6 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF15PE
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 226.0 CFM (6.33m鲁/min)
Static Pressure : 0.790 in H2O (196.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, TUV
Weight : 1.8 lbs (816.5g)
0
3 in stock

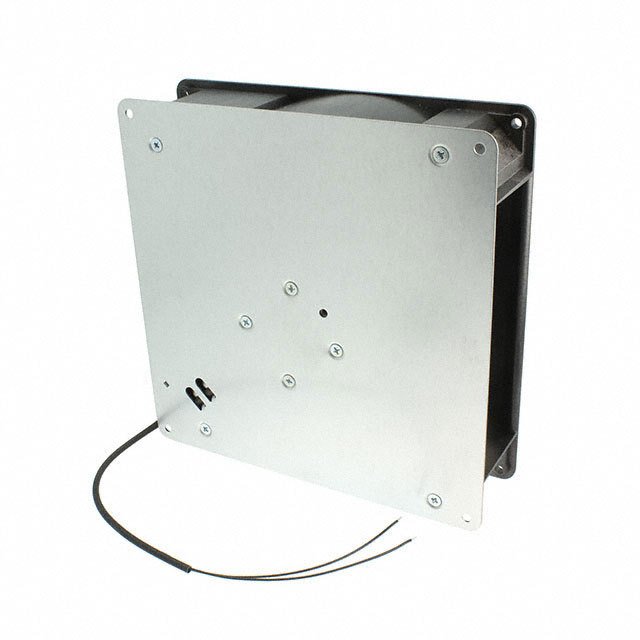

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF160DPB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.20mm
Air Flow : 126.0 CFM (3.53m鲁/min)
Static Pressure : 1.800 in H2O (448.4 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 65.0 dB(A)
Power (Watts) : 52.0W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : CE, cUL, TUV, UL
Weight : 3.9 lbs (1.8kg)
0
13 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF160DPB
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.20mm
Air Flow : 126.0 CFM (3.53m鲁/min)
Static Pressure : 1.800 in H2O (448.4 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 65.0 dB(A)
Power (Watts) : 53.0W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : CE, cUL, TUV, UL
Weight : 3.9 lbs (1.8kg)
0
7 in stock

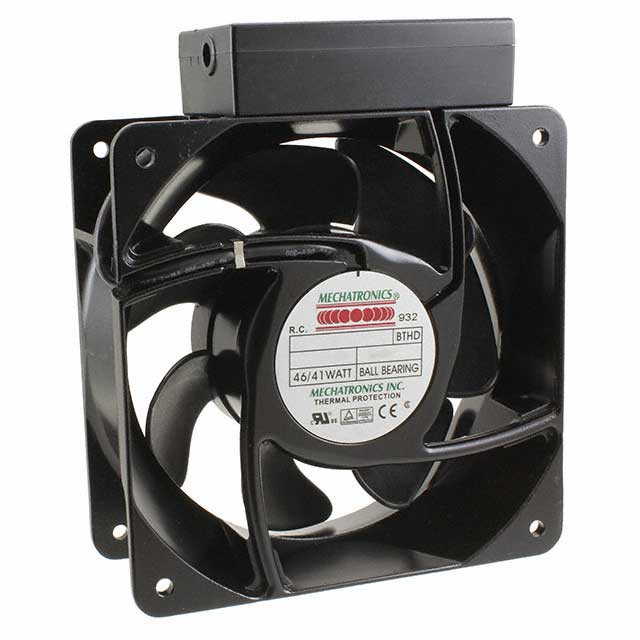

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF16F
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 160mm L x 160mm H
Width : 58.00mm
Air Flow : 265.0 CFM (7.42m鲁/min)
Static Pressure : 0.720 in H2O (179.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 56.0 dB(A)
Power (Watts) : 41.00W
RPM : 3400 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 2.8 lbs (1.3kg)
0
19 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF16F
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 160mm L x 160mm H
Width : 58.00mm
Air Flow : 265.0 CFM (7.42m鲁/min)
Static Pressure : 0.720 in H2O (179.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 56.0 dB(A)
Power (Watts) : 41.00W
RPM : 3400 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 2.8 lbs (1.3kg)
0
100 in stock

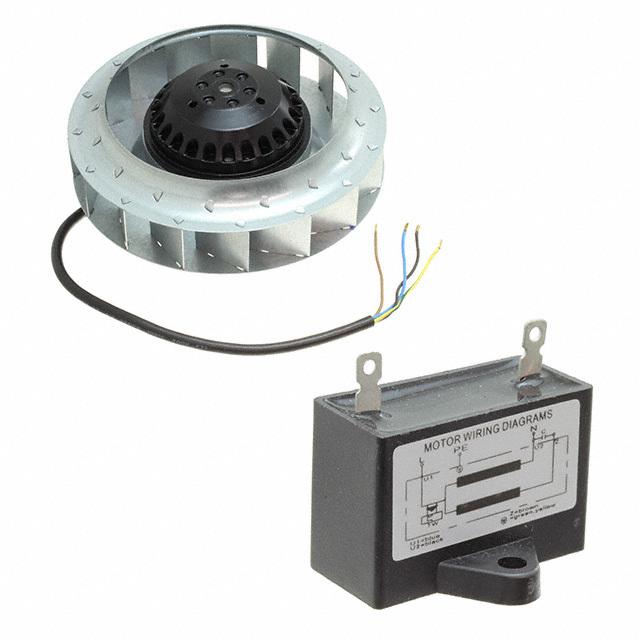

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF175AMA
Part Status : Active
Voltage - Rated : -
Size / Dimension : Round - 175mm Dia
Width : 55.00mm
Air Flow : 265.0 CFM (7.42m鲁/min)
Static Pressure : 1.300 in H2O (323.6 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 70.0 dB(A)
Power (Watts) : 66.0W
RPM : 2900 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 2.8 lbs (1.3kg)
0
2 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF175AMA
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 175mm Dia
Width : 55.00mm
Air Flow : 230.0 CFM (6.44m鲁/min)
Static Pressure : 1.300 in H2O (323.6 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 70.0 dB(A)
Power (Watts) : 66.0W
RPM : 2900 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 2.8 lbs (1.3kg)
0
2 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF17P
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 226.0 CFM (6.33m鲁/min)
Static Pressure : 0.790 in H2O (196.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 55.0 dB(A)
Power (Watts) : 31.00W
RPM : 3400 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.8 lbs (816.5g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF17P
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 37.0 dB(A)
Power (Watts) : 31.00W
RPM : 1700 RPM
Termination : 4 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.8 lbs (816.5g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF17P
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 226.0 CFM (6.33m鲁/min)
Static Pressure : 0.790 in H2O (196.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 55.0 dB(A)
Power (Watts) : 31.00W
RPM : 3400 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.8 lbs (816.5g)
0
100 in stock
