Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock

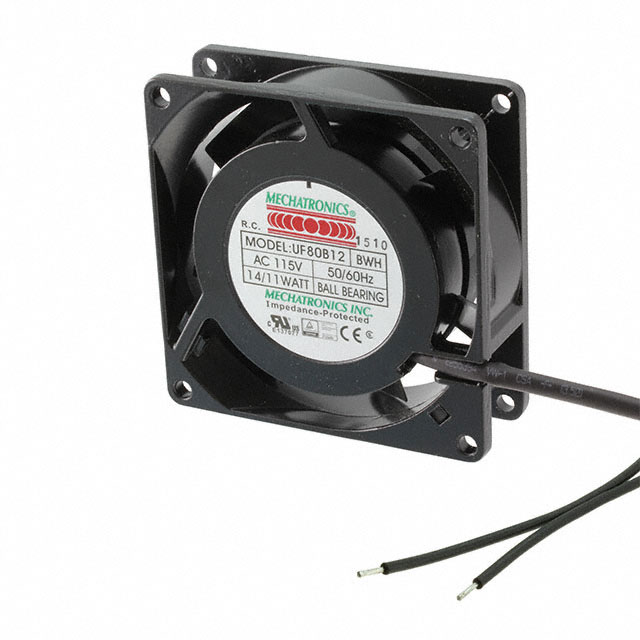

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF80B
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 635.0mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB(A)
Power (Watts) : 11.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.617 lb (279.87g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF80B
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 635.0mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB(A)
Power (Watts) : 11.00W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.617 lb (279.87g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF80B
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 635.0mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB(A)
Power (Watts) : 14.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.617 lb (279.87g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF80B
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 635.0mm
Air Flow : 18.0 CFM (0.504m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB(A)
Power (Watts) : 14.00W
RPM : 2400 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.617 lb (279.87g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF80B
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 635.0mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB(A)
Power (Watts) : 14.00W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.617 lb (279.87g)
0
20 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF80B
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 635.0mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB(A)
Power (Watts) : 14.00W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.617 lb (279.87g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF9029C
Part Status : Active
Voltage - Rated : 120VAC
Size / Dimension : Rectangular - 420mm L x 130mm H
Width : 125.0mm
Air Flow : 177.1 CFM (4.96m鲁/min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Ball
Fan Type : Blower, Cross Flow
Features : -
Noise : 46.0 dB(A)
Power (Watts) : 31.00W
RPM : 1560 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 6.6 lbs (3kg)
0
4 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF9029C
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular - 420mm L x 130mm H
Width : 125.0mm
Air Flow : 177.1 CFM (4.96m鲁/min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Ball
Fan Type : Blower, Cross Flow
Features : -
Noise : 46.0 dB(A)
Power (Watts) : 31.00W
RPM : 1560 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 6.6 lbs (3kg)
0
4 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF9060
Part Status : Active
Voltage - Rated : 120VAC
Size / Dimension : Rectangular - 740mm L x 130mm H
Width : 125.0mm
Air Flow : 530.0 CFM (14.84m鲁/min)
Static Pressure : 0.430 in H2O (107.1 Pa)
Bearing Type : Ball
Fan Type : Blower, Cross Flow
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 160W
RPM : 2100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, TUV
Weight : 11 lbs (5kg)
0
8 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF9060
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular - 740mm L x 130mm H
Width : 125.0mm
Air Flow : 530.0 CFM (14.84m鲁/min)
Static Pressure : 0.430 in H2O (107.1 Pa)
Bearing Type : Ball
Fan Type : Blower, Cross Flow
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 160W
RPM : 2100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, TUV
Weight : 11 lbs (5kg)
0
2 in stock

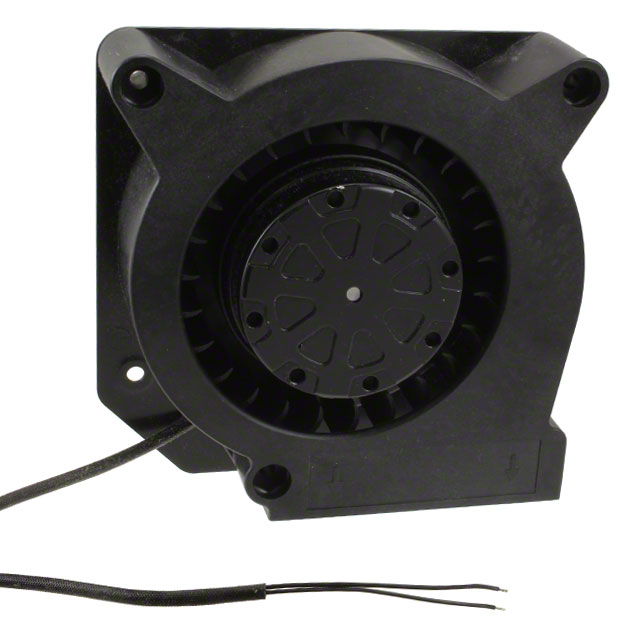

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF90D
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 37.20mm
Air Flow : 21.0 CFM (0.588m鲁/min)
Static Pressure : 0.500 in H2O (124.5 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 51.0 dB(A)
Power (Watts) : 18.00W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.4 lbs (635g)
0
73 in stock

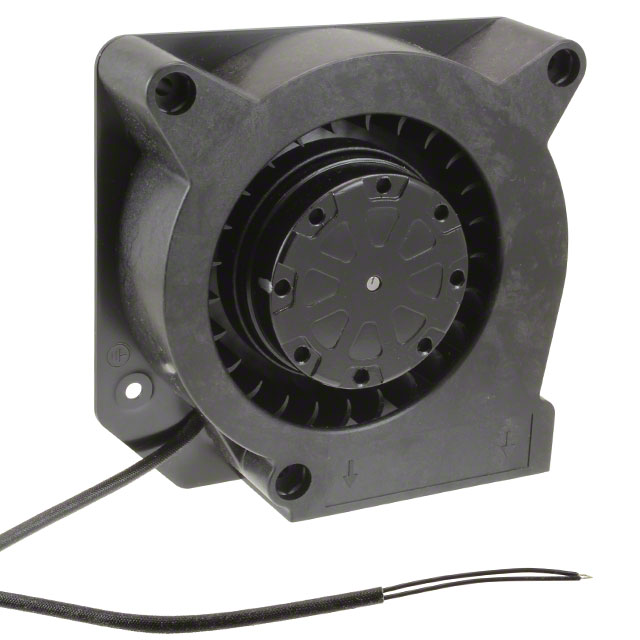

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF90D
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 37.20mm
Air Flow : 21.0 CFM (0.588m鲁/min)
Static Pressure : 0.500 in H2O (124.5 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 51.0 dB(A)
Power (Watts) : 18.00W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.4 lbs (635g)
0
216 in stock
