Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF92B
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 25.0 CFM (0.700m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : 14.00W
RPM : 2300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.618 lb (280.32g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF92B
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.260 in H2O (64.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB(A)
Power (Watts) : 14.00W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.618 lb (280.32g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF92B
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.260 in H2O (64.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB(A)
Power (Watts) : 14.00W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.618 lb (280.32g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF92B
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 25.0 CFM (0.700m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : 14.00W
RPM : 2300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.618 lb (280.32g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF92B
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.260 in H2O (64.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB(A)
Power (Watts) : 14.00W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.618 lb (280.32g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF9439
Part Status : Active
Voltage - Rated : 120VAC
Size / Dimension : Rectangular - 510mm L x 130mm H
Width : 125.0mm
Air Flow : 318.0 CFM (8.90m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Ball
Fan Type : Blower, Cross Flow
Features : -
Noise : 53.0 dB(A)
Power (Watts) : 50.0W
RPM : 1600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, TUV
Weight : 7.7 lbs (3.5kg)
0
3 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF9439
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular - 510mm L x 130mm H
Width : 125.0mm
Air Flow : 318.0 CFM (8.90m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Ball
Fan Type : Blower, Cross Flow
Features : -
Noise : 53.0 dB(A)
Power (Watts) : 50.0W
RPM : 1600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, TUV
Weight : 7.7 lbs (3.5kg)
0
4 in stock

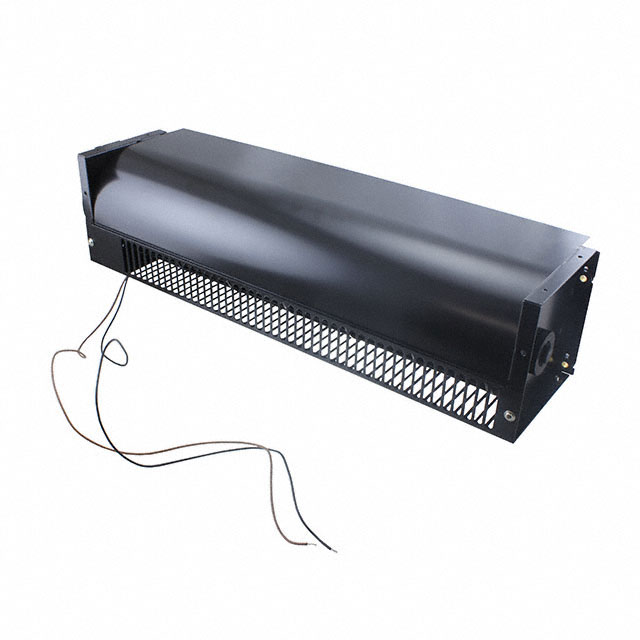

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF9446
Part Status : Active
Voltage - Rated : 120VAC
Size / Dimension : Rectangular - 570mm L x 130mm H
Width : 125.0mm
Air Flow : 354.0 CFM (9.91m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Blower, Cross Flow
Features : -
Noise : 53.0 dB(A)
Power (Watts) : 50.0W
RPM : 1550 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, TUV
Weight : 7.9 lbs (3.6kg)
0
9 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF9446
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular - 570mm L x 130mm H
Width : 125.0mm
Air Flow : 354.0 CFM (9.91m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Blower, Cross Flow
Features : -
Noise : 53.0 dB(A)
Power (Watts) : 50.0W
RPM : 1550 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, TUV
Weight : 7.9 lbs (3.6kg)
0
4 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UM12A12
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : -
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UM12A12
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : -
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UM12A23
Part Status : Obsolete
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : -
0
100 in stock
