METZ CONNECT

- METZ CONNECT is a medium-sized, family-run German company founded in 1976. Around the world, their products guarantee secure and reliable connections for a smooth flow of information – from the printed circuit board to the infrastructure environment. METZ CONNECT is known for its expertise in all aspects of the manufacturing process including in-house molding, stamping and assembly operations. METZ CONNECT designs and manufactures connector assembly equipment in-house to assure the highest quality and reliability of finished products. The full product line covers a wide range across multiple applications and industries. Products include PCB mount terminal blocks and board-to-board connectors, RJ-45 plugs and receptacles, patch panels, copper and fiber optic cables, and intelligent DIN rail mount I/O devices. These products are used in security and access controls, HVAC, irrigation systems, industrial automation, lighting controls, A/V equipment, industrial controls, building automation applications, and more.

Part Number
Manufacturer
Description
Unit Price
In Stock

FR20203VBNN FR20203VBNN

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Tube
Series : -
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : -
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.287" (7.30mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -
Material Flammability Rating : -
Contact Finish - Post : -
Mated Stacking Heights : -
Ingress Protection : IP00
Features : -
Current Rating : 3A
Voltage Rating : -
0
1880 in stock

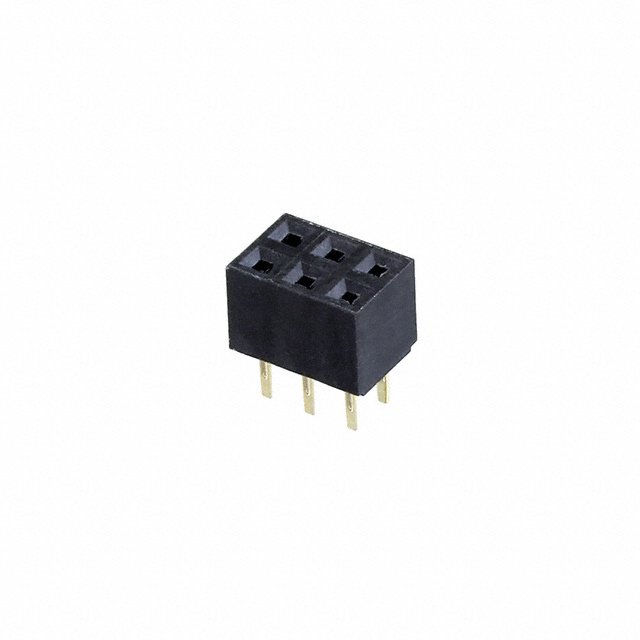

FR20C03VBDN FR20C03VBDN

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Tube
Series : -
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : -
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.169" (4.30mm)
Contact Length - Post : 0.087" (2.20mm)
Operating Temperature : -
Material Flammability Rating : -
Contact Finish - Post : -
Mated Stacking Heights : -
Ingress Protection : IP00
Features : -
Current Rating : 1A
Voltage Rating : -
0
3870 in stock

FR20C06VBNN FR20C06VBNN

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Tube
Series : -
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : -
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.169" (4.30mm)
Contact Length - Post : 0.087" (2.20mm)
Operating Temperature : -
Material Flammability Rating : -
Contact Finish - Post : -
Mated Stacking Heights : -
Ingress Protection : IP00
Features : -
Current Rating : 1A
Voltage Rating : -
0
2000 in stock

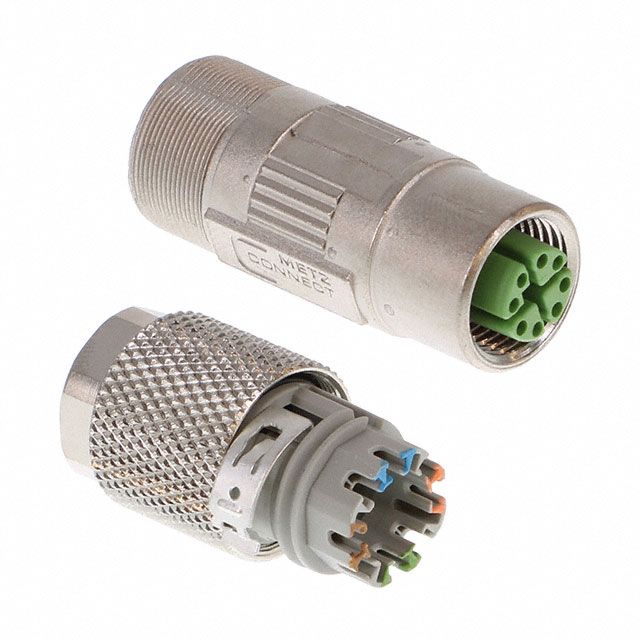

MMF881A315  MMF881A315

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack, Female Sockets
Number of Positions : 8
Shell Size - Insert : M12-8
Shell Size, MIL : -
Mounting Type : Free Hanging (In-Line)
Mounting Feature : -
Termination : IDC
Fastening Type : Threaded
Orientation : X
Shell Material : Zinc Die Cast
Shell Finish : Nickel
Contact Finish - Mating : Nickel-Gold
Color : Silver
Ingress Protection : IP67 - Dust Tight, Waterproof
Material Flammability Rating : UL94 V-0
Features : Backshell
Shielding : Shielded
Current Rating : -
Voltage Rating : 50VAC, 60VDC
0
18 in stock

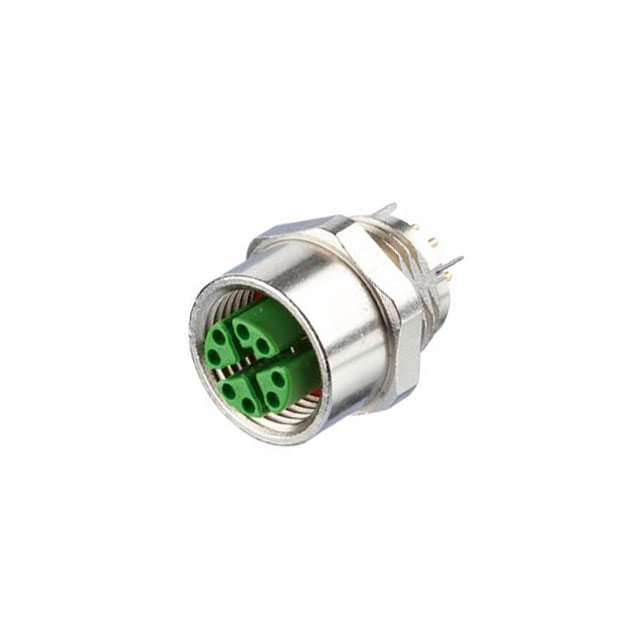

MMT361A315  MMT361A315

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : Ethernet M12
Part Status : Active
Connector Type : Jack, Female Sockets
Number of Positions : 8
Shell Size - Insert : M12-8
Shell Size, MIL : -
Mounting Type : Panel Mount, Through Hole
Mounting Feature : Bulkhead - Rear Side Nut
Termination : Solder
Fastening Type : Threaded
Orientation : X
Shell Material : Copper Zinc
Shell Finish : -
Contact Finish - Mating : Gold
Color : Silver
Ingress Protection : IP67 - Dust Tight, Waterproof
Material Flammability Rating : -
Features : Board Guide
Shielding : Shielded
Current Rating : -
Voltage Rating : 50VAC, 60VDC
0
60 in stock

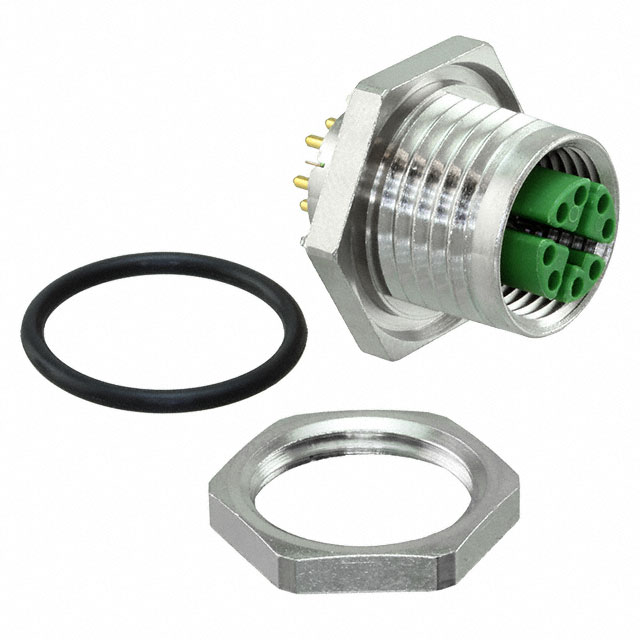

MMT371A3B5  MMT371A3B5

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : Ethernet M12
Part Status : Active
Connector Type : Jack, Female Sockets
Number of Positions : 8
Shell Size - Insert : M12-8
Shell Size, MIL : -
Mounting Type : Panel Mount, Through Hole
Mounting Feature : Bulkhead - Front Side Nut
Termination : Solder
Fastening Type : Threaded
Orientation : X
Shell Material : Copper Zinc
Shell Finish : -
Contact Finish - Mating : Gold
Color : Silver
Ingress Protection : IP67 - Dust Tight, Waterproof
Material Flammability Rating : -
Features : Board Guide
Shielding : Shielded
Current Rating : -
Voltage Rating : 50VAC, 60VDC
0
264 in stock

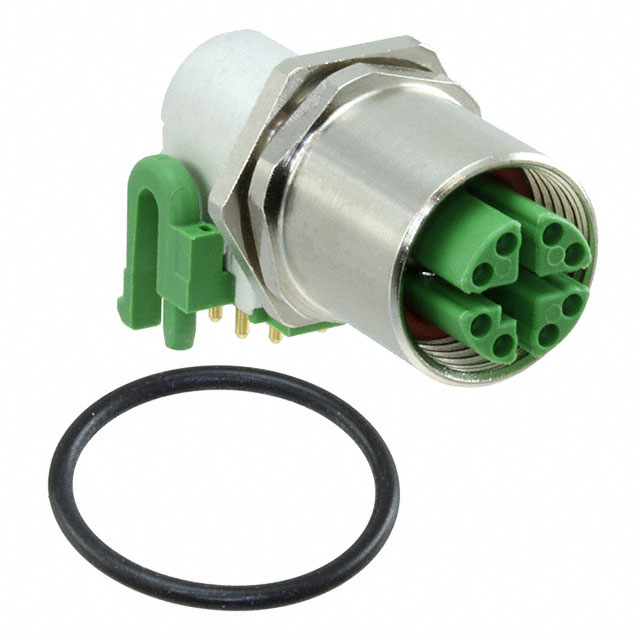

MMT471A315  MMT471A315

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : Ethernet M12
Part Status : Active
Connector Type : Jack, Female Sockets
Number of Positions : 8
Shell Size - Insert : M12-8
Shell Size, MIL : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Mounting Feature : Bulkhead - Rear Side Nut
Termination : Solder
Fastening Type : Threaded
Orientation : X
Shell Material : Copper Zinc
Shell Finish : -
Contact Finish - Mating : Gold
Color : Silver
Ingress Protection : IP67 - Dust Tight, Waterproof
Material Flammability Rating : -
Features : Board Guide, Board Lock
Shielding : Shielded
Current Rating : -
Voltage Rating : 50VAC, 60VDC
0
125 in stock

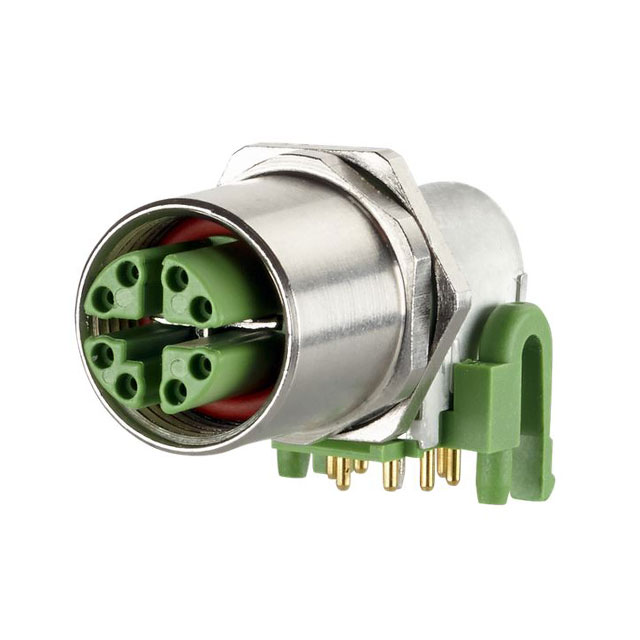

MMT471A315-0001  MMT471A315-0001

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : Ethernet M12
Part Status : Active
Connector Type : Jack, Female Sockets
Number of Positions : 8
Shell Size - Insert : M12-8
Shell Size, MIL : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Mounting Feature : Bulkhead - Rear Side Nut
Termination : Solder
Fastening Type : Threaded
Orientation : X
Shell Material : Copper Zinc
Shell Finish : -
Contact Finish - Mating : Gold
Color : Silver
Ingress Protection : IP67 - Dust Tight, Waterproof
Material Flammability Rating : -
Features : Board Guide, Board Lock
Shielding : Shielded
Current Rating : -
Voltage Rating : 50VAC, 60VDC
0
245 in stock

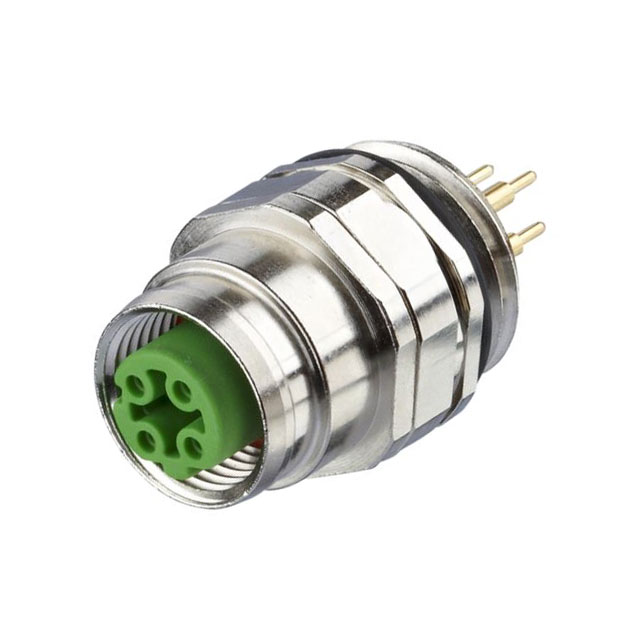

MMW360A1A1  MMW360A1A1

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : Ethernet M12
Part Status : Active
Connector Type : Jack, Female Sockets
Number of Positions : 4
Shell Size - Insert : M12-4
Shell Size, MIL : -
Mounting Type : Panel Mount, Through Hole
Mounting Feature : Bulkhead - Rear Side Nut
Termination : Solder
Fastening Type : Threaded
Orientation : D
Shell Material : Copper Zinc
Shell Finish : -
Contact Finish - Mating : Gold
Color : Silver
Ingress Protection : IP67 - Dust Tight, Waterproof
Material Flammability Rating : -
Features : -
Shielding : Unshielded
Current Rating : -
Voltage Rating : 250V
0
59 in stock

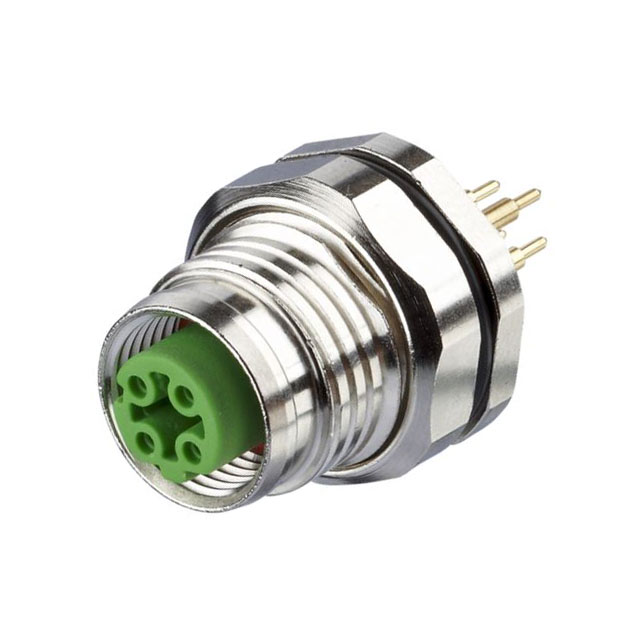

MMW370A1A1  MMW370A1A1

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : Ethernet M12
Part Status : Active
Connector Type : Jack, Female Sockets
Number of Positions : 4
Shell Size - Insert : M12-4
Shell Size, MIL : -
Mounting Type : Panel Mount, Through Hole
Mounting Feature : Bulkhead - Front Side Nut
Termination : Solder
Fastening Type : Threaded
Orientation : D
Shell Material : Copper Zinc
Shell Finish : -
Contact Finish - Mating : Gold
Color : Silver
Ingress Protection : IP67 - Dust Tight, Waterproof
Material Flammability Rating : -
Features : -
Shielding : Unshielded
Current Rating : -
Voltage Rating : 250V
0
96 in stock

MWN811A415  MWN811A415

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Series : -
Part Status : Active
Convert From (Adapter End) : Circular, Female Sockets, 8 Pos, M12
Convert To (Adapter End) : Modular, Female Jack, 8p8c (RJ45)
Features : -
Color : -
0
100 in stock

MWN911A415  MWN911A415

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Series : -
Part Status : Active
Convert From (Adapter End) : Circular, Female Sockets, 8 Pos, M12
Convert To (Adapter End) : Modular, Female Jack, 8p8c (RJ45)
Features : Right Angle
Color : -
0
100 in stock
