METZ CONNECT

- METZ CONNECT is a medium-sized, family-run German company founded in 1976. Around the world, their products guarantee secure and reliable connections for a smooth flow of information – from the printed circuit board to the infrastructure environment. METZ CONNECT is known for its expertise in all aspects of the manufacturing process including in-house molding, stamping and assembly operations. METZ CONNECT designs and manufactures connector assembly equipment in-house to assure the highest quality and reliability of finished products. The full product line covers a wide range across multiple applications and industries. Products include PCB mount terminal blocks and board-to-board connectors, RJ-45 plugs and receptacles, patch panels, copper and fiber optic cables, and intelligent DIN rail mount I/O devices. These products are used in security and access controls, HVAC, irrigation systems, industrial automation, lighting controls, A/V equipment, industrial controls, building automation applications, and more.

Part Number
Manufacturer
Description
Unit Price
In Stock

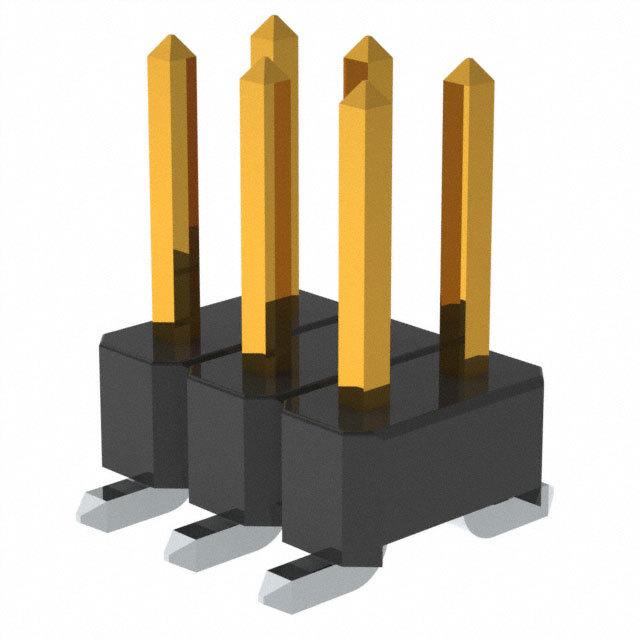

PM20206VBDN PM20206VBDN

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : -
Contact Material : Copper Zinc
Insulation Material : Polyethylene
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
1980 in stock

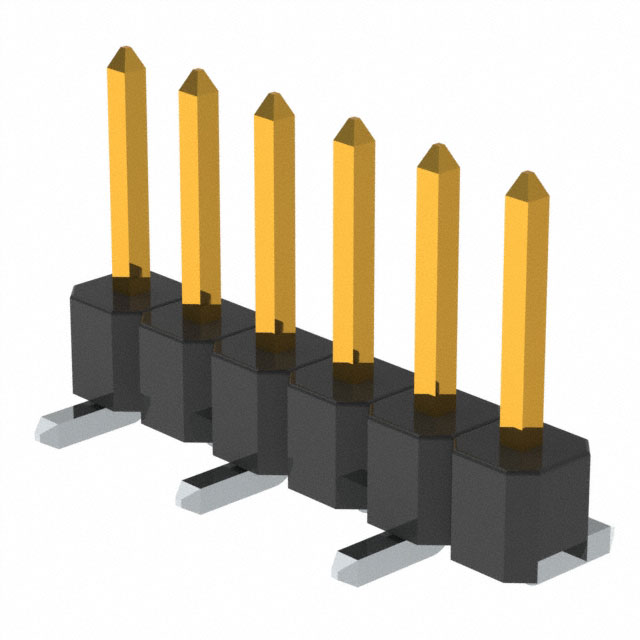

PM20206VBNN PM20206VBNN

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : -
Contact Material : Copper Zinc
Insulation Material : Polyethylene
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
471 in stock

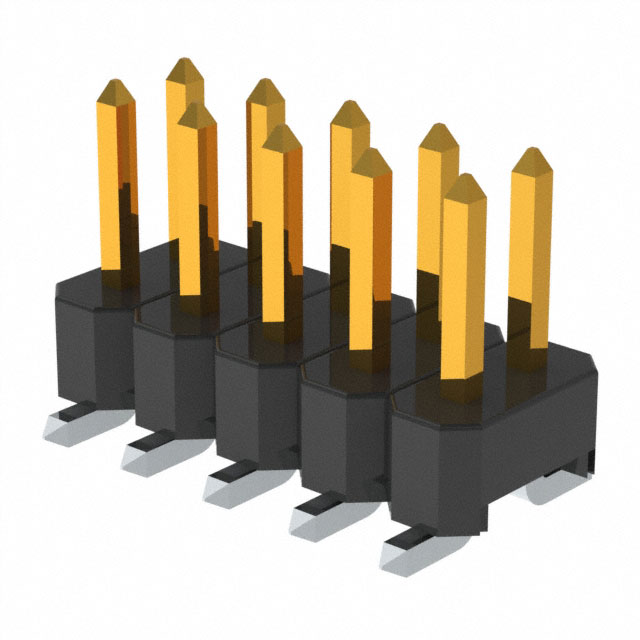

PM20C05VBDN PM20C05VBDN

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.157" (4.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.079" (2.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : -
Contact Material : Copper Zinc
Insulation Material : Polyethylene
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -
0
582 in stock

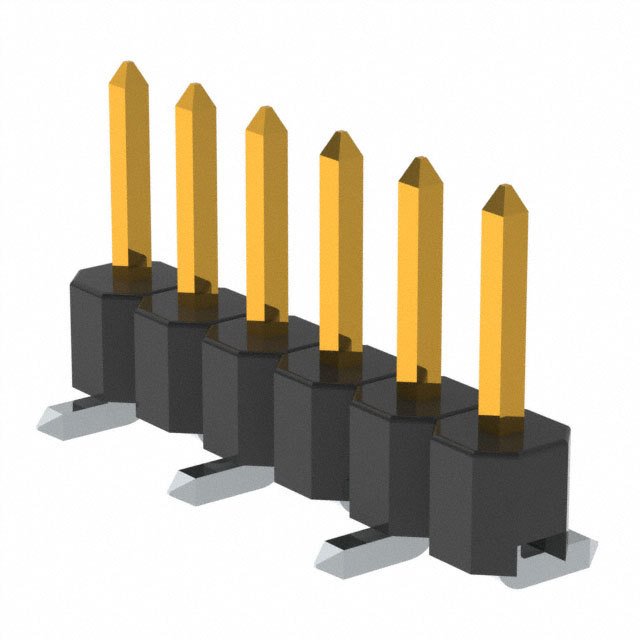

PM20C06VBNN PM20C06VBNN

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.157" (4.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.079" (2.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : -
Contact Material : Copper Zinc
Insulation Material : Polyethylene
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -
0
6980 in stock

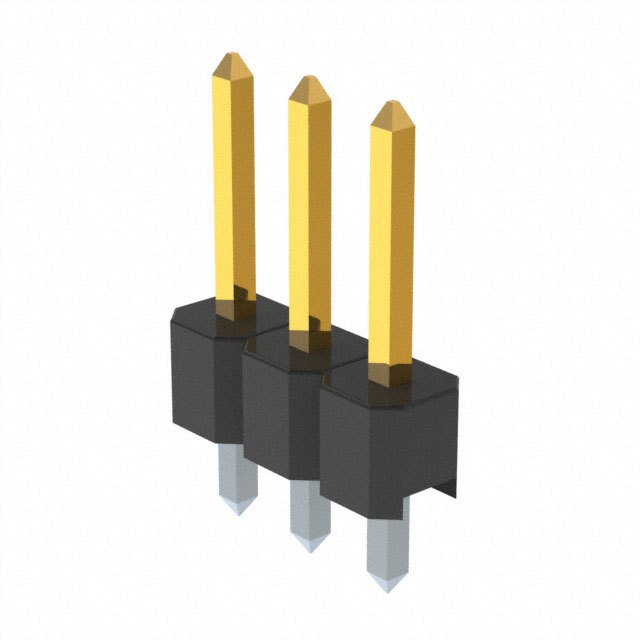

PR20203VBNN PR20203VBNN

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.457" (11.61mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : -
Contact Material : Copper Zinc
Insulation Material : Polyethylene
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
3620 in stock

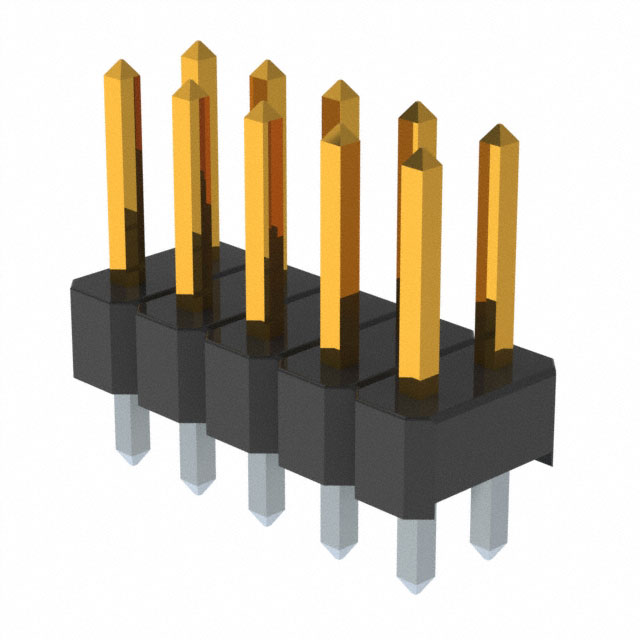

PR20205VBDN PR20205VBDN

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.457" (11.61mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : -
Contact Material : Copper Zinc
Insulation Material : Polyethylene
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
4110 in stock

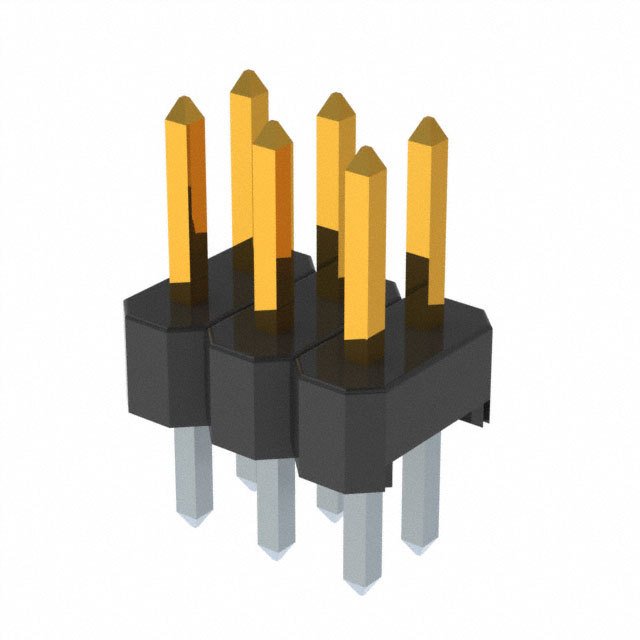

PR20C03VBDN PR20C03VBDN

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.154" (3.91mm)
Contact Length - Post : 0.110" (2.79mm)
Overall Contact Length : 0.343" (8.70mm)
Insulation Height : 0.079" (2.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : -
Contact Material : Copper Zinc
Insulation Material : Polyethylene
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -
0
12151 in stock

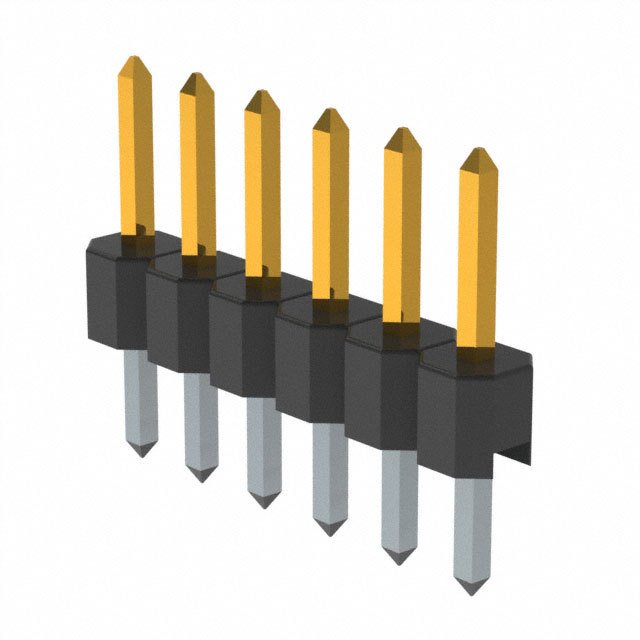

PR20C06VBNN PR20C06VBNN

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.154" (3.91mm)
Contact Length - Post : 0.110" (2.79mm)
Overall Contact Length : 0.343" (8.70mm)
Insulation Height : 0.079" (2.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : -
Contact Material : Copper Zinc
Insulation Material : Polyethylene
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -
0
5354 in stock

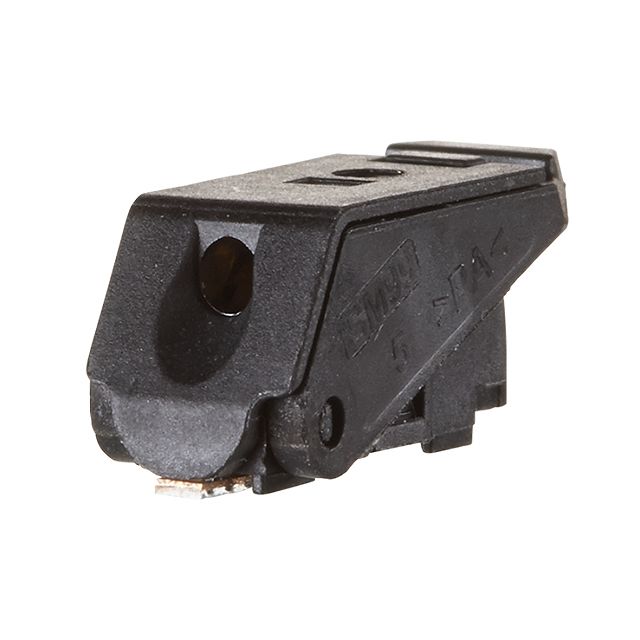

SM99S01VBNN00G7 SM99S01VBNN00G7

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 1
Pitch : -
Mating Orientation : Horizontal with Board
Current : 9A
Voltage : 300V
Wire Gauge : 16-24 AWG
Mounting Type : Surface Mount
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Push Button Actuated
Color : Black
0
20113 in stock

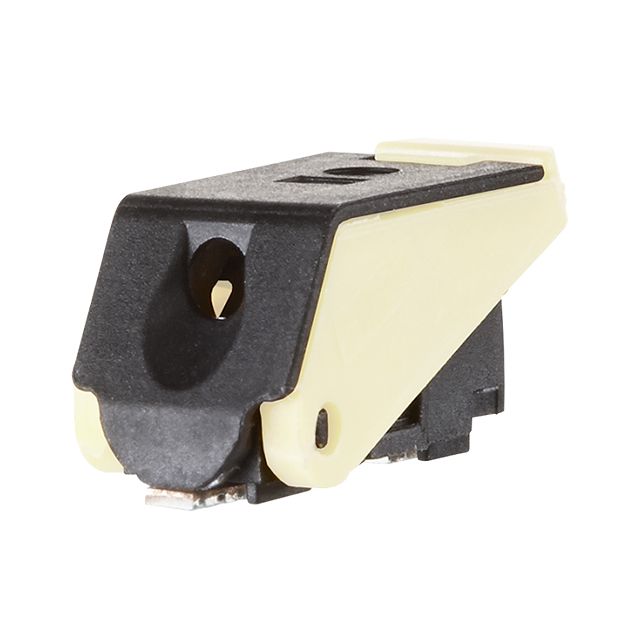

SM99S01VBNN01G7 SM99S01VBNN01G7

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 1
Pitch : -
Mating Orientation : Horizontal with Board
Current : 9A
Voltage : 300V
Wire Gauge : 16-24 AWG
Mounting Type : Surface Mount
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Push Button Actuated
Color : White
0
6528 in stock

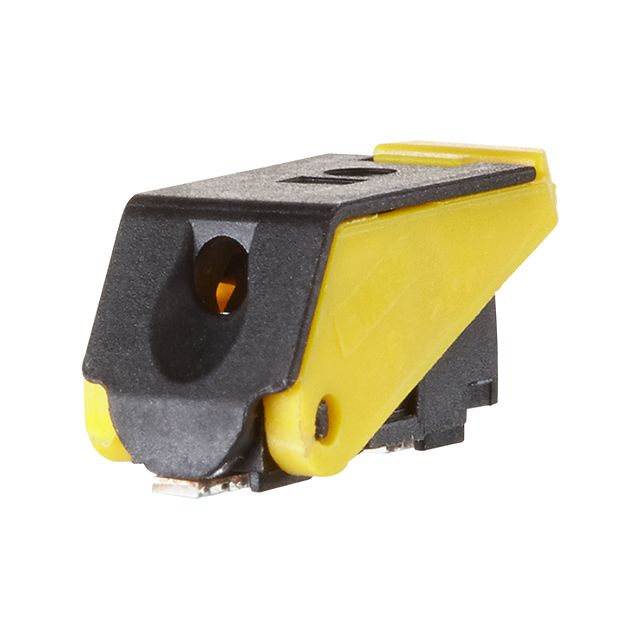

SM99S01VBNN02G7 SM99S01VBNN02G7

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 1
Pitch : -
Mating Orientation : Horizontal with Board
Current : 9A
Voltage : 300V
Wire Gauge : 16-24 AWG
Mounting Type : Surface Mount
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Push Button Actuated
Color : Yellow
0
8262 in stock

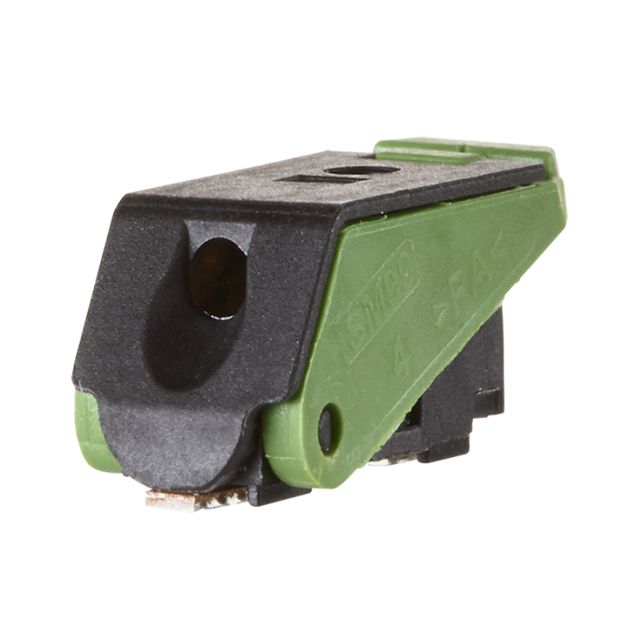

SM99S01VBNN03G7 SM99S01VBNN03G7

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 1
Pitch : -
Mating Orientation : Horizontal with Board
Current : 9A
Voltage : 300V
Wire Gauge : 16-24 AWG
Mounting Type : Surface Mount
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Push Button Actuated
Color : Green
0
7767 in stock
