Mill-Max Mfg. Corp.
- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.
Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.
Part Number
Manufacturer
Description
Unit Price
In Stock

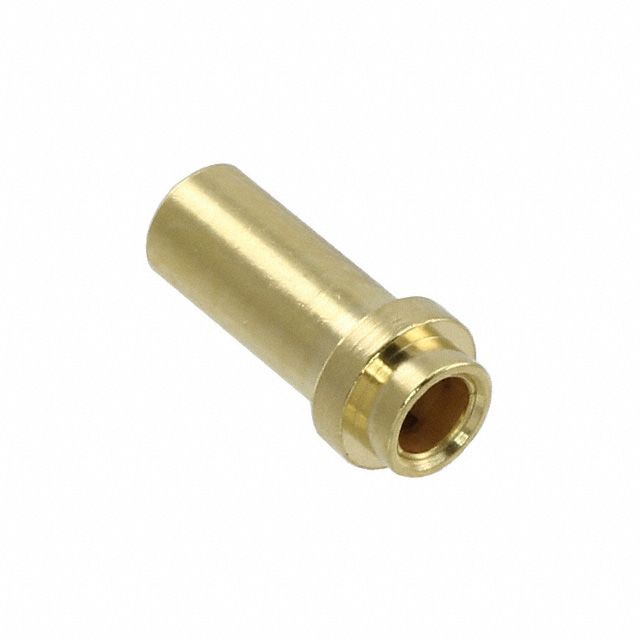

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 393
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.412" (10.46mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.144" (3.66mm)
Flange Diameter : 0.187" (4.75mm)
Tail Diameter : -
Socket Depth : 0.340" (8.64mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
11370 in stock

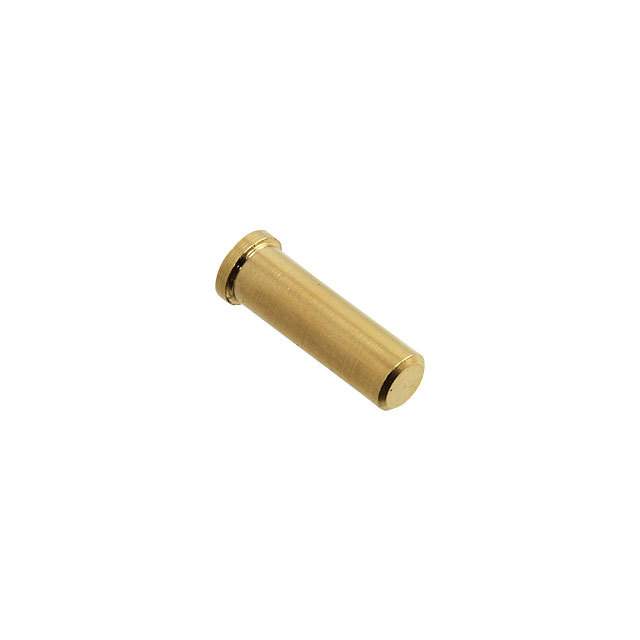

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 394
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.400" (10.16mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.120" (3.05mm)
Flange Diameter : 0.143" (3.63mm)
Tail Diameter : -
Socket Depth : 0.357" (9.07mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
3280 in stock

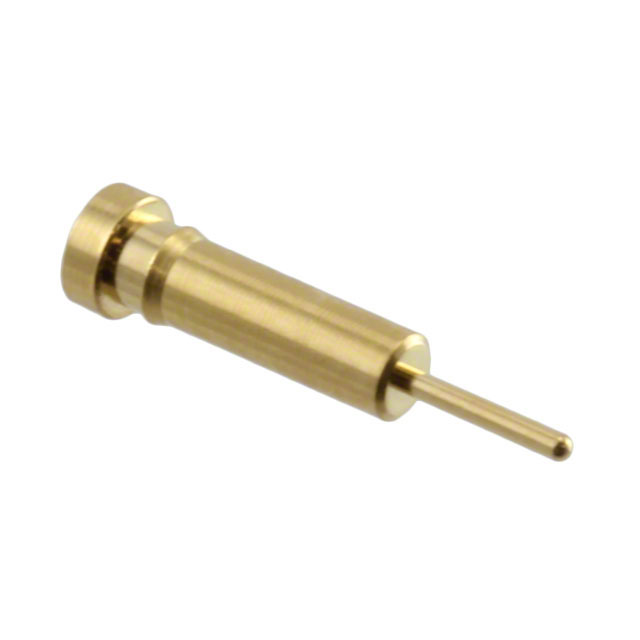

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 398
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.378" (9.60mm)
Accepts Pin Diameter : 0.022" ~ 0.032" (0.56mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.066" (1.68mm)
Flange Diameter : 0.086" (2.18mm)
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.220" (5.59mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
3352 in stock

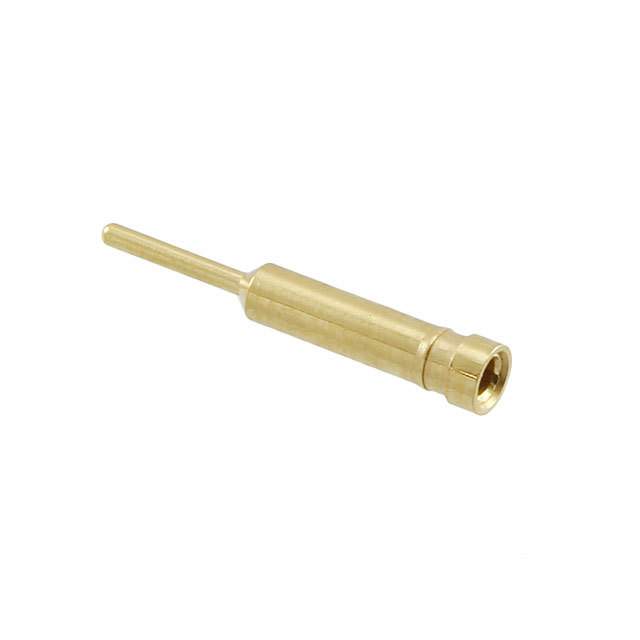

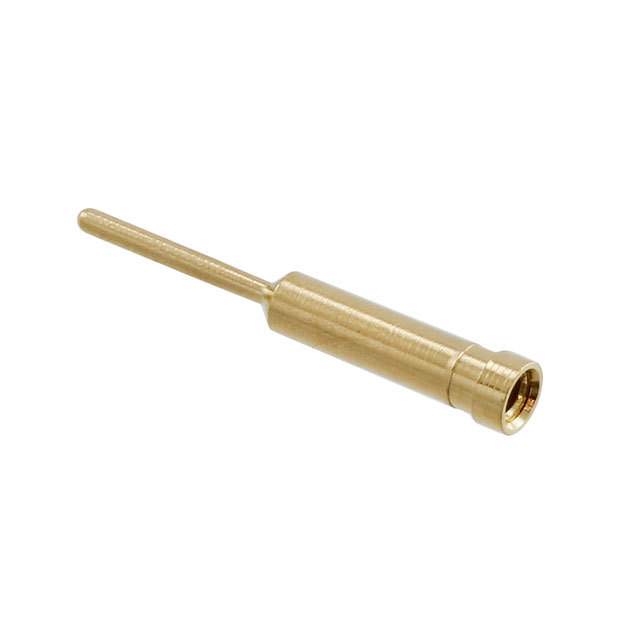

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 399
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.460" (11.68mm)
Accepts Pin Diameter : 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.062" (1.57mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : 0.025" (0.64mm)
Socket Depth : 0.230" (5.84mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1323 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 399
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.440" (11.18mm)
Accepts Pin Diameter : 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.062" (1.57mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : 0.025" (0.64mm)
Socket Depth : 0.230" (5.84mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
2173 in stock

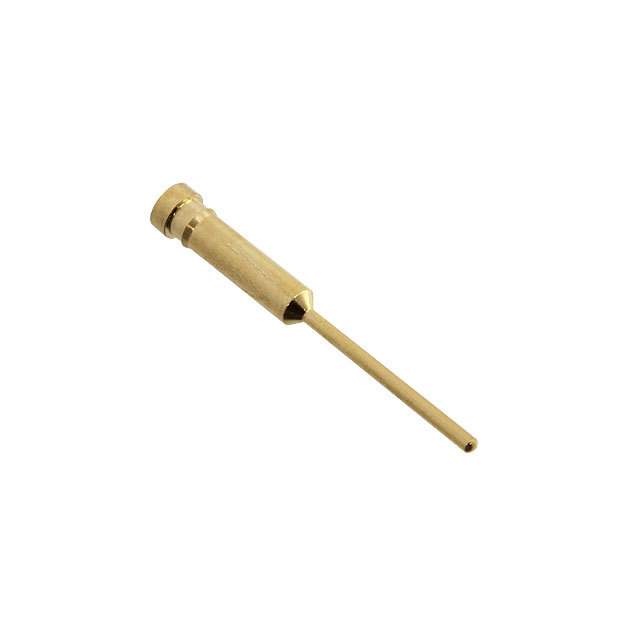

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 401
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.600" (15.24mm)
Accepts Pin Diameter : 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Flange Diameter : 0.076" (1.93mm)
Tail Diameter : 0.025" (0.64mm)
Socket Depth : 0.230" (5.84mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
2858 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 405
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.375" (9.53mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.084" (2.13mm)
Flange Diameter : 0.090" (2.29mm)
Tail Diameter : 0.030" (0.76mm)
Socket Depth : 0.220" (5.59mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
28139 in stock

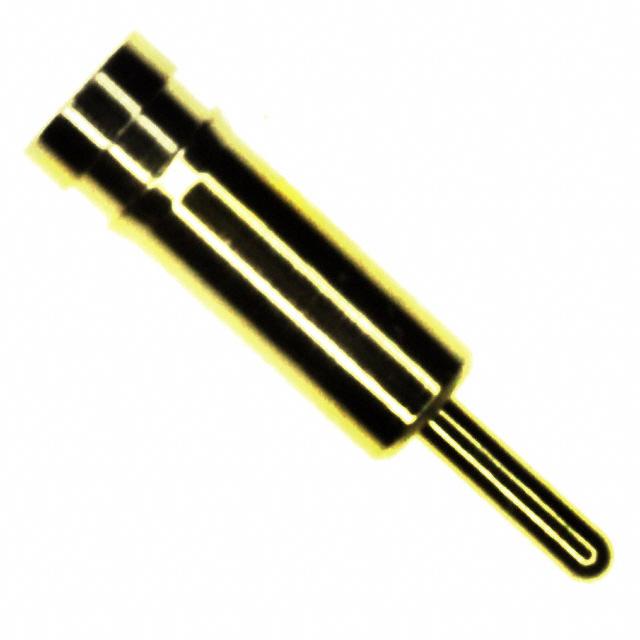

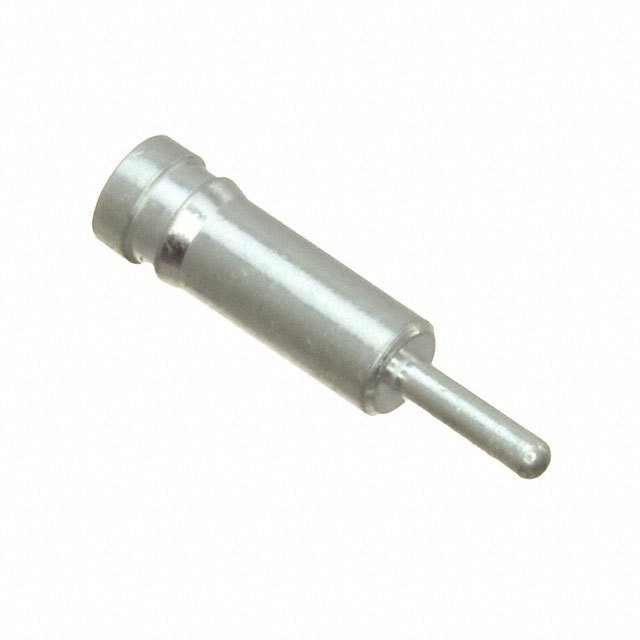

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0405
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.375" (9.53mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.084" (2.13mm)
Flange Diameter : 0.090" (2.29mm)
Tail Diameter : 0.030" (0.76mm)
Socket Depth : 0.220" (5.59mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
1000 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 415
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.190" (4.83mm)
Accepts Pin Diameter : 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.063" (1.60mm)
Flange Diameter : 0.078" (1.98mm)
Tail Diameter : -
Socket Depth : 0.165" (4.19mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
7 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 415
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.190" (4.83mm)
Accepts Pin Diameter : 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.063" (1.60mm)
Flange Diameter : 0.078" (1.98mm)
Tail Diameter : -
Socket Depth : 0.165" (4.19mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
10517 in stock

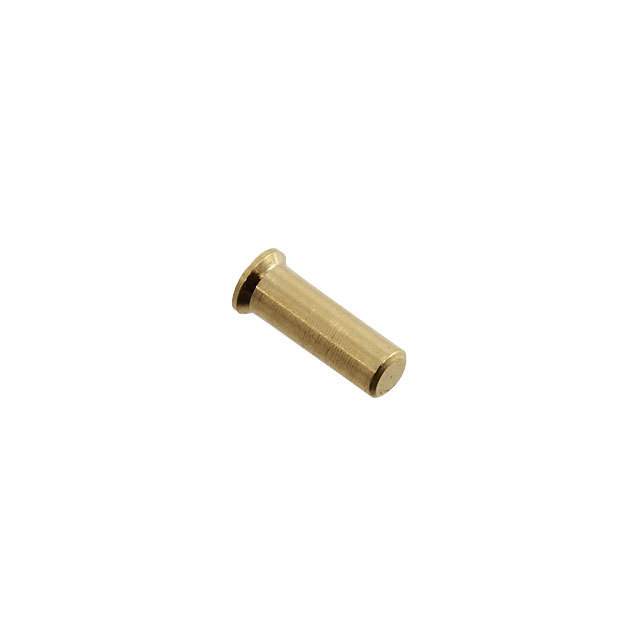

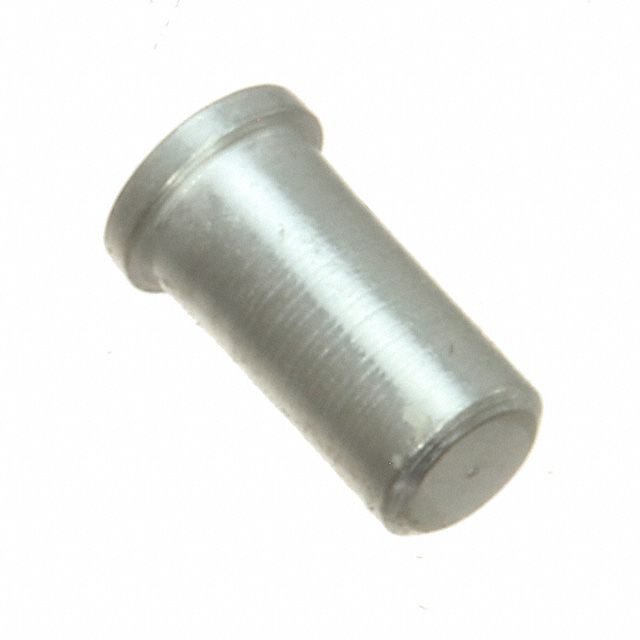

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0415
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.190" (4.83mm)
Accepts Pin Diameter : 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.063" (1.60mm)
Flange Diameter : 0.078" (1.98mm)
Tail Diameter : -
Socket Depth : 0.165" (4.19mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
1300 in stock

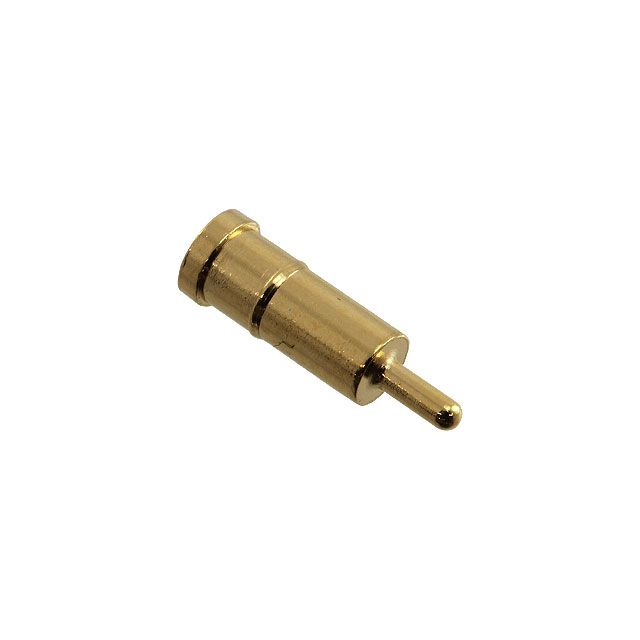

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 433
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.390" (9.91mm)
Accepts Pin Diameter : 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.106" (2.69mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : 0.040" (1.02mm)
Socket Depth : 0.205" (5.21mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
22623 in stock
