Mill-Max Mfg. Corp.

- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.

Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.


Part Number

Manufacturer

Description

Unit Price

In Stock

0461-3-15-15-11-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.300" (7.62mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1030 in stock

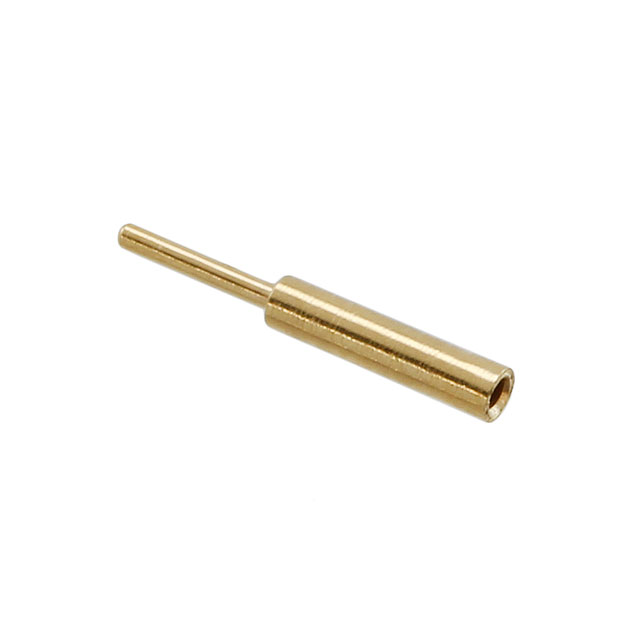

0461-3-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.300" (7.62mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

10788 in stock

0461-4-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.235" (5.97mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1000 in stock

0461-5-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.615" (15.62mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

3990 in stock

0462-0-15-15-11-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 462
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1500 in stock

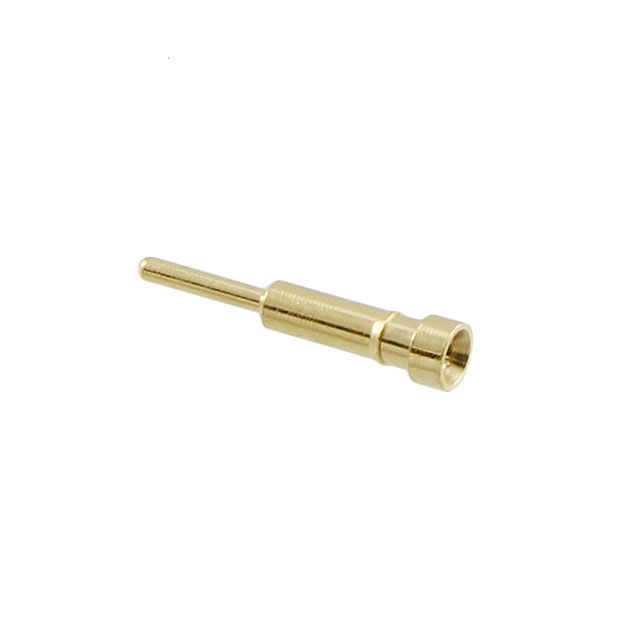

0462-0-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 462
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1491 in stock

0462-0-15-80-21-84-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0462
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 100.0µin (2.54µm)

1000 in stock

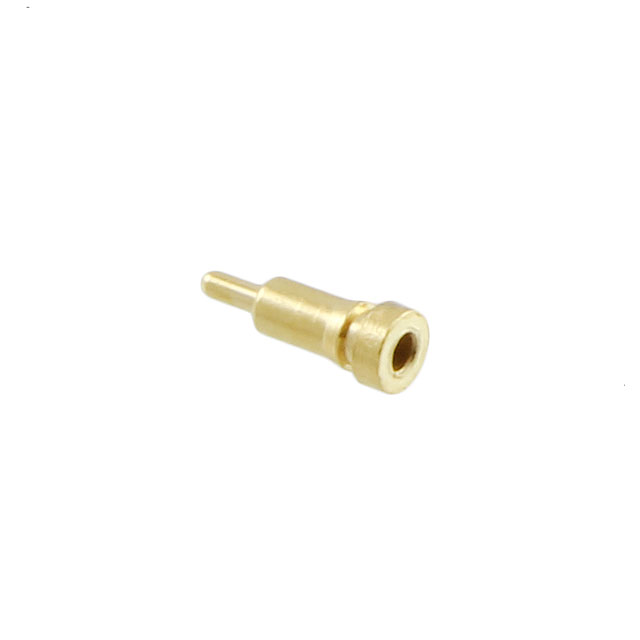

0463-0-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 463
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.156" (3.96mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.093" (2.36mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

3322 in stock

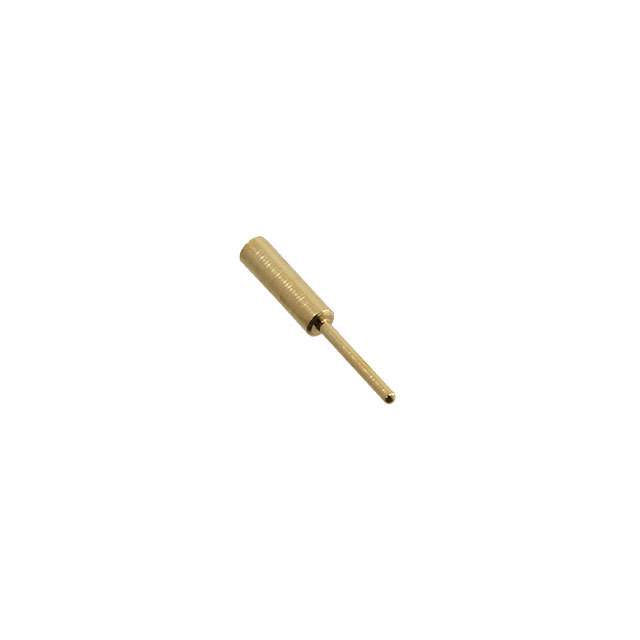

0464-0-15-15-10-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 464
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.250" (6.35mm)
Accepts Pin Diameter : 0.012" ~ 0.017" (0.30mm ~ 0.43mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.028" (0.71mm)
Mounting Hole Diameter : 0.016" (0.41mm)
Flange Diameter : 0.037" (0.94mm)
Tail Diameter : 0.014" (0.36mm)
Socket Depth : 0.100" (2.54mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

871 in stock

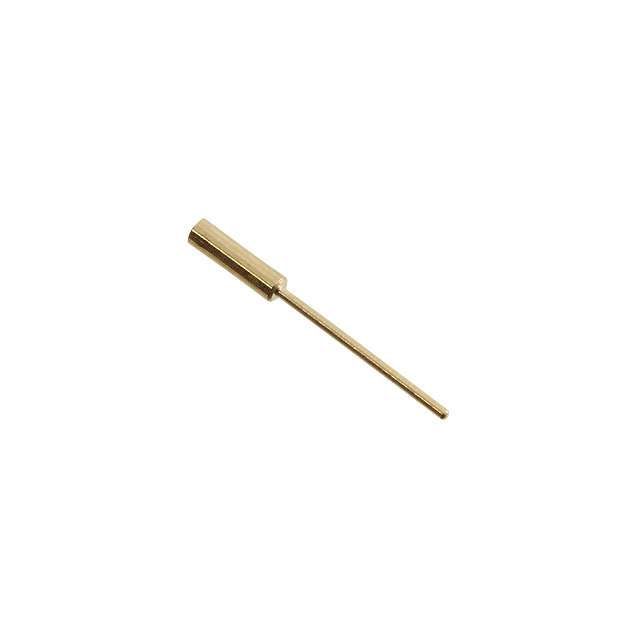

0464-1-15-15-10-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 464
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.375" (9.53mm)
Accepts Pin Diameter : 0.012" ~ 0.017" (0.30mm ~ 0.43mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.028" (0.71mm)
Mounting Hole Diameter : 0.016" (0.41mm)
Flange Diameter : 0.037" (0.94mm)
Tail Diameter : 0.014" (0.36mm)
Socket Depth : 0.100" (2.54mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

2373 in stock

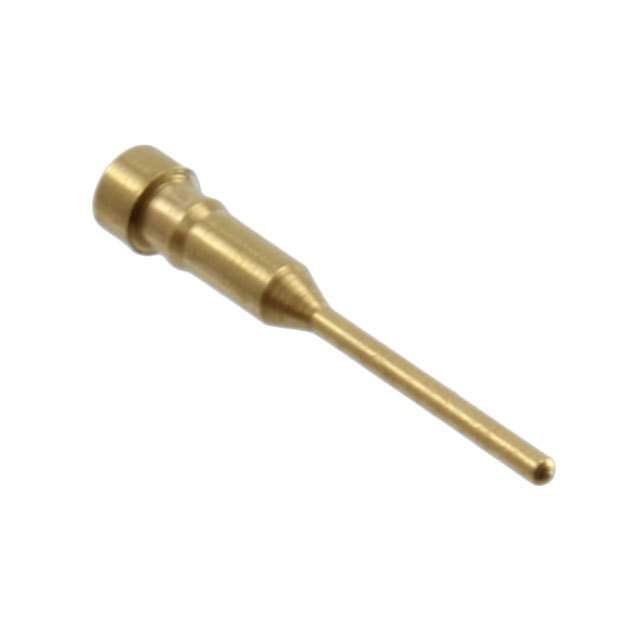

0466-0-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 466
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.370" (9.40mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.135" (3.43mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

820 in stock

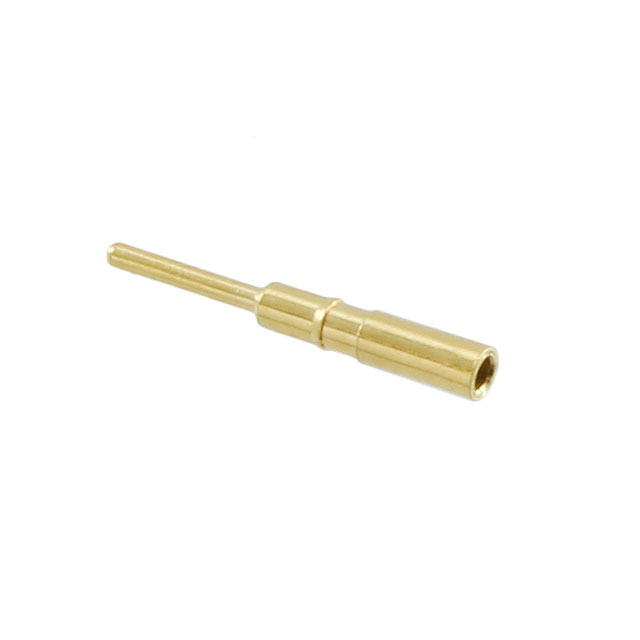

0467-0-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 467
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.300" (7.62mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.037" (0.94mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

7682 in stock
