Mill-Max Mfg. Corp.

- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.

Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.


Part Number

Manufacturer

Description

Unit Price

In Stock

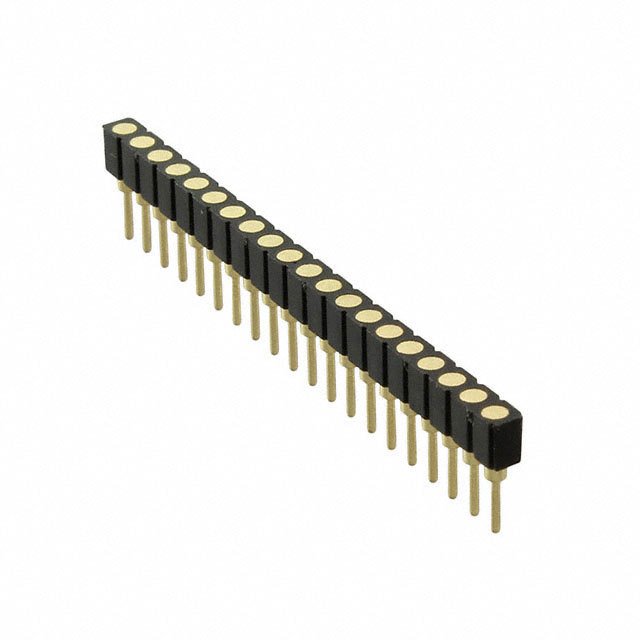

830-10-020-10-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 830
Part Status : Active
Connector Type : Mating Target
Number of Contacts : 20
Pitch : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Through Hole
Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

31 in stock

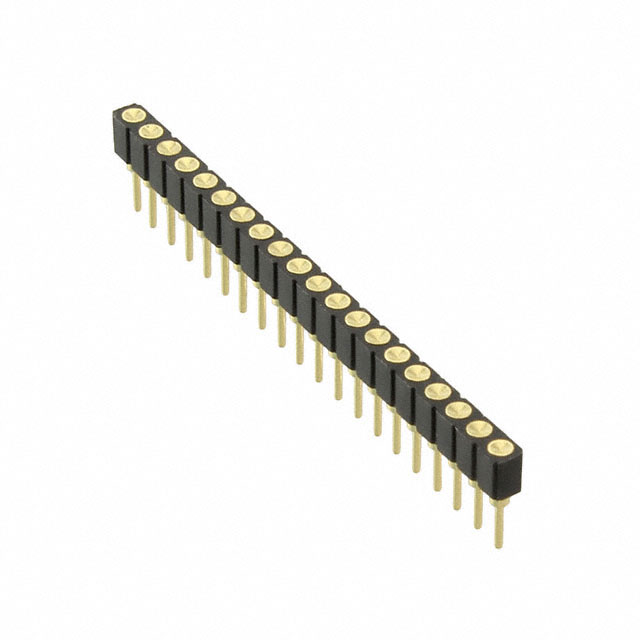

830-10-020-10-004000

Mill-Max

210 in stock

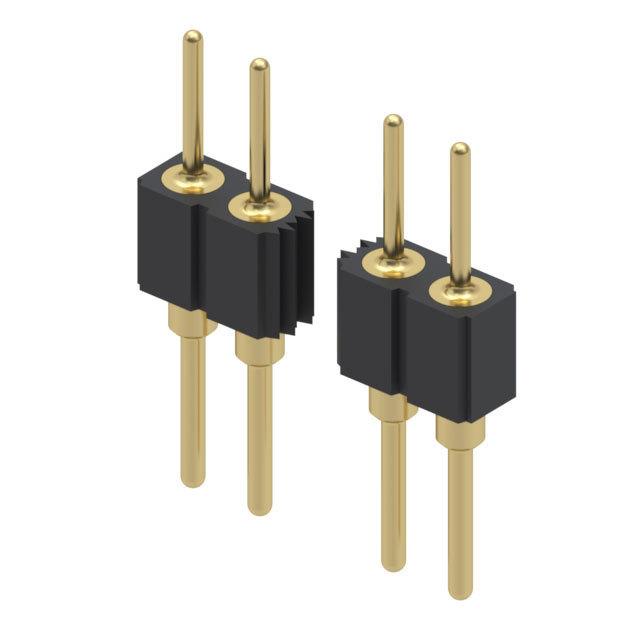

830-10-050-10-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 830
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 50
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.154" (3.91mm)
Contact Length - Post : 0.164" (4.17mm)
Overall Contact Length : 0.475" (12.07mm)
Insulation Height : 0.110" (2.79mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

1135 in stock

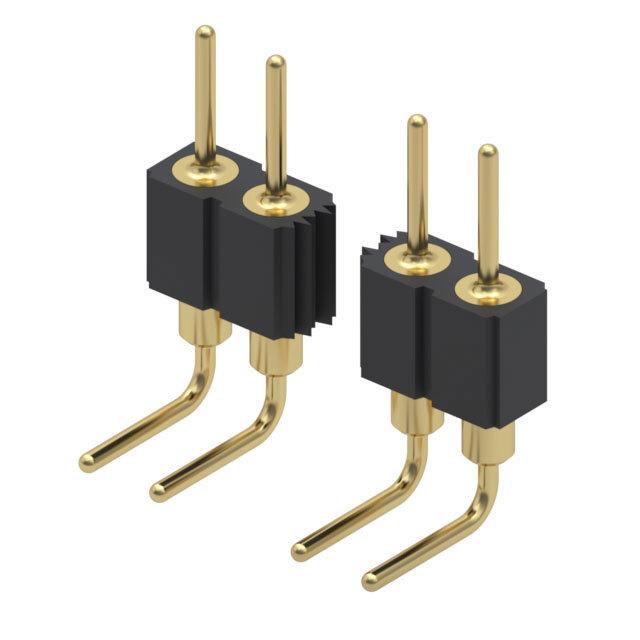

830-10-050-20-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 830
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 50
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.142" (3.61mm)
Contact Length - Post : 0.135" (3.43mm)
Overall Contact Length : -
Insulation Height : 0.079" (2.00mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

427 in stock

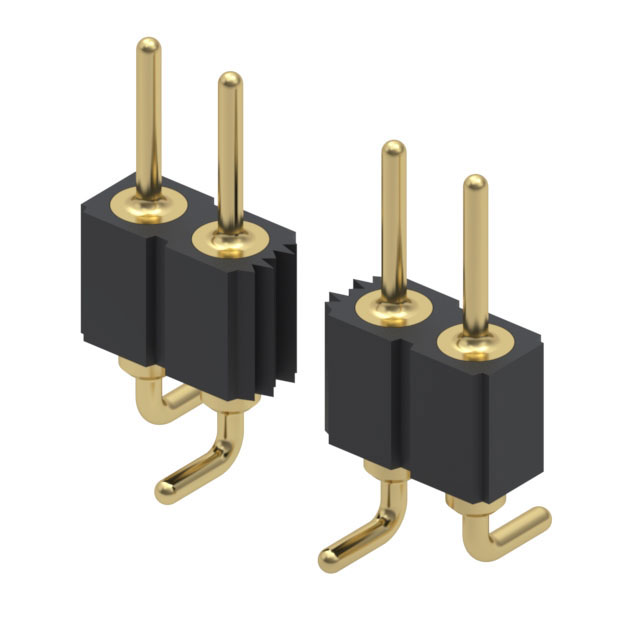

830-10-050-30-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 830
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 50
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.142" (3.61mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.110" (2.79mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

32 in stock

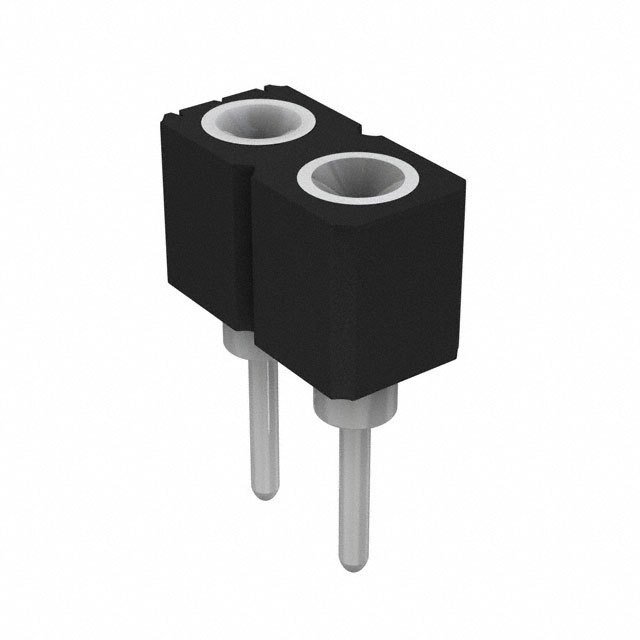

831-43-002-10-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 831
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.125" (3.18mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

100 in stock

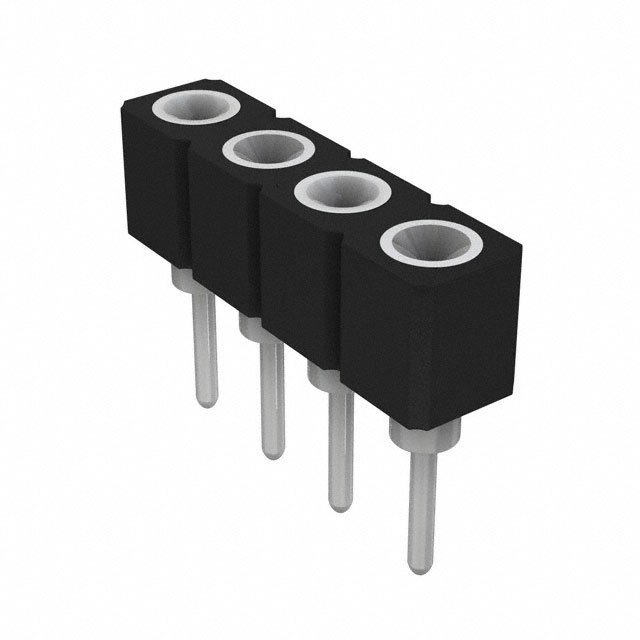

831-43-004-10-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 831
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.125" (3.18mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

46 in stock

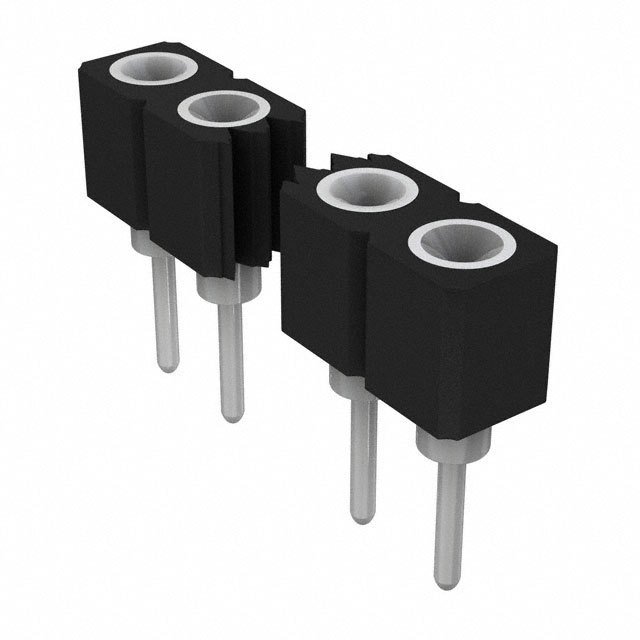

831-43-050-10-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 831
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.125" (3.18mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

3262 in stock

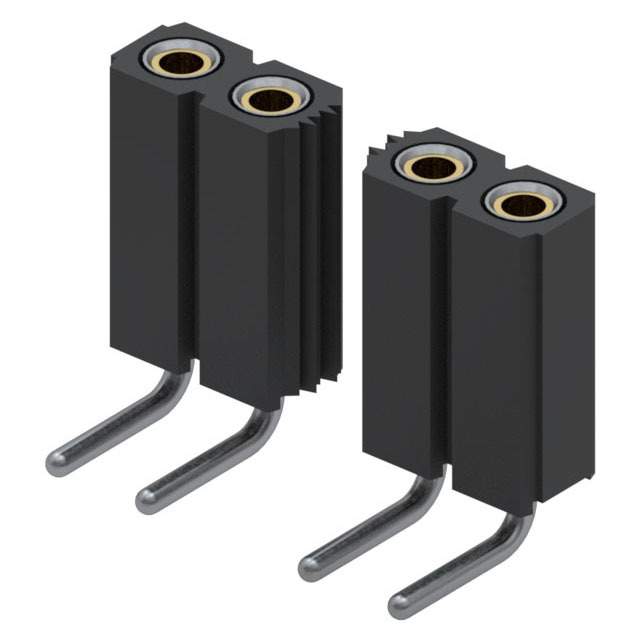

831-43-050-20-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 831
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.079" (2.00mm)
Contact Length - Post : 0.140" (3.56mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

92 in stock

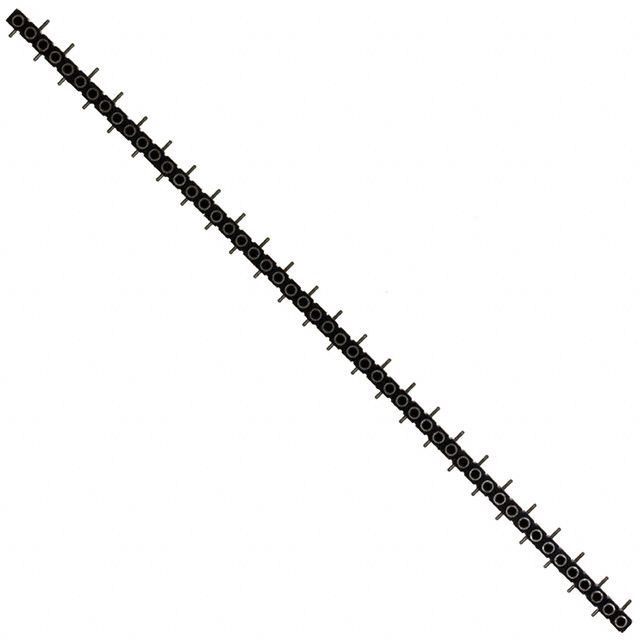

831-43-050-30-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 831
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.228" (5.80mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

103 in stock

831-47-002-10-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 831
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.125" (3.18mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

2115 in stock

831-47-004-10-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 831
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.125" (3.18mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

1791 in stock
