Mill-Max Mfg. Corp.
- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.
Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.
Part Number
Manufacturer
Description
Unit Price
In Stock

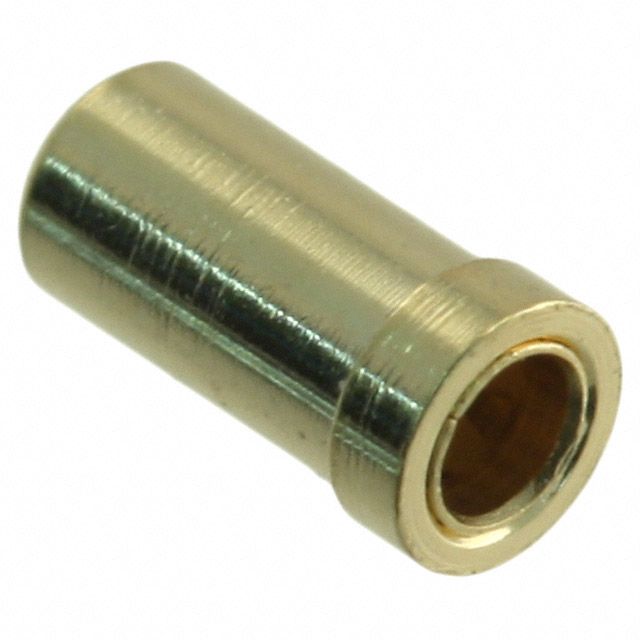

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8331
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.150" (3.81mm)
Accepts Pin Diameter : 0.037" ~ 0.043" (0.94mm ~ 1.09mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.054" (1.37mm)
Mounting Hole Diameter : 0.071" (1.80mm)
Flange Diameter : 0.078" (1.98mm)
Tail Diameter : -
Socket Depth : 0.127" (3.23mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
7355 in stock

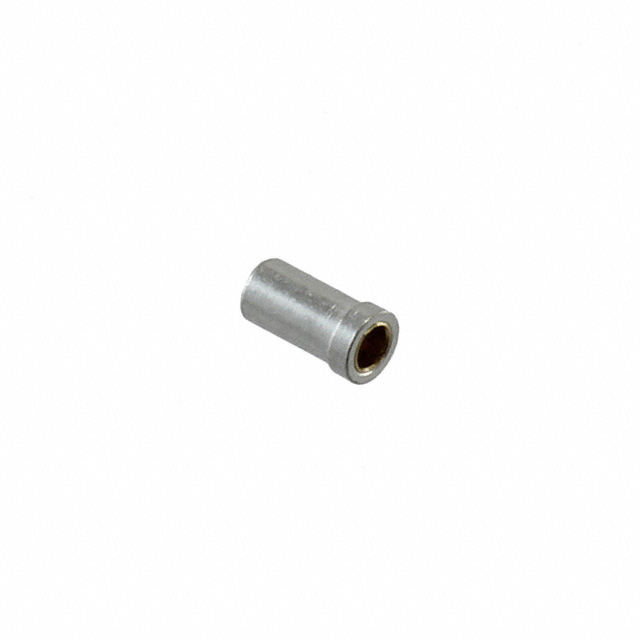

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8331
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.150" (3.81mm)
Accepts Pin Diameter : 0.037" ~ 0.043" (0.94mm ~ 1.09mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.054" (1.37mm)
Mounting Hole Diameter : 0.071" (1.80mm)
Flange Diameter : 0.078" (1.98mm)
Tail Diameter : -
Socket Depth : 0.127" (3.23mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1000 in stock

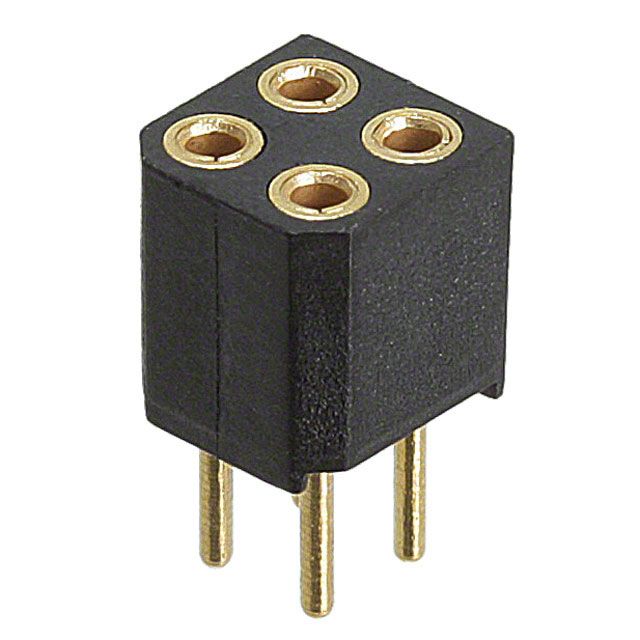

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 833
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.179" (4.55mm)
Contact Length - Post : 0.111" (2.82mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
232 in stock

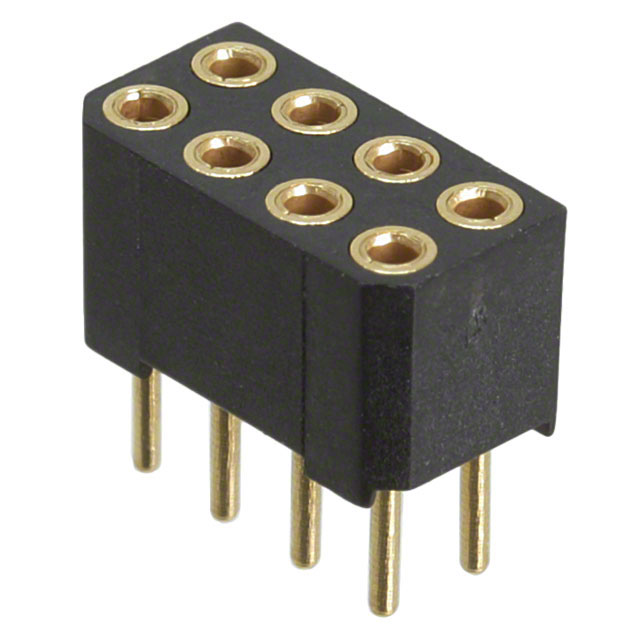

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 833
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.179" (4.55mm)
Contact Length - Post : 0.111" (2.82mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
196 in stock

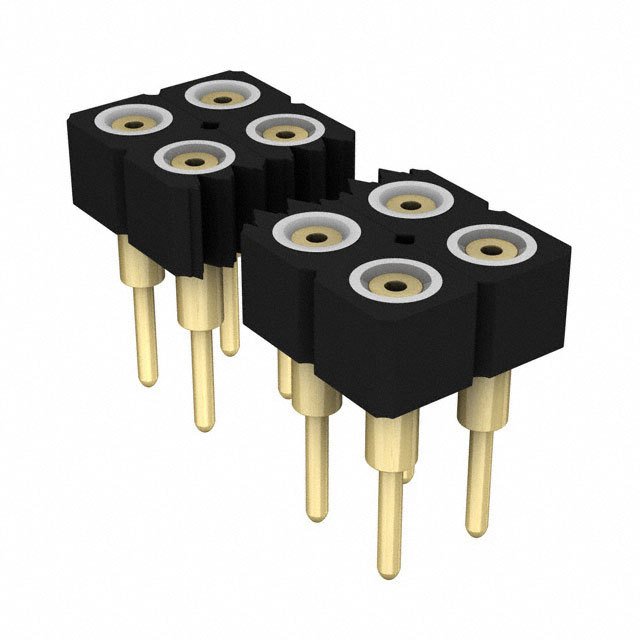

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 833
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 100
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.125" (3.18mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
35 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 833
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 100
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.125" (3.18mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
46 in stock

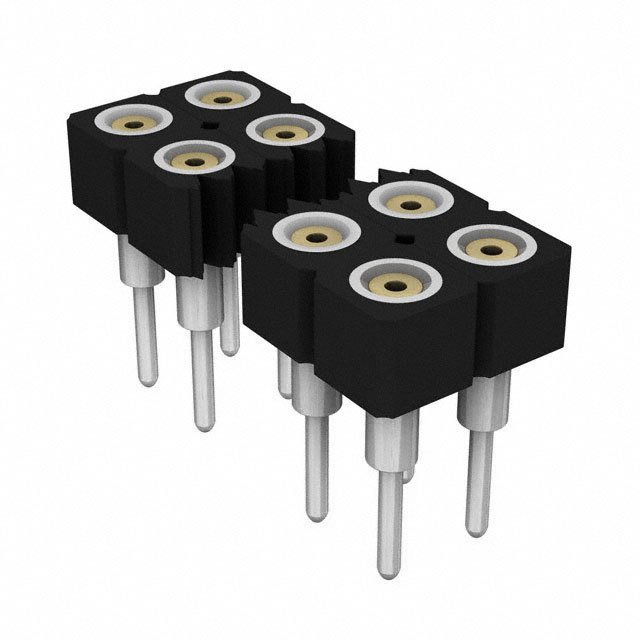

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 833
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 100
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.125" (3.18mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
129 in stock

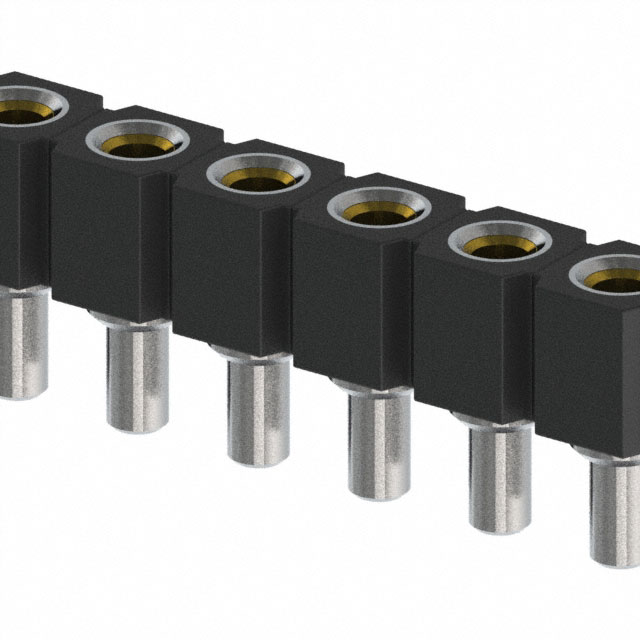

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 834
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 64
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.130" (3.30mm)
Contact Length - Post : 0.080" (2.03mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -
0
254 in stock

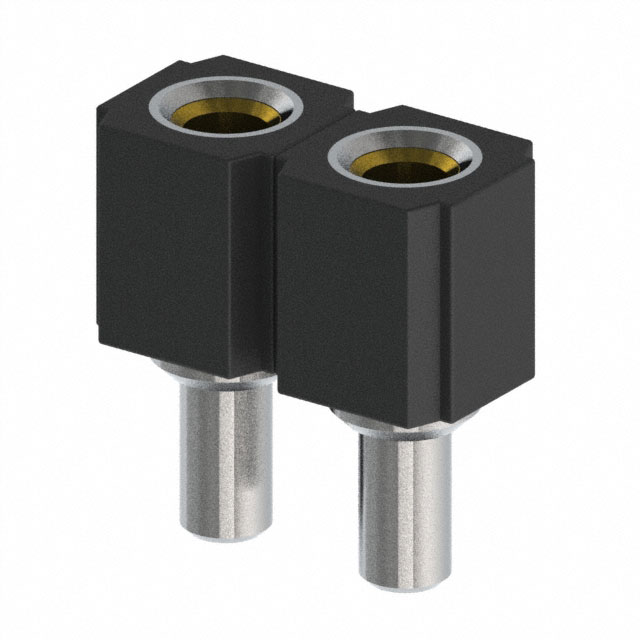

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 834
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.130" (3.30mm)
Contact Length - Post : 0.080" (2.03mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -
0
681 in stock

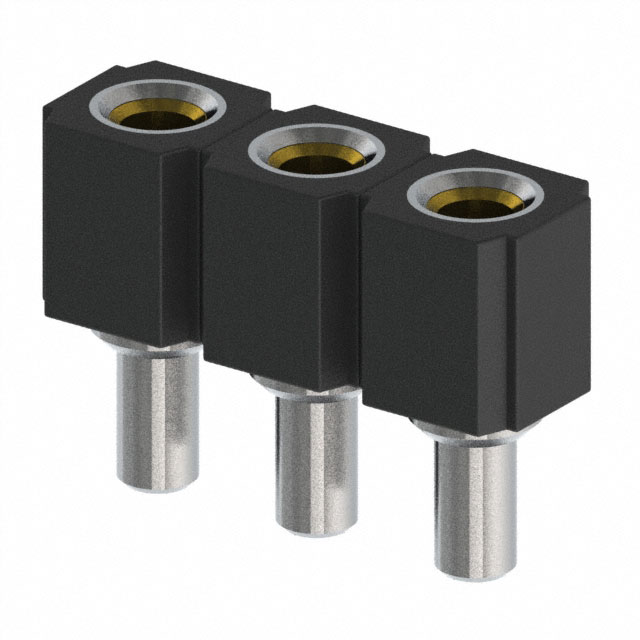

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 834
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.130" (3.30mm)
Contact Length - Post : 0.080" (2.03mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -
0
43 in stock

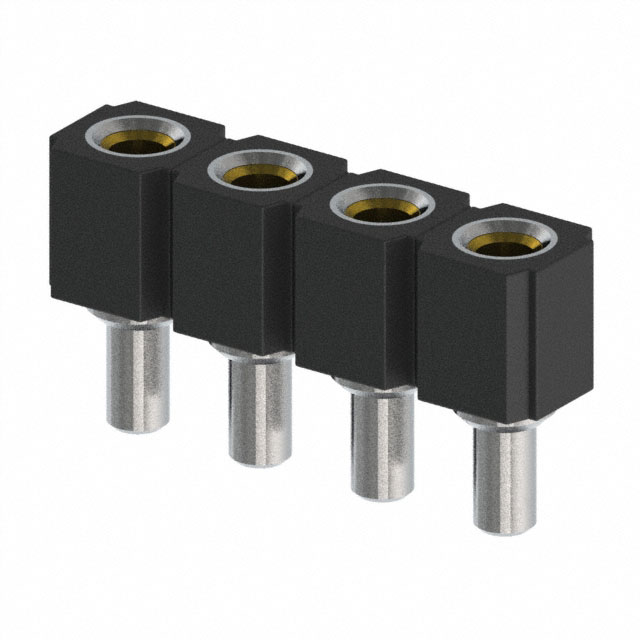

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 834
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.130" (3.30mm)
Contact Length - Post : 0.080" (2.03mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -
0
252 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 834
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 64
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.130" (3.30mm)
Contact Length - Post : 0.080" (2.03mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -
0
147 in stock
