- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.

Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.


Part Number

Manufacturer

Description

Unit Price

In Stock

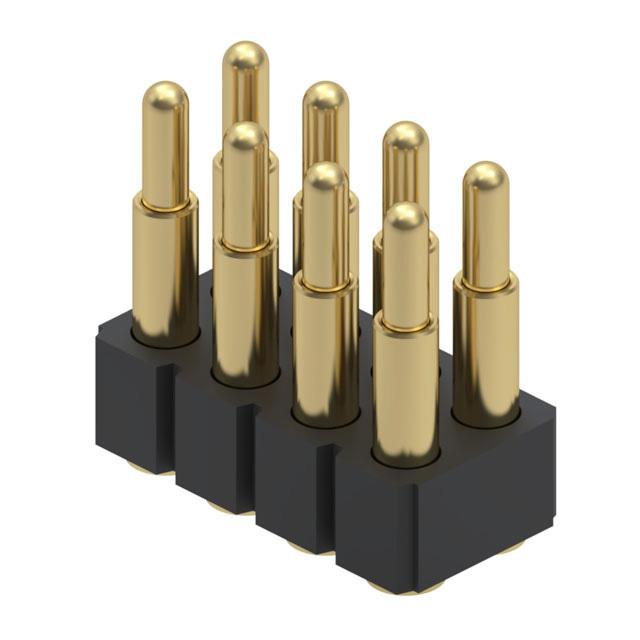

839-22-008-30-001101

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 839
Part Status : Active
Connector Type : Piston
Number of Contacts : 8
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Surface Mount
Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

515 in stock

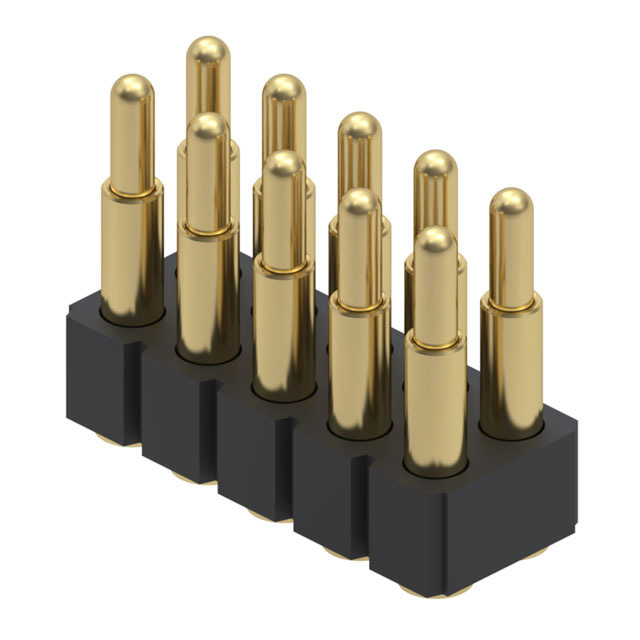

839-22-010-30-001101

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 839
Part Status : Active
Connector Type : Piston
Number of Contacts : 10
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Surface Mount
Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1283 in stock

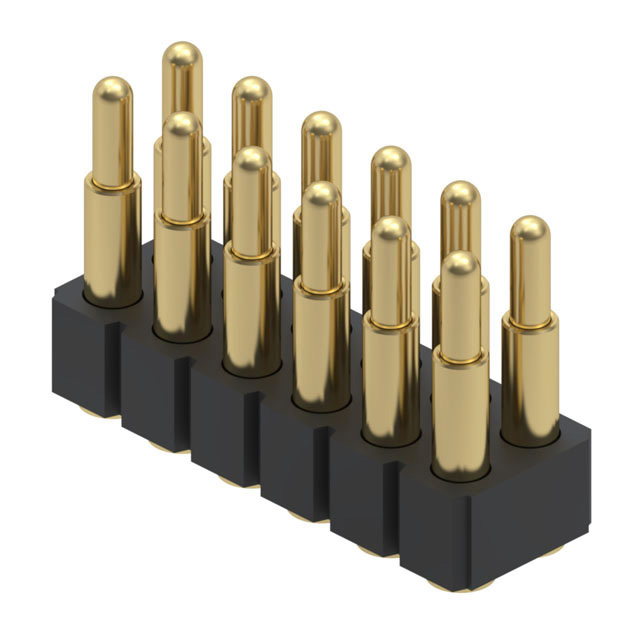

839-22-012-30-001101

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 839
Part Status : Active
Connector Type : Piston
Number of Contacts : 12
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Surface Mount
Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

50 in stock

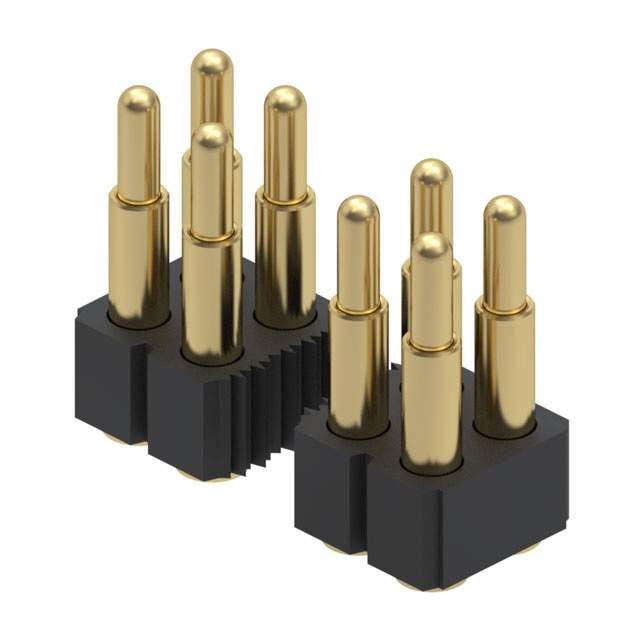

839-22-014-30-001101

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 839
Part Status : Active
Connector Type : Piston
Number of Contacts : 14
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Surface Mount
Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

39 in stock

839-22-016-30-001101

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 839
Part Status : Active
Connector Type : Piston
Number of Contacts : 16
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Surface Mount
Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

119 in stock

839-22-020-30-001101

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 839
Part Status : Active
Connector Type : Piston
Number of Contacts : 20
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Surface Mount
Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

110 in stock

8427-0-15-15-30-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8427
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.255" (6.48mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : 0.030" (0.76mm)
Socket Depth : 0.175" (4.45mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

980 in stock

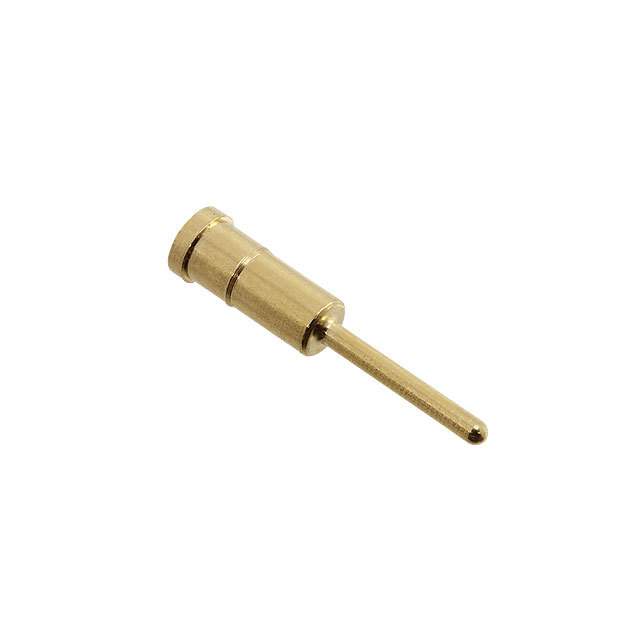

8433-0-15-15-03-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8433
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.600" (15.24mm)
Accepts Pin Diameter : 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.106" (2.69mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : 0.040" (1.02mm)
Socket Depth : 0.205" (5.21mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

28767 in stock

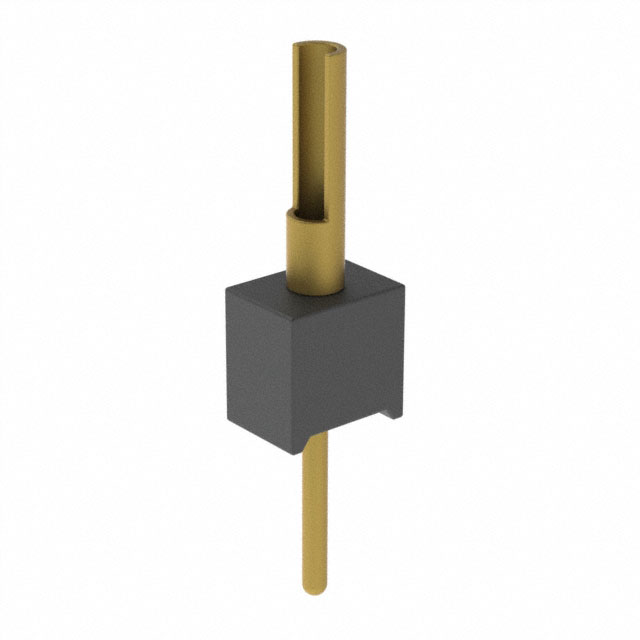

850-10-001-10-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : -
Number of Positions : 1
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.100" (2.54mm)
Contact Length - Post : 0.122" (3.10mm)
Overall Contact Length : 0.303" (7.70mm)
Insulation Height : 0.084" (2.14mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

747 in stock

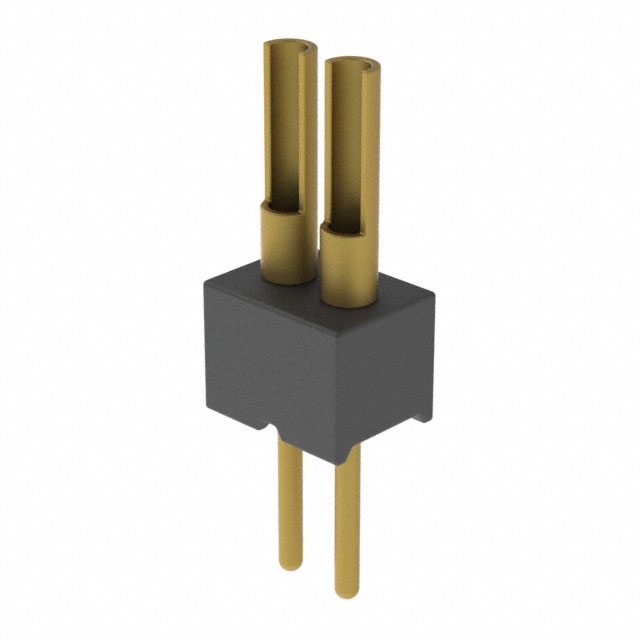

850-10-002-10-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.100" (2.54mm)
Contact Length - Post : 0.122" (3.10mm)
Overall Contact Length : 0.303" (7.70mm)
Insulation Height : 0.084" (2.14mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

415 in stock

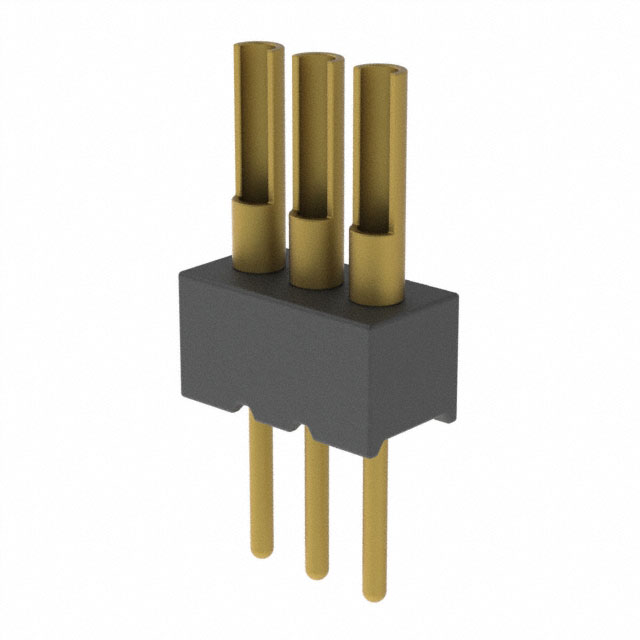

850-10-003-10-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.100" (2.54mm)
Contact Length - Post : 0.122" (3.10mm)
Overall Contact Length : 0.303" (7.70mm)
Insulation Height : 0.084" (2.14mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

483 in stock

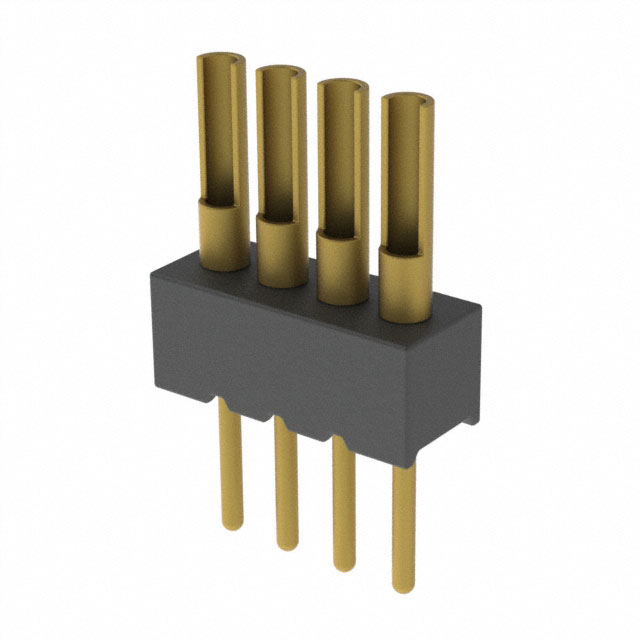

850-10-004-10-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.100" (2.54mm)
Contact Length - Post : 0.122" (3.10mm)
Overall Contact Length : 0.303" (7.70mm)
Insulation Height : 0.084" (2.14mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

761 in stock
