Mill-Max Mfg. Corp.

- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.

Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.


Part Number

Manufacturer

Description

Unit Price

In Stock

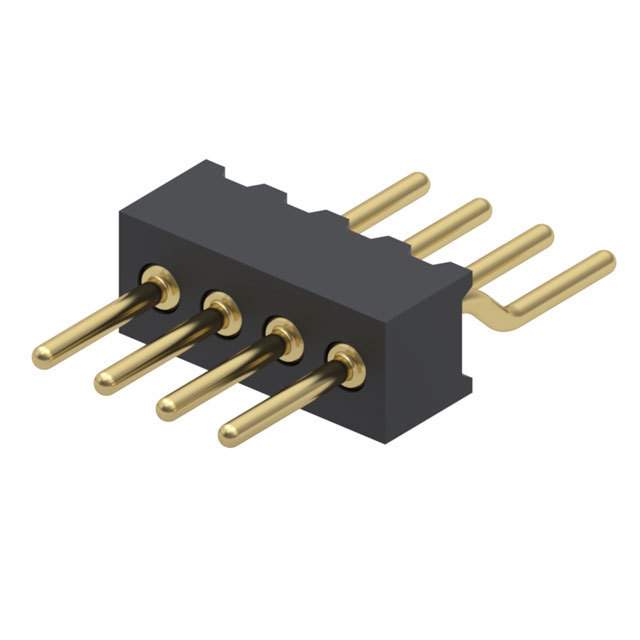

850-10-004-40-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.087" (2.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polycyclohexylenedimethylene Terephthalate (PCT)
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

829 in stock

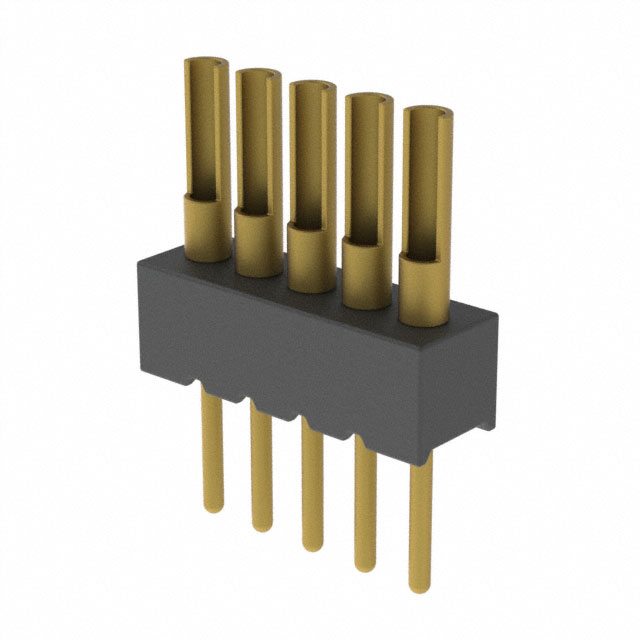

850-10-005-10-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.100" (2.54mm)
Contact Length - Post : 0.122" (3.10mm)
Overall Contact Length : 0.303" (7.70mm)
Insulation Height : 0.084" (2.14mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

334 in stock

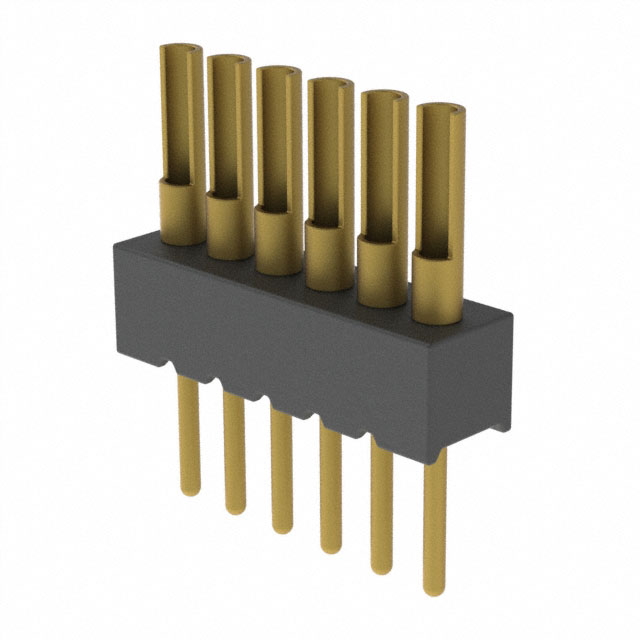

850-10-006-10-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.100" (2.54mm)
Contact Length - Post : 0.122" (3.10mm)
Overall Contact Length : 0.303" (7.70mm)
Insulation Height : 0.084" (2.14mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

321 in stock

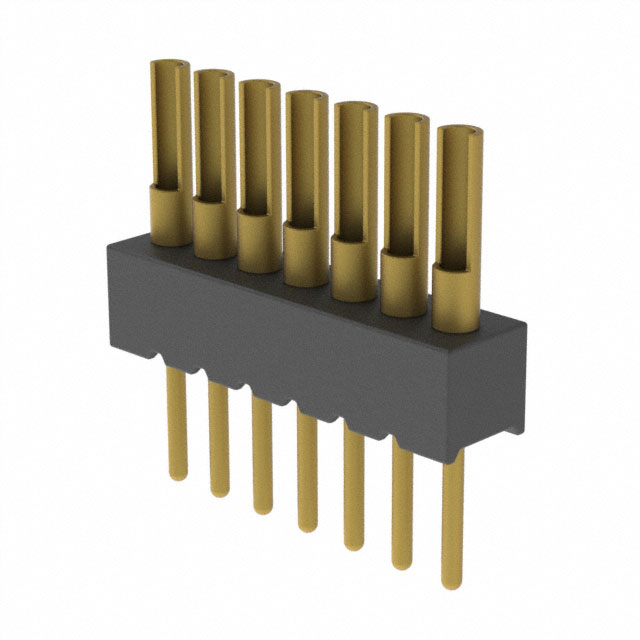

850-10-007-10-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.100" (2.54mm)
Contact Length - Post : 0.122" (3.10mm)
Overall Contact Length : 0.303" (7.70mm)
Insulation Height : 0.084" (2.14mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

333 in stock

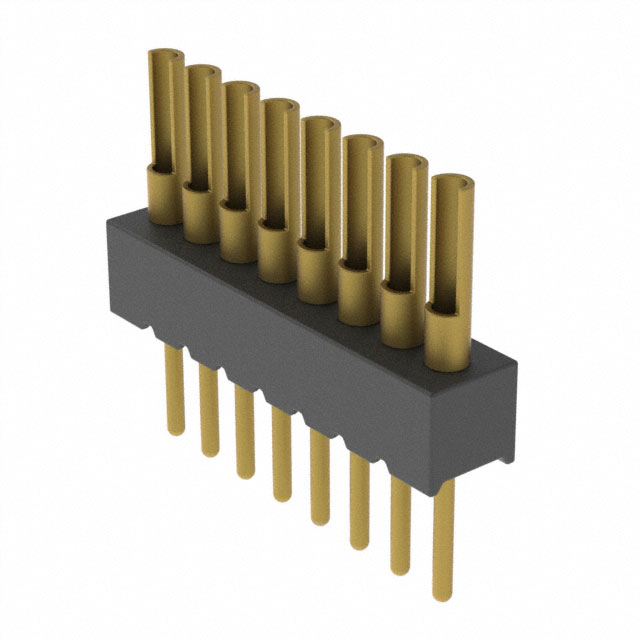

850-10-008-10-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.100" (2.54mm)
Contact Length - Post : 0.122" (3.10mm)
Overall Contact Length : 0.303" (7.70mm)
Insulation Height : 0.084" (2.14mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

276 in stock

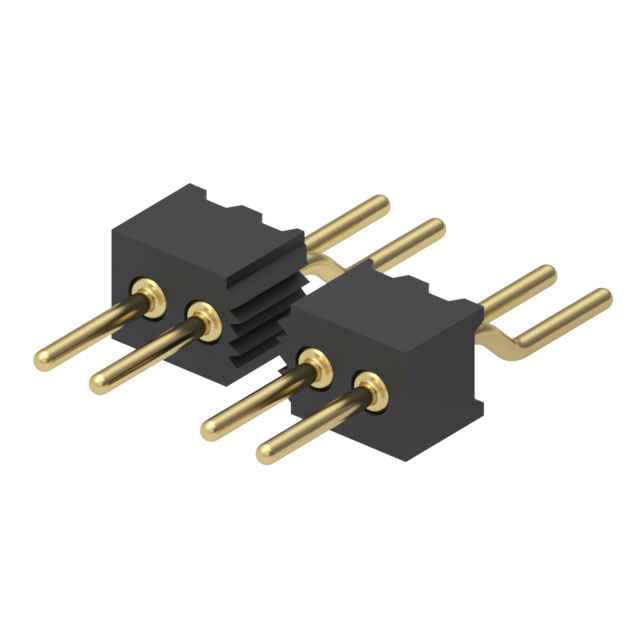

850-10-008-40-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.087" (2.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polycyclohexylenedimethylene Terephthalate (PCT)
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

241 in stock

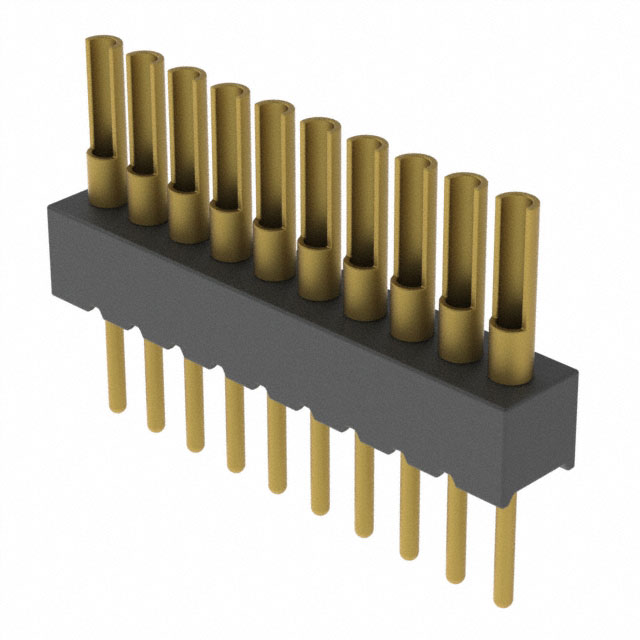

850-10-010-10-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.100" (2.54mm)
Contact Length - Post : 0.122" (3.10mm)
Overall Contact Length : 0.303" (7.70mm)
Insulation Height : 0.084" (2.14mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

177 in stock

850-10-010-40-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.087" (2.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polycyclohexylenedimethylene Terephthalate (PCT)
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

177 in stock

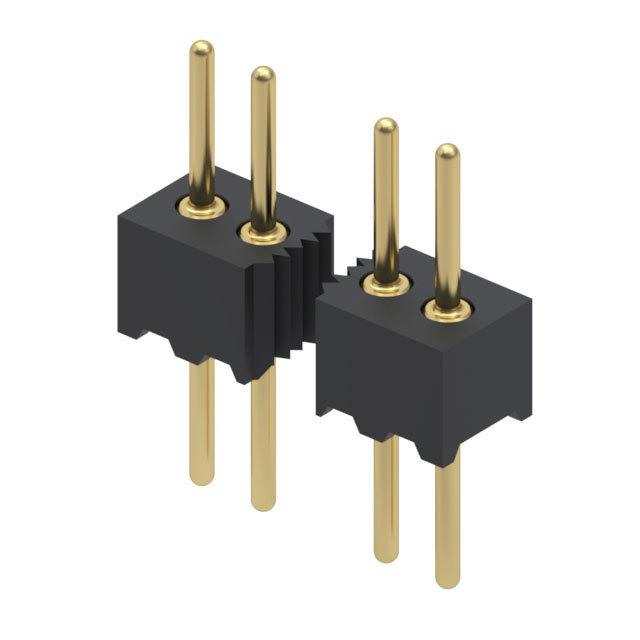

850-10-050-10-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 50
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.114" (2.90mm)
Overall Contact Length : 0.319" (8.10mm)
Insulation Height : 0.087" (2.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

2681 in stock

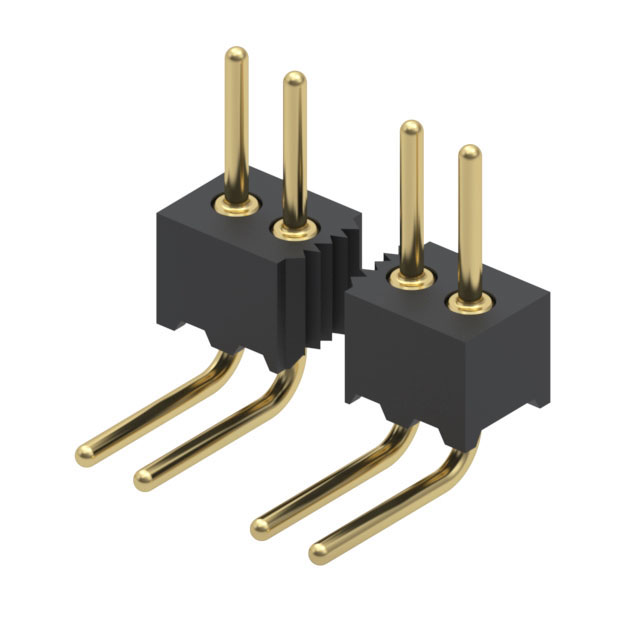

850-10-050-20-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 50
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.087" (2.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

150 in stock

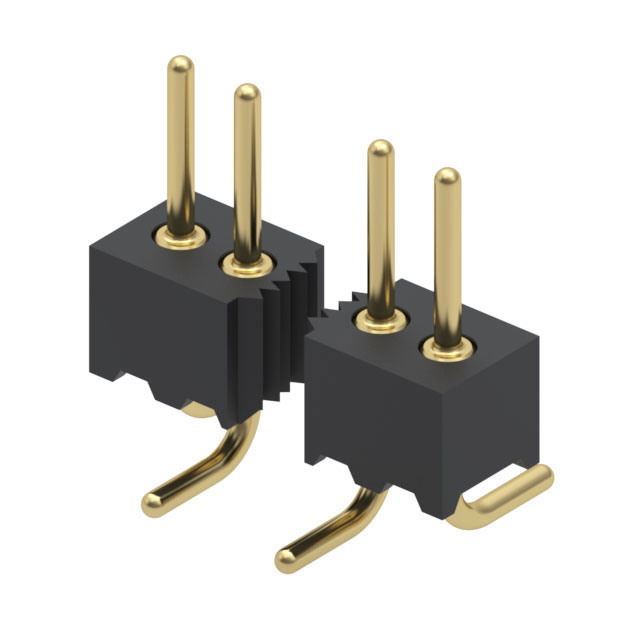

850-10-050-30-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 50
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.087" (2.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

789 in stock

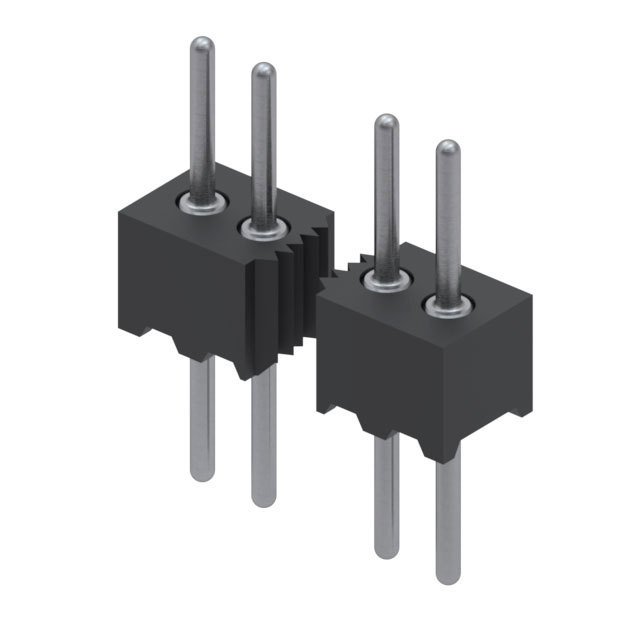

850-40-006-10-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 850
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.114" (2.90mm)
Overall Contact Length : 0.319" (8.10mm)
Insulation Height : 0.087" (2.20mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 200.0µin (5.08µm)
Contact Finish - Post : Tin
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -

19839 in stock
