Mill-Max Mfg. Corp.

- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.

Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.


Part Number

Manufacturer

Description

Unit Price

In Stock

9357-0-15-80-18-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9357
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.220" (5.59mm)
Accepts Pin Diameter : 0.037" ~ 0.043" (0.94mm ~ 1.09mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.054" (1.37mm)
Mounting Hole Diameter : 0.078" (1.98mm)
Flange Diameter : 0.103" (2.62mm)
Tail Diameter : -
Socket Depth : 0.195" (4.95mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1832 in stock

9359-0-15-15-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9359
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Knurled
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.090" (2.29mm)
Flange Diameter : 0.110" (2.79mm)
Tail Diameter : -
Socket Depth : 0.160" (4.06mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1000 in stock

9372-0-15-15-23-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9372
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.120" (3.05mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.120" (3.05mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

23277 in stock

9372-0-15-80-23-27-10-0

Mill-Max

1000 in stock

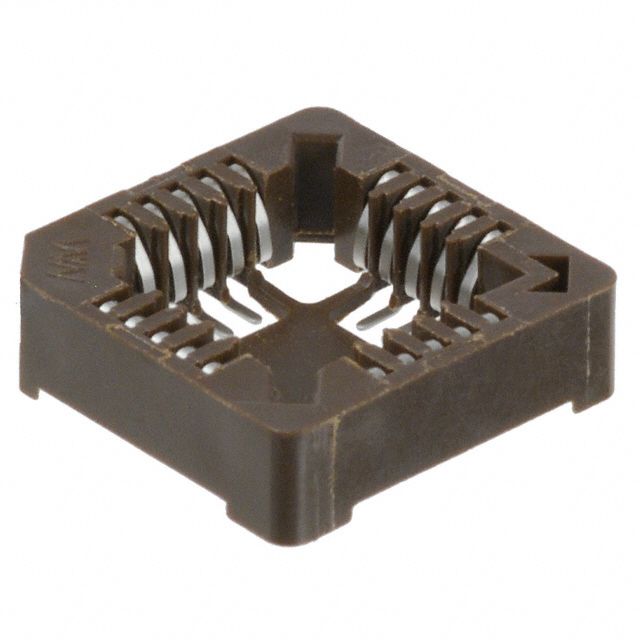

940-44-020-17-400000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 940
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 20 (4 x 5)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Surface Mount
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.050" (1.27mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C

758 in stock

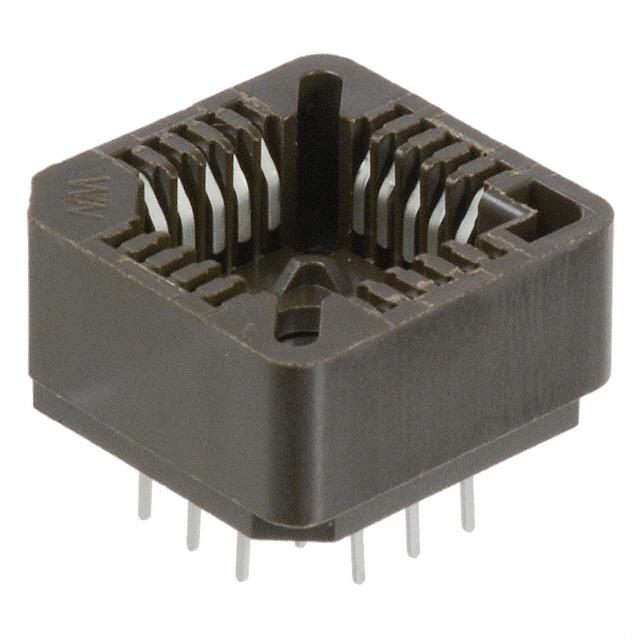

940-44-020-24-000000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 940
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 20 (4 x 5)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C

808 in stock

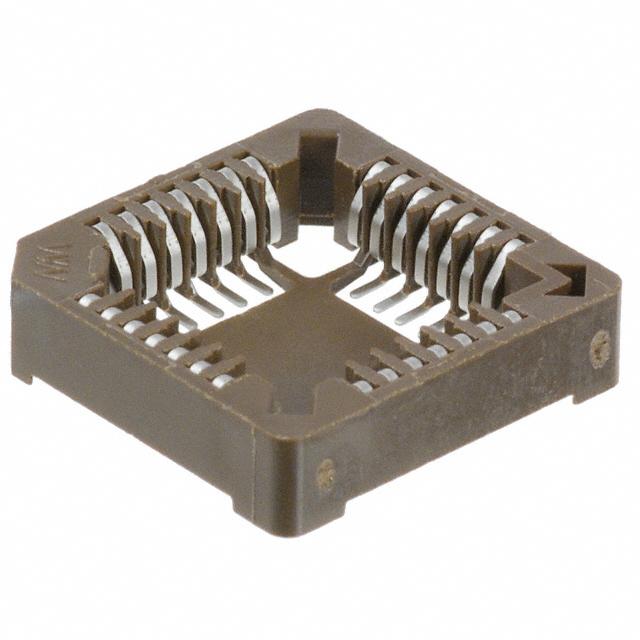

940-44-028-17-400000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 940
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 28 (4 x 7)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Surface Mount
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.050" (1.27mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C

2932 in stock

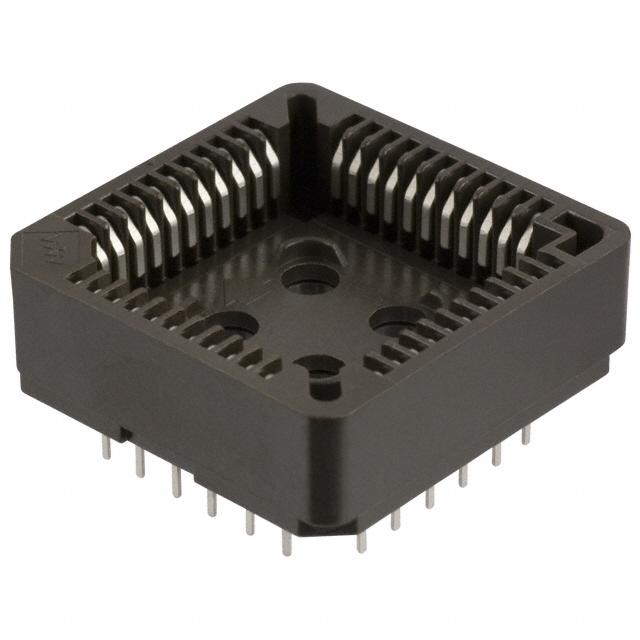

940-44-028-24-000000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 940
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 28 (4 x 7)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C

5384 in stock

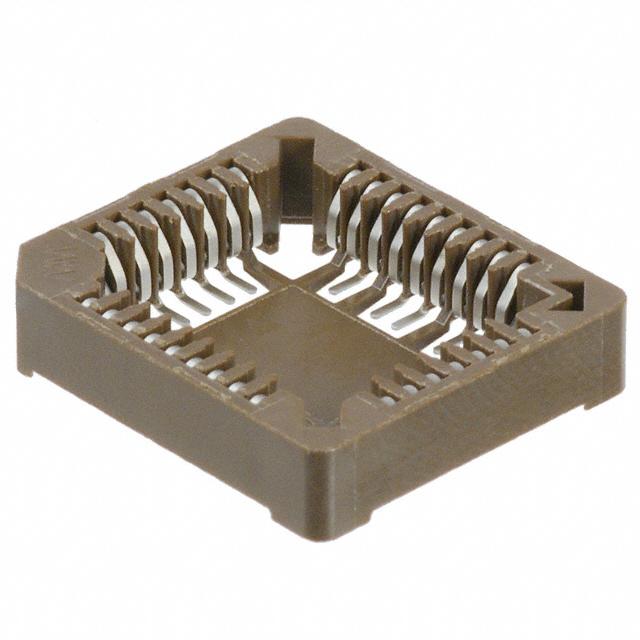

940-44-032-17-400000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 940
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 32 (2 x 7, 2 x 9)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Surface Mount
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.050" (1.27mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C

35871 in stock

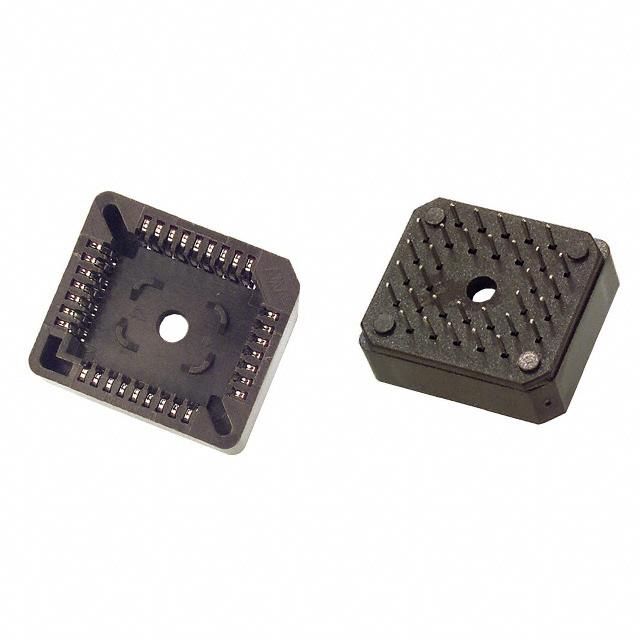

940-44-032-24-000000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 940
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 32 (2 x 7, 2 x 9)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C

3858 in stock

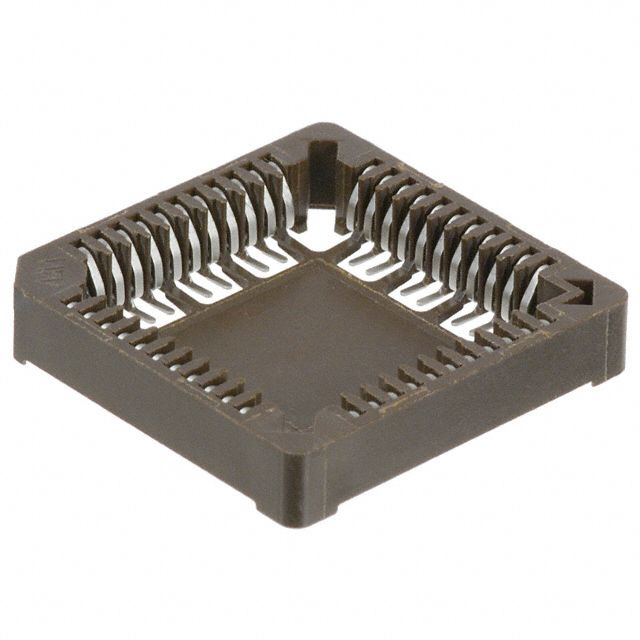

940-44-044-17-400000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 940
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 44 (4 x 11)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Surface Mount
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.050" (1.27mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C

6425 in stock

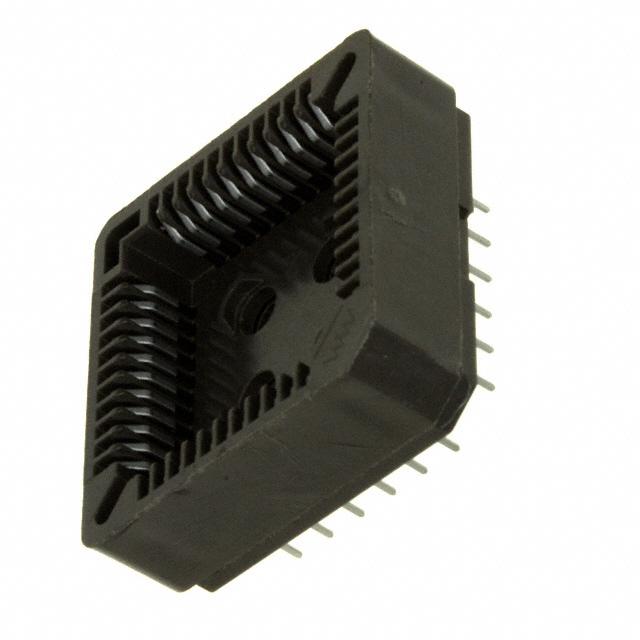

940-44-044-24-000000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 940
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 44 (4 x 11)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C

9176 in stock
