- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.

Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.


Part Number

Manufacturer

Description

Unit Price

In Stock

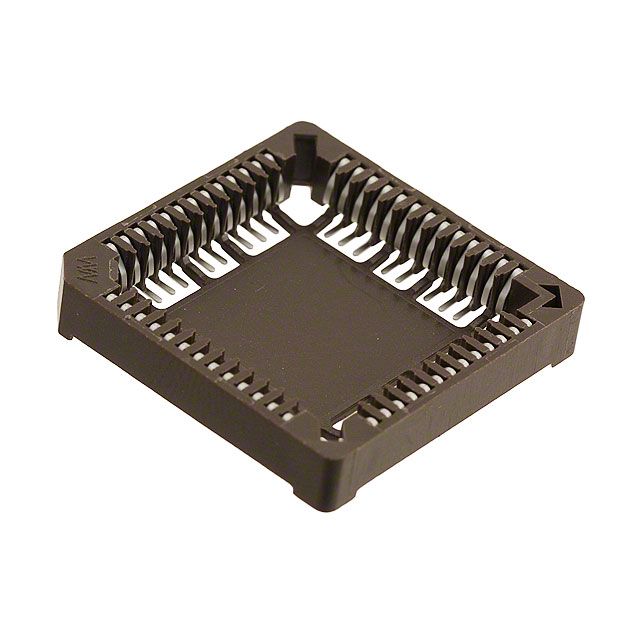

940-44-052-17-400000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 940
Part Status : Discontinued at
Type : PLCC
Number of Positions or Pins (Grid) : 52 (4 x 13)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Surface Mount
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.050" (1.27mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C

2781 in stock

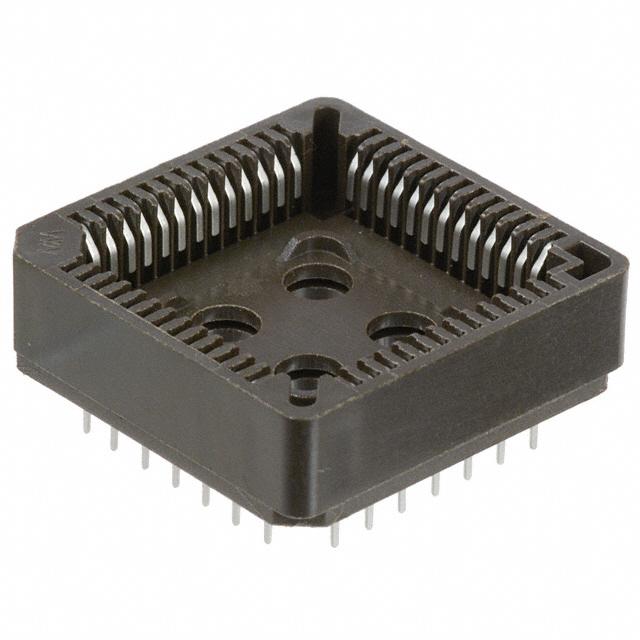

940-44-052-24-000000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 940
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 52 (4 x 13)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C

8329 in stock

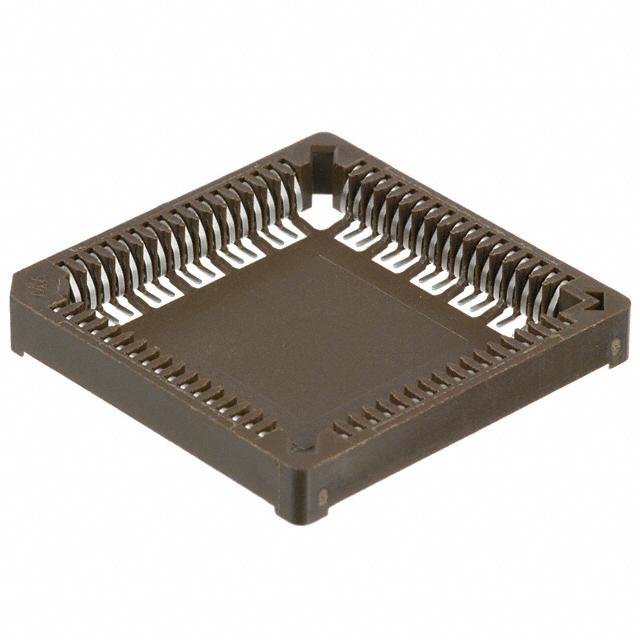

940-44-068-17-400000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 940
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 68 (4 x 17)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Surface Mount
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.050" (1.27mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C

1696 in stock

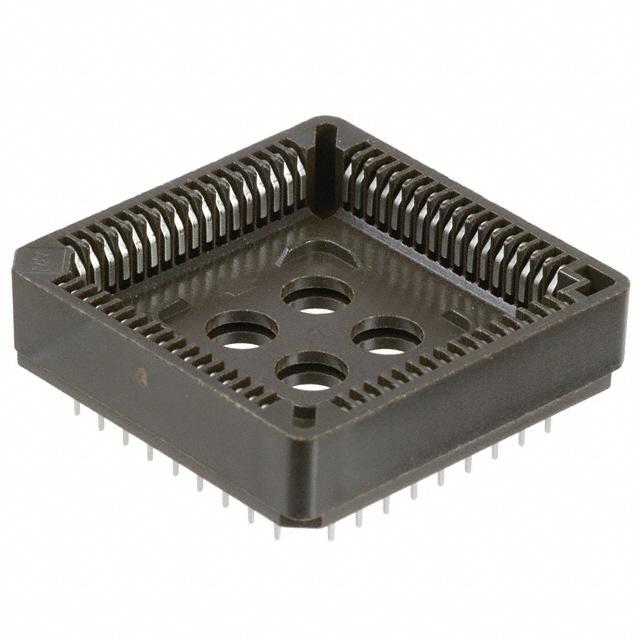

940-44-068-24-000000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 940
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 68 (4 x 17)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C

9766 in stock

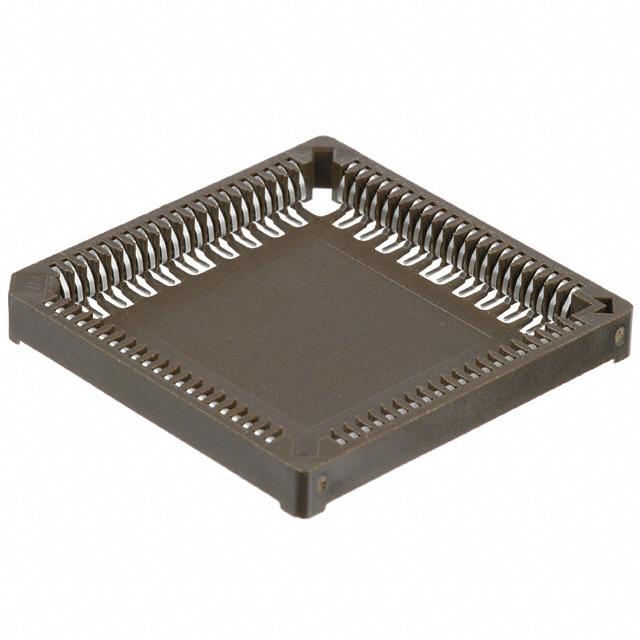

940-44-084-17-400000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 940
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 84 (4 x 21)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Surface Mount
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.050" (1.27mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C

1305 in stock

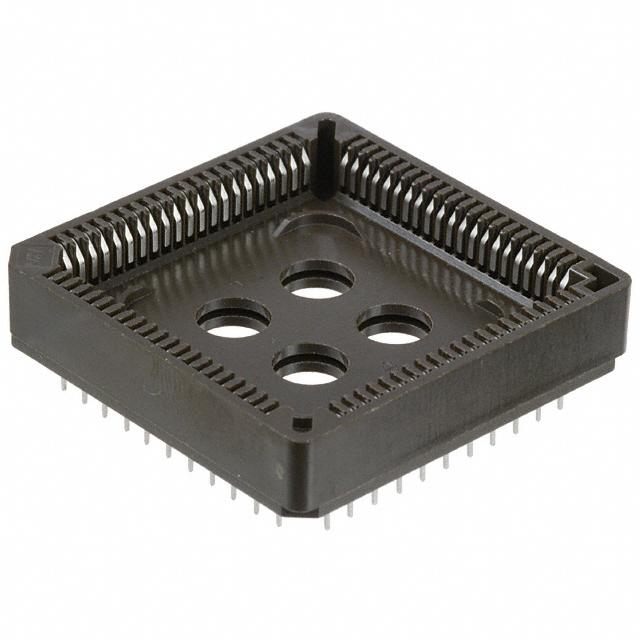

940-44-084-24-000000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 940
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 84 (4 x 21)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C

2600 in stock

9407-0-15-15-11-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9407
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.236" (6.00mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.127" (3.23mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

56075 in stock

9462-0-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9462
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit, Hex
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Flange Diameter : 0.054" (1.37mm)
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.015" (0.38mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

500 in stock

9548-0-15-15-21-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9548
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.155" (3.94mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.036" (0.91mm)
Flange Diameter : 0.058" (1.47mm)
Tail Diameter : -
Socket Depth : 0.138" (3.51mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1094 in stock

9801-0-15-15-23-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9801
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.230" (5.84mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : -
Socket Depth : 0.195" (4.95mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

13305 in stock

9808-0-15-01-16-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9808
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.255" (6.48mm)
Accepts Pin Diameter : 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Flange Diameter : 0.077" (1.96mm)
Tail Diameter : -
Socket Depth : 0.125" (3.18mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1108 in stock

9837-0-15-80-14-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9837
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.306" (7.77mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.159" (4.04mm)
Flange Diameter : 0.187" (4.75mm)
Tail Diameter : -
Socket Depth : 0.306" (7.77mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1408 in stock
