Murata Power Solutions
- Murata Power Solutions designs and manufactures DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Digital Panel Meters, and offers these products in custom, standard and modified-standard variations. Currently the world's number 1 supplier of DC/DC converters and one of the top 5 largest suppliers of power electronics overall, our products are used within numerous applications including telecommunications, computing, industrial, medical, office-equipment and more.
Murata Power Solutions was formed in 2007 when Murata Manufacturing Corporation acquired the power electronics division of C&D Technologies. We are headquartered in Mansfield, Massachusetts (USA) with over 1,300 employees in locations in the USA, Canada, Mexico, England, France, Germany, Japan, China and Singapore.
Part Number
Manufacturer
Description
Unit Price
In Stock

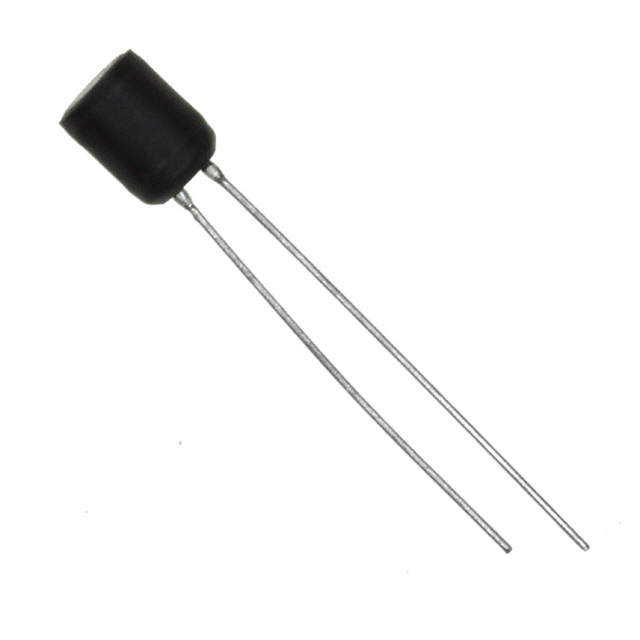

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 6.8mH
Tolerance : ±10%
Current Rating : 72mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 22 Ohm Max
Q @ Freq : 145 @ 150kHz
Frequency - Self Resonant : 850kHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
423 in stock

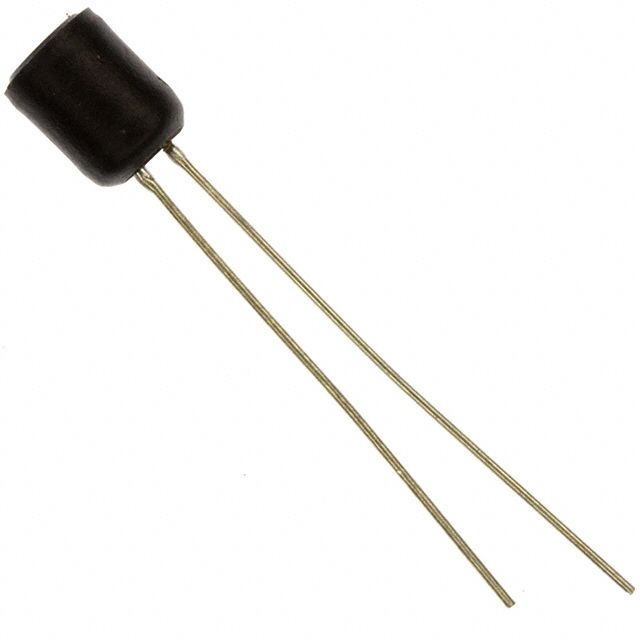

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 68mH
Tolerance : ±10%
Current Rating : 18mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 242 Ohm Max
Q @ Freq : 70 @ 50kHz
Frequency - Self Resonant : 200kHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
1270 in stock

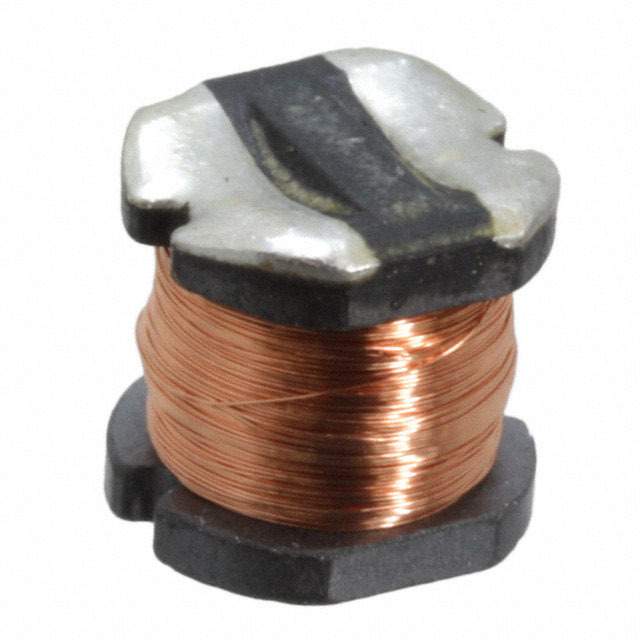

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2200RM
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 68mH
Tolerance : ±10%
Current Rating : 26mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 242 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.311" (7.90mm)
0
100 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2300
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 10µH
Tolerance : -
Current Rating : 1.02A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 138 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) : 0.126" (3.20mm)
0
1941 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2300
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 100µH
Tolerance : -
Current Rating : 430mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.281 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) : 0.126" (3.20mm)
0
700 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2300
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4.7µH
Tolerance : -
Current Rating : 1.48A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 68 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) : 0.126" (3.20mm)
0
1923 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2300
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 10µH
Tolerance : -
Current Rating : 1.18A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 87 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.244" L x 0.220" W (6.20mm x 5.60mm)
Height - Seated (Max) : 0.126" (3.20mm)
0
1965 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2300
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4.7µH
Tolerance : -
Current Rating : 1.6A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 44 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.244" L x 0.220" W (6.20mm x 5.60mm)
Height - Seated (Max) : 0.126" (3.20mm)
0
2000 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2400
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 10µH
Tolerance : -
Current Rating : 1.44A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 27.8MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
4482 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2400
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 47µH
Tolerance : -
Current Rating : 720mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 370 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 10.9MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1596 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2400
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 10µH
Tolerance : -
Current Rating : 1.64A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 70 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 25.6MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.303" L x 0.280" W (7.70mm x 7.10mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
685 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2400
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 220µH
Tolerance : -
Current Rating : 350mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.31 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : 3.58MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.303" L x 0.280" W (7.70mm x 7.10mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1980 in stock
