Murata Power Solutions
- Murata Power Solutions designs and manufactures DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Digital Panel Meters, and offers these products in custom, standard and modified-standard variations. Currently the world's number 1 supplier of DC/DC converters and one of the top 5 largest suppliers of power electronics overall, our products are used within numerous applications including telecommunications, computing, industrial, medical, office-equipment and more.
Murata Power Solutions was formed in 2007 when Murata Manufacturing Corporation acquired the power electronics division of C&D Technologies. We are headquartered in Mansfield, Massachusetts (USA) with over 1,300 employees in locations in the USA, Canada, Mexico, England, France, Germany, Japan, China and Singapore.
Part Number
Manufacturer
Description
Unit Price
In Stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2600
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 22µH
Tolerance : -
Current Rating : 2.2A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 70 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 15.5MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.496" L x 0.181" W (12.60mm x 4.60mm)
Height - Seated (Max) : 0.232" (5.90mm)
0
446 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2600
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 220µH
Tolerance : -
Current Rating : 700mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 520 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 3.75MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.496" L x 0.181" W (12.60mm x 4.60mm)
Height - Seated (Max) : 0.232" (5.90mm)
0
500 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2600
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 330µH
Tolerance : -
Current Rating : 570mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 800 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 2.87MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.496" L x 0.181" W (12.60mm x 4.60mm)
Height - Seated (Max) : 0.232" (5.90mm)
0
500 in stock

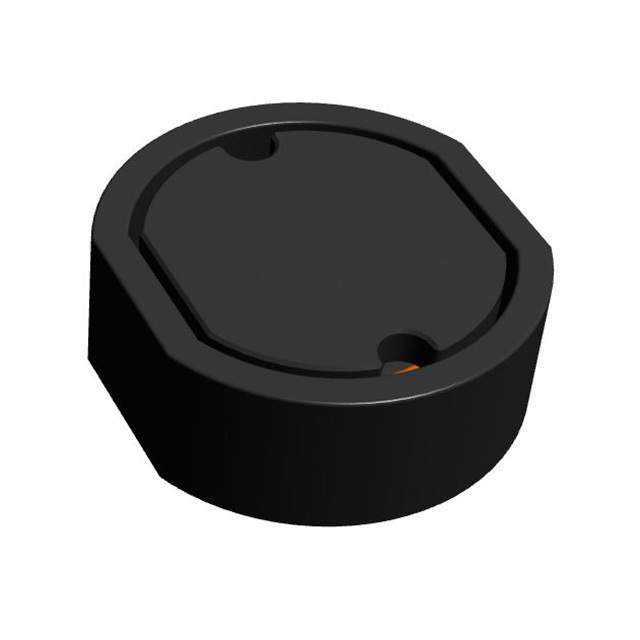

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2600
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 47µH
Tolerance : -
Current Rating : 1.5A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 120 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 9.44MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.496" L x 0.181" W (12.60mm x 4.60mm)
Height - Seated (Max) : 0.232" (5.90mm)
0
500 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2600
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 68µH
Tolerance : -
Current Rating : 1.26A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 170 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 7.47MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.496" L x 0.181" W (12.60mm x 4.60mm)
Height - Seated (Max) : 0.232" (5.90mm)
0
500 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2600
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 6.8µH
Tolerance : -
Current Rating : 3.21A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 43 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 30MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.496" L x 0.181" W (12.60mm x 4.60mm)
Height - Seated (Max) : 0.232" (5.90mm)
0
500 in stock

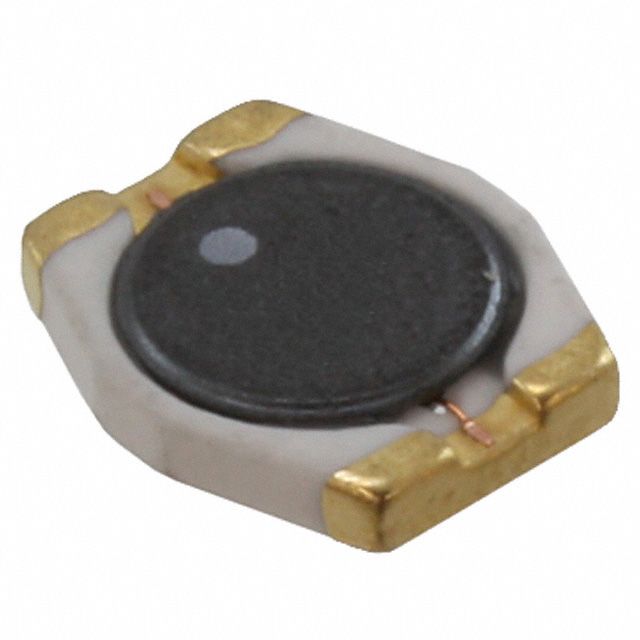

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2700
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 1.6A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : -
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.354" L x 0.303" W (9.00mm x 7.70mm)
Height - Seated (Max) : 0.065" (1.65mm)
0
100 in stock

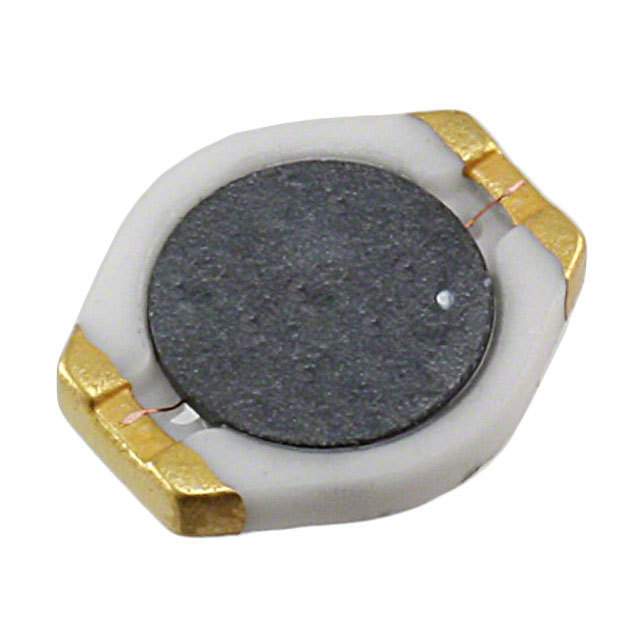

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2700T
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 10µH
Tolerance : ±20%
Current Rating : 700mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 410 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : -
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.254" L x 0.213" W (6.45mm x 5.40mm)
Height - Seated (Max) : 0.041" (1.05mm)
0
1057 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 2800
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 1.5µH
Tolerance : -
Current Rating : 12.5A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 3.6 mOhm Max
Q @ Freq : 43.9 @ 1MHz
Frequency - Self Resonant : 72MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.728" L x 0.598" W (18.50mm x 15.20mm)
Height - Seated (Max) : 0.299" (7.60mm)
0
350 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 2800
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 1.5mH
Tolerance : -
Current Rating : 410mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 2.62 Ohm Max
Q @ Freq : 19.8 @ 800kHz
Frequency - Self Resonant : 3.4MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.728" L x 0.598" W (18.50mm x 15.20mm)
Height - Seated (Max) : 0.299" (7.60mm)
0
100 in stock

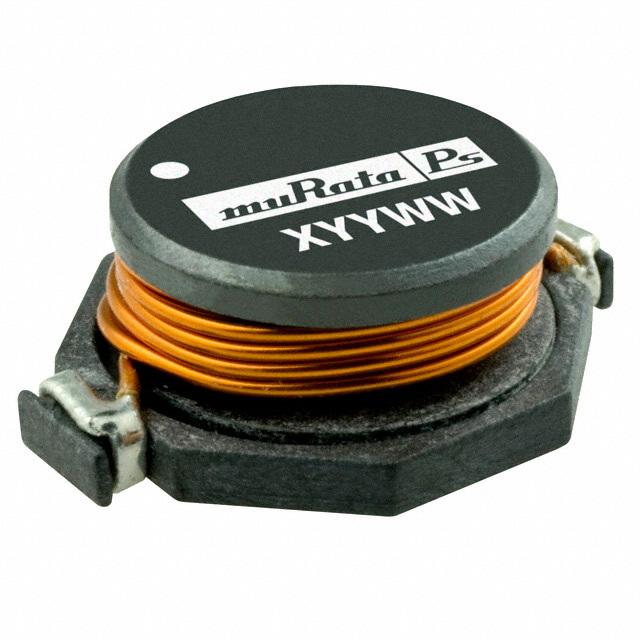

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 2800
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 2.2µH
Tolerance : -
Current Rating : 11.2A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 4.4 mOhm Max
Q @ Freq : 36.9 @ 1MHz
Frequency - Self Resonant : 58MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.728" L x 0.598" W (18.50mm x 15.20mm)
Height - Seated (Max) : 0.299" (7.60mm)
0
350 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 2800
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 22µH
Tolerance : -
Current Rating : 3.85A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 42 mOhm Max
Q @ Freq : 43.5 @ 1MHz
Frequency - Self Resonant : 14.4MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.728" L x 0.598" W (18.50mm x 15.20mm)
Height - Seated (Max) : 0.299" (7.60mm)
0
350 in stock
